High-flow 1-section electro-hydraulic sectional directional valve designed for mobile equipment, delivering up to 200 L/min with 315 bar capability, stable operation across wide viscosity and extreme ambient temperatures, and offering flexible port thread options (G1 / M33×2.0 / 1 NPT).
global shipping world wide
Online Service For 24 X 7
Support OEM customization

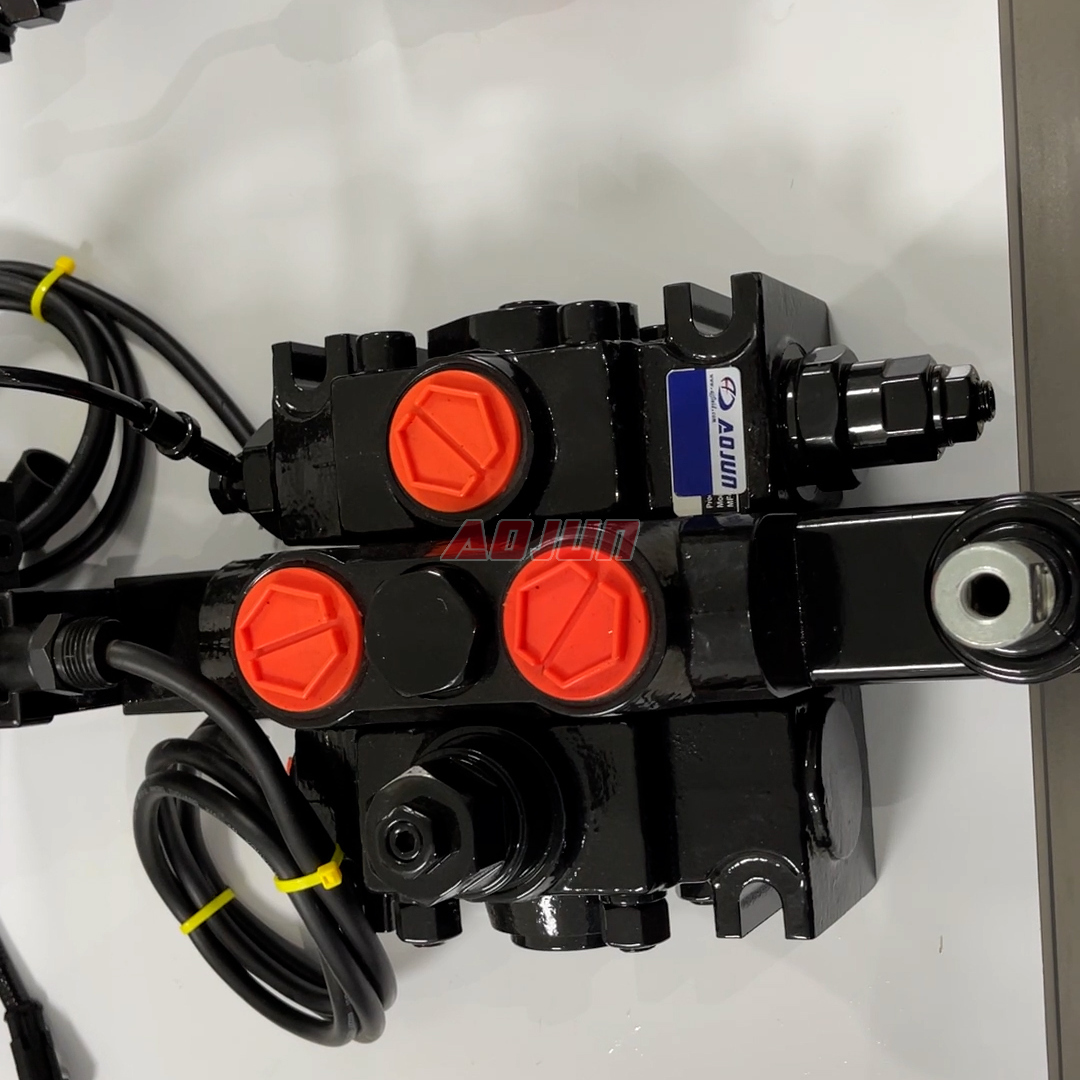

This 1-spool, 1-section electro-hydraulic sectional directional valve is engineered for demanding mobile hydraulics where fast response, high flow capacity, and reliable pressure handling are required. Rated flow reaches 200 L/min (52 US gpm) and maximum working pressure is 315 bar (4600 psi), making it suitable for high-output circuits on construction, material handling, industrial vehicle, and agricultural machines.
Key advantages:
- Electro-hydraulic control: enables precise remote actuation and easy integration with modern machine electrics for smoother operation and improved productivity.
- Sectional structure: supports modular system design and service-friendly maintenance compared with one-piece bodies.
- Wide fluid compatibility: operating viscosity range 12–400 mm²/s helps maintain performance across different hydraulic oils and varying working conditions.
- Extreme environment readiness: ambient temperature range -40°C to +60°C supports cold starts and hot climate operation.
- Port flexibility for global markets: inlet/outlet and working port thread options include G1, M33×2.0, and 1 NPT for easier replacement or OEM adaptation.
Typical applications:
- Telehandlers, forklifts, aerial platforms: stable lift/tilt control and dependable high-flow handling.
- Wheel loaders, skid steer loaders, backhoe loaders, motor graders, dumpers: robust directional control under shock loads and continuous duty.
- Concrete boom pumps and sweepers: consistent actuation for auxiliary functions.
Supply & customization:
Available for manufacturing, OEM/ODM, private label, custom porting/thread configurations, bulk wholesale supply, and distributor/agent partnerships for global markets.
| DCV200-PG2 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Rated Flow | 200 L/min (52 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1, M33×2.0, 1 NPT |
| Outlet Port | G1, M33×2.0, 1 NPT |
| Port Size | G1, M33×2.0, 1 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
