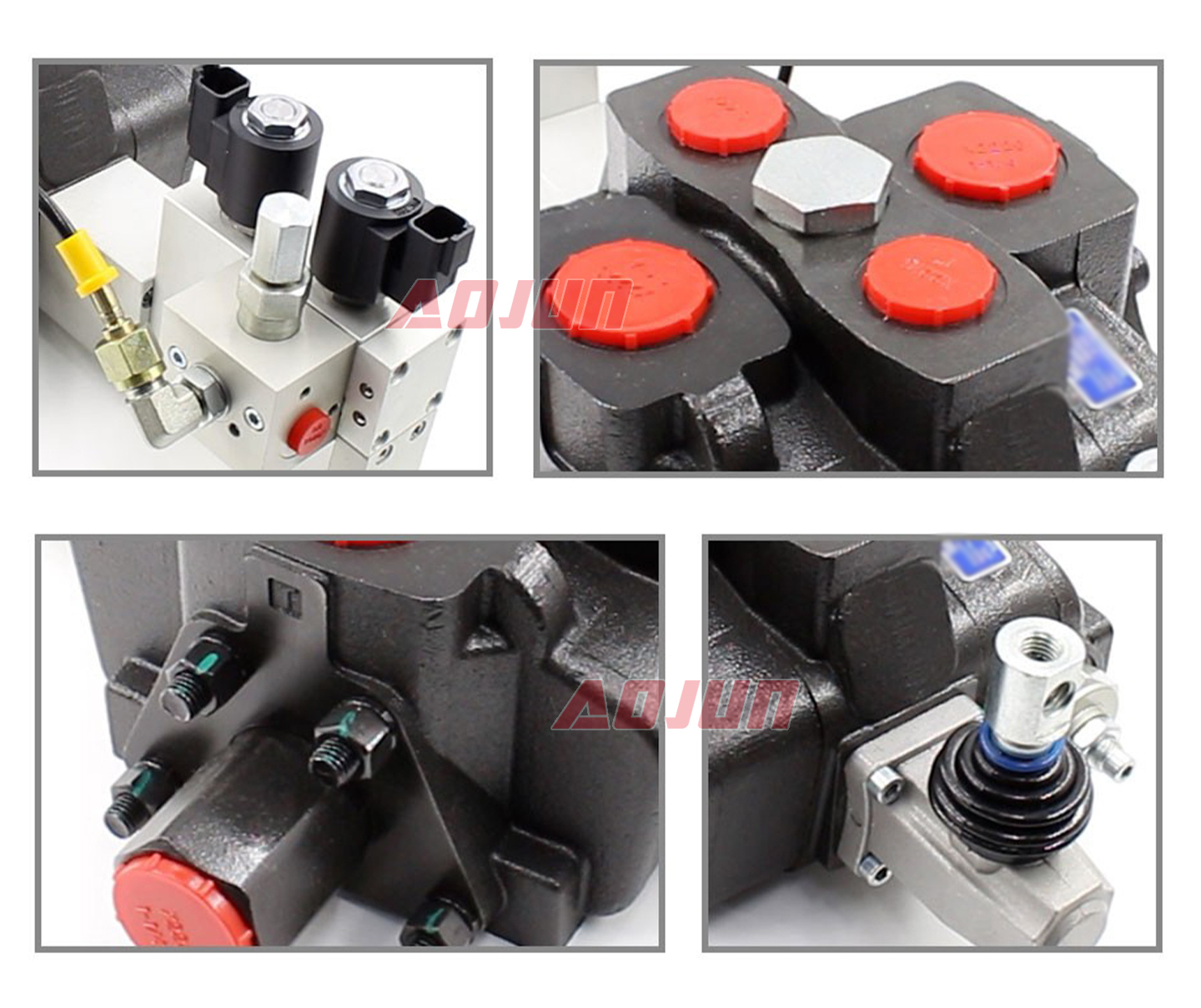

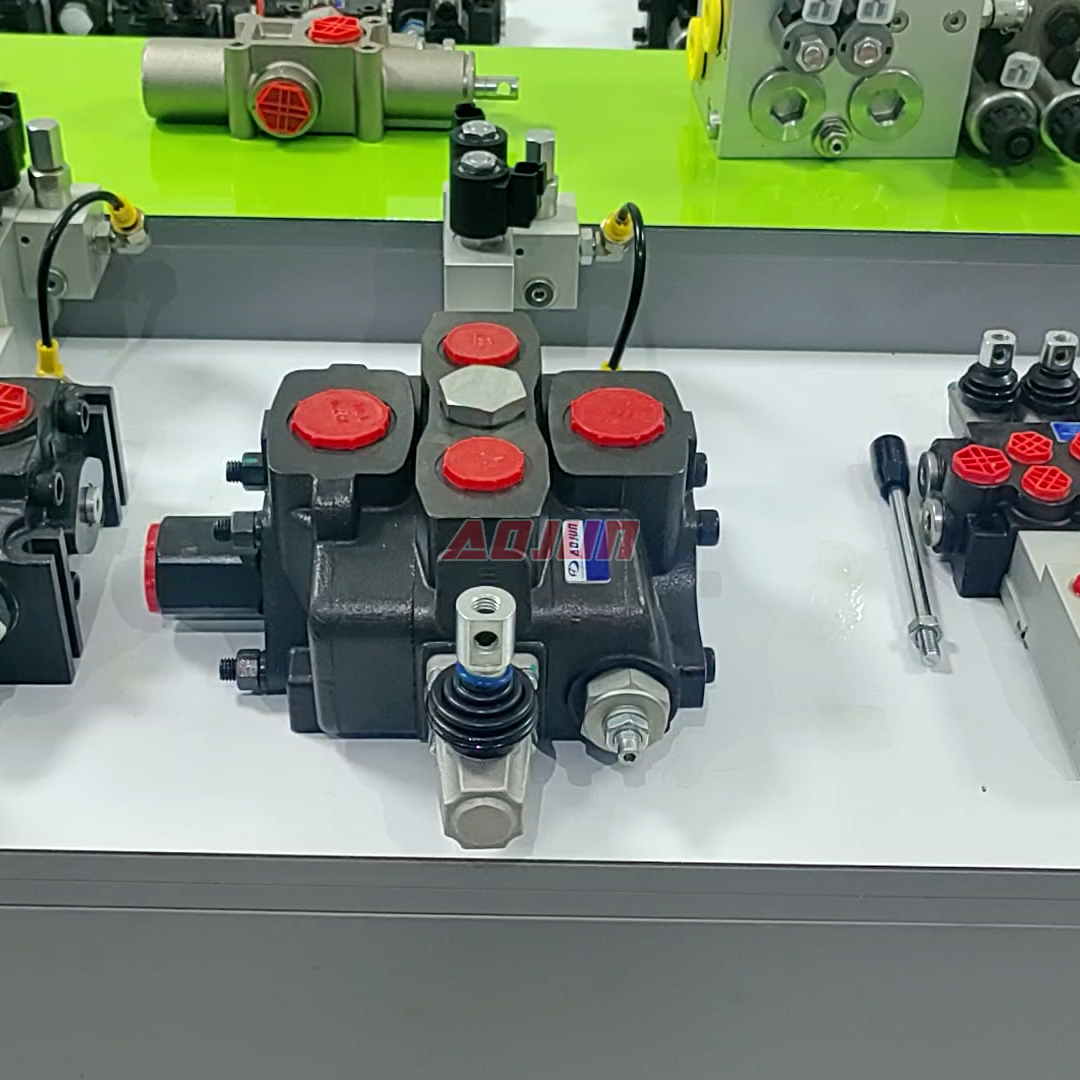

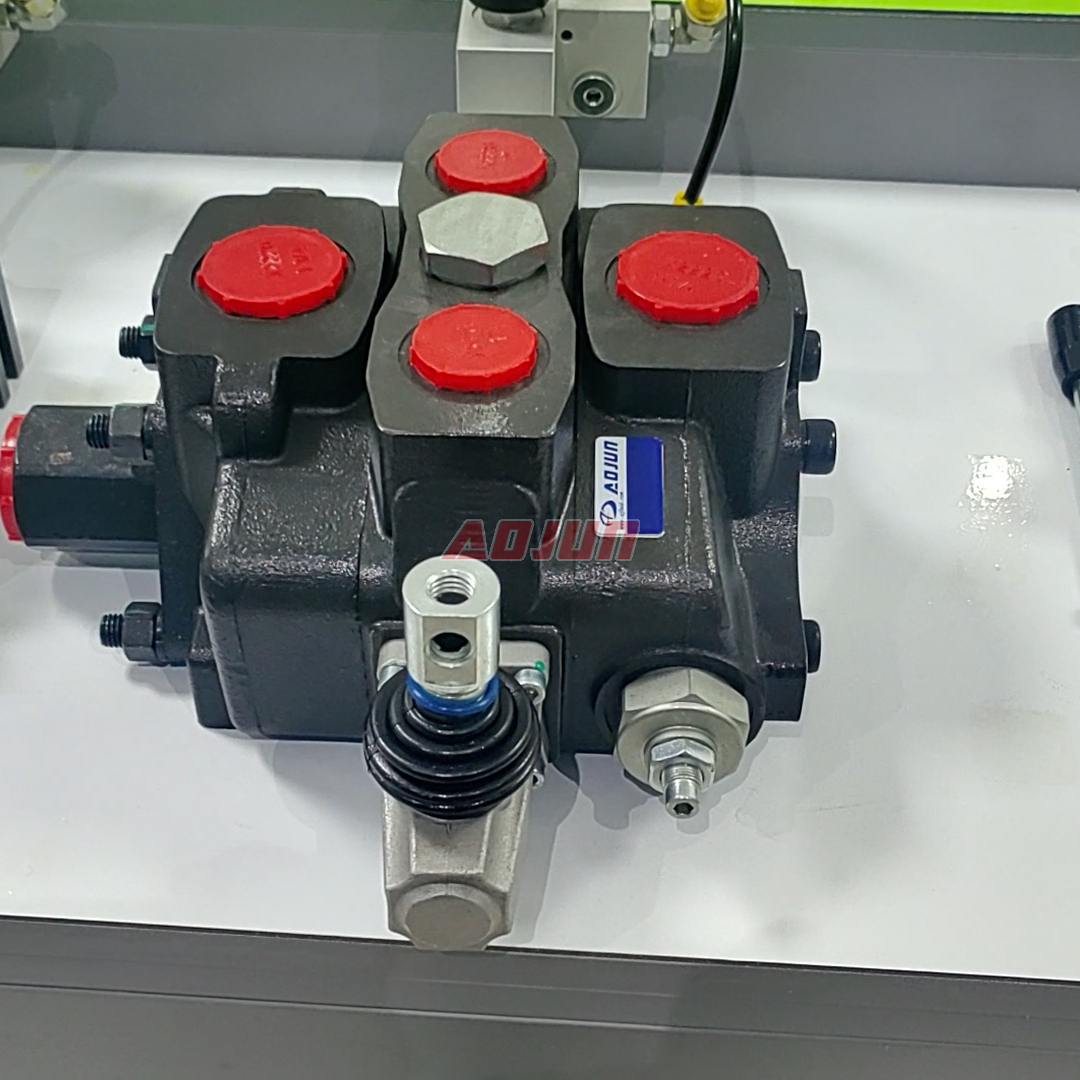

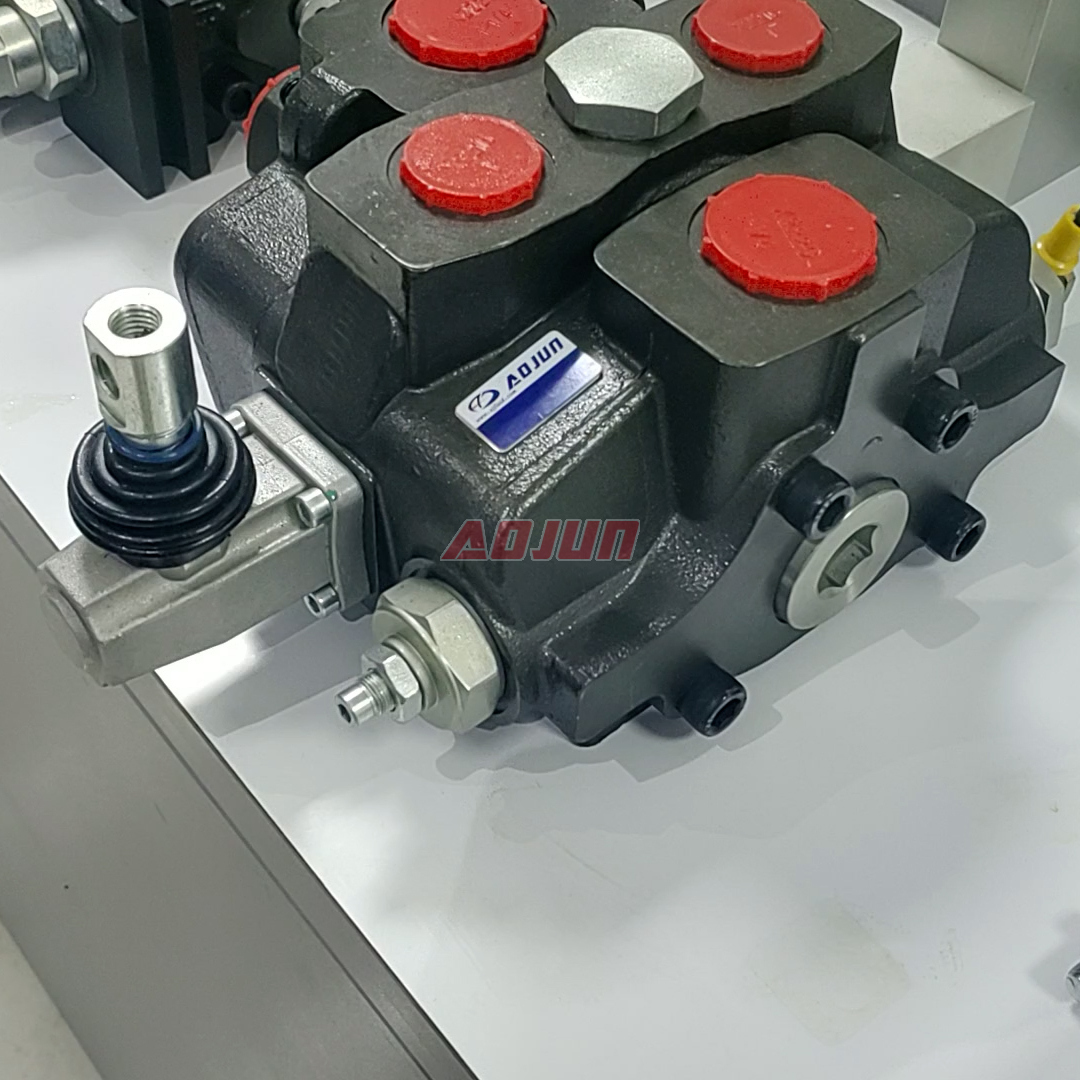

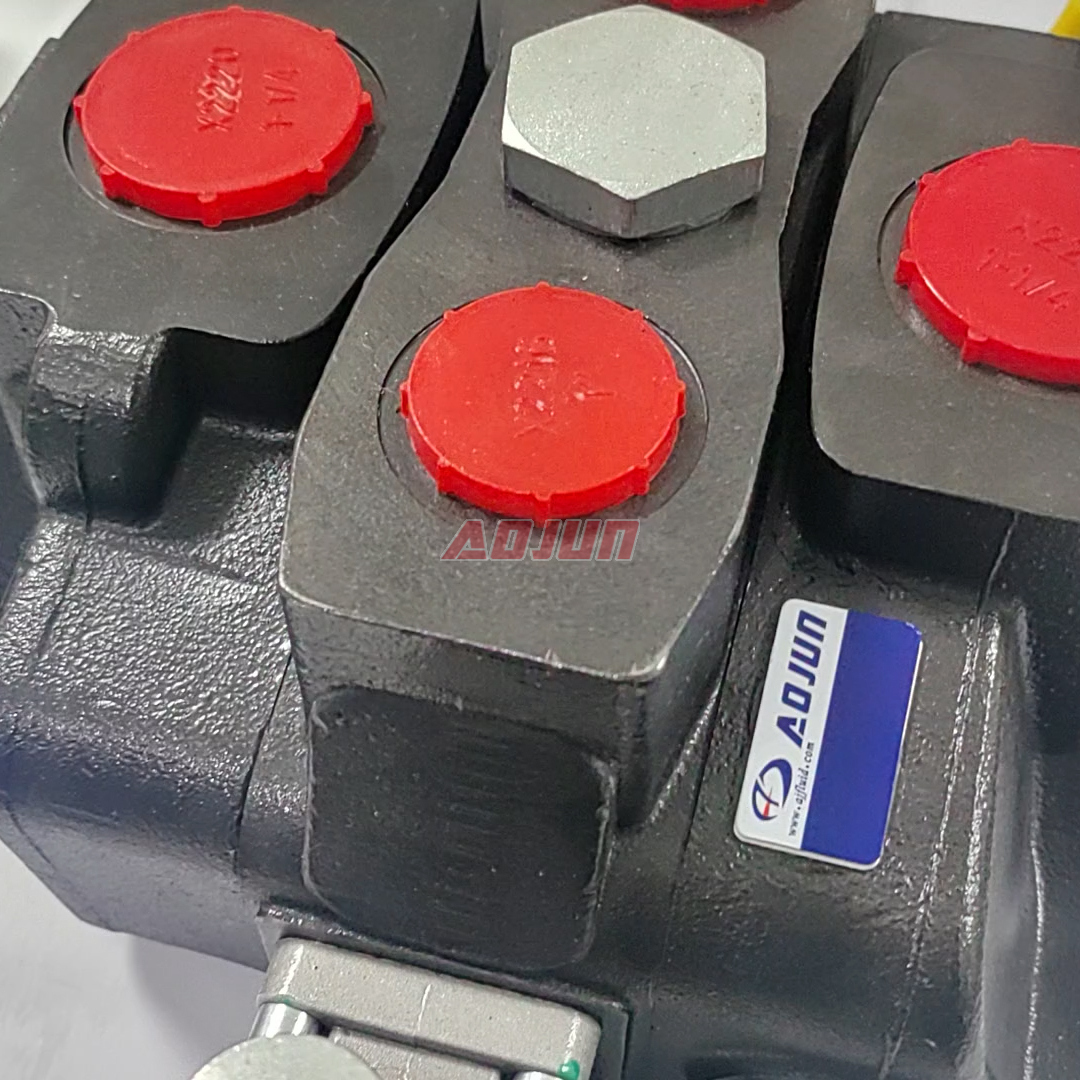

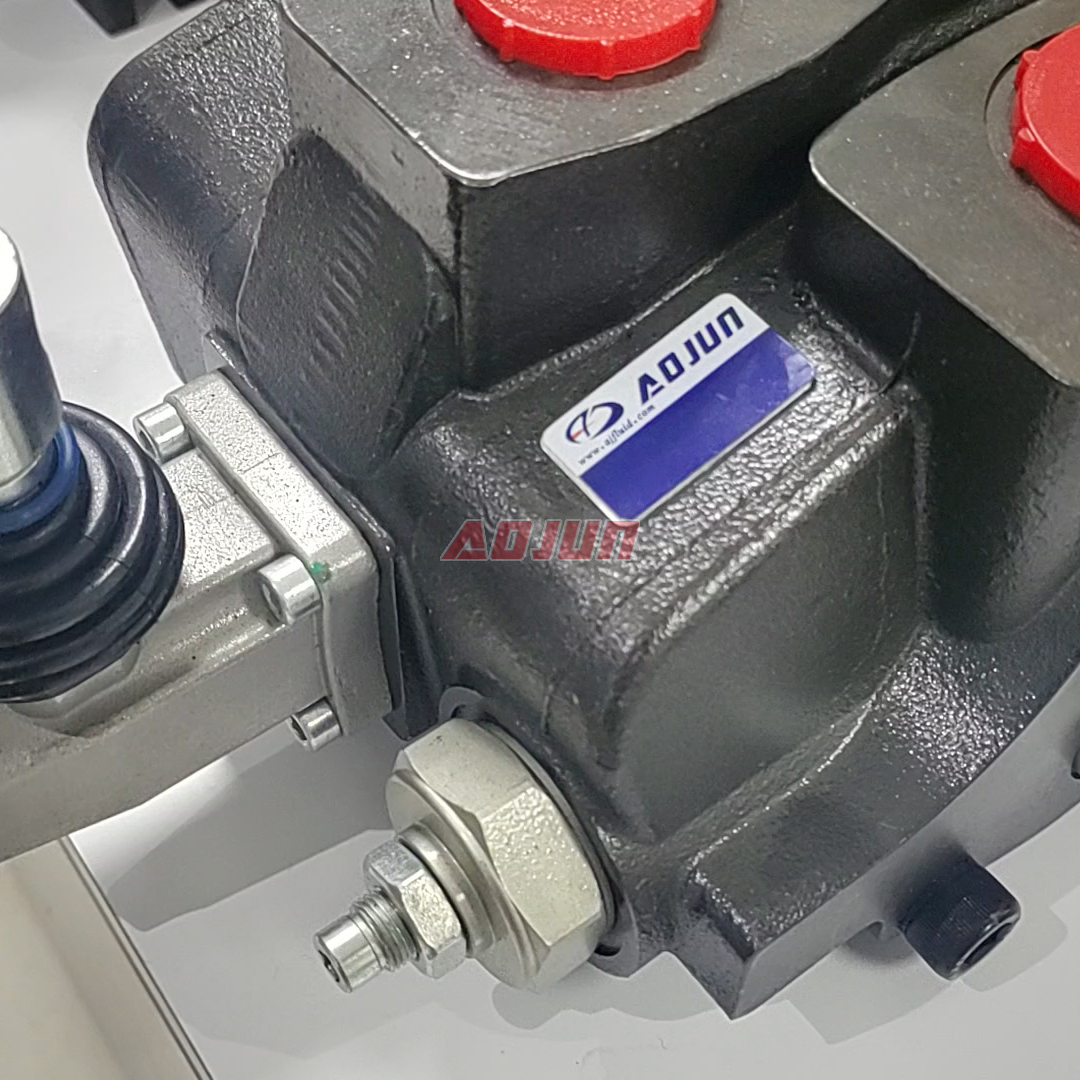

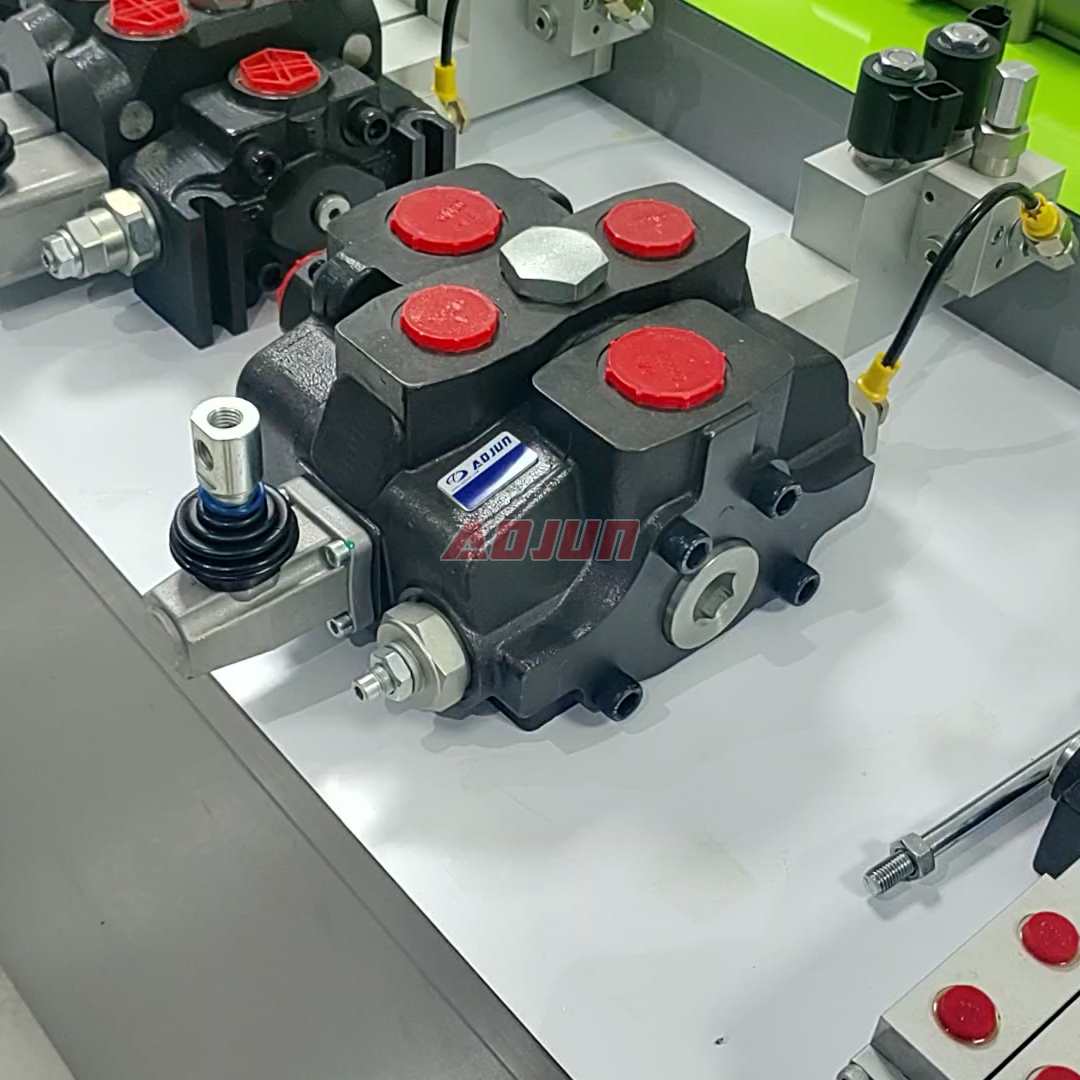

Electro-hydraulic monoblock directional valve with 1 section/1 spool, delivering up to 240 L/min flow and 315 bar pressure for reliable control of mobile equipment functions in harsh environments.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Designed for mobile hydraulics requiring fast response and stable directional control, this 1-spool electro-hydraulic valve combines high flow capacity (240 L/min) with high pressure rating (315 bar). The monoblock structure improves sealing integrity, reduces leak paths, and supports compact installation on machines with limited space. Wide operating viscosity (12–400 cSt) supports varied hydraulic oils and temperature-driven viscosity changes, while the ambient temperature range (-40°C to +80°C) suits cold starts and hot working conditions. Typical applications include auxiliary/implement circuits on telehandlers and forklifts, attachment control on skid steers and excavators, and hydraulic function control on loaders and agricultural equipment. We support OEM/ODM manufacturing, private label, customization, bulk supply, and distributor/wholesaler partnerships for global markets.
| SD25 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Electro-hydraulic, Hydraulic |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Rated Flow | 240 L/min (63.4 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1, SAE 16 |
| Outlet Port | G1-1/4, SAE 16 |
| Port Size | G1, G1-1/4, SAE 12 |
