A high-flow, high-pressure 1-section hydraulic directional control valve designed for demanding mobile and industrial machines, supporting 380 L/min flow and up to 315 bar with wide viscosity and temperature operating ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

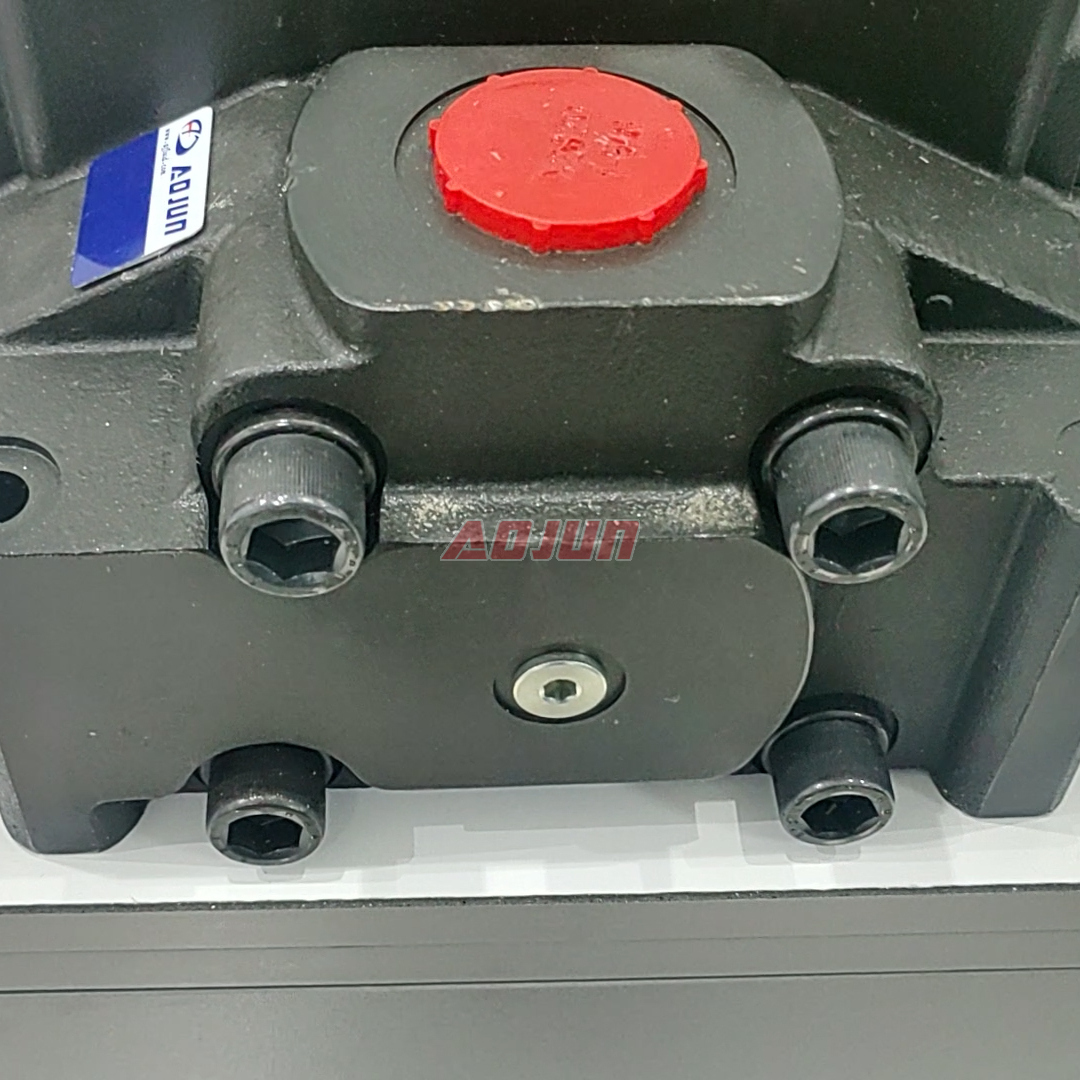

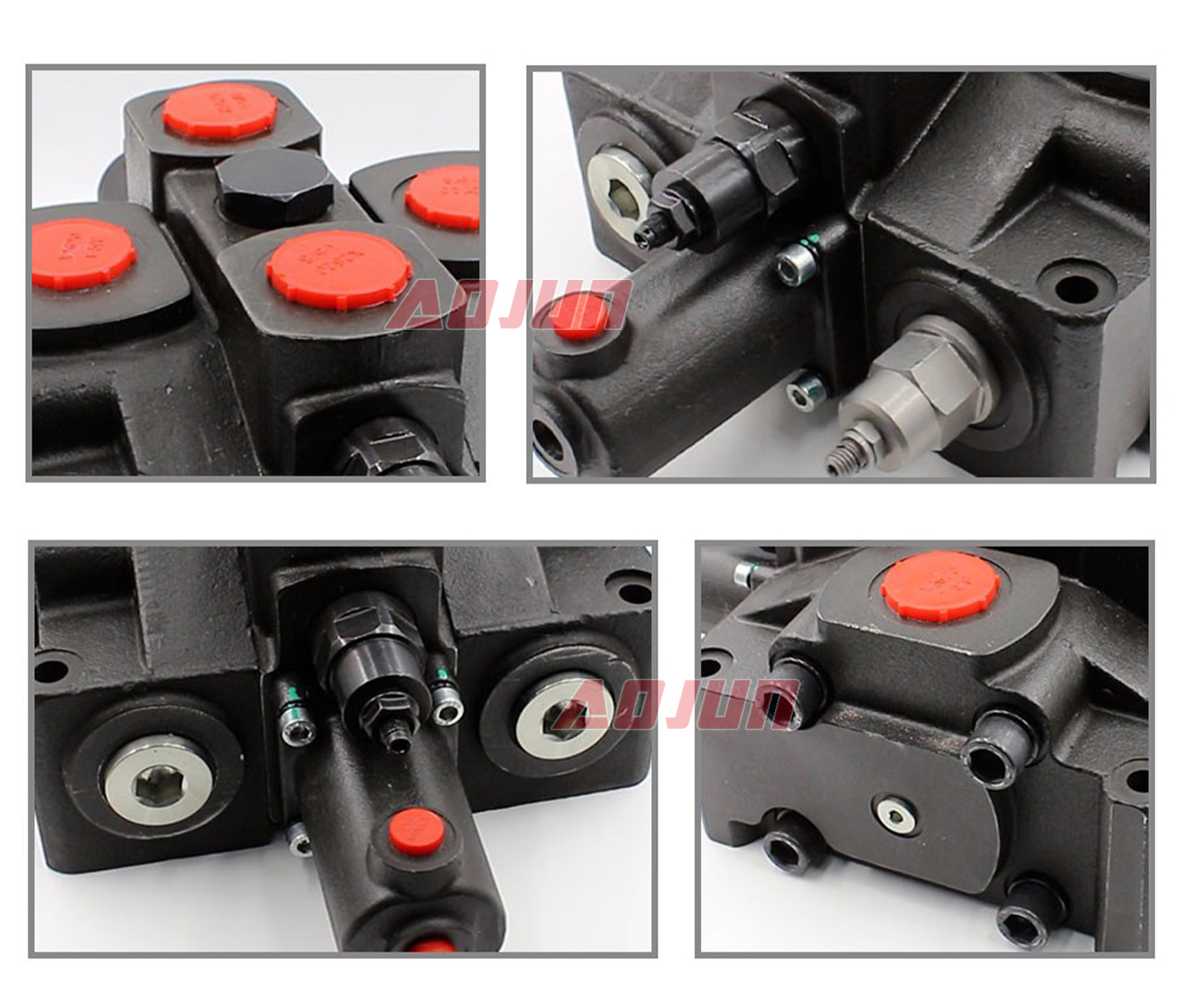

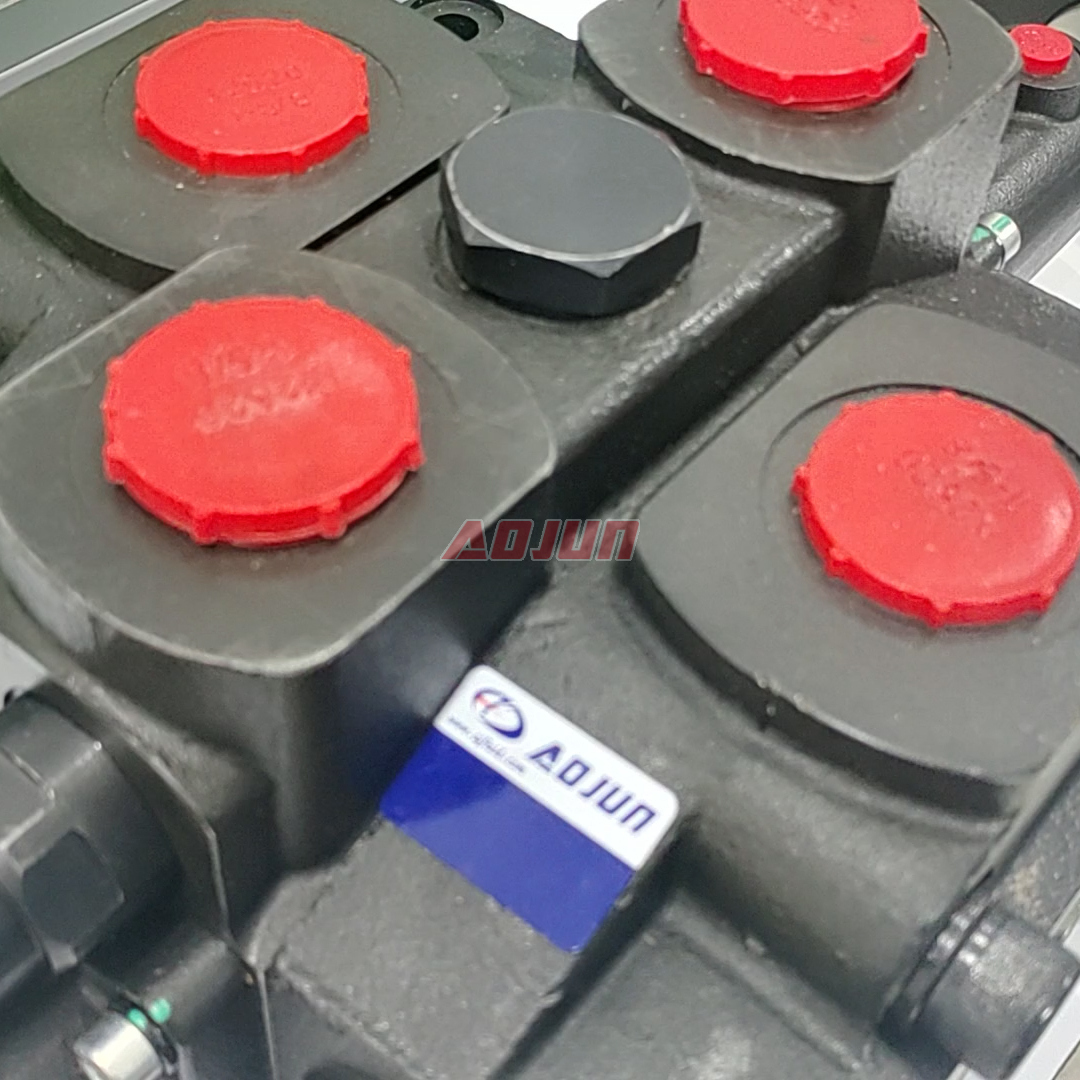

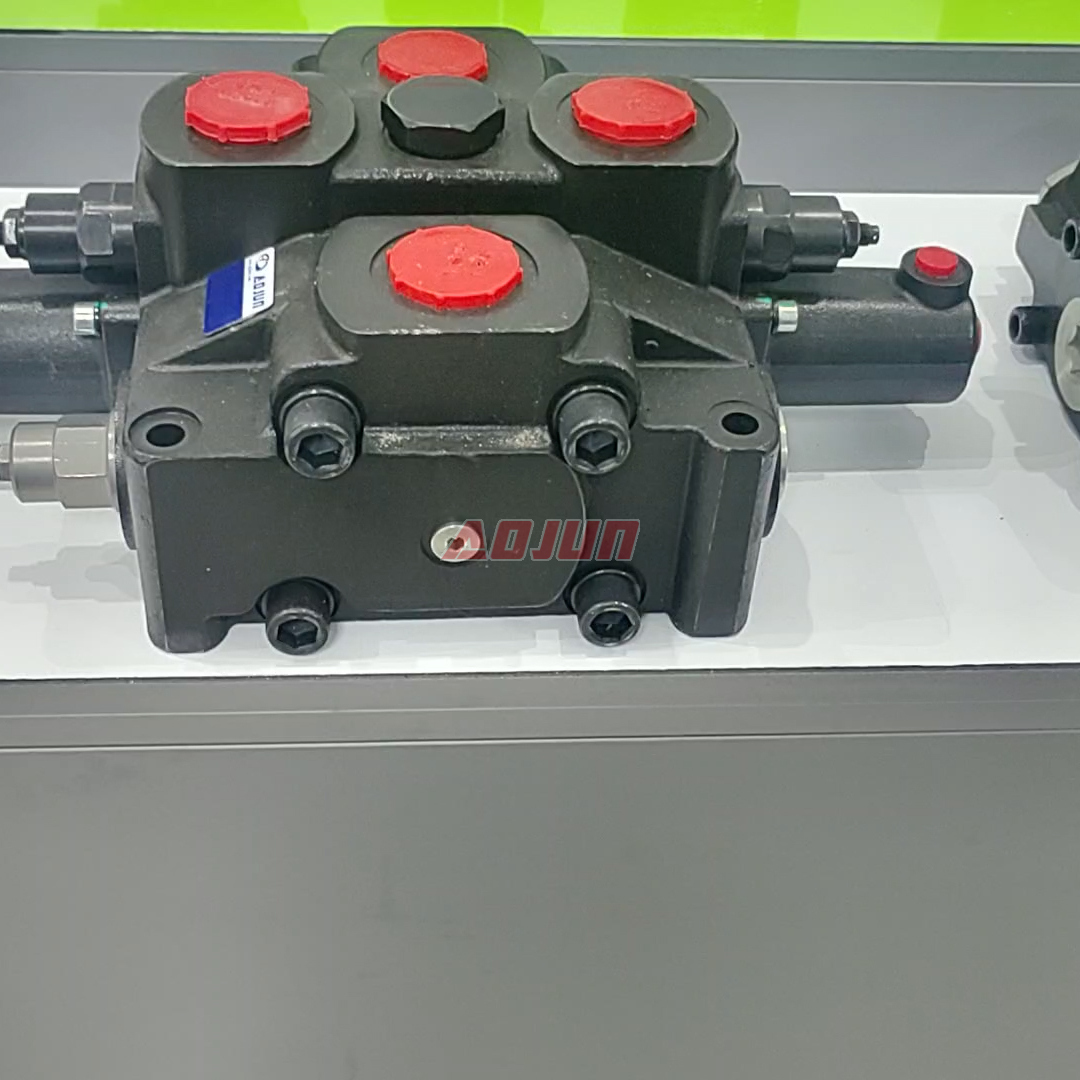

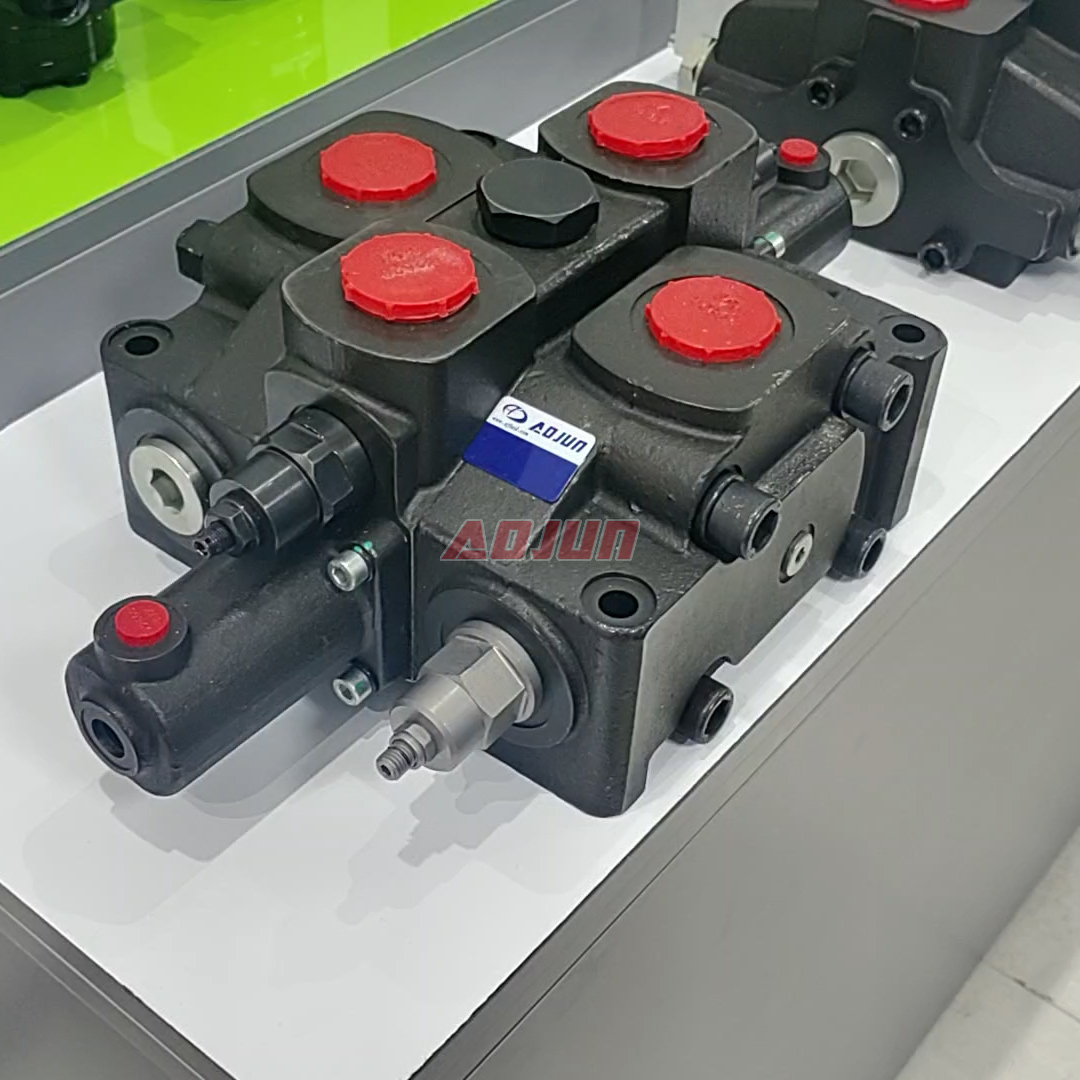

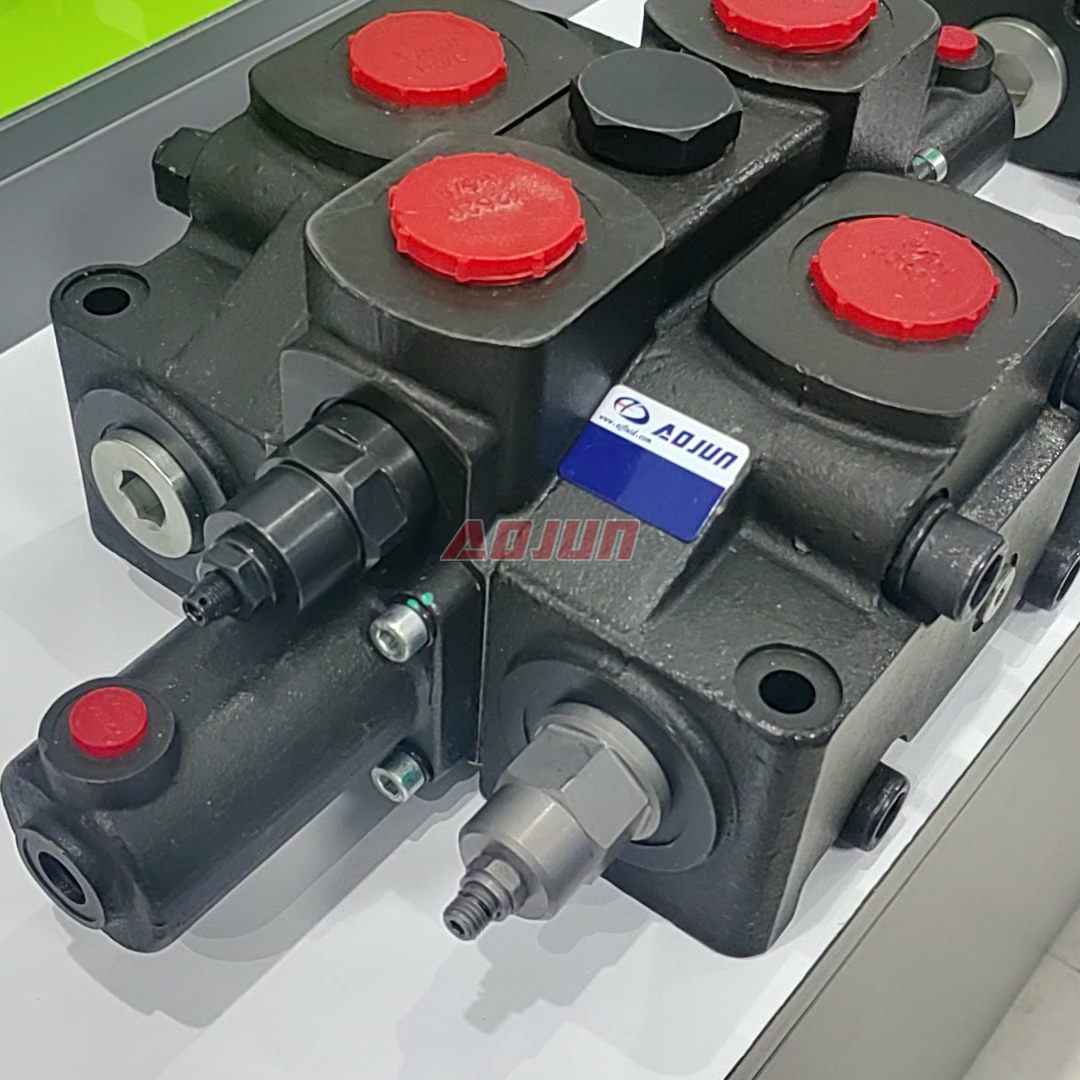

This 1-spool, 1-section sectional directional valve uses hydraulic actuation for reliable control of cylinders or hydraulic motors on heavy-duty equipment. It is rated for 380 L/min (100.4 US gpm) to support high-demand functions (e.g., boom, bucket, steering-assist circuits) while maintaining stable performance up to 315 bar (4600 psi). Designed for real-world operating conditions, it works with hydraulic oils from 15–75 mm²/s and in harsh environments from -40°C to +80°C, making it suitable for cold starts and high-heat duty cycles. Typical applications include construction and earth-moving machines, material handling vehicles, agricultural equipment, and industrial vehicles where high flow capacity and robust pressure rating are required. As a manufacturer, we support OEM/ODM, private label, customization (ports, mounting, spool function options per request), bulk supply, and distributor/agent cooperation for global markets.
| SDS380 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Cable |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Rated Flow | 380 L/min (100.4 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1-1/2, SAE 20 |
| Outlet Port | G1-1/2 |
| Port Size | G1-1/2 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
