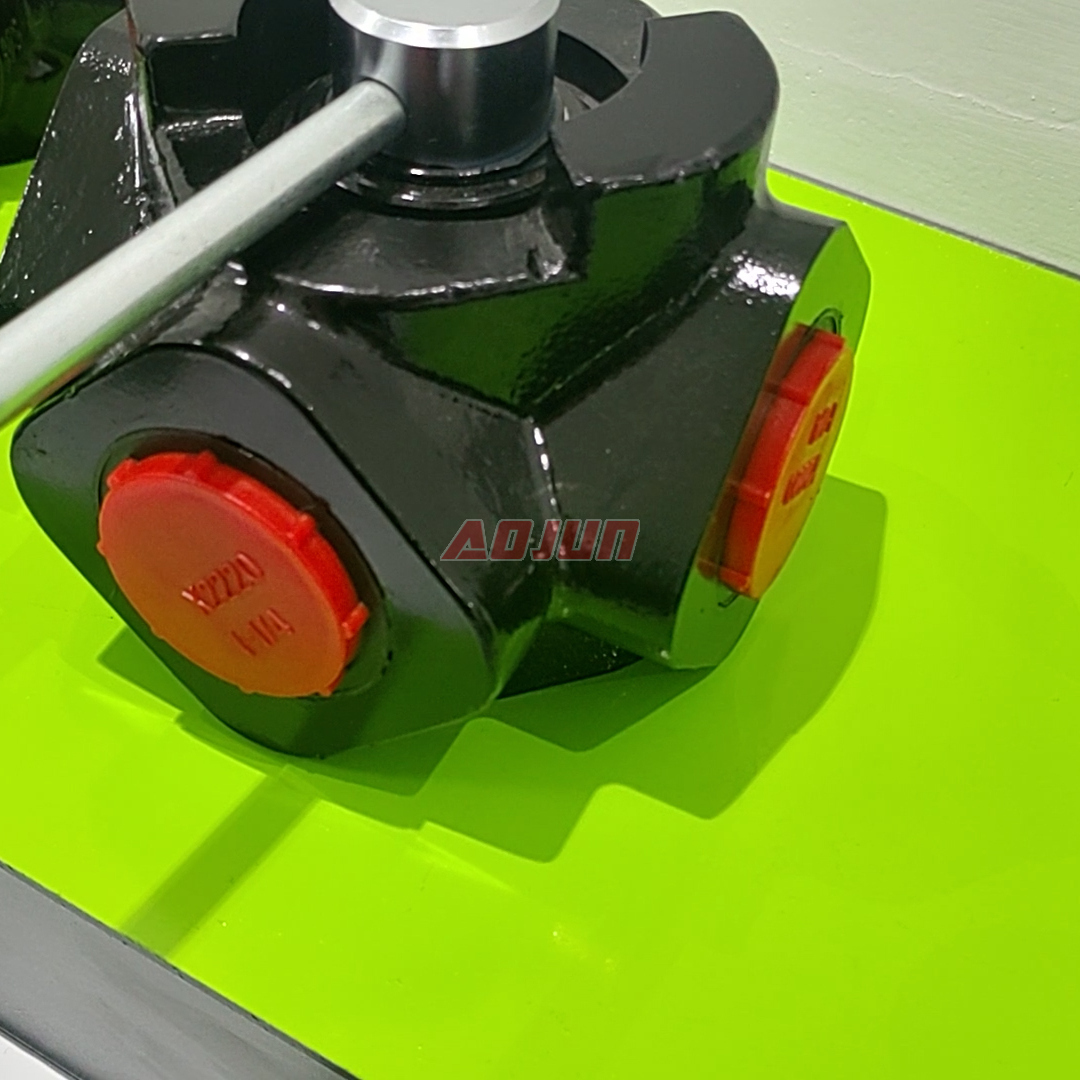

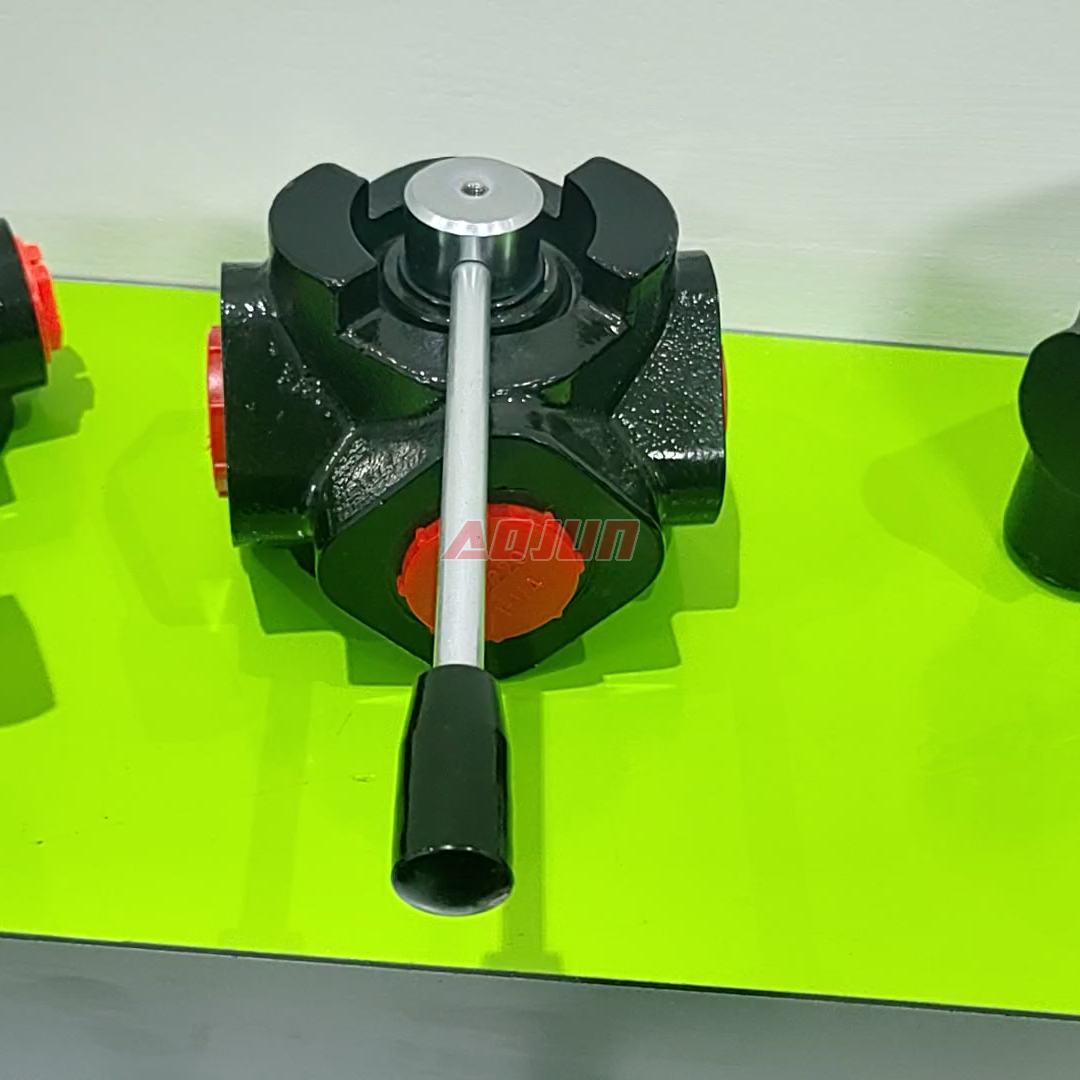

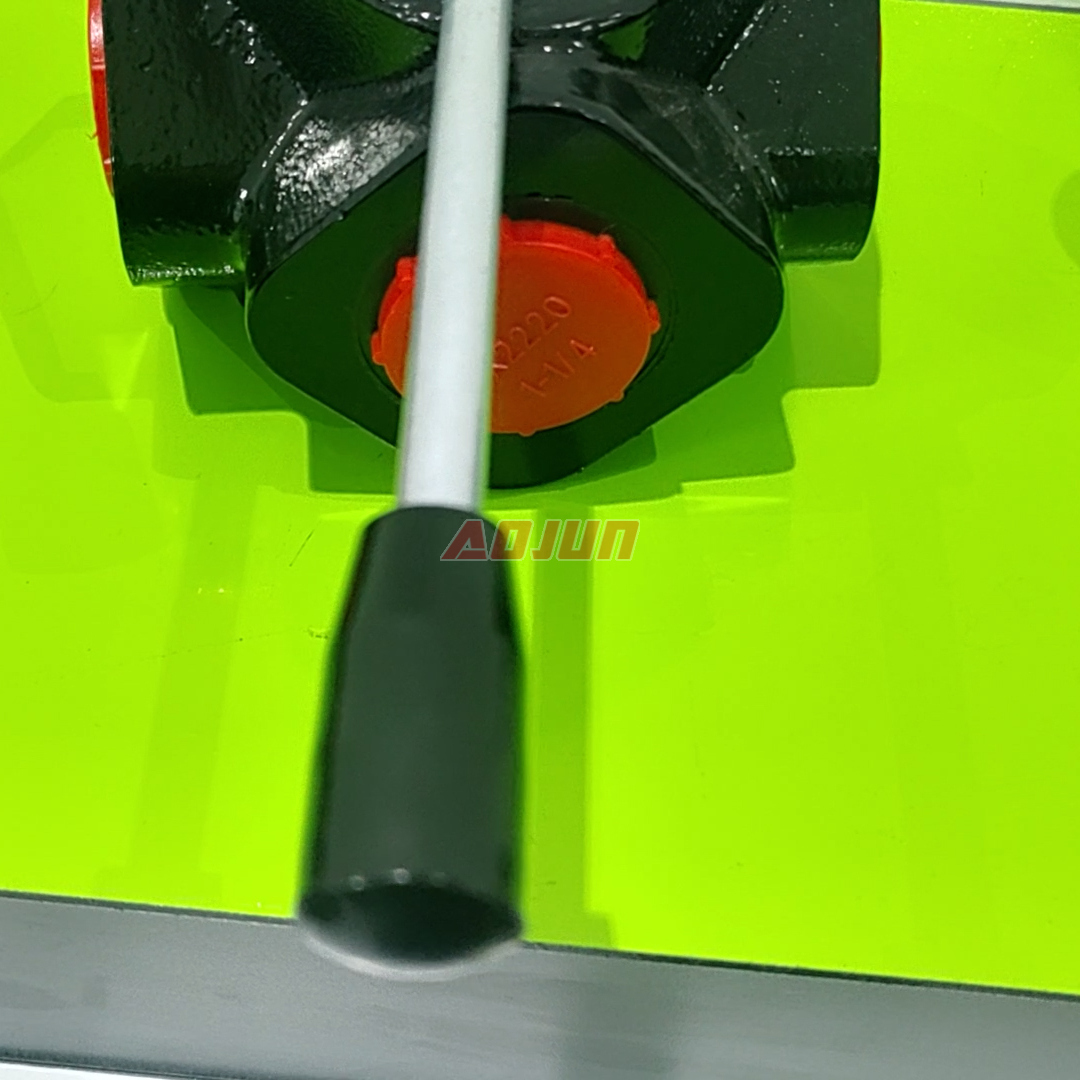

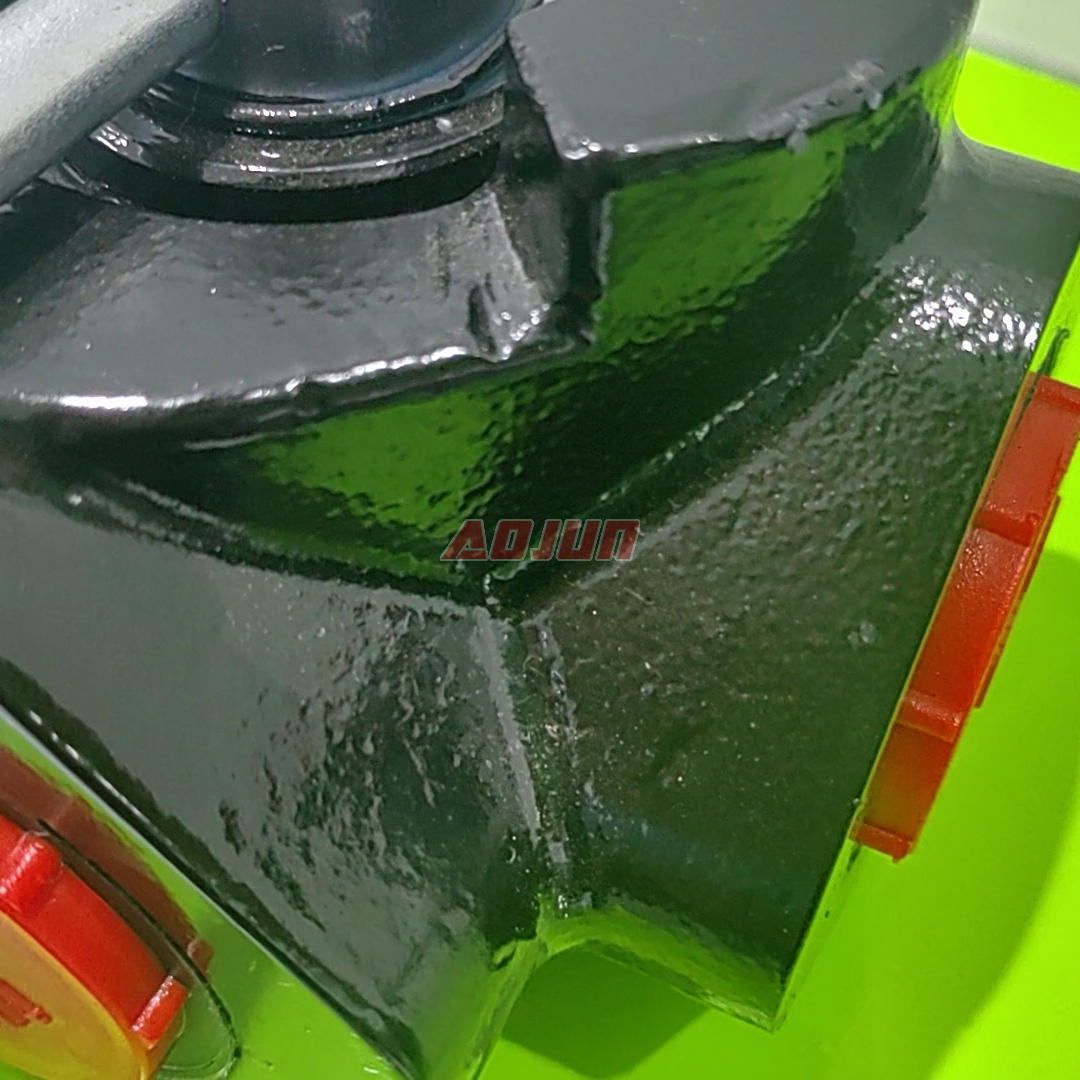

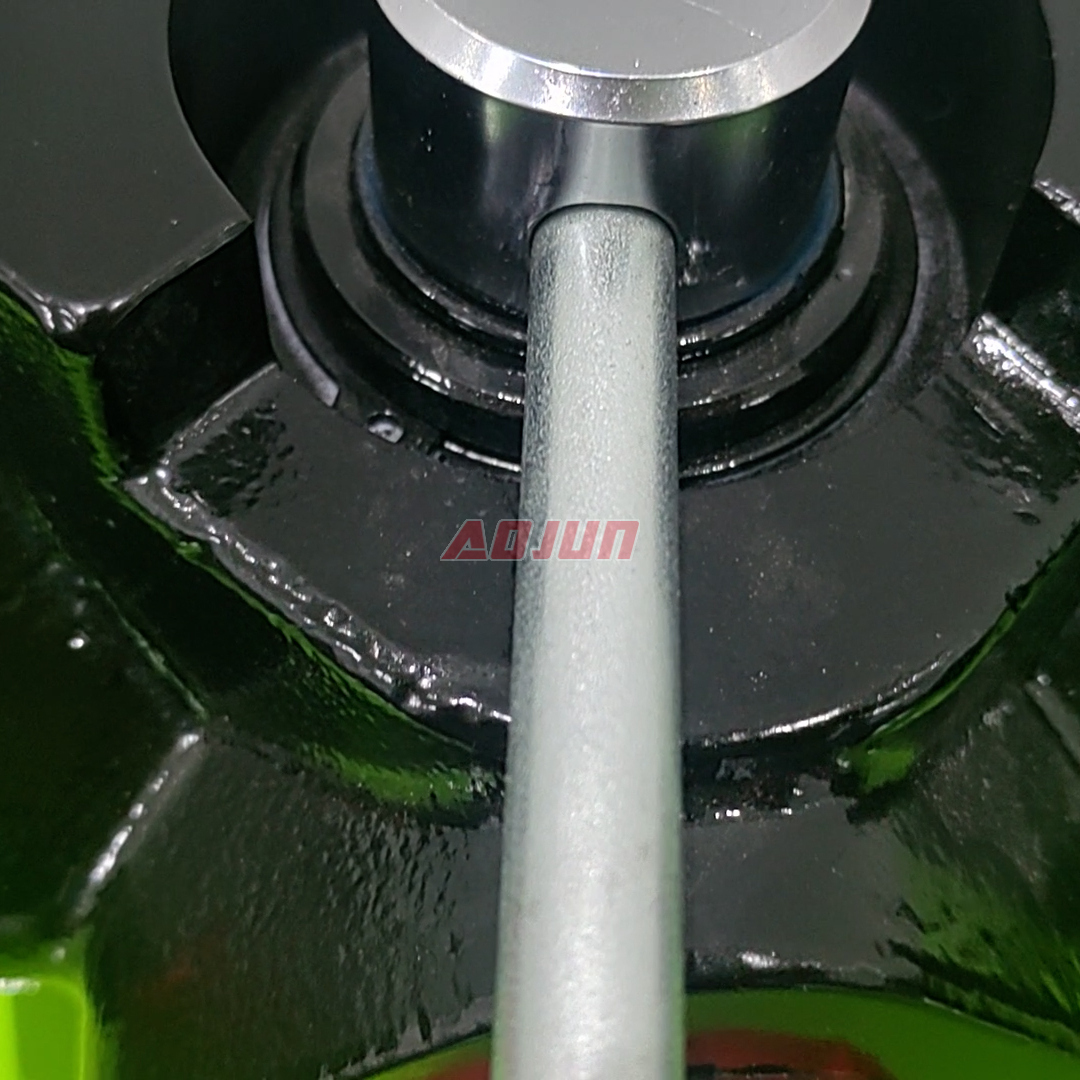

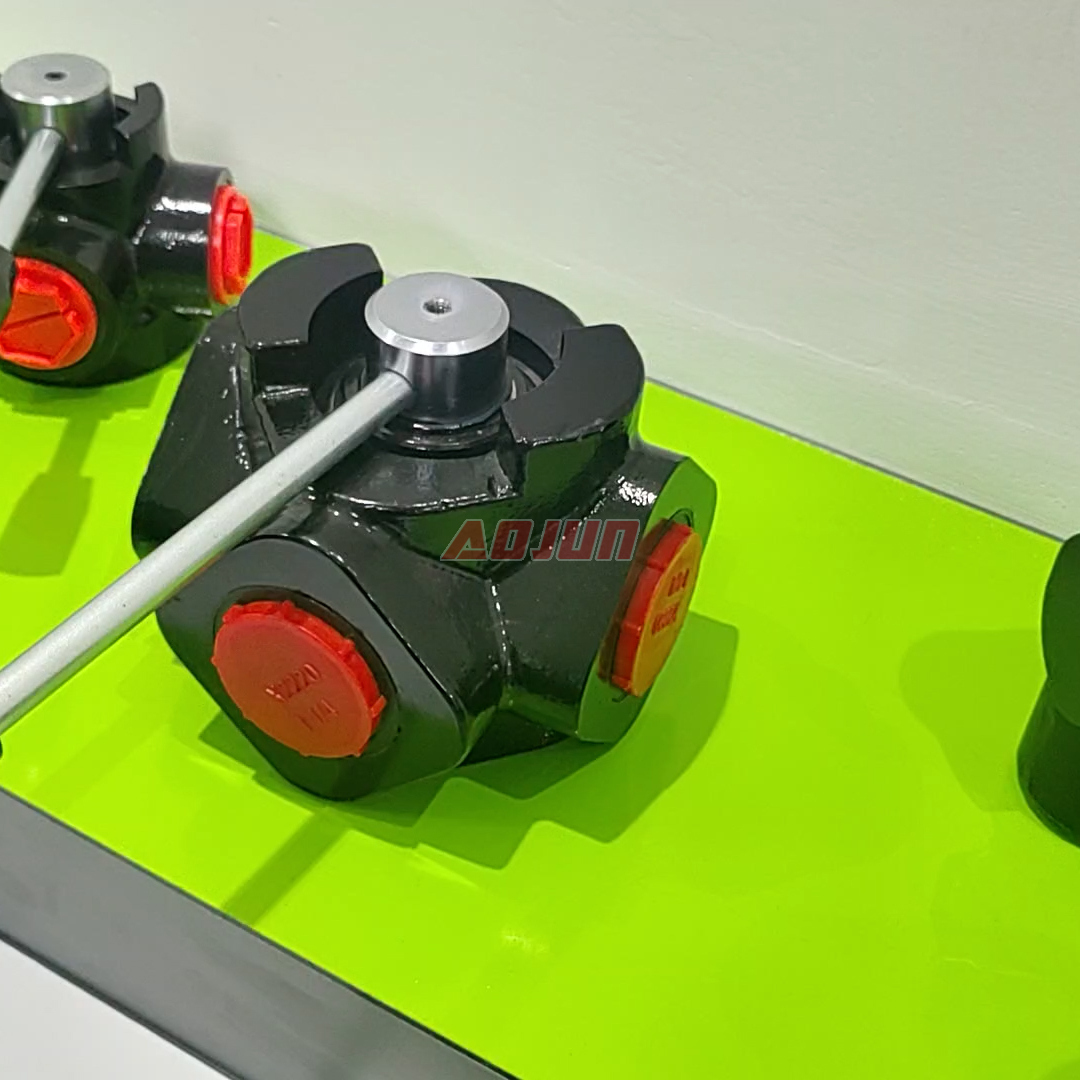

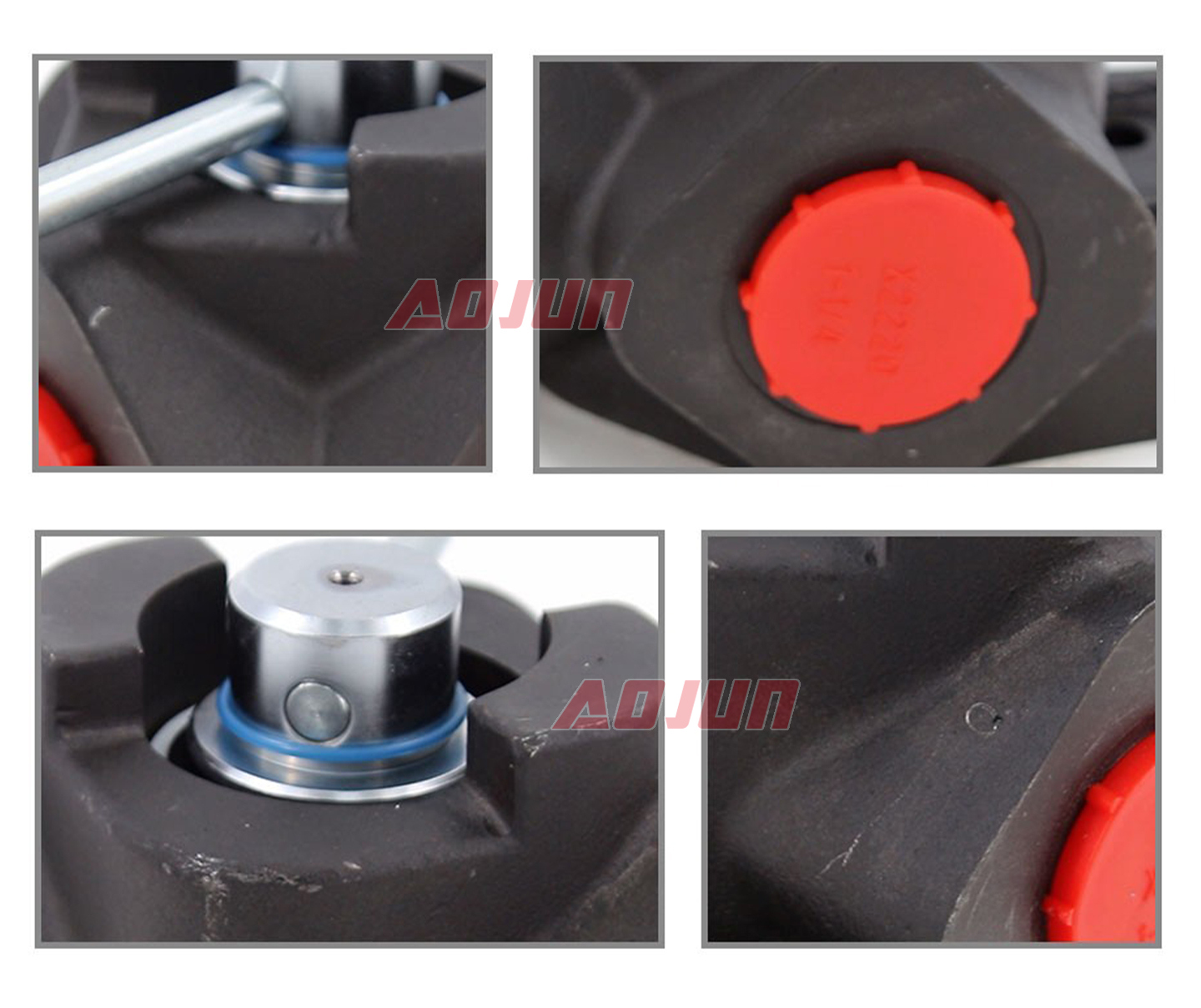

DH30 is a 1-section, manually operated monoblock hydraulic diverter designed to route one hydraulic flow to two different circuits with stable performance under high flow and harsh temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Built for mobile and industrial hydraulic systems, this manual diverter uses a robust 1-spool monoblock structure to minimize internal leakage paths and improve durability. It supports high working flow up to 280 L/min and maximum pressure up to 210 bar, making it suitable for high-demand auxiliary functions (e.g., switching between attachments or actuator groups). Designed to work reliably with common hydraulic oils in the 15–75 mm²/s viscosity range and extreme ambient temperatures from -40°C to +80°C. Typical use cases include loaders, telehandlers, forklifts, excavators, aerial platforms, and agricultural machinery where operators need simple, dependable manual circuit selection. Available for OEM manufacturing, ODM customization, private labeling, wholesale supply, and distributor/agent cooperation for global markets.
| DH30 Series Flow Diverter Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool |
| Rated Flow | 280 L/min (73.9 US gpm) |
| Max Pressure | 210 bar (3045 psi) |
| Inlet Port | G1-1/4, G1-1/2 |
| Port Size | G1-1/4, G1-1/2 |
| Section | 1 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
