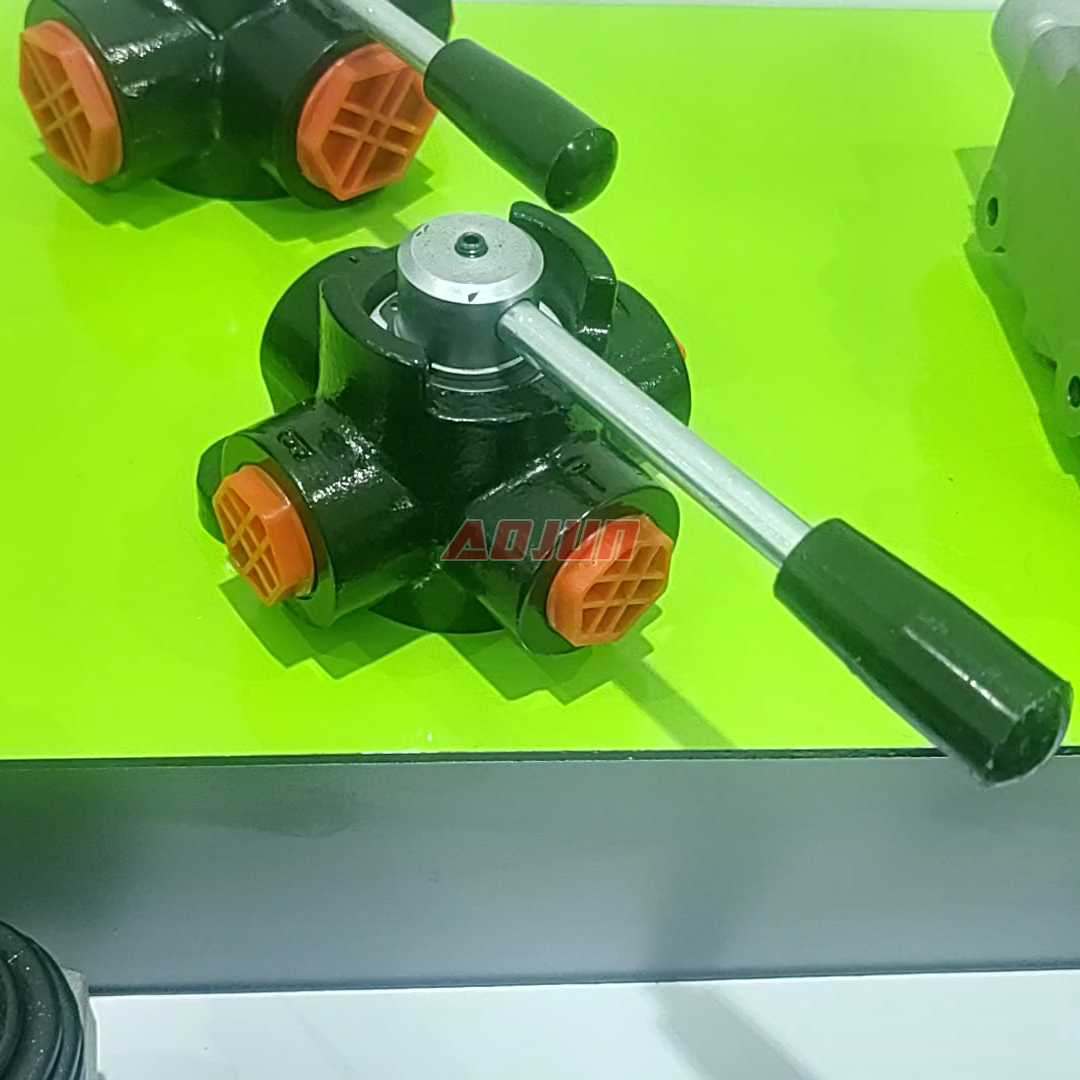

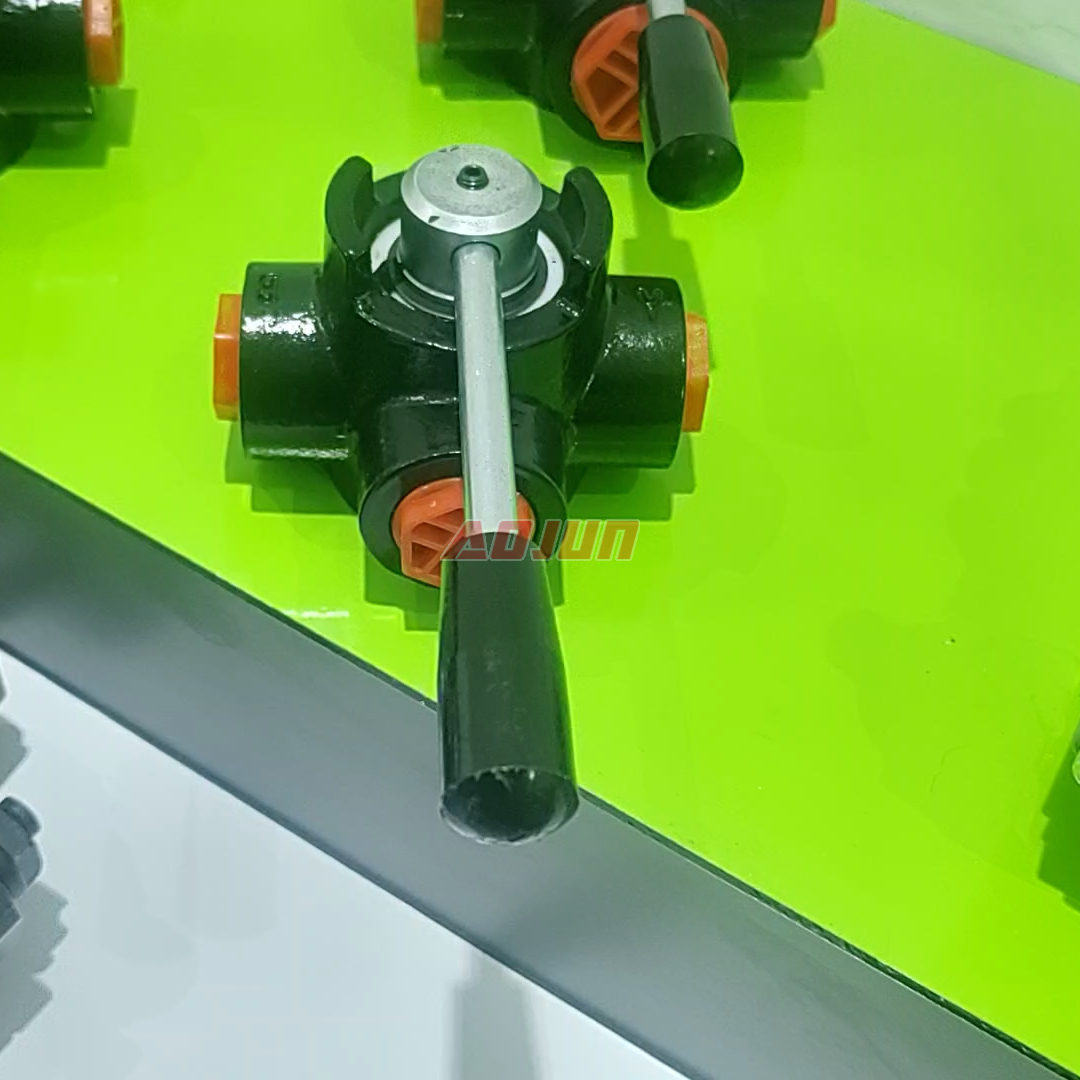

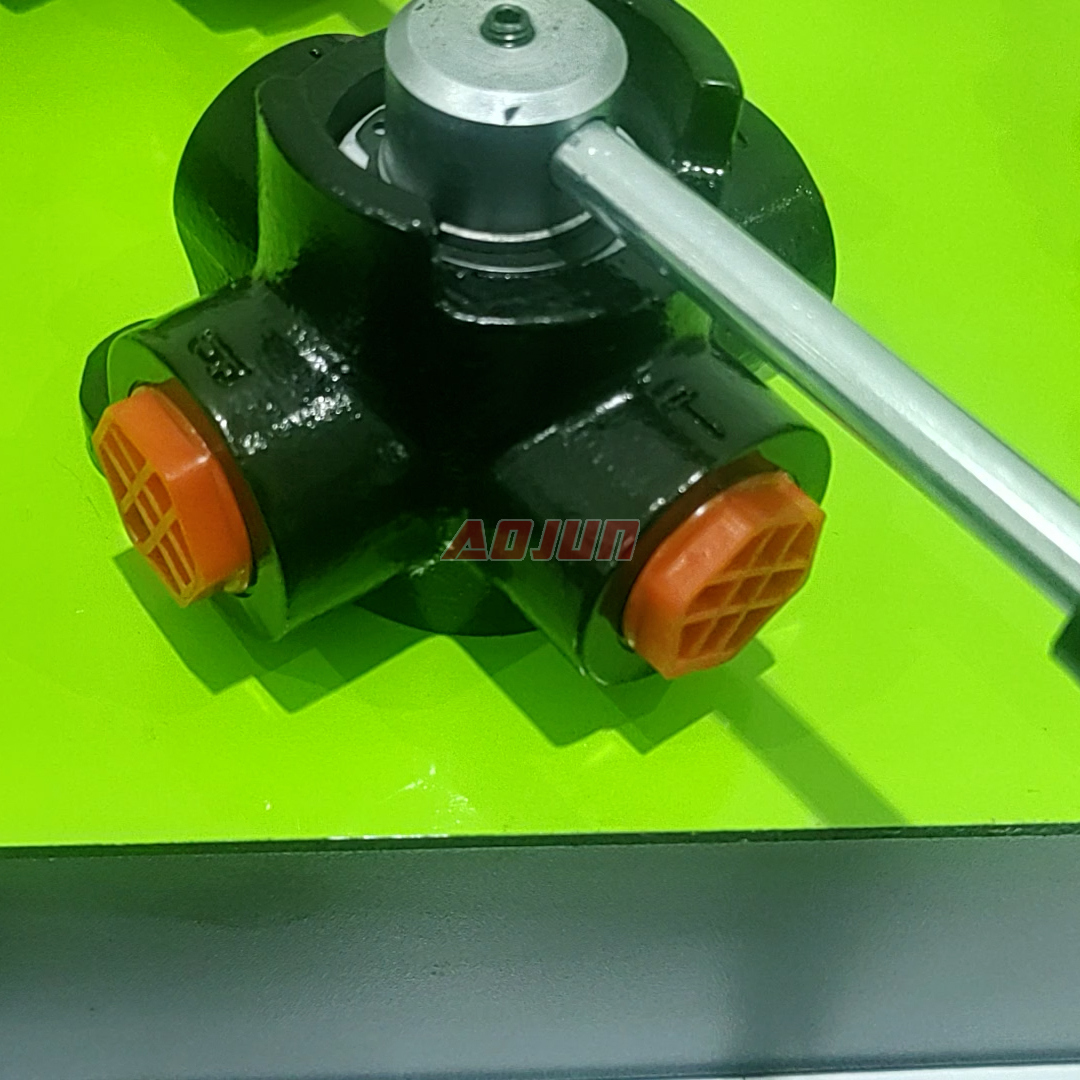

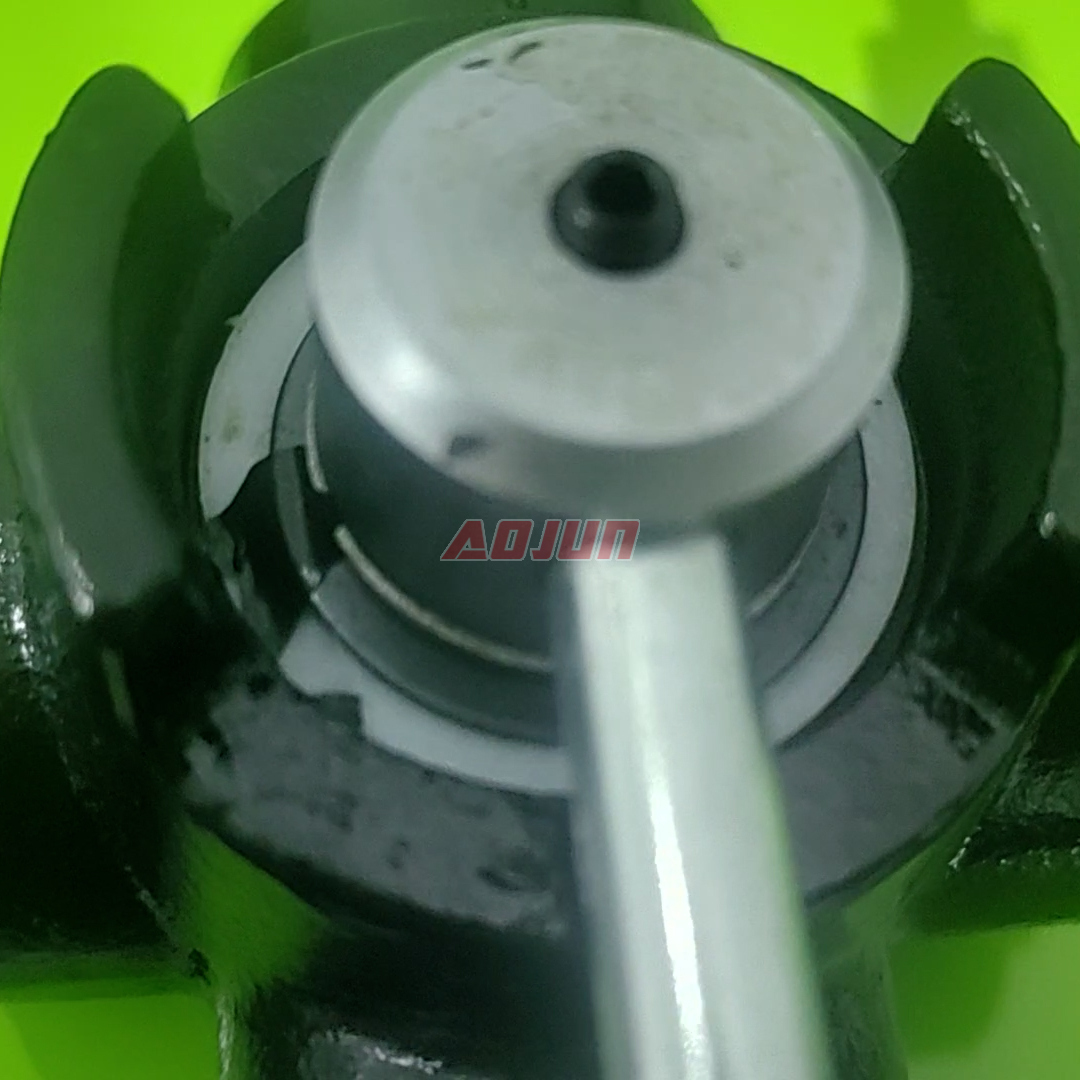

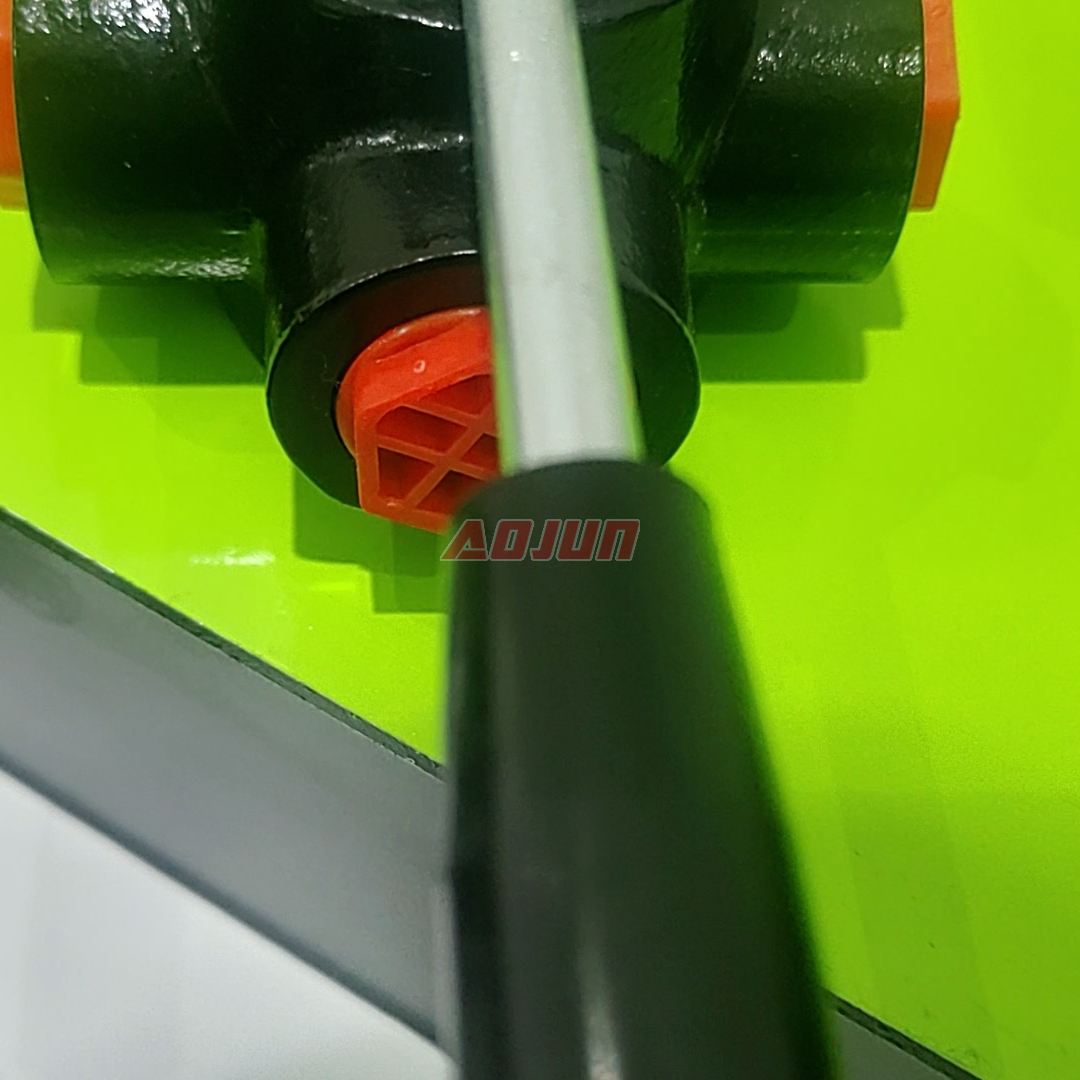

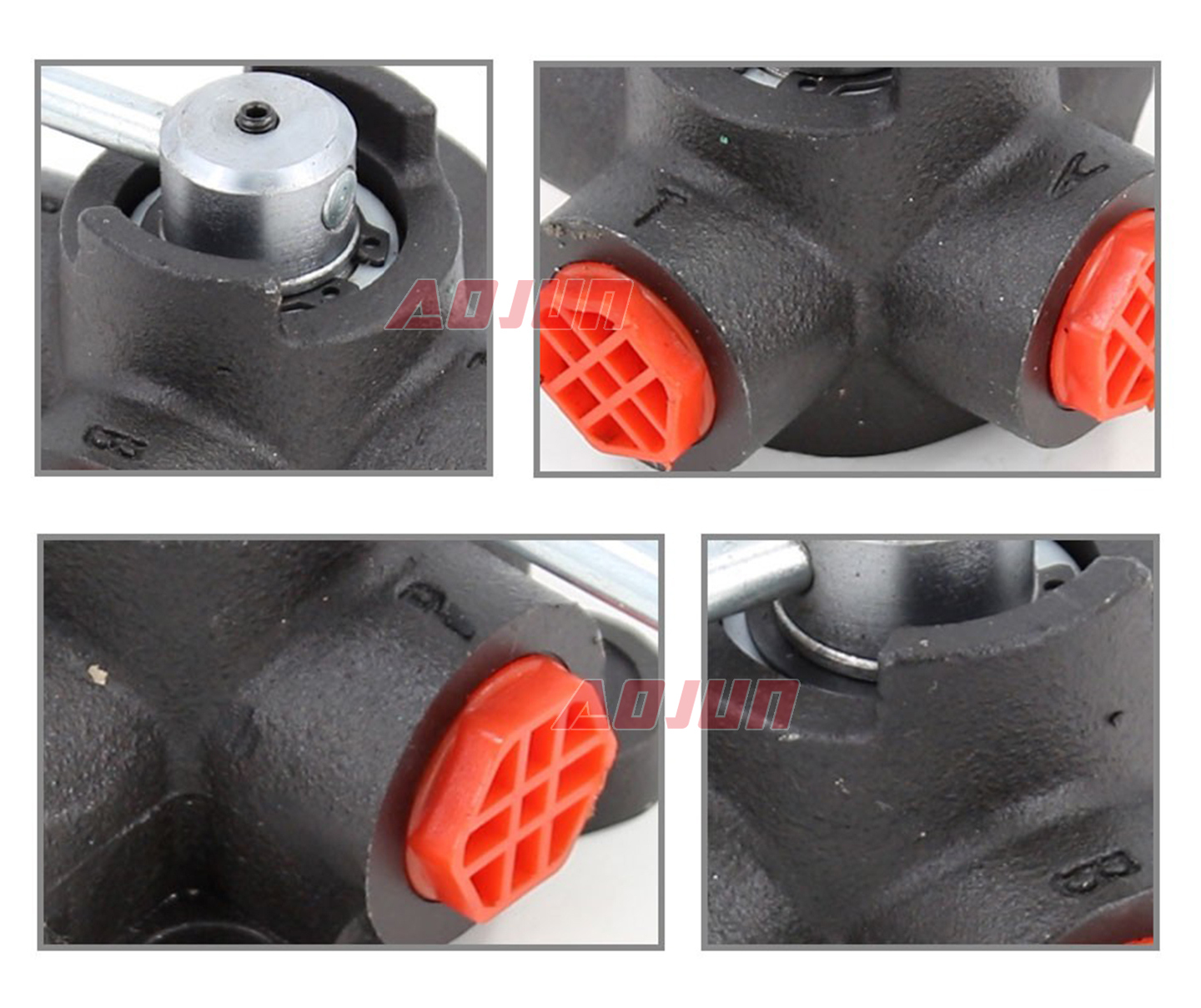

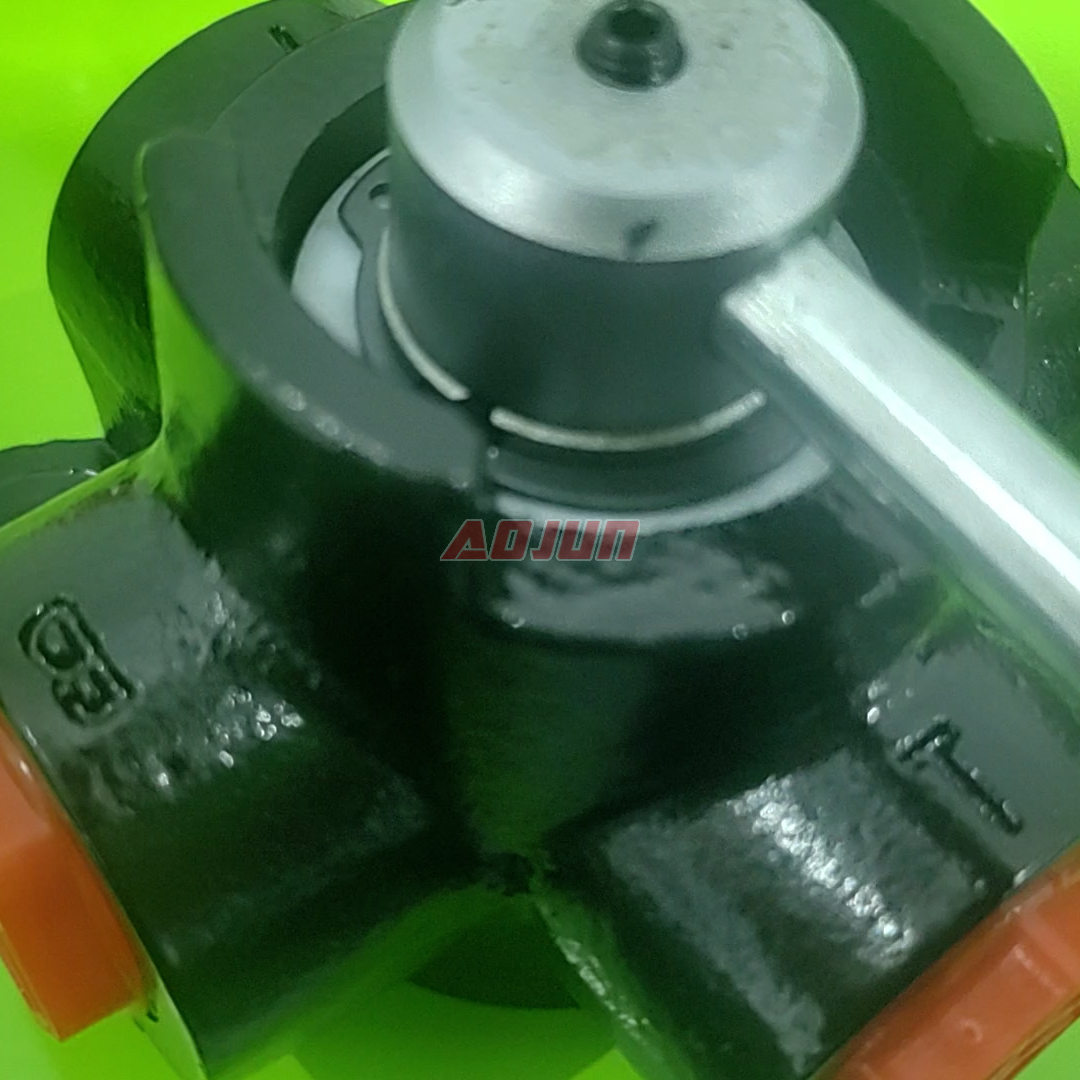

Manual 1-section monoblock hydraulic flow diverter valve with a single spool, rated 60 L/min and up to 350 bar, designed to switch/redirect flow between circuits in mobile equipment under wide temperature and viscosity conditions.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features:
- Manual control with 1 spool / 1 section for simple, reliable circuit selection.
- Monoblock structure for compact installation, fewer leak paths, and strong durability.
- Rated flow: 60 L/min (15.8 gpm) to support common auxiliary functions on mobile machines.
- Max pressure: 350 bar (5100 psi) for high-load hydraulic applications.
- Operating viscosity: 15–75 mm²/s for broad hydraulic oil compatibility.
- Ambient temperature: -40°C to +60°C for cold-start and outdoor operation.
Typical uses:
- Switching one pump line to two different work functions (e.g., attachment A / attachment B).
- Diverting auxiliary flow to cylinders or hydraulic motors on telehandlers, forklifts, skid steers, loaders, and agricultural machines.
Supply & customization:
- Factory direct manufacturing for OEM/ODM, private label, bulk wholesale, and custom porting/marking/packaging to match your distribution needs.
| HSDV34 Series Flow Diverter Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool |
| Rated Flow | 40 L/min (10.5 US gpm), 60 L/min (15.8 US gpm), 120 L/min (31.7 US gpm), 200 L/min (52 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G3/8, G1/2, G3/4, G1 |
| Outlet Port | G3/8, G3/4, G1 |
| Port Size | G3/8, G1/2, G3/4, G1 |
| Section | 1 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
