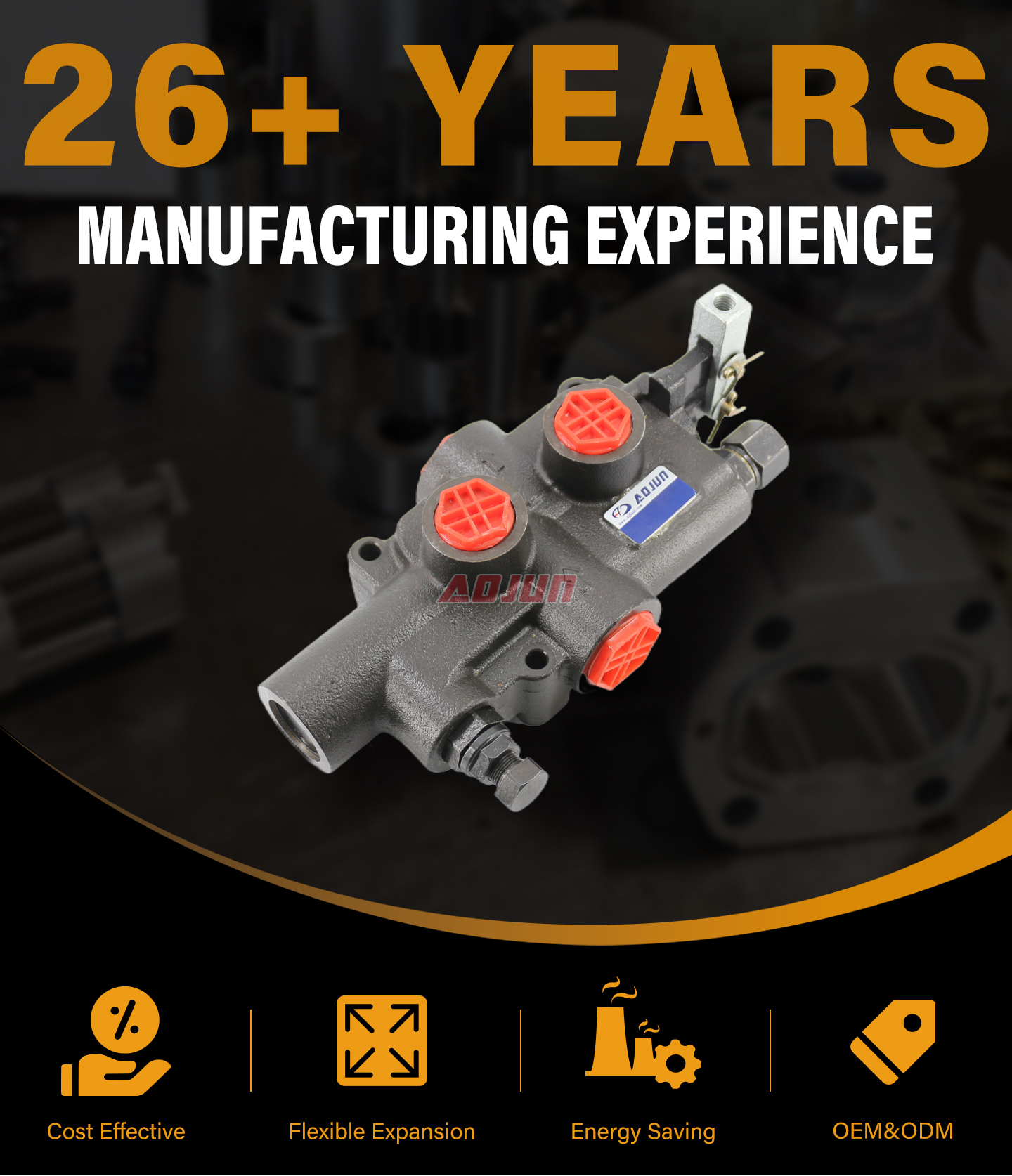

Single-section, manual lever monoblock directional valve for controlling one hydraulic function, delivering up to 80 L/min flow and 250 bar pressure for wood splitting and general auxiliary hydraulics in demanding temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 1-spool, 1-section manual control monoblock valve is built for reliable on/off and reversing control of a single hydraulic actuator (e.g., cylinder) in log/wood splitting systems and auxiliary circuits. Rated flow is 80 L/min (21.2 US gpm) with max pressure up to 250 bar (3600 psi), supporting high-force applications with stable performance. It operates with hydraulic oils in the 15–75 mm²/s (cSt) viscosity range and is suited for harsh environments from -40°C to +80°C, making it suitable for outdoor forestry/agricultural equipment. As a manufacturing supplier, we support OEM/ODM, private label, custom configuration, bulk supply, and distributor/wholesaler/agent partnerships for global markets.
| P81 Series Log Splitter Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool |
| Rated Flow | 95 L/min (25.1 US gpm) |
| Max Pressure | 19 MPa (2735 psi) |
| Inlet Port | G1/2 |
| Outlet Port | G1/2 |
| Port Size | G3/4 |
| Section | 1 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
