Single-section manual monoblock hydraulic directional control valve with 1 spool, rated 40 L/min flow and up to 250 bar pressure, designed for reliable mobile hydraulic control across wide viscosity and temperature ranges (-40°C to +80°C).
global shipping world wide
Online Service For 24 X 7
Support OEM customization

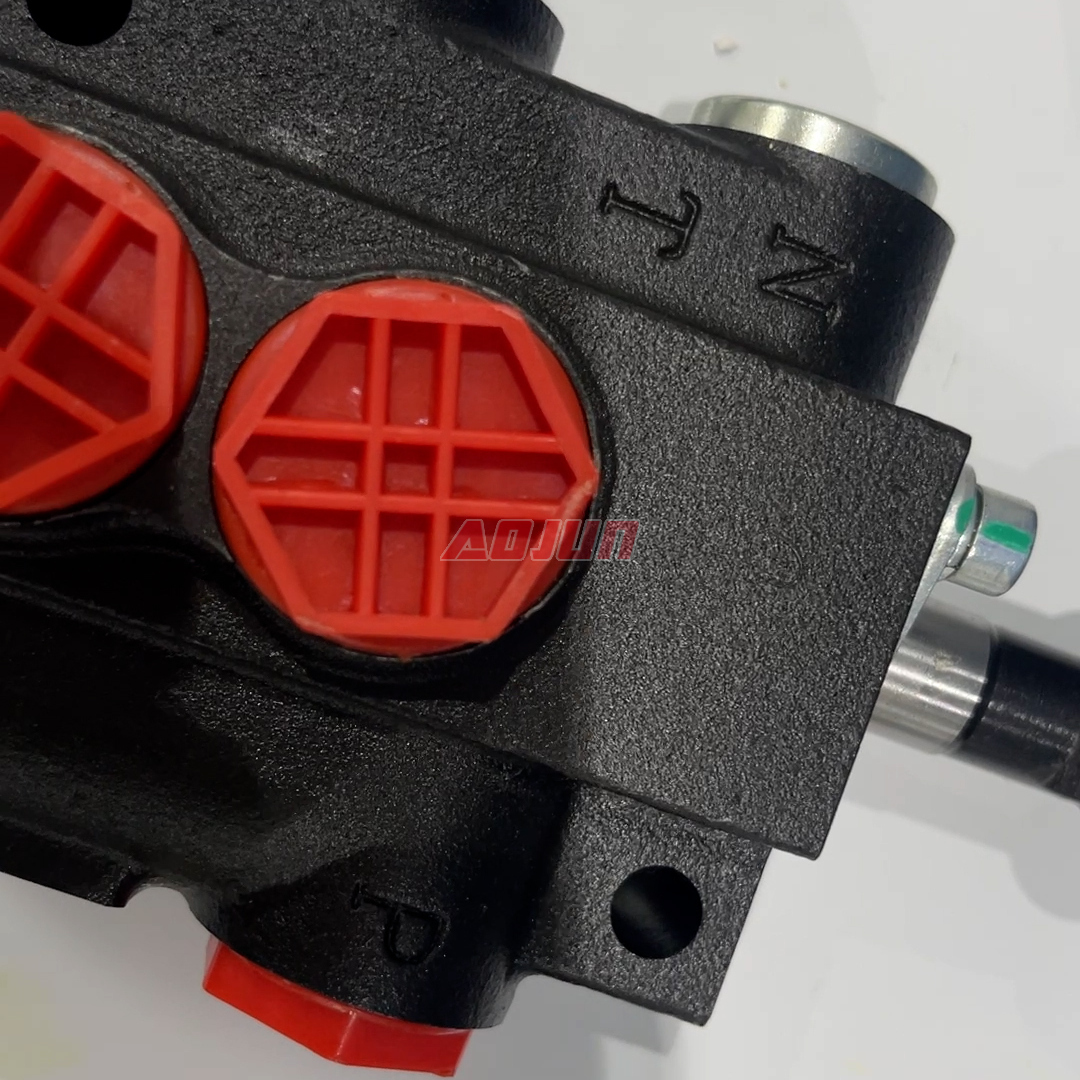

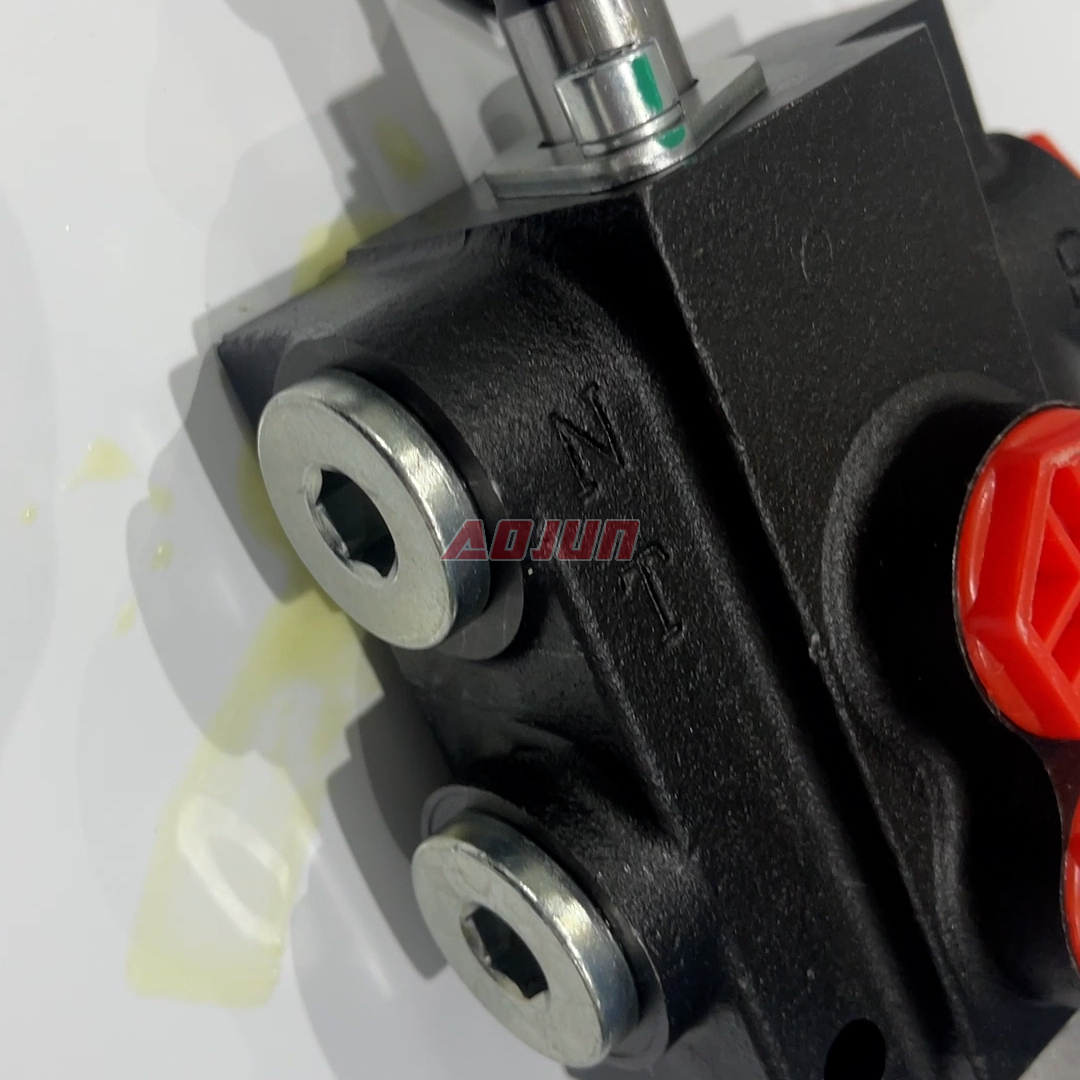

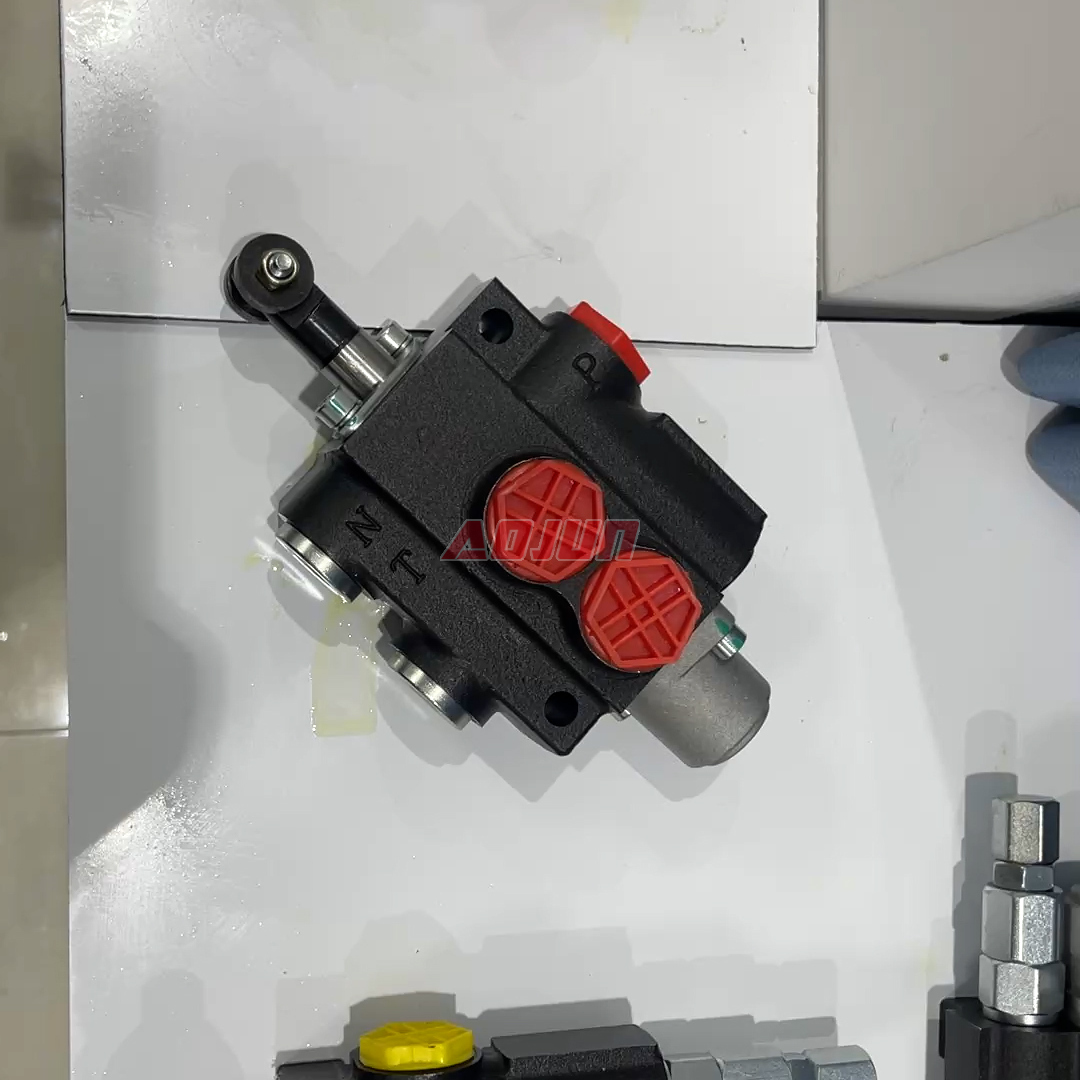

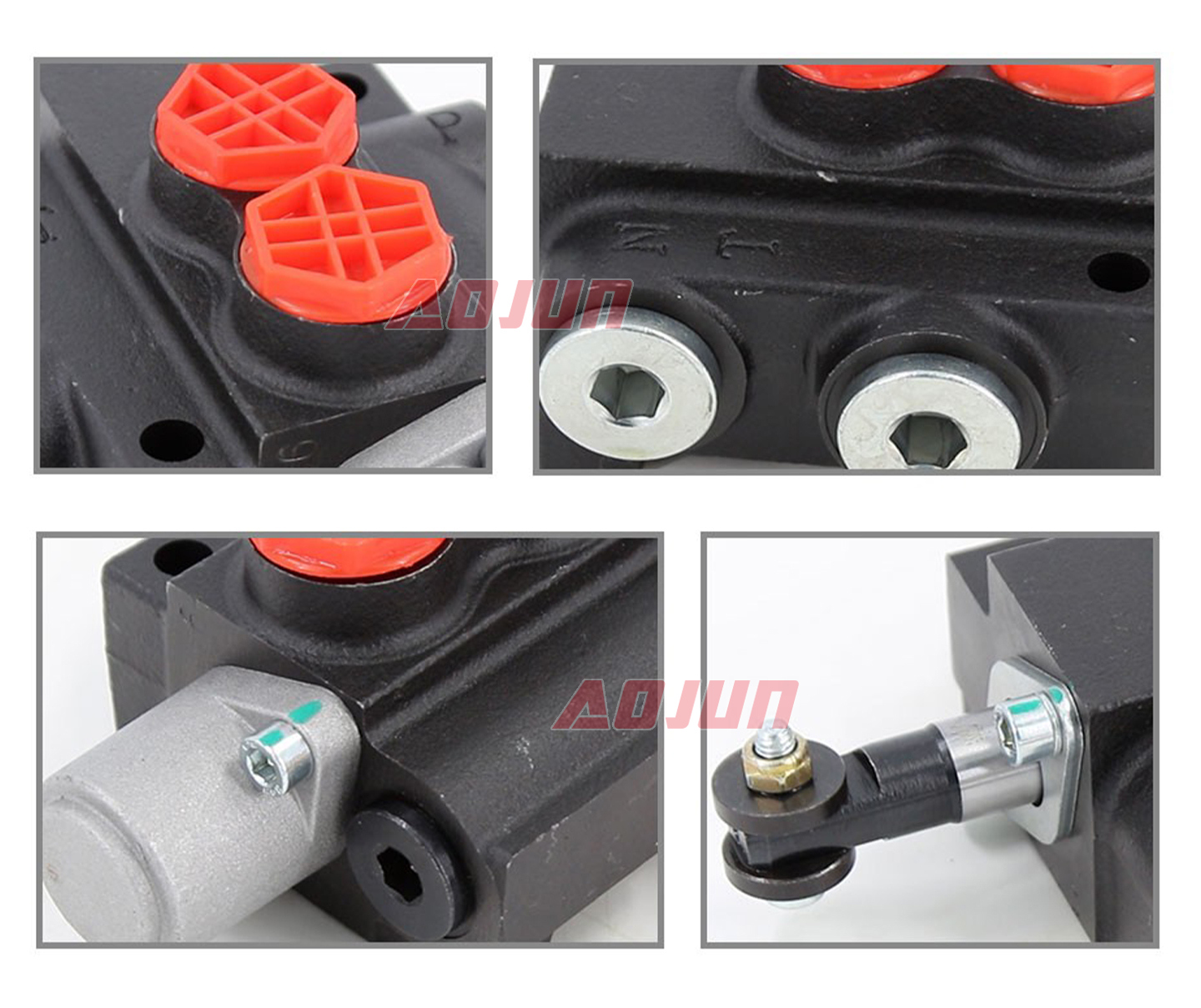

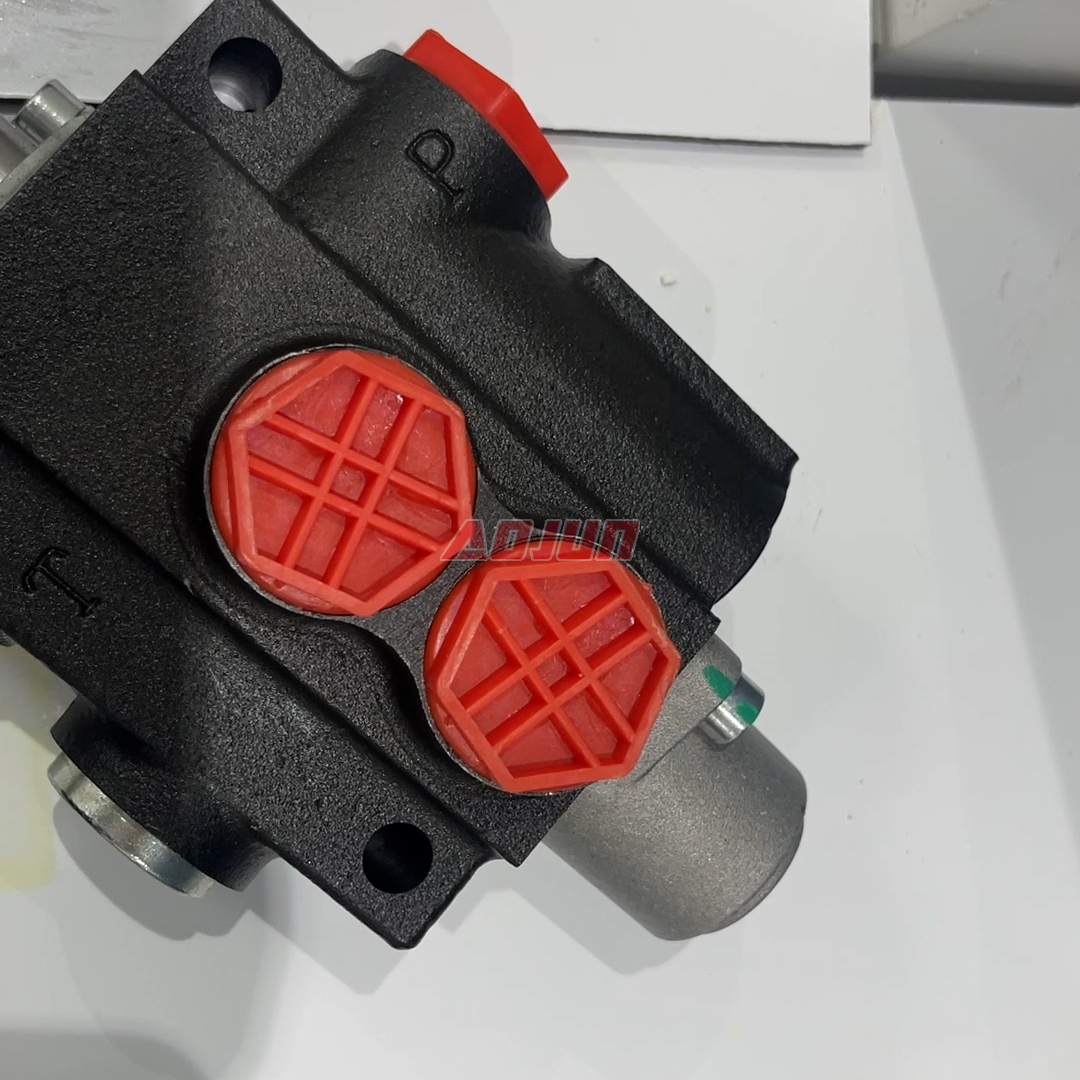

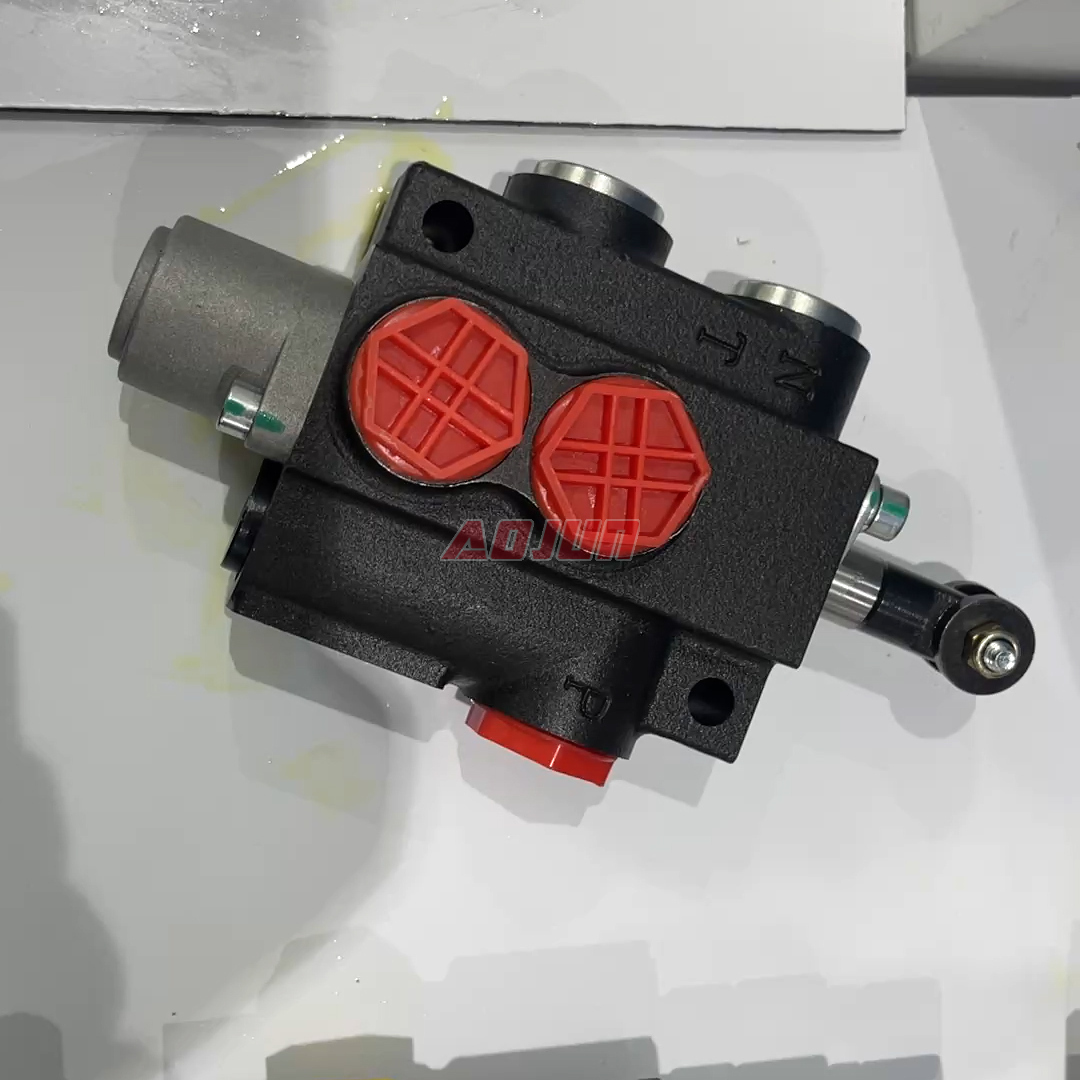

This 1-spool, 1-section monoblock valve is built for compact, dependable directional control in mobile and industrial hydraulic circuits. The monoblock structure helps reduce external leak paths and improves durability under vibration-heavy equipment. Rated flow is 40 L/min (10.5 gpm) with maximum pressure up to 250 bar (3600 psi), suitable for controlling cylinders or hydraulic motors on compact machines.
Key performance ranges: operating viscosity 15–75 mm²/s for stable spool movement across common hydraulic oils, and ambient temperature -40°C to +80°C for cold-start and hot-environment operation.
Typical applications include auxiliary functions, attachments, and simple actuator control on skid steer loaders, mini/midi excavators, compact loaders, backhoe loaders, agricultural implements, forklifts, and aerial platforms. Available for manufacturing, OEM/ODM, private label, customization, bulk supply, and distributor/wholesaler cooperation for global markets.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
