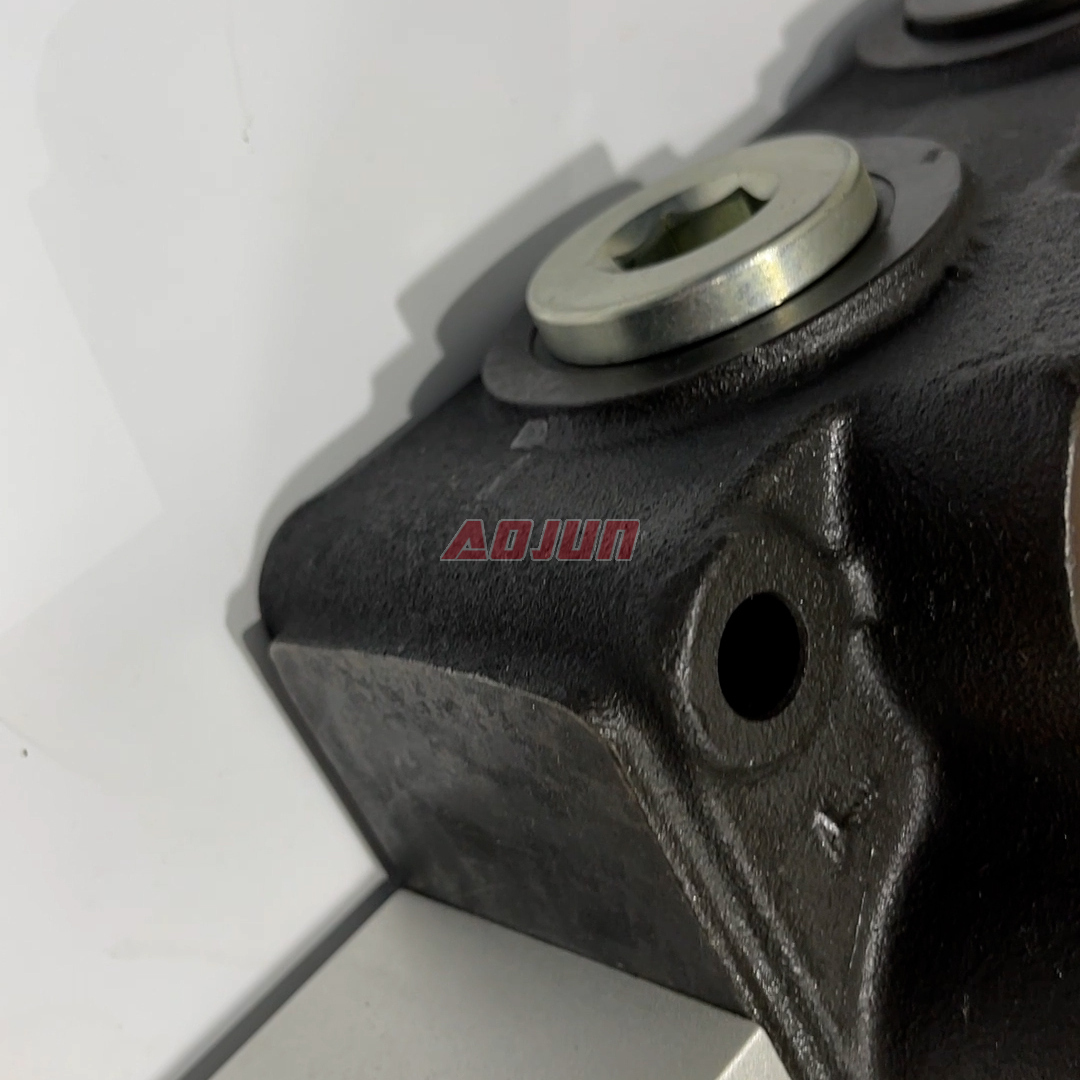

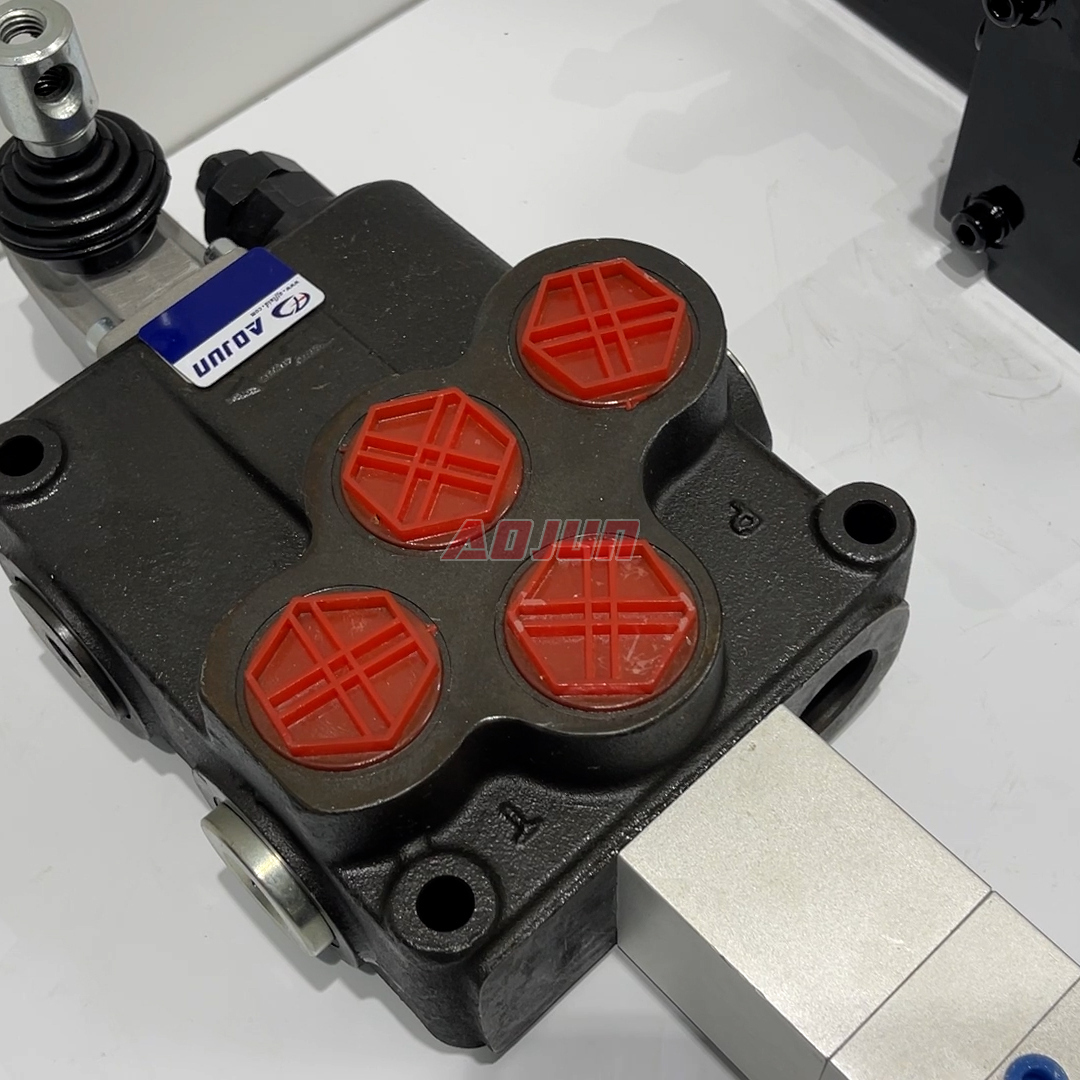

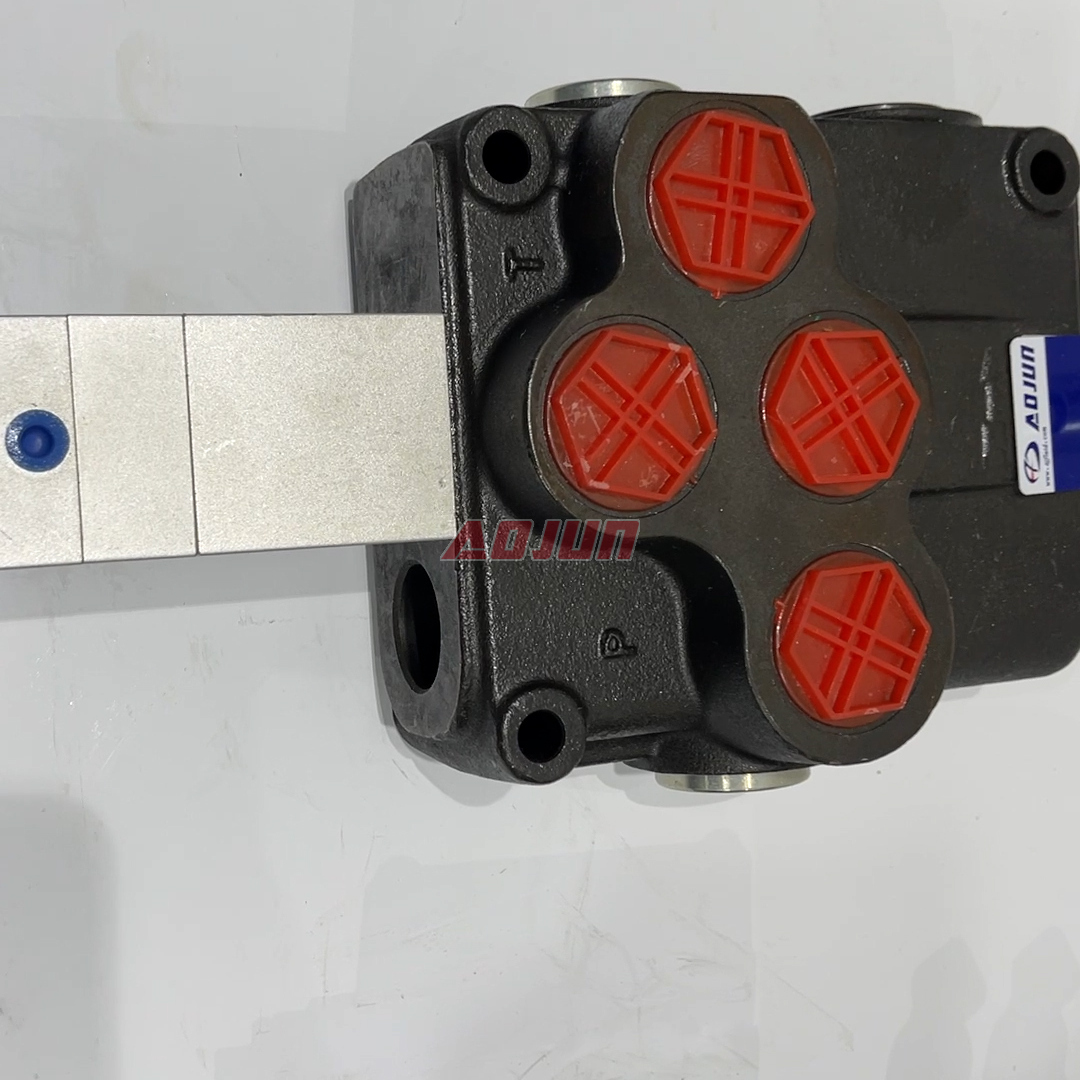

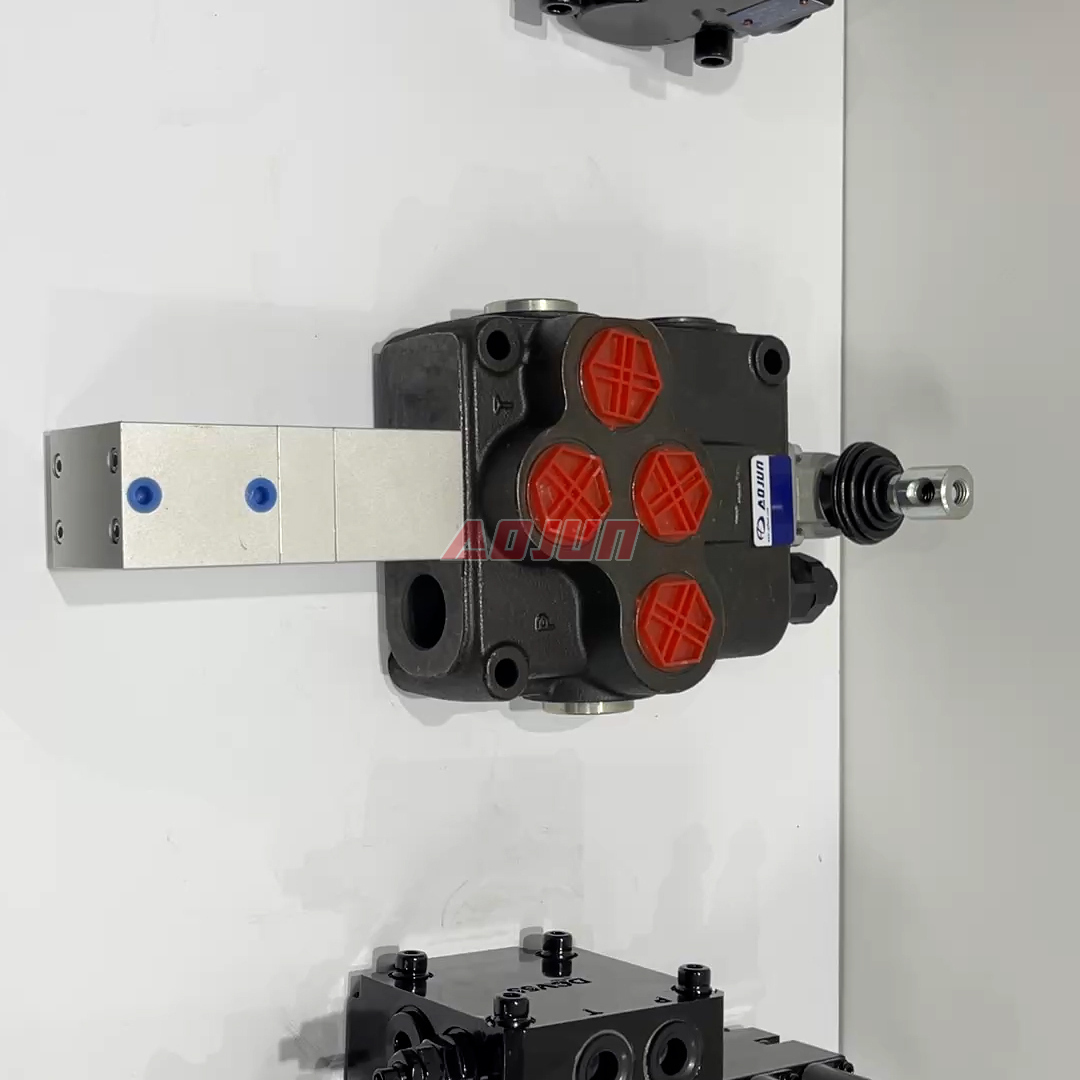

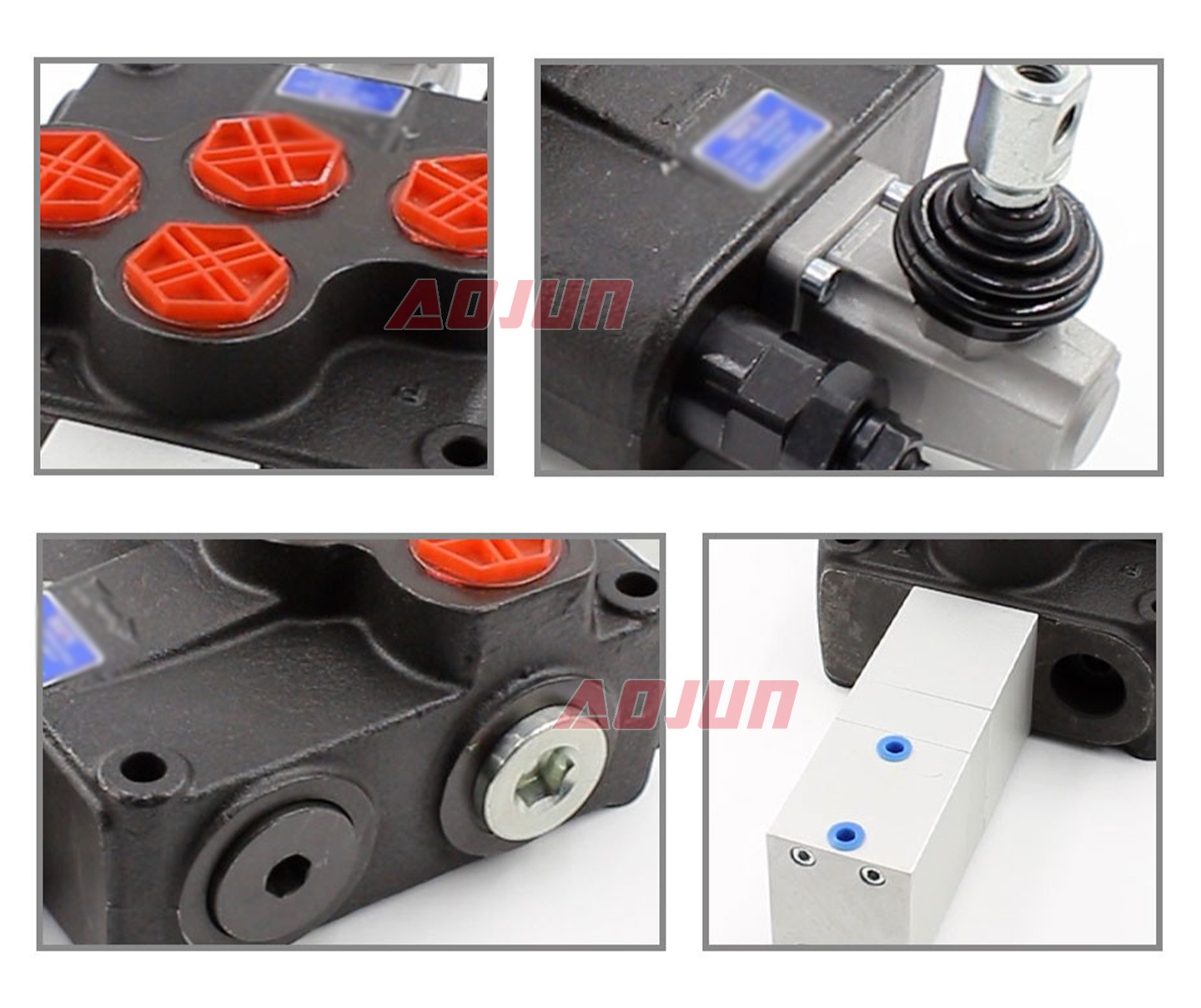

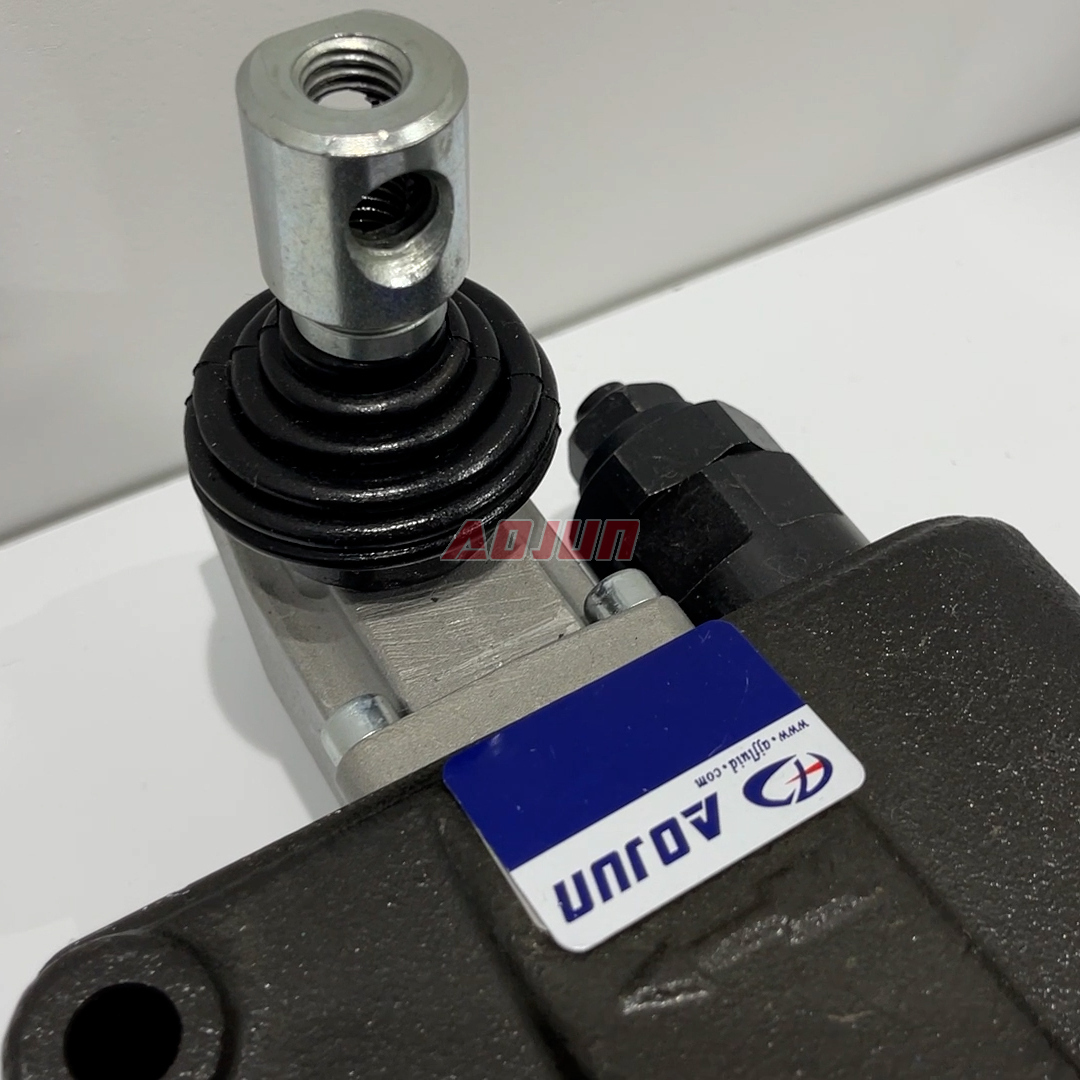

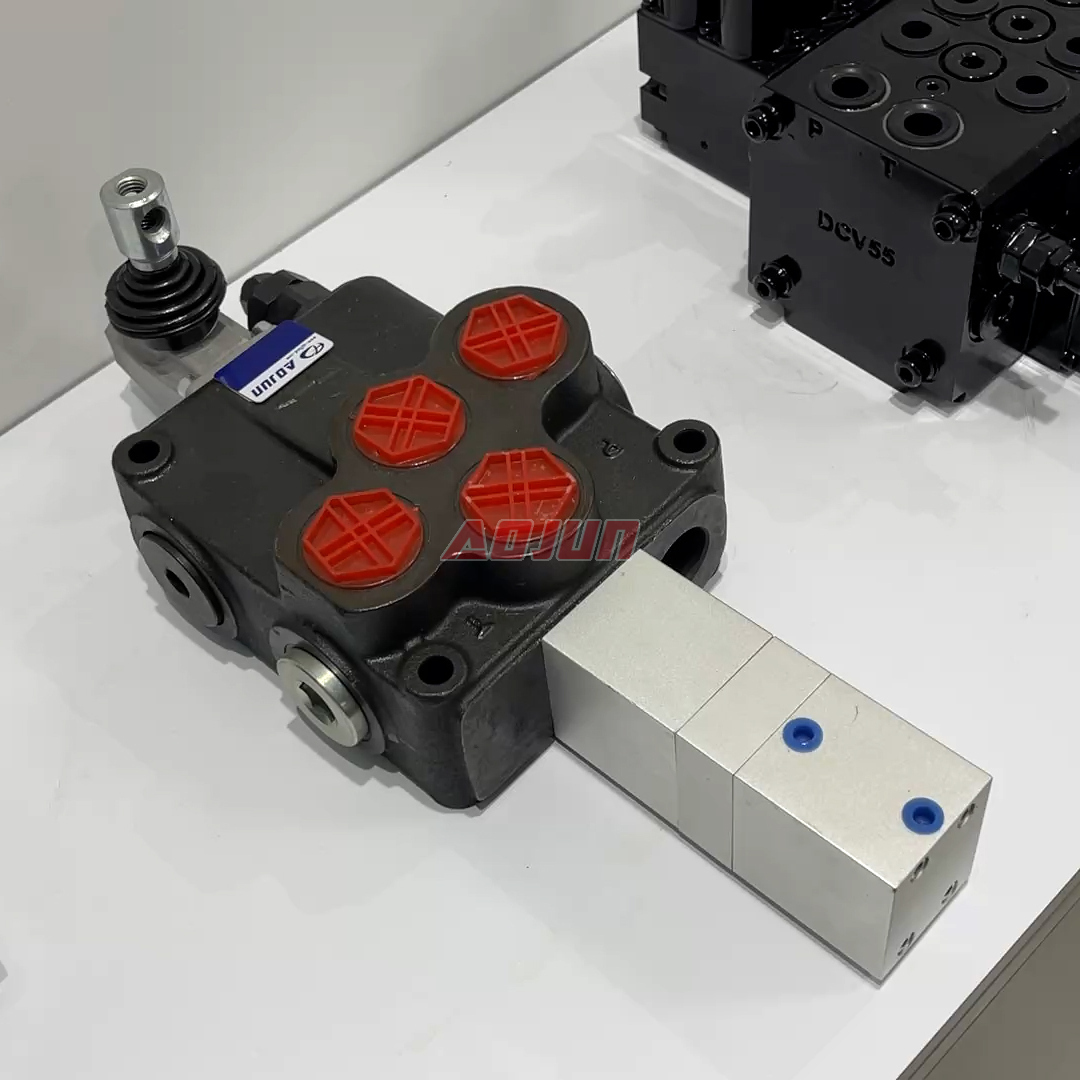

SD18 is a 1-section, pneumatic-controlled monoblock directional valve with a single spool, designed for high-flow mobile hydraulic circuits up to 160 L/min and 315 bar, supporting wide viscosity fluids and harsh ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features: pneumatic actuation for remote/safer control, compact monoblock construction for reduced leak paths and easier installation, and a robust pressure rating up to 315 bar for demanding mobile equipment. Performance range: rated flow 160 L/min (42.2 US gpm); operating viscosity 12–400 mm²/s to handle cold starts and varying oil grades; ambient temperature -40°C to +80°C for outdoor and all-season use. Typical applications: on/off and directional control of hydraulic functions on forklifts/telehandlers, loaders, aerial platforms, dumpers, and agricultural implements where pneumatic signal control is preferred. Supply options: manufacturer direct support for OEM/ODM, custom configurations, private label, bulk wholesale, and distributor/agent cooperation for global markets.
| SD18 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Rated Flow | 160 L/min (42.2 US gpm) |
| Max Pressure | 305 bar (4400 psi) |
| Inlet Port | G1/2, G1, SAE 16 |
| Outlet Port | G1, SAE 16 |
| Port Size | G1, SAE 16 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
