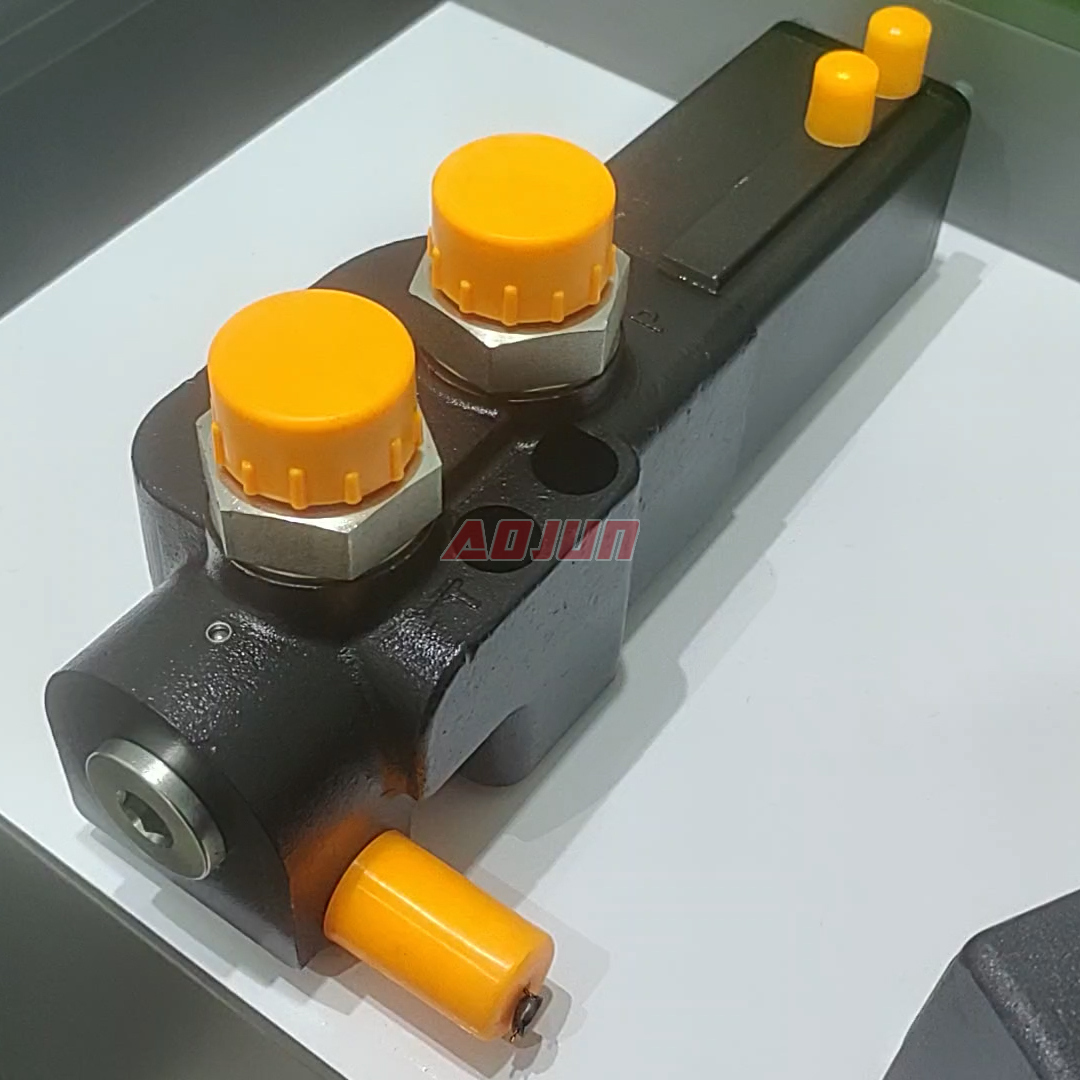

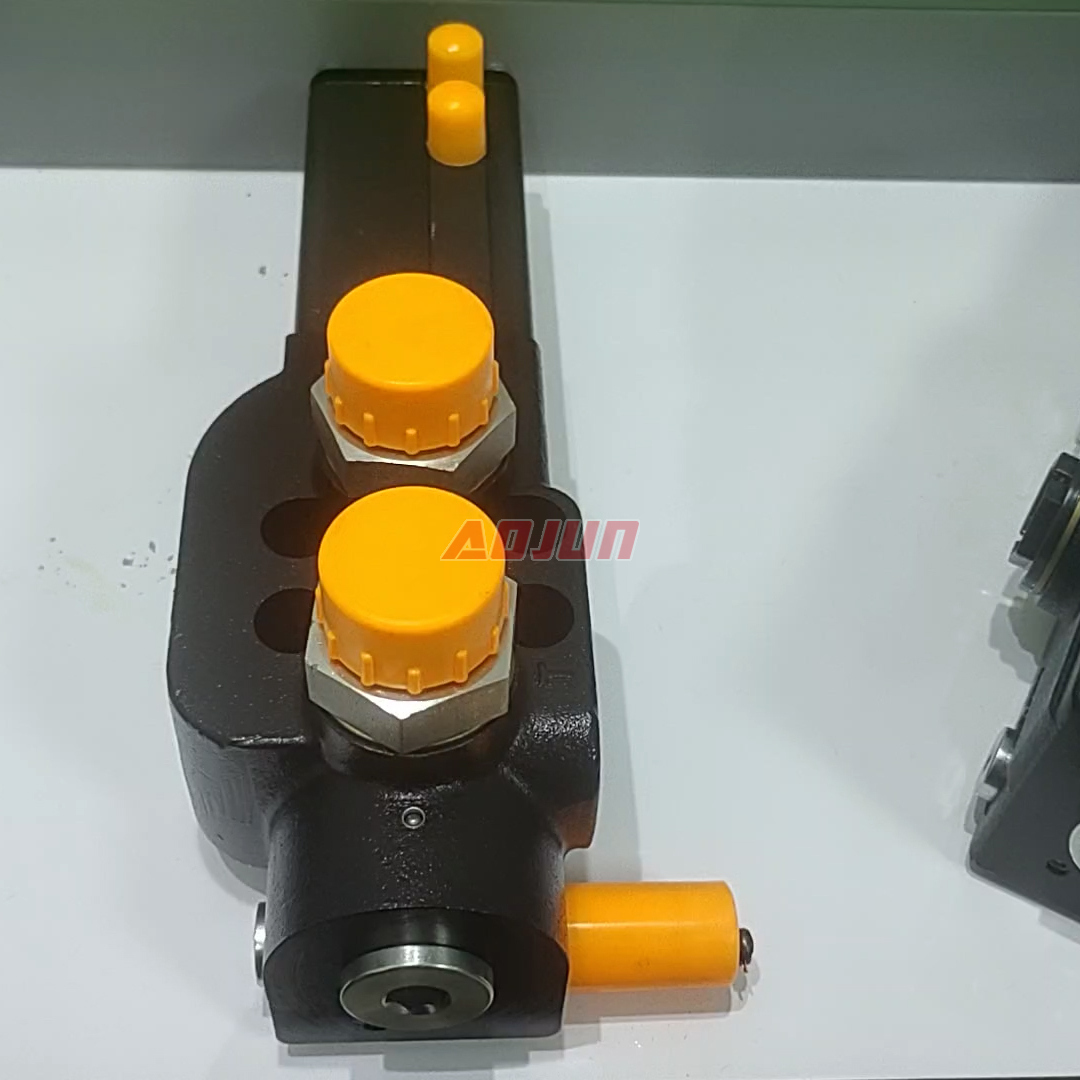

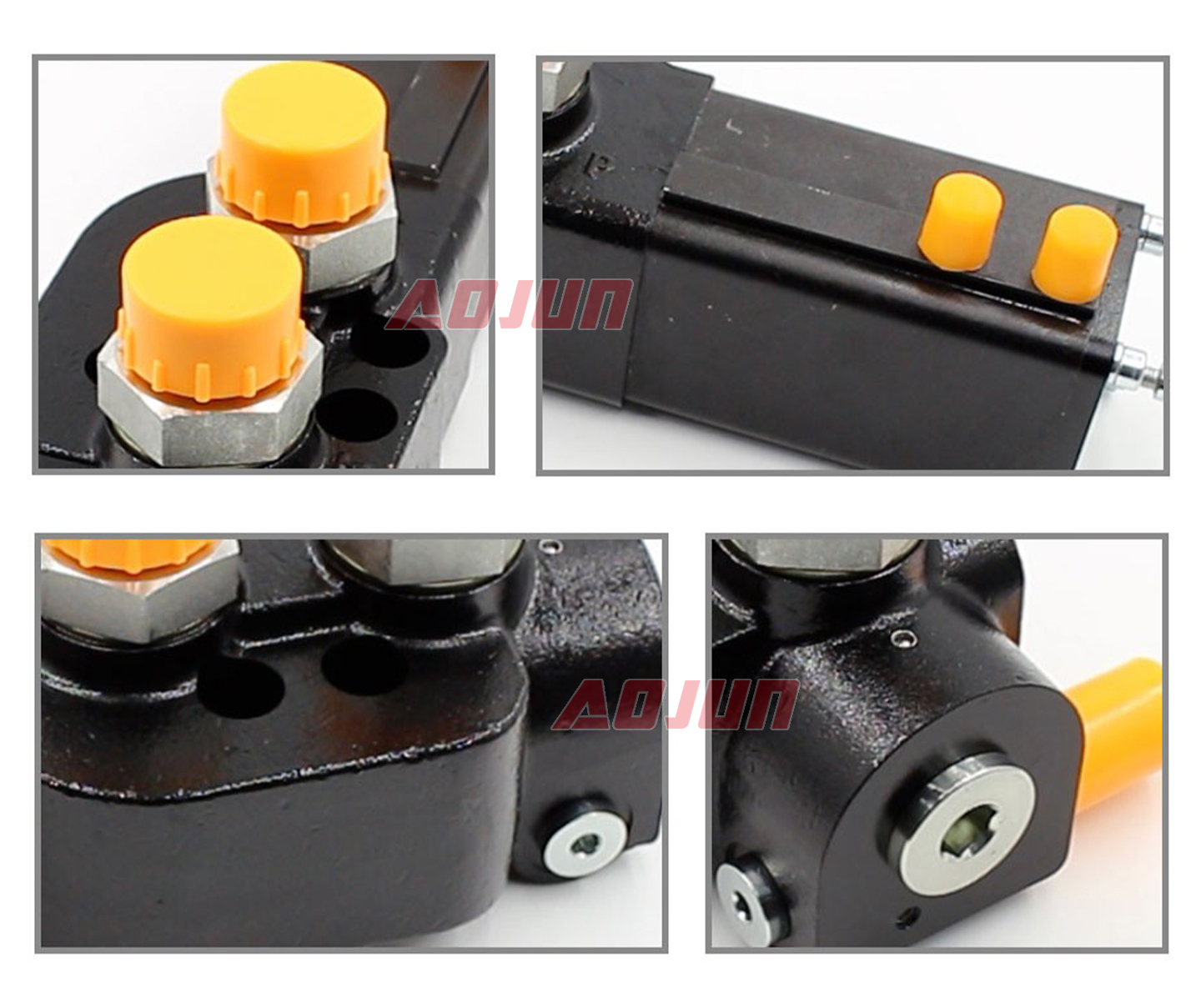

A 1-section pneumatic monoblock directional control valve with single spool design, rated for 220 L/min flow and up to 250 bar pressure, built for reliable mobile-hydraulic control in wide temperature and viscosity conditions.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Control & Structure: Pneumatic actuation with a 1-spool, 1-section monoblock body to reduce leak paths and keep the valve compact for mobile installations.
Performance: Rated flow 220 L/min (58 US gpm) supports high-flow circuits; max pressure 250 bar (3600 psi) fits demanding work functions.
Fluid & Environment Compatibility: Operating viscosity range 15–75 mm²/s helps maintain stable operation across common hydraulic oils; ambient temperature range -40°C to +80°C supports cold-start and high-heat job sites.
Typical Uses: Directional control for cylinders/motors in equipment for construction & earth moving, material handling, industrial vehicles, and agricultural machinery.
Supply & Customization: Factory manufacturing for global buyers, supporting OEM/ODM, private label, customization and wholesale programs; open to distributors, agents, and trading partners.
| PC-1220 Series Tipping Valve Parameters | |
|---|---|
| Control Method | Pneumatic |
| Spool | 1 Spool |
| Rated Flow | 220 L/min (58 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G1 |
| Outlet Port | G1/2, G1 |
| Port Size | G1/4 |
| Section | 1 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
