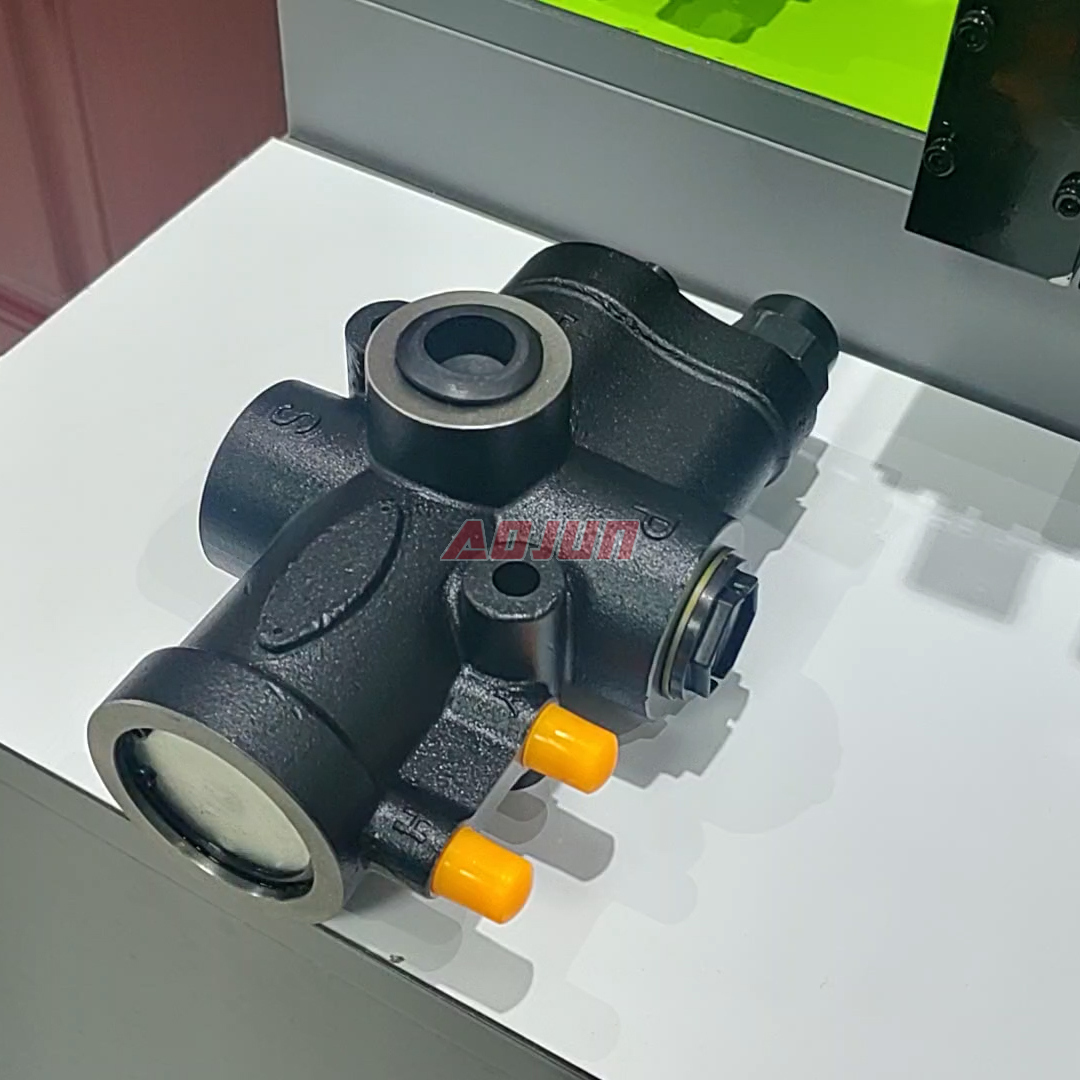

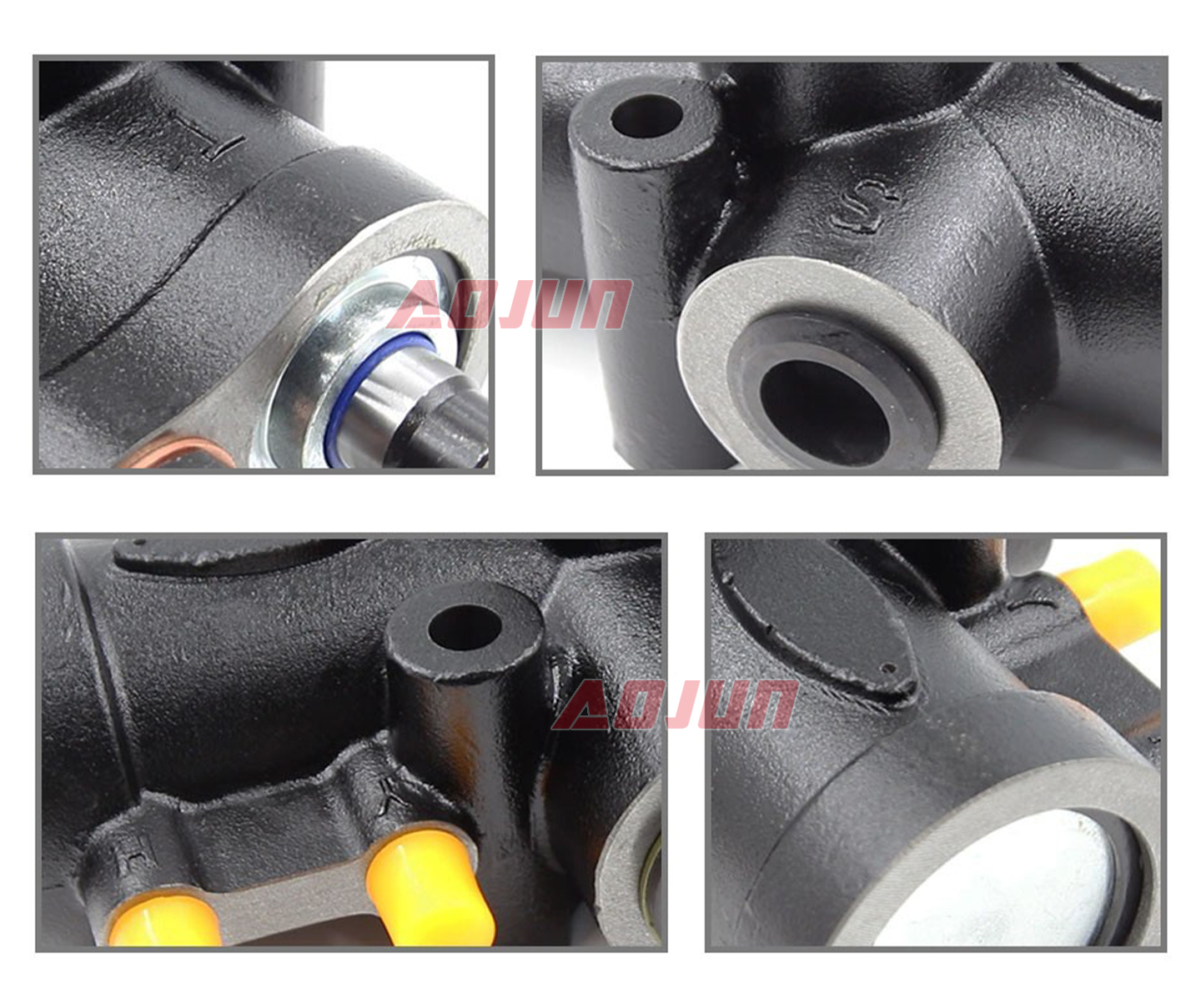

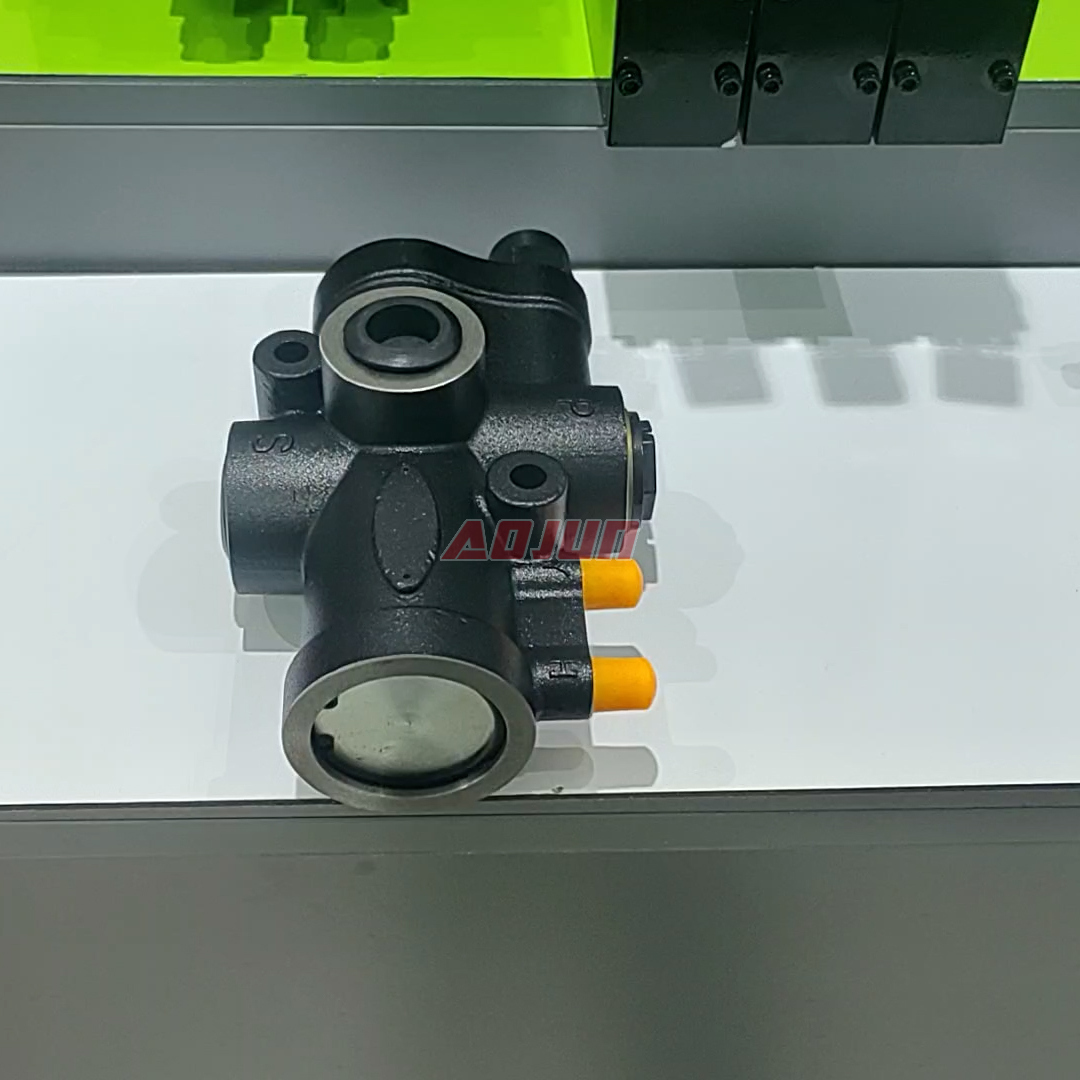

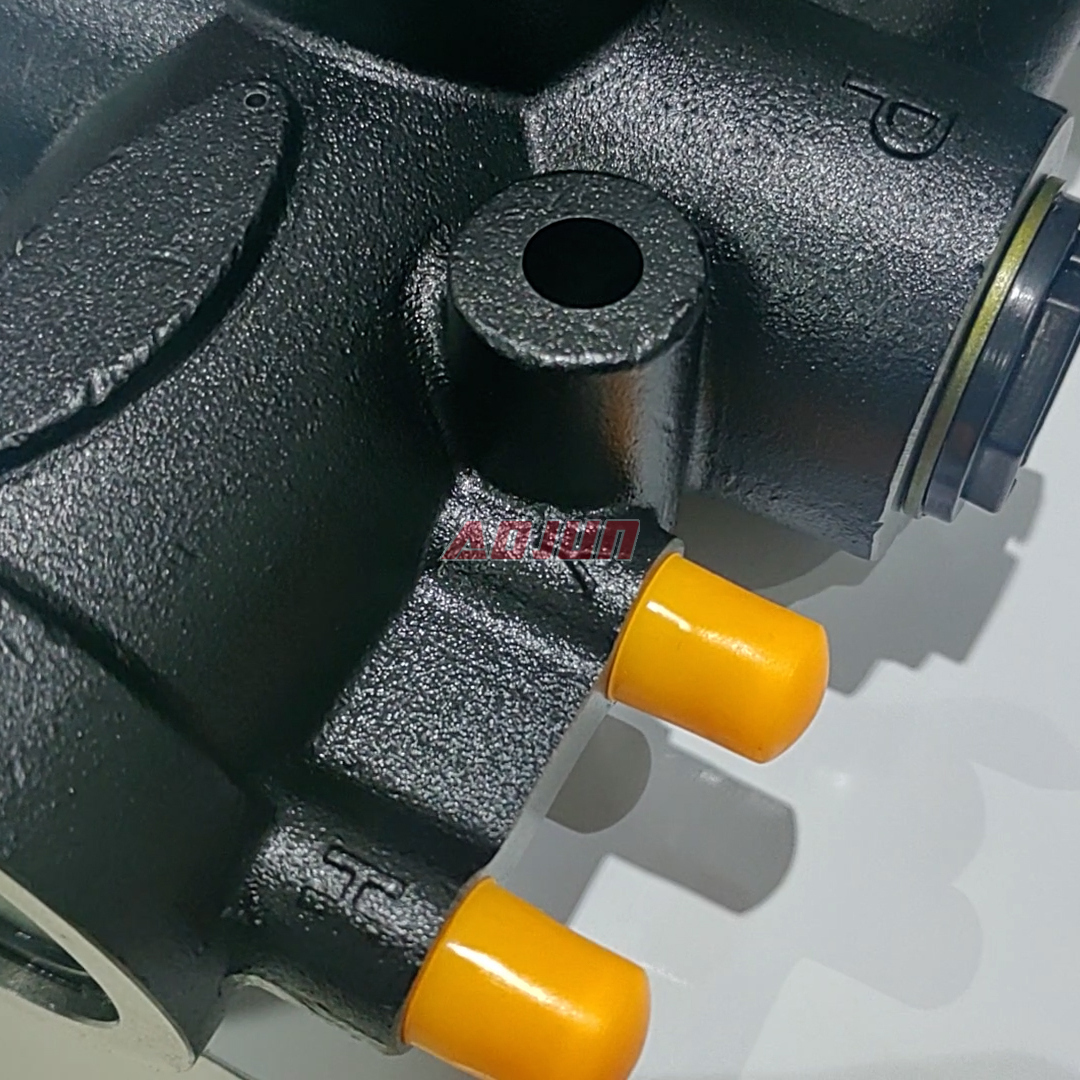

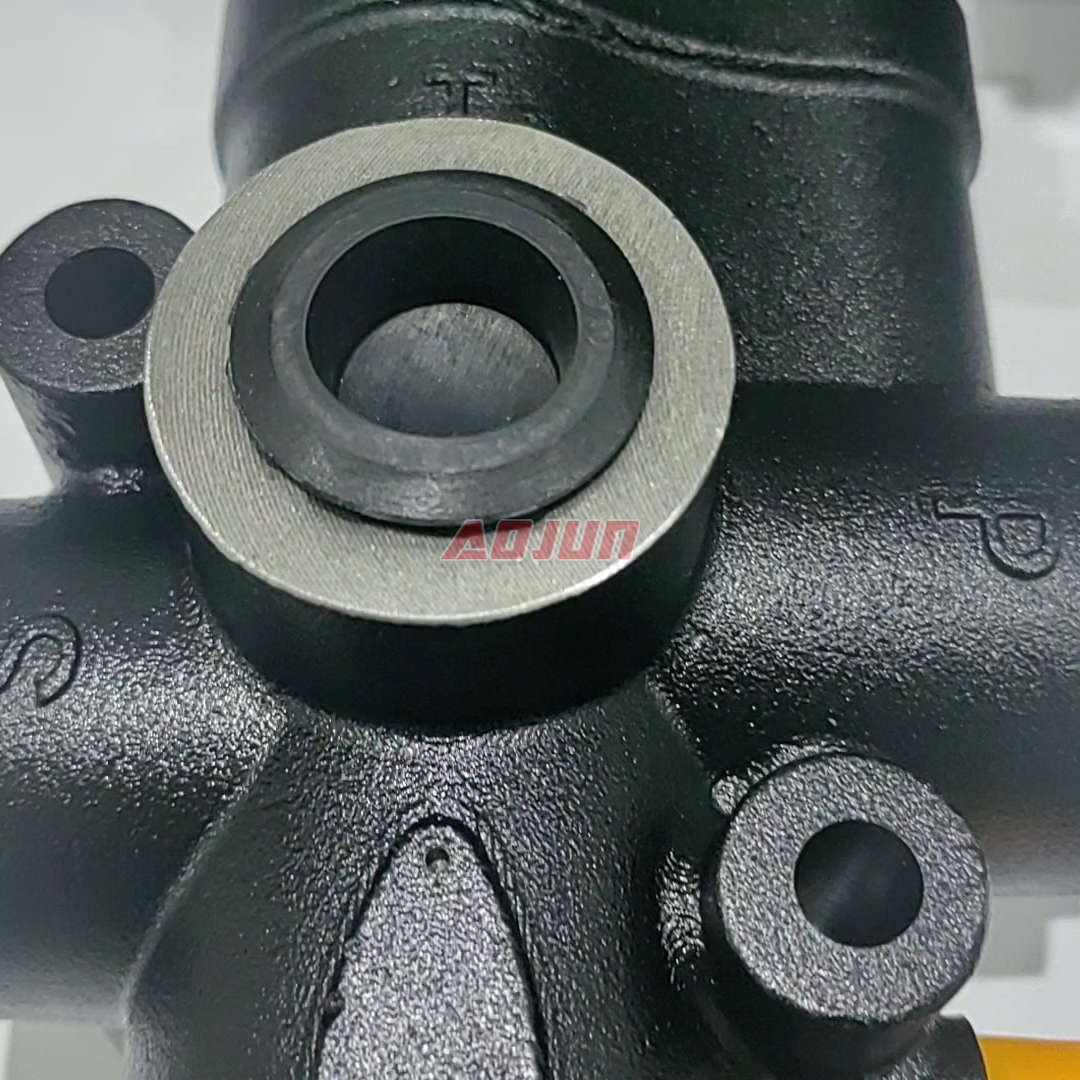

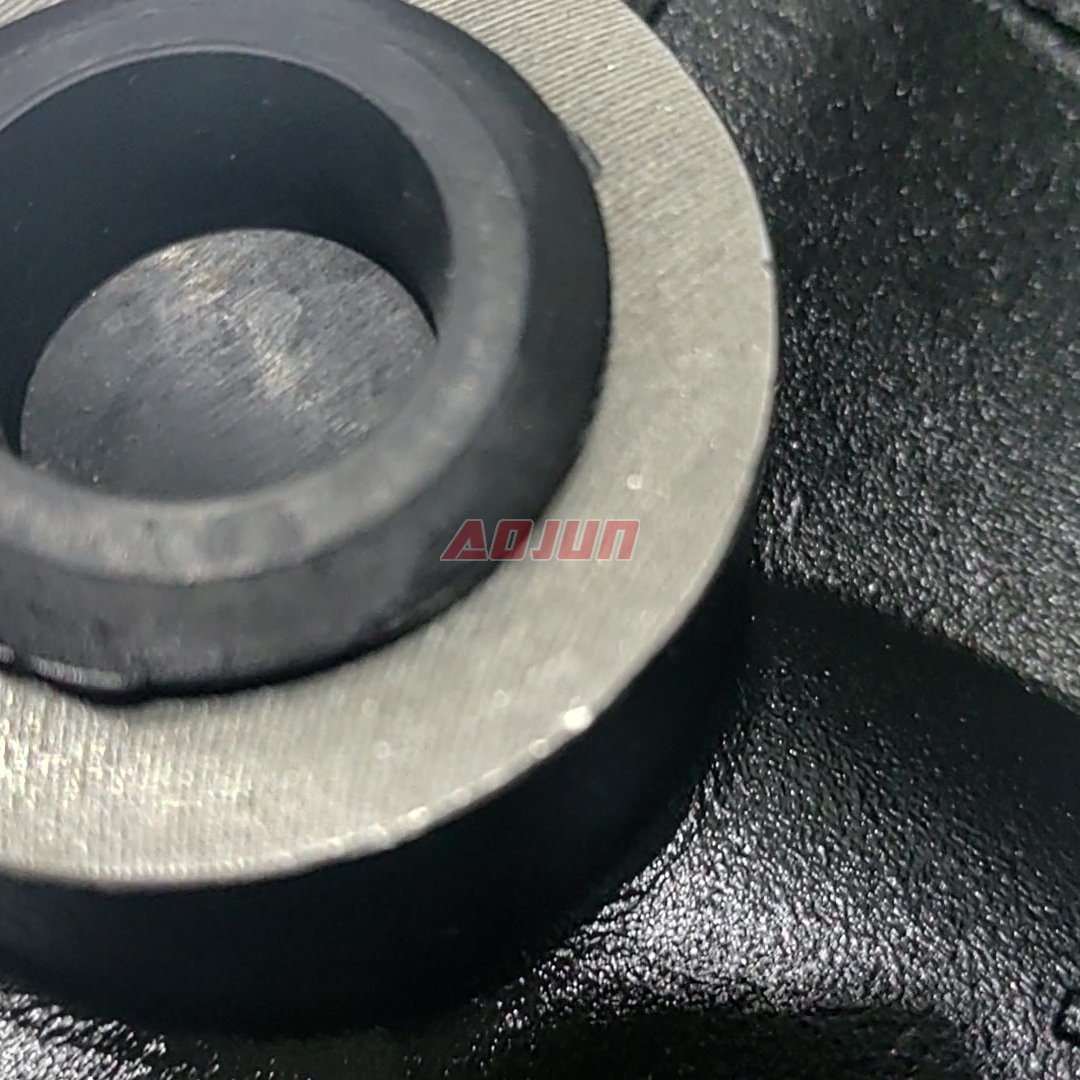

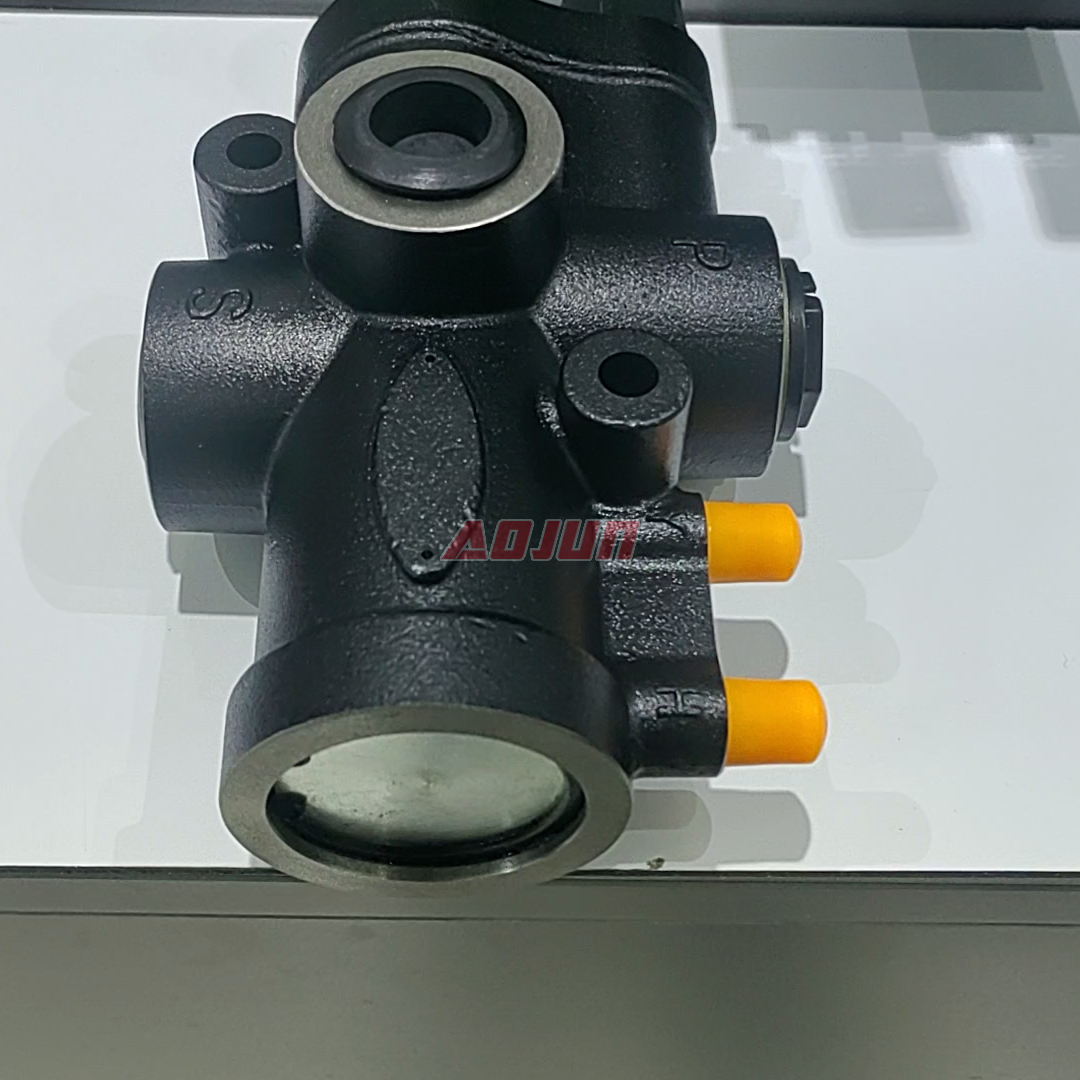

A compact 1-section monoblock hydraulic directional valve with pneumatic actuation, designed for reliable remote control in mobile hydraulic systems. It supports high flow up to 150 L/min and working pressure up to 210 bar, suitable for harsh outdoor environments.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Control method: pneumatic actuation enables safe remote operation and easy integration with air-control circuits. Structure: monoblock body improves sealing reliability and reduces external leakage points compared with multi-piece stacks. Performance: rated flow 150 L/min (39.6 gpm) for high-flow functions; max pressure 210 bar (3045 psi) for demanding mobile equipment. Fluid compatibility: operating viscosity 15–75 mm²/s for common hydraulic oils. Environment: ambient temperature -40°C to +80°C for cold-start and high-heat job sites. Typical uses: directional control for cylinders/motors on forklifts, telehandlers, skid steers, loaders, aerial platforms and other mobile/industrial vehicles. Supply options: manufacturer support for OEM/ODM, private label, custom configurations, bulk wholesale, and global distributor/agent cooperation.
| QFCK-F20L Series Tipping Valve Parameters | |
|---|---|
| Spool | 1 Spool |
| Control Method | Pneumatic |
| Port Size | G3/4, G1, G1/4 |
| Section | 1 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 150 L/min (39.6 US gpm) |
| Max Pressure | 210 bar (3045 psi) |
| Outlet Port | G3/4 |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
