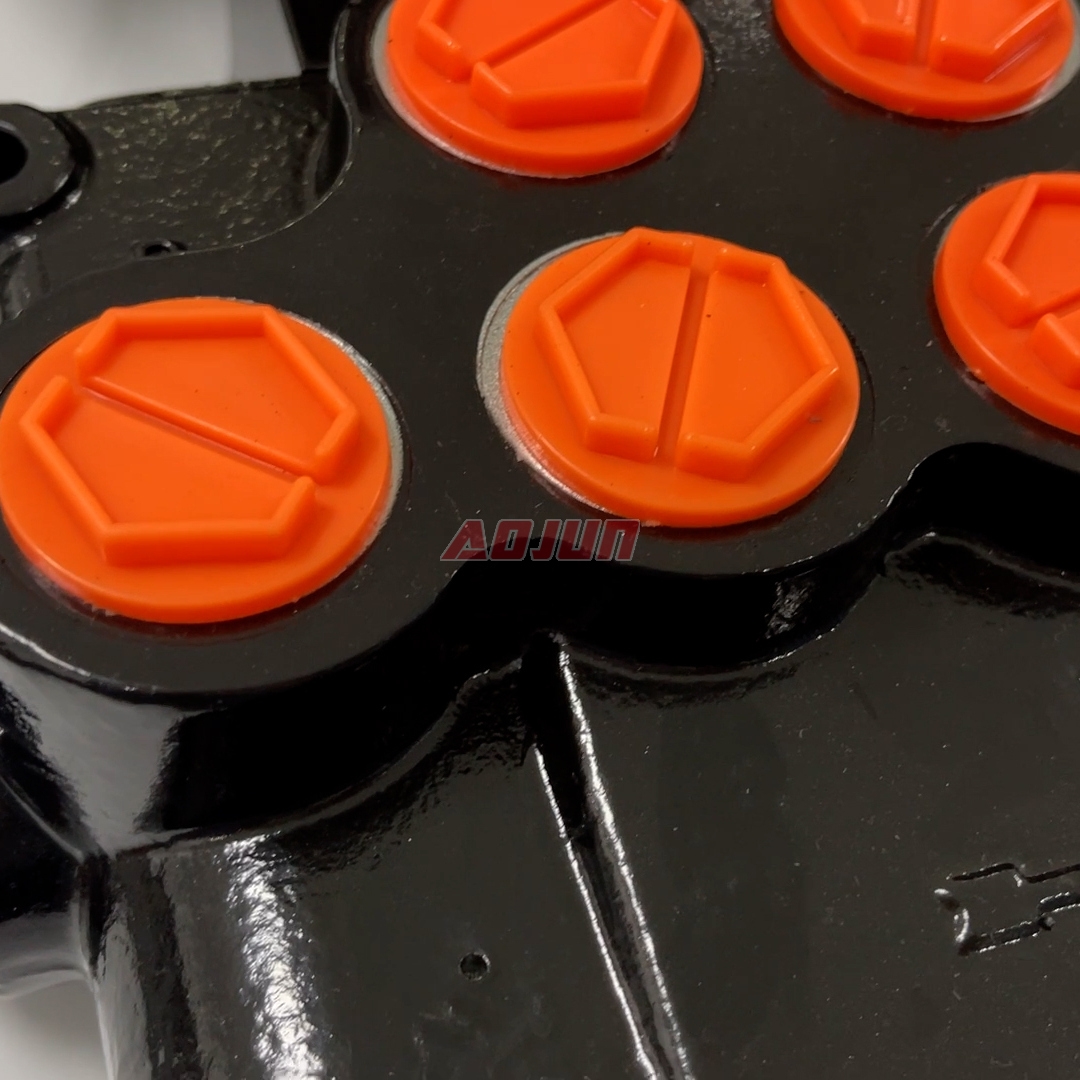

A compact 2-section electro-hydraulic monoblock valve designed for mobile equipment requiring high flow (160 L/min) and high pressure capability (up to 315 bar), with reliable operation across wide viscosity and extreme ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

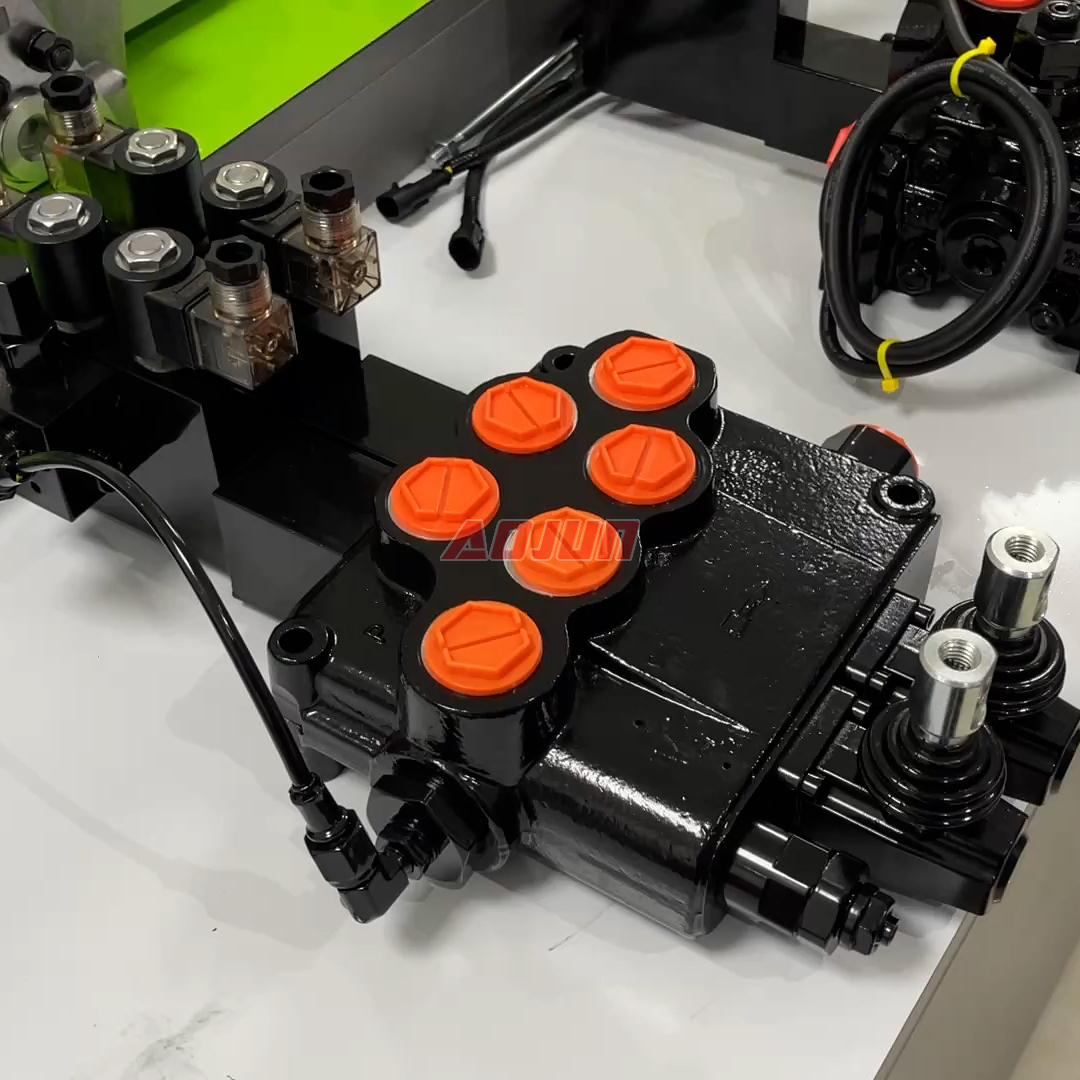

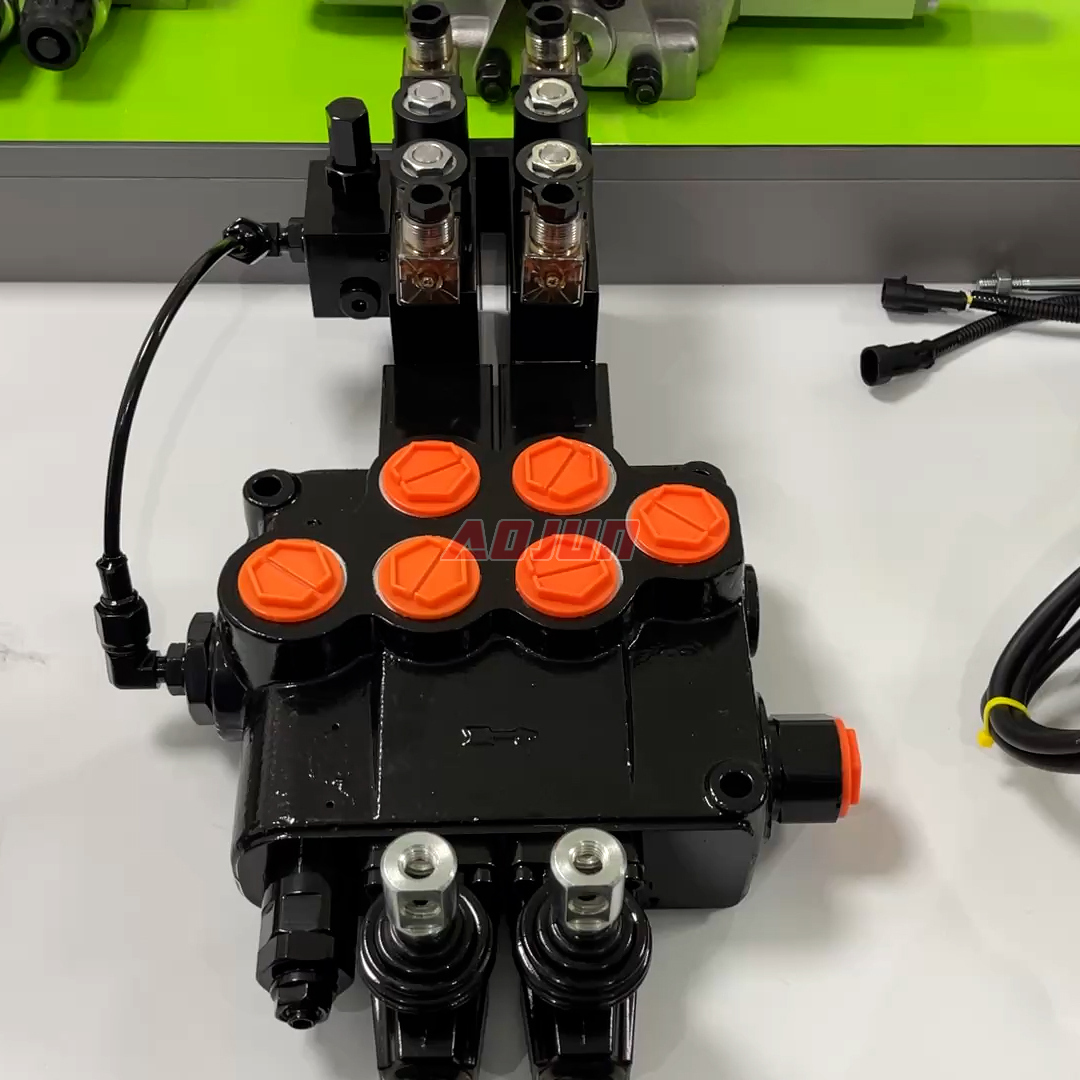

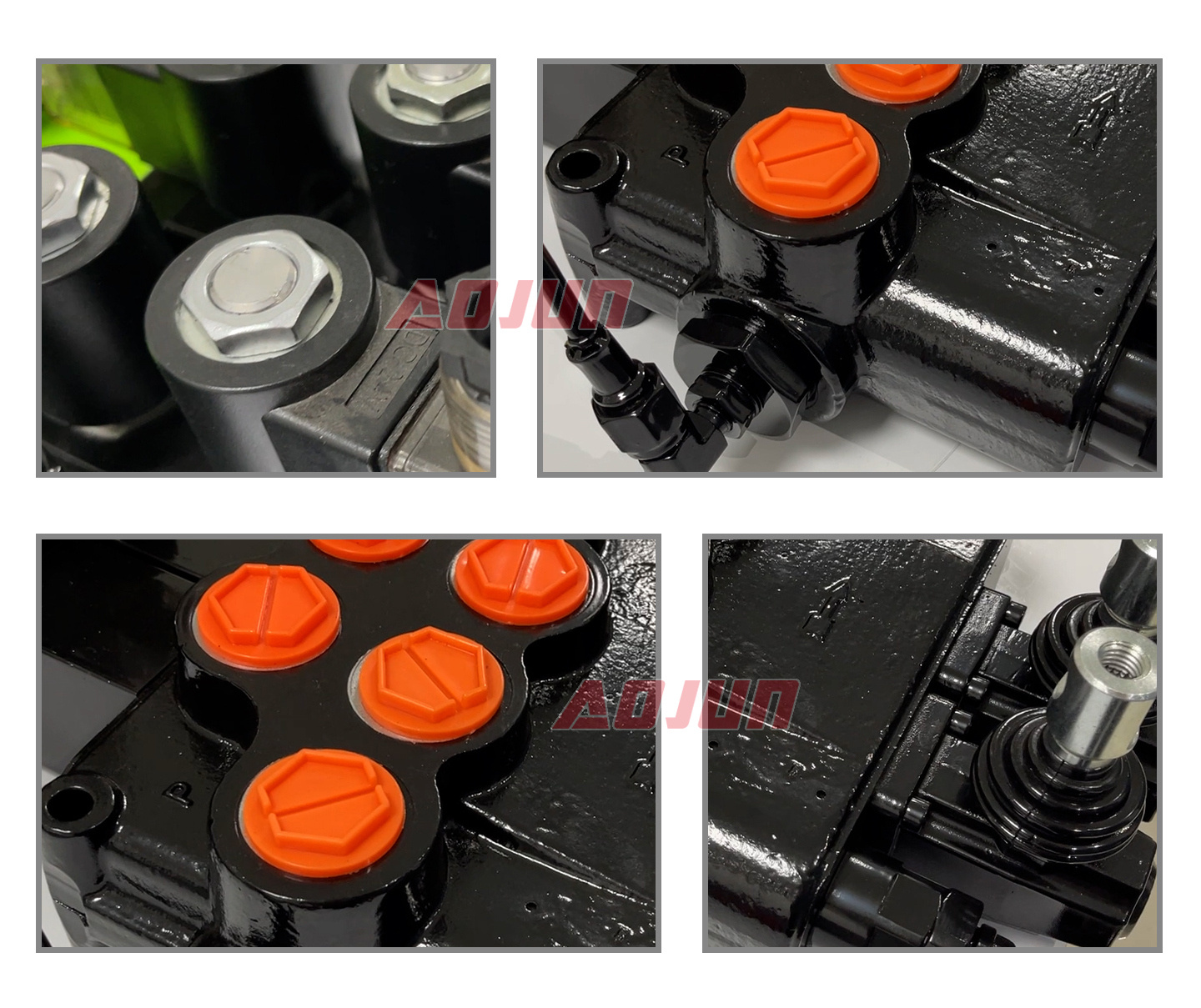

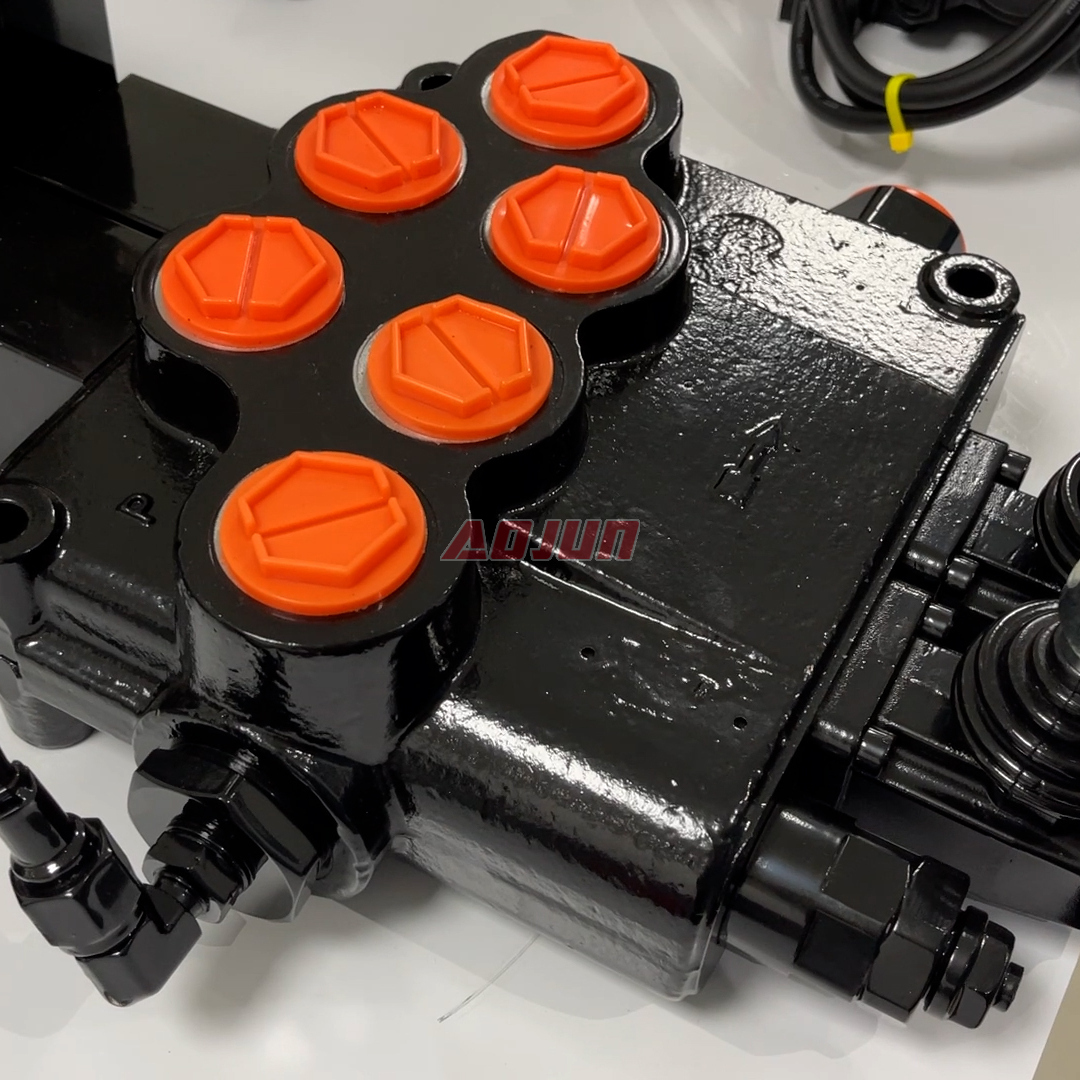

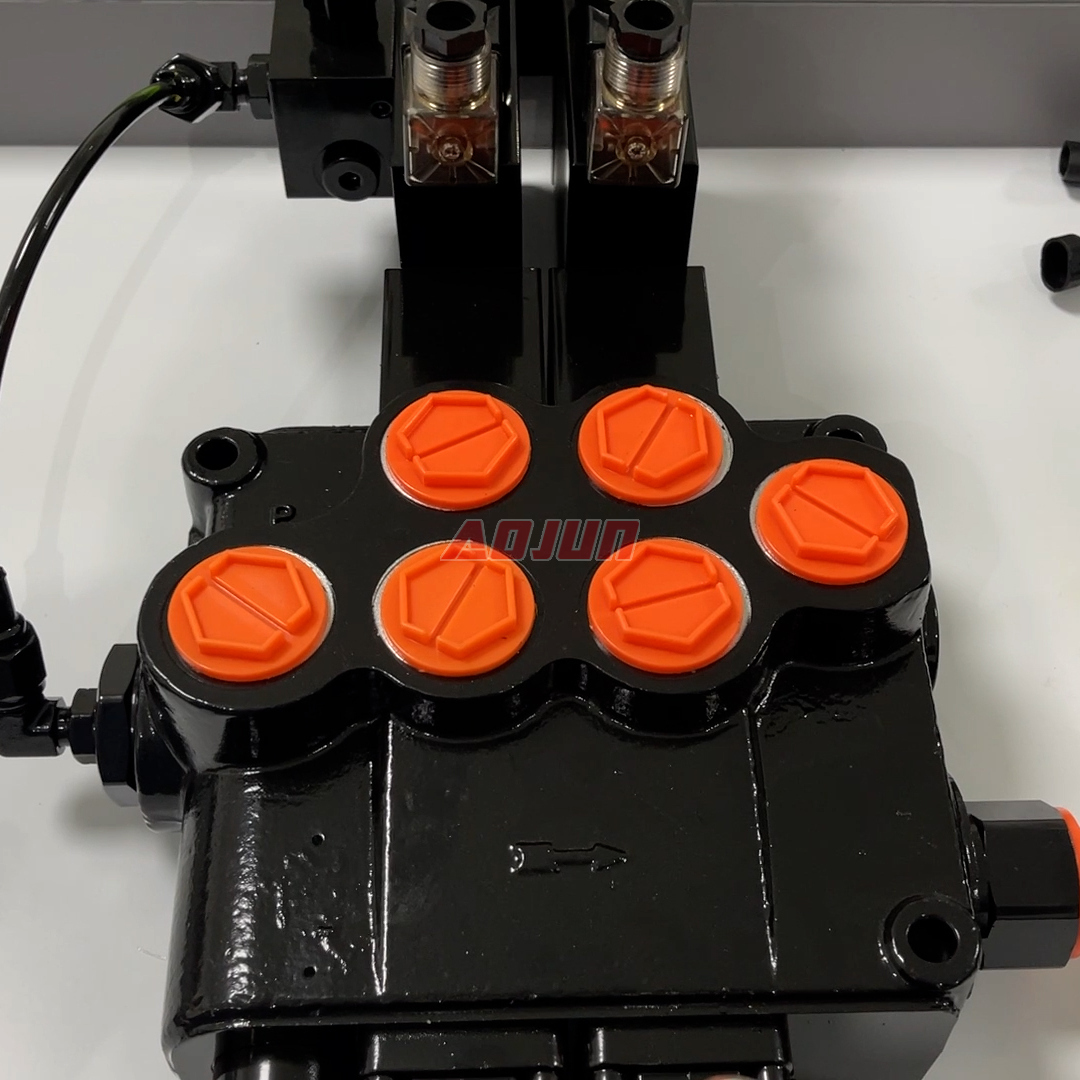

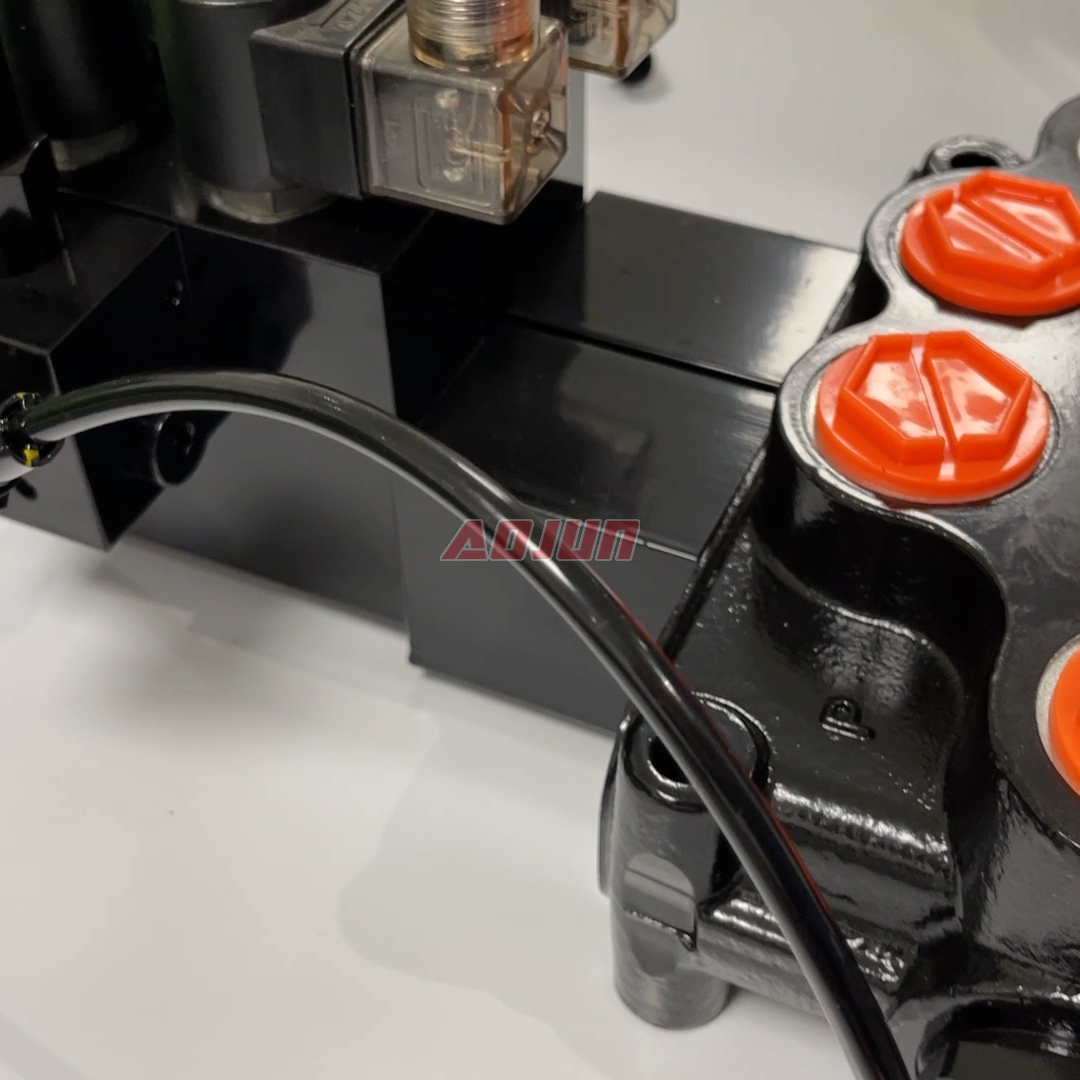

This 2-spool, 2-section monoblock valve uses electro-hydraulic actuation to provide stable, responsive directional control for mobile hydraulic circuits. With a rated flow of 160 L/min and maximum pressure of 315 bar, it fits high-demand functions such as lifting, tilting, steering, auxiliary implements, and multi-actuator control. The valve is engineered for harsh environments: operating viscosity range 12–400 mm²/s supports cold-start and hot-running oils, while -40°C to +80°C ambient capability suits outdoor machinery and winter operations. Typical applications include telehandlers, forklifts, aerial platforms, skid steer loaders, wheel loaders, excavators, and agricultural loaders. As a manufacturer, we support OEM supply, wholesale, private label, and customization (e.g., spool function options, porting/interface, and electrical configuration) for distributors and equipment builders worldwide.
| SD18 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Rated Flow | 160 L/min (42.2 US gpm) |
| Max Pressure | 305 bar (4400 psi) |
| Inlet Port | G1/2, G1, SAE 16 |
| Outlet Port | G1, SAE 16 |
| Port Size | G1, SAE 16 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
