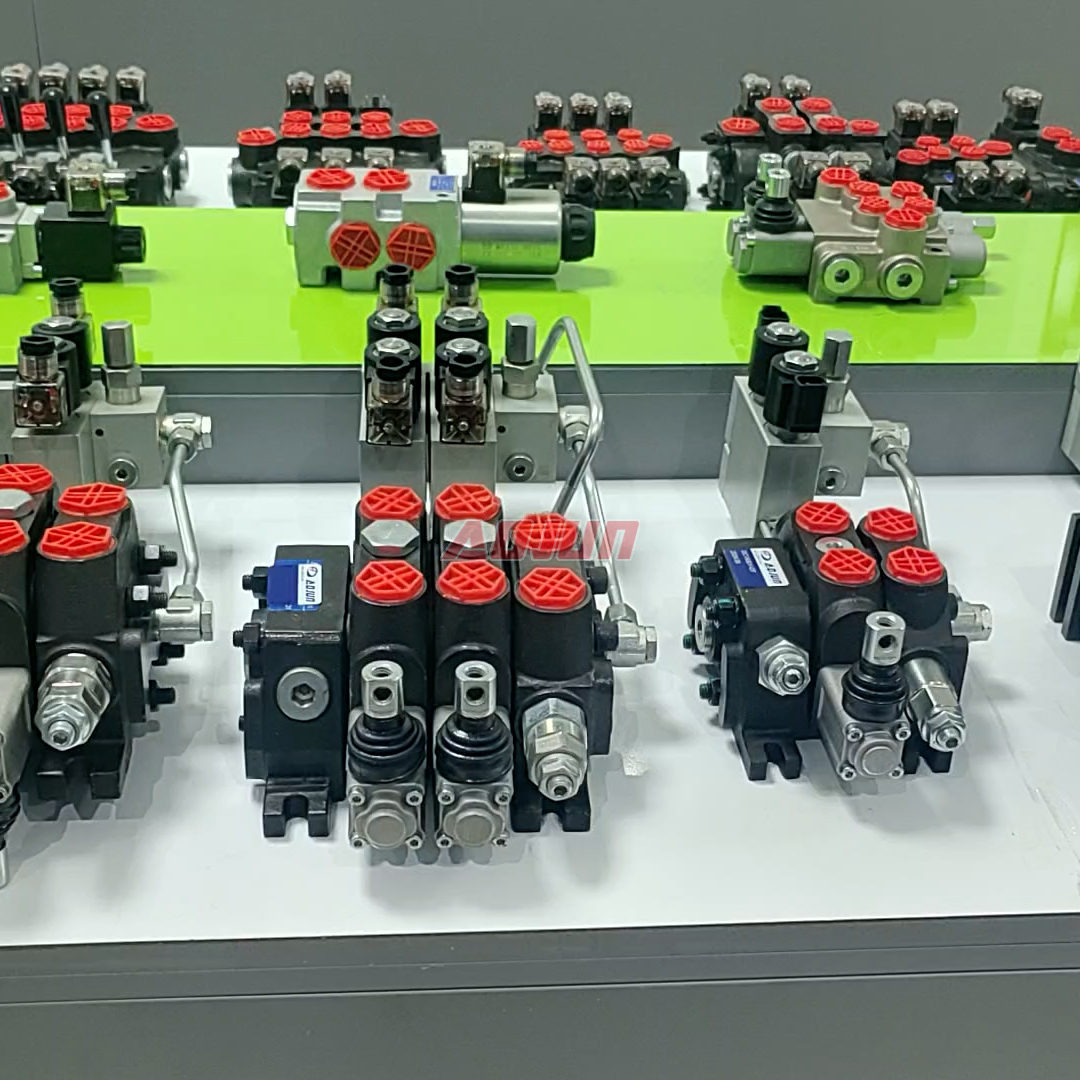

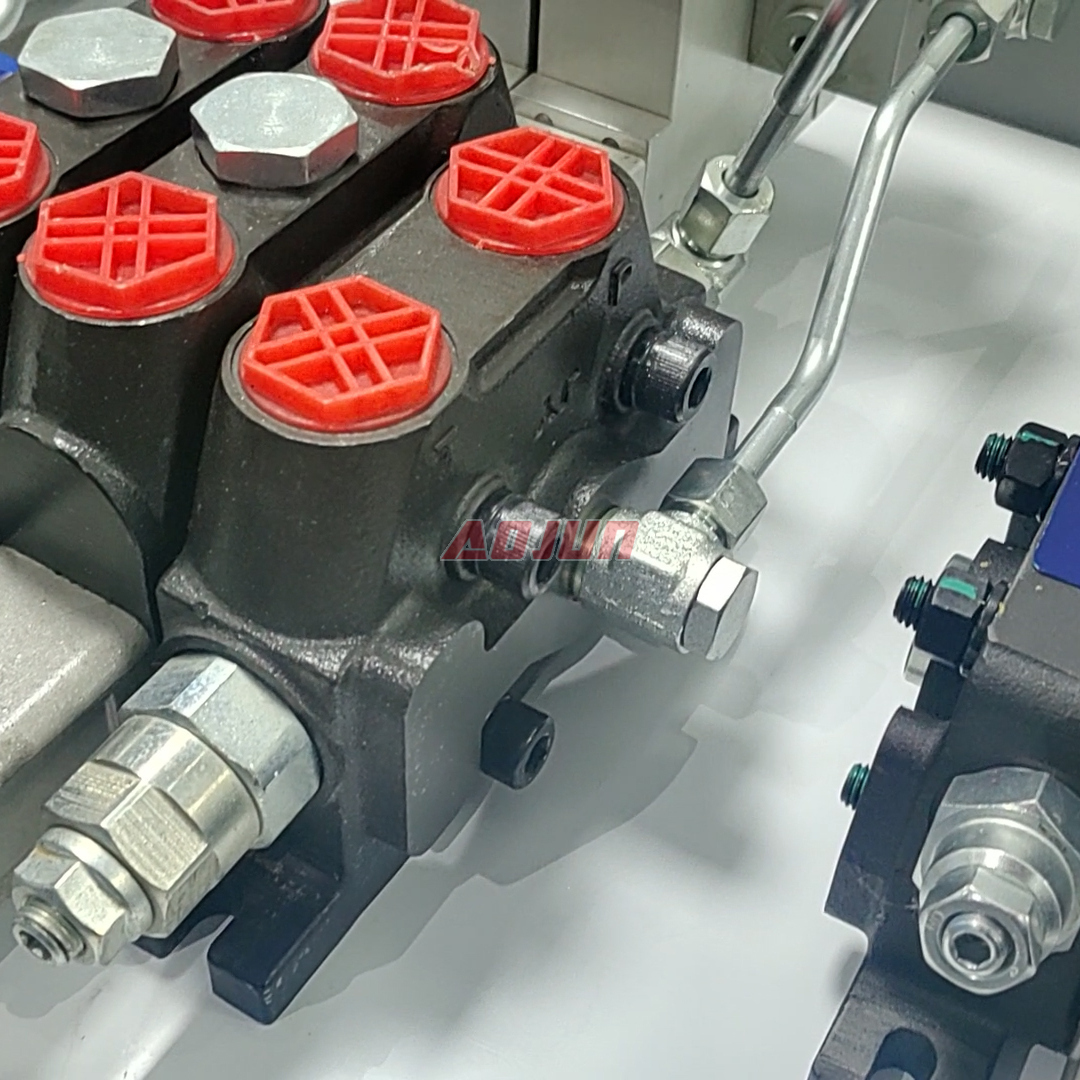

A 2-section electro-hydraulic sectional directional valve designed for mobile equipment, delivering up to 100 L/min flow and 350 bar pressure with reliable operation across wide oil viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This electro-hydraulic, 2-section sectional valve is built for mobile hydraulic control where high flow, high pressure, and precise actuation are required. Rated flow is 100 L/min (26.5 US gpm) and maximum working pressure is 350 bar (5100 psi), making it suitable for implement functions, auxiliary circuits, and multi-actuator control on construction, material handling, agricultural, and industrial vehicles.
Key advantages:
- Electro-hydraulic actuation: supports remote/electrical control for improved operator comfort and integration with joysticks or machine control systems.
- Sectional (modular) structure: 2 sections enable flexible circuit configuration and easier service/maintenance versus one-piece designs.
- Wide oil compatibility: operating viscosity range 15–75 mm²/s helps maintain stable performance across different hydraulic fluids and operating conditions.
- Harsh-environment readiness: ambient temperature range -40°C to +60°C supports cold-start and hot-weather applications.
Typical use cases:
- Telehandlers, forklifts, aerial platforms: lifting/tilting and auxiliary hydraulic functions.
- Skid steer loaders, mini/midi excavators, wheel loaders, backhoe loaders: attachment circuits, boom/arm auxiliaries, and implement control.
- Tractors with front-end loaders: loader lift/tilt and auxiliary services.
Supply capability:
- Factory direct manufacturing for global markets, supporting OEM supply, wholesale, private label, and customization for distributors/agents (e.g., connection standards, control interfaces, and application-specific configurations).
| DCV100 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Hydraulic, Cable, Joystick, Manual and Joystick, Manual and Electro-hydraulic, Electric motor |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Structure Type | Sectional valve |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Outlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Size | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
