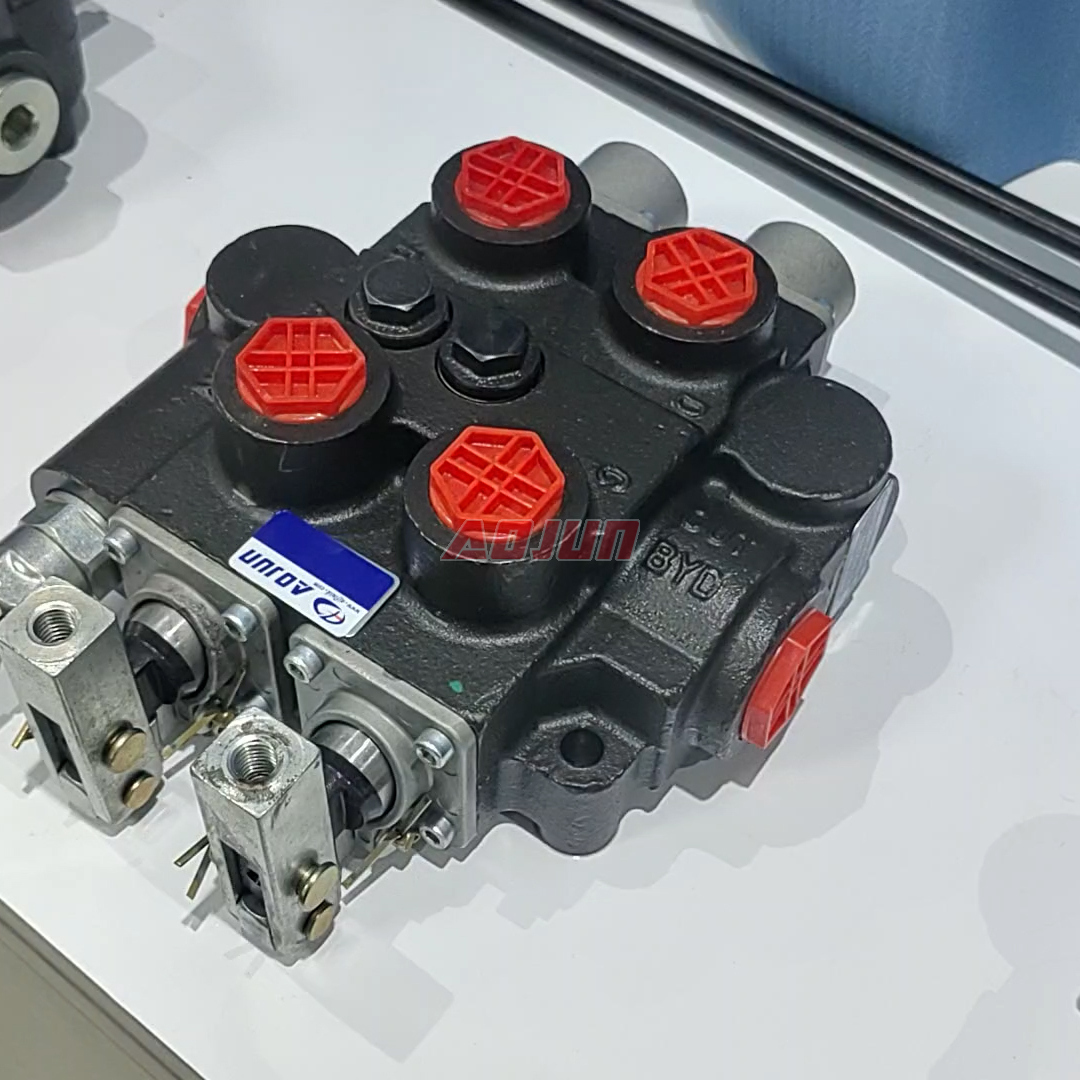

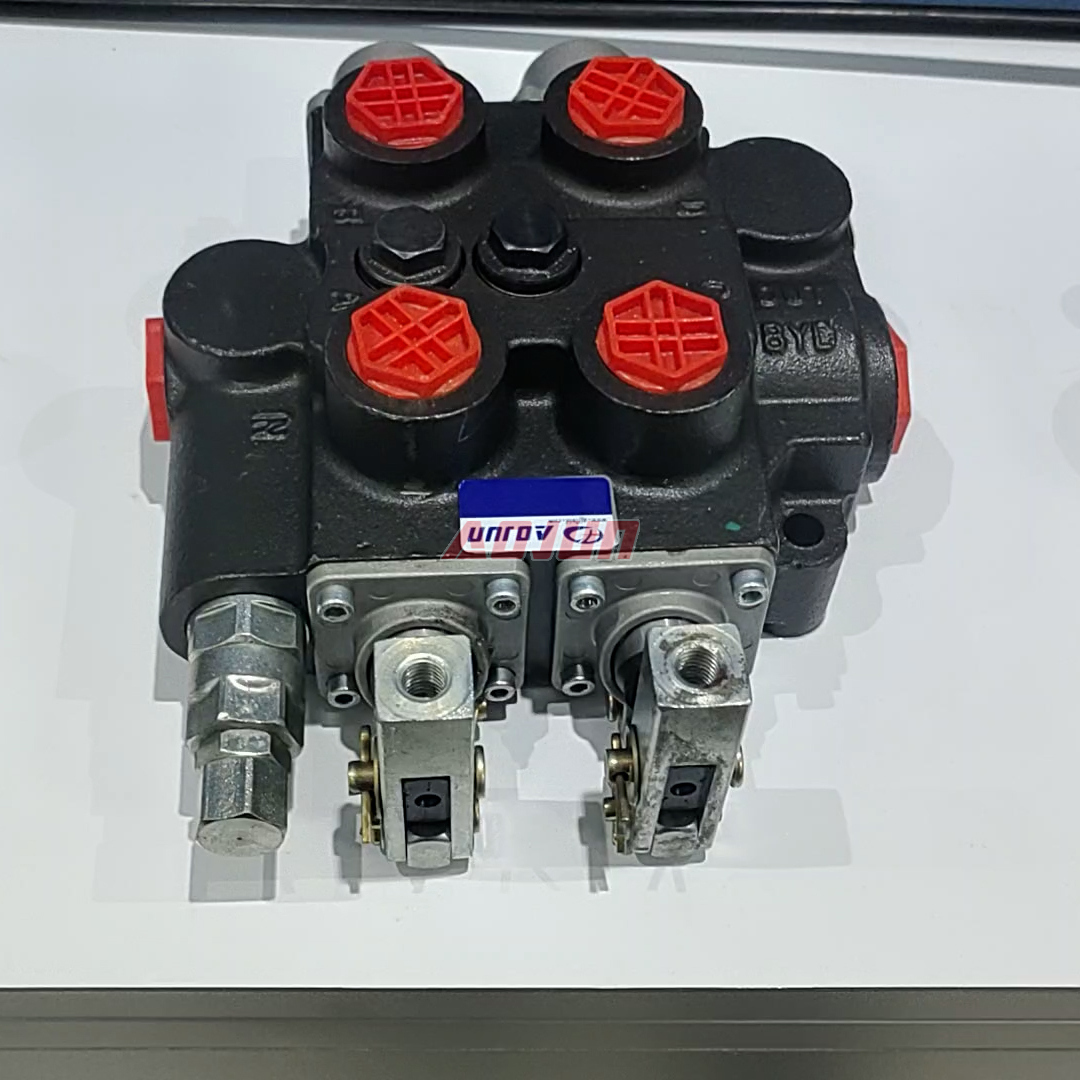

A 2-section manual monoblock directional valve designed for mobile hydraulic systems, delivering up to 100 L/min flow and 315 bar pressure for reliable actuator control in harsh environments.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key advantages: 2-spool manual control for simple, dependable operation; monoblock structure for compact installation, fewer leak paths, and strong rigidity; high performance rating of 100 L/min (26.5 gpm) and 315 bar (4600 psi) for demanding cylinders and motors; wide oil viscosity tolerance (12–400 cSt) to suit various hydraulic fluids and operating conditions; broad ambient temperature range (-40°C to +80°C) for cold-start and high-heat job sites.
Typical applications: mobile machinery hydraulic control such as loader lift/tilt functions, telehandler attachments, forklift auxiliaries, skid steer implements, small excavator auxiliary circuits, and agricultural implement actuation.
Supply & customization: suitable for manufacturing, OEM/ODM, private label, and bulk distribution; configurable porting and circuit options may be available to match different system layouts and user preferences.
| RD Series Hydraulic Control Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G3/4 |
| Outlet Port | G3/4 |
| Port Size | G1/2, G3/4 |
| Section | 1 Section, 2 Section, 3 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
