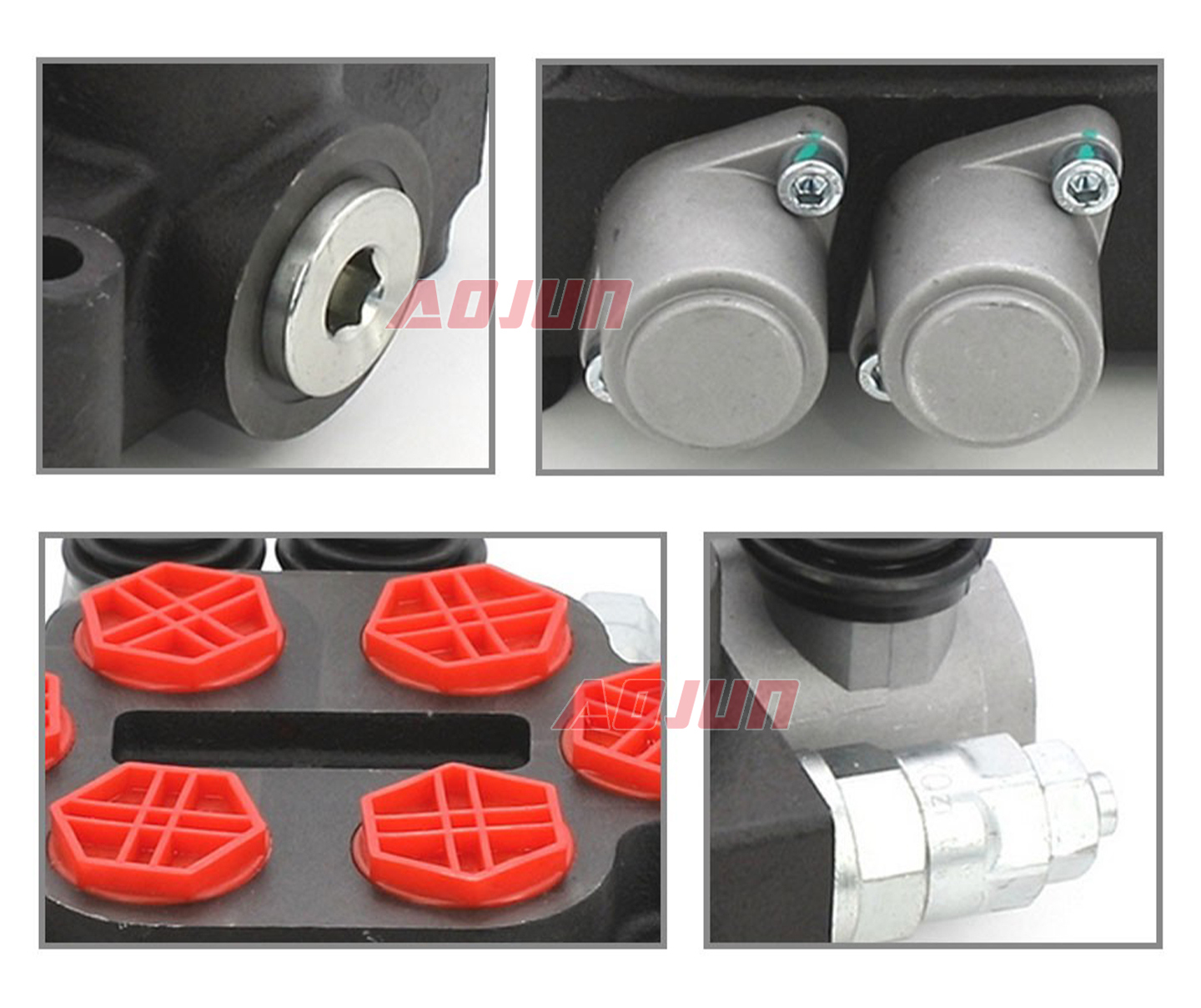

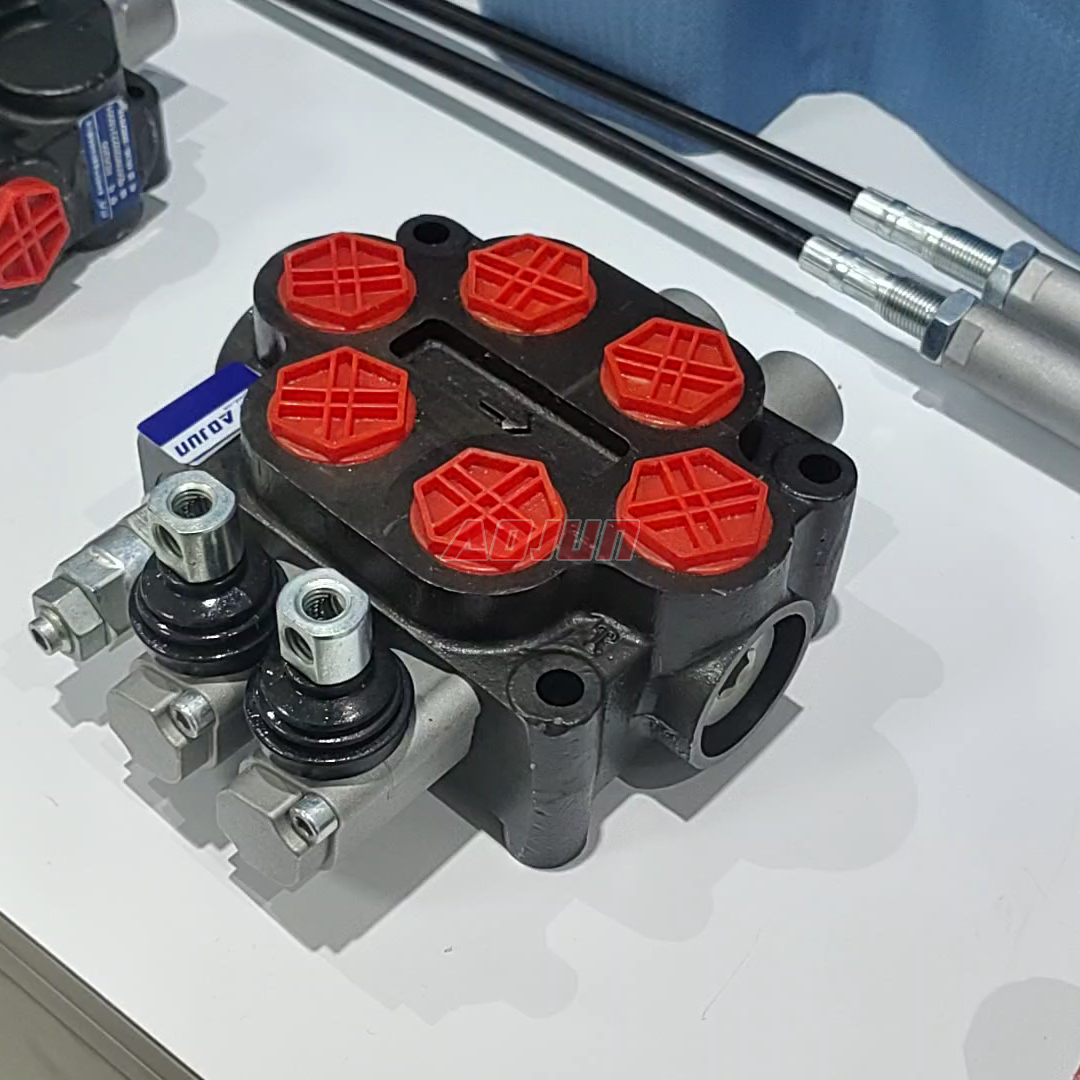

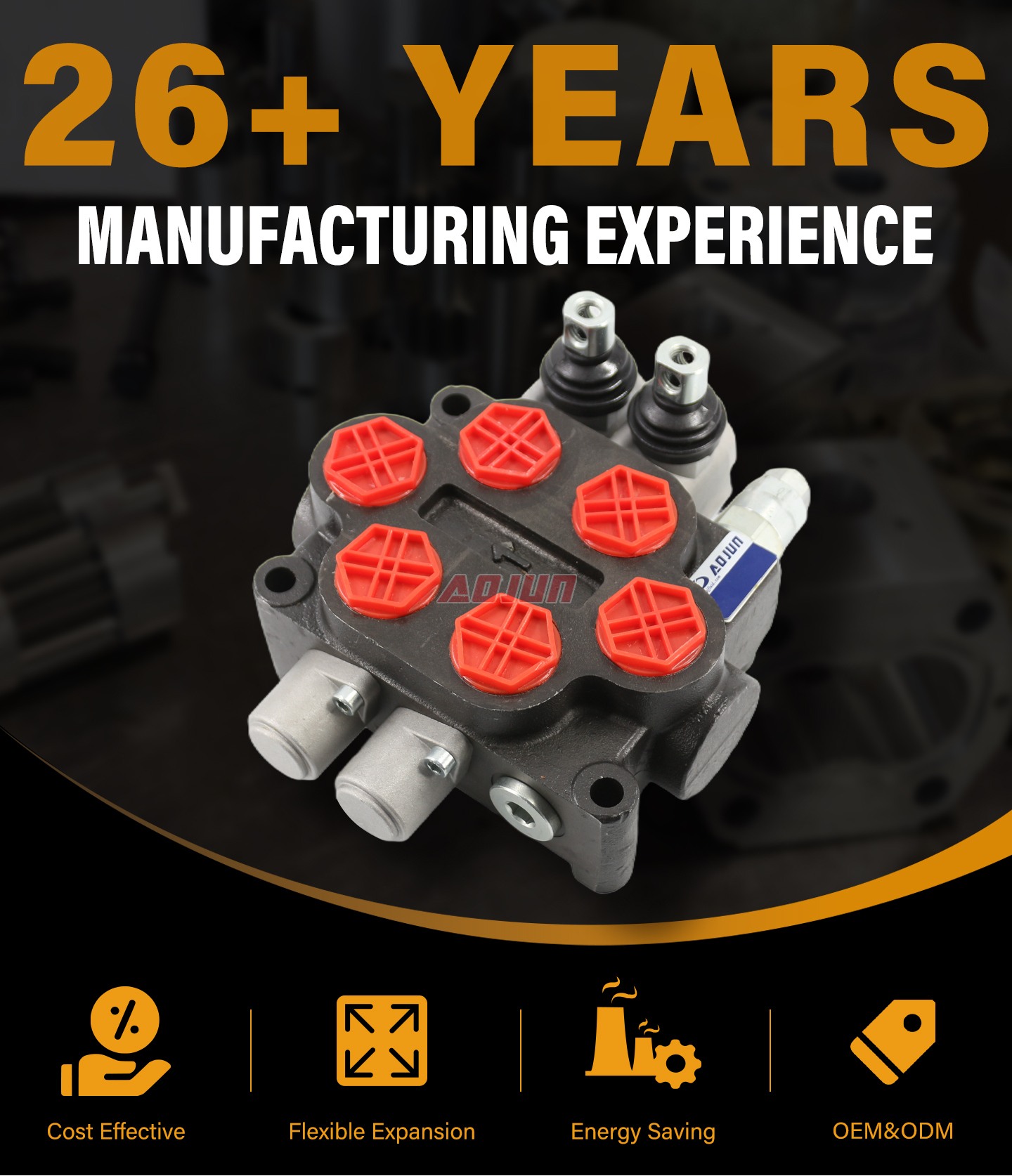

A 2-section manual monoblock directional control valve designed for mobile hydraulic systems, delivering up to 100 L/min flow and 250 bar working pressure, with reliable operation across -40°C to +80°C and 15–75 cSt viscosity range.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specifications: 2-spool / 2-section manual control; monoblock structure; rated flow 100 L/min (26.5 US gpm); max pressure 250 bar (3600 psi); operating viscosity 15–75 mm²/s; ambient temperature -40°C to +80°C.
Advantages: monoblock construction helps reduce external leak paths and supports a compact installation; manual lever actuation offers direct, intuitive control for two independent hydraulic circuits; high-flow capacity suits fast cylinder/motor response in mobile equipment; wide temperature and viscosity ranges support stable performance in cold starts and varying oil conditions.
Typical applications: controlling lift/tilt/auxiliary functions on loaders and skid steers, attachments on mini-excavators, steering or auxiliary circuits on tractors, and hydraulic functions on forklifts/telehandlers and aerial platforms.
Supply capabilities: factory direct manufacturing for global markets, supporting OEM/ODM, private label, customization, wholesale supply, and distributor/agent partnerships.
| ZT20 Series Hydraulic Control Valve Parameters | |
|---|---|
| Control Method | Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
