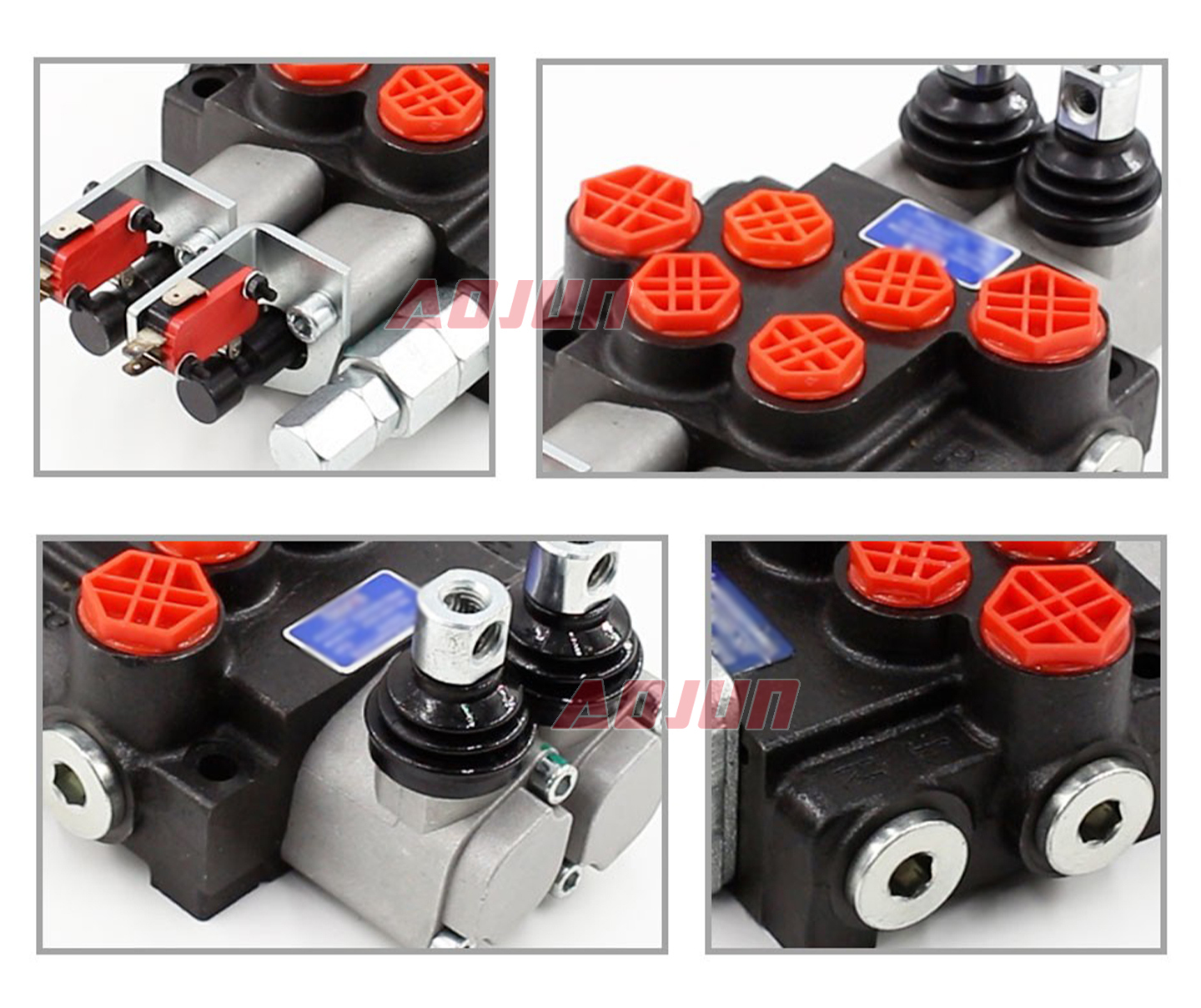

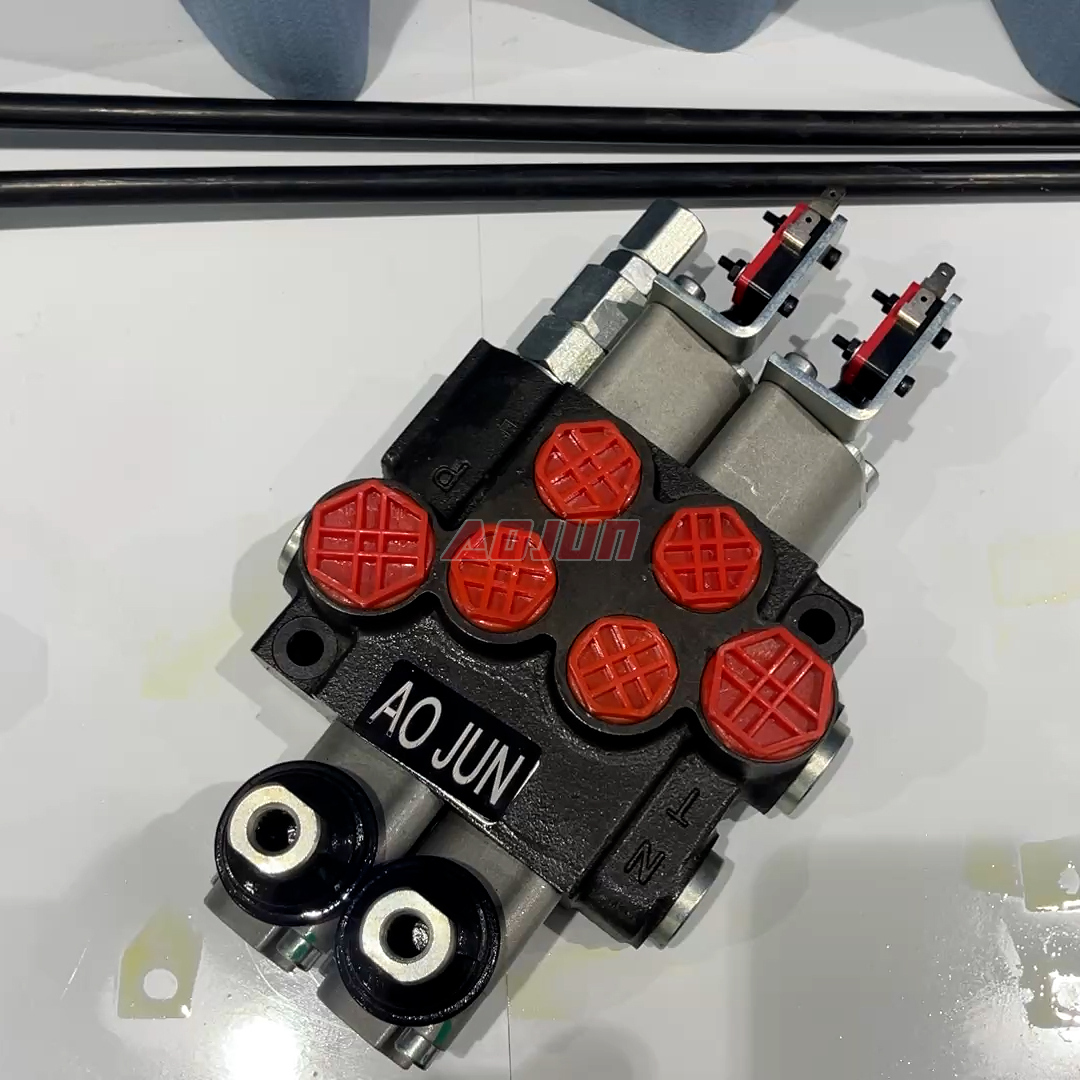

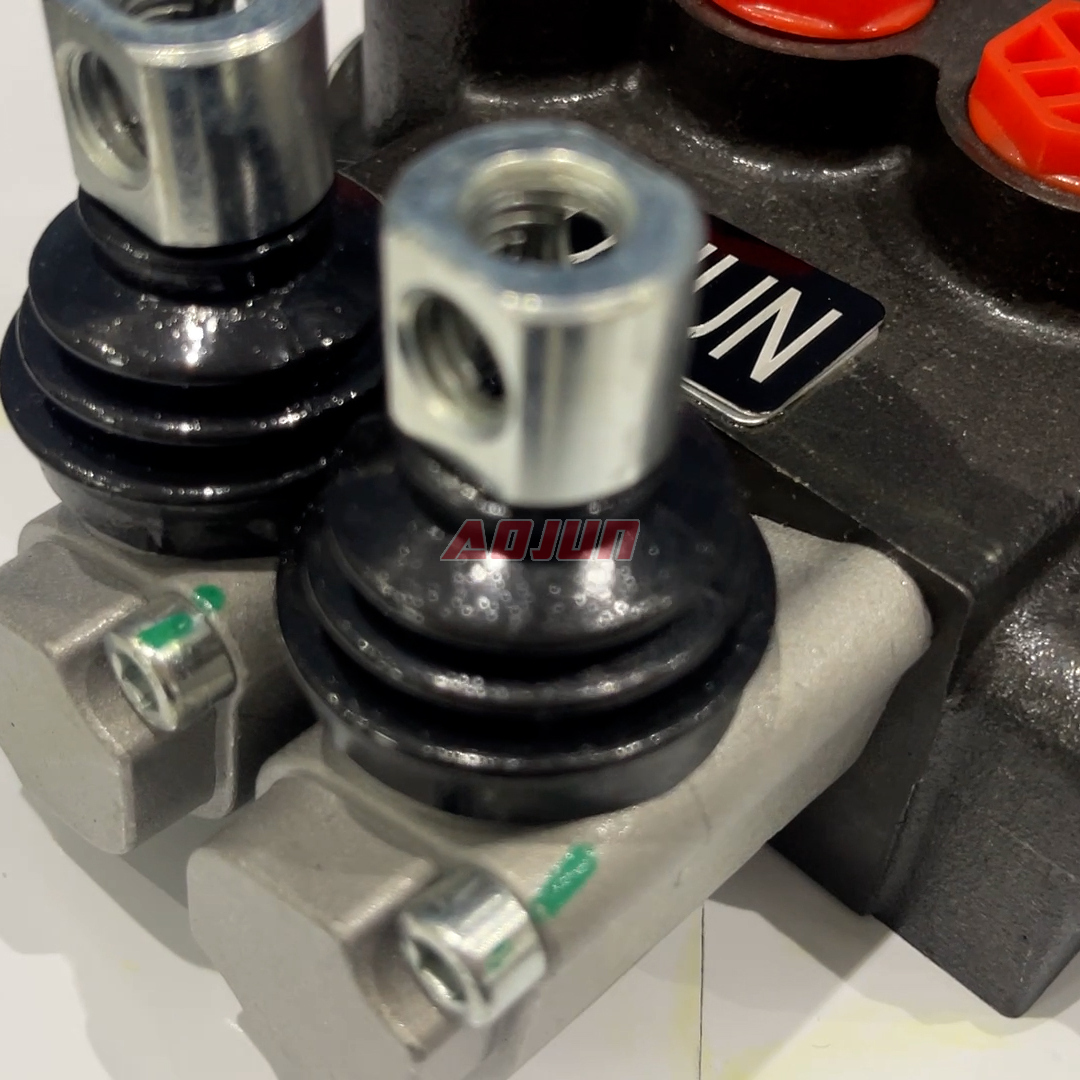

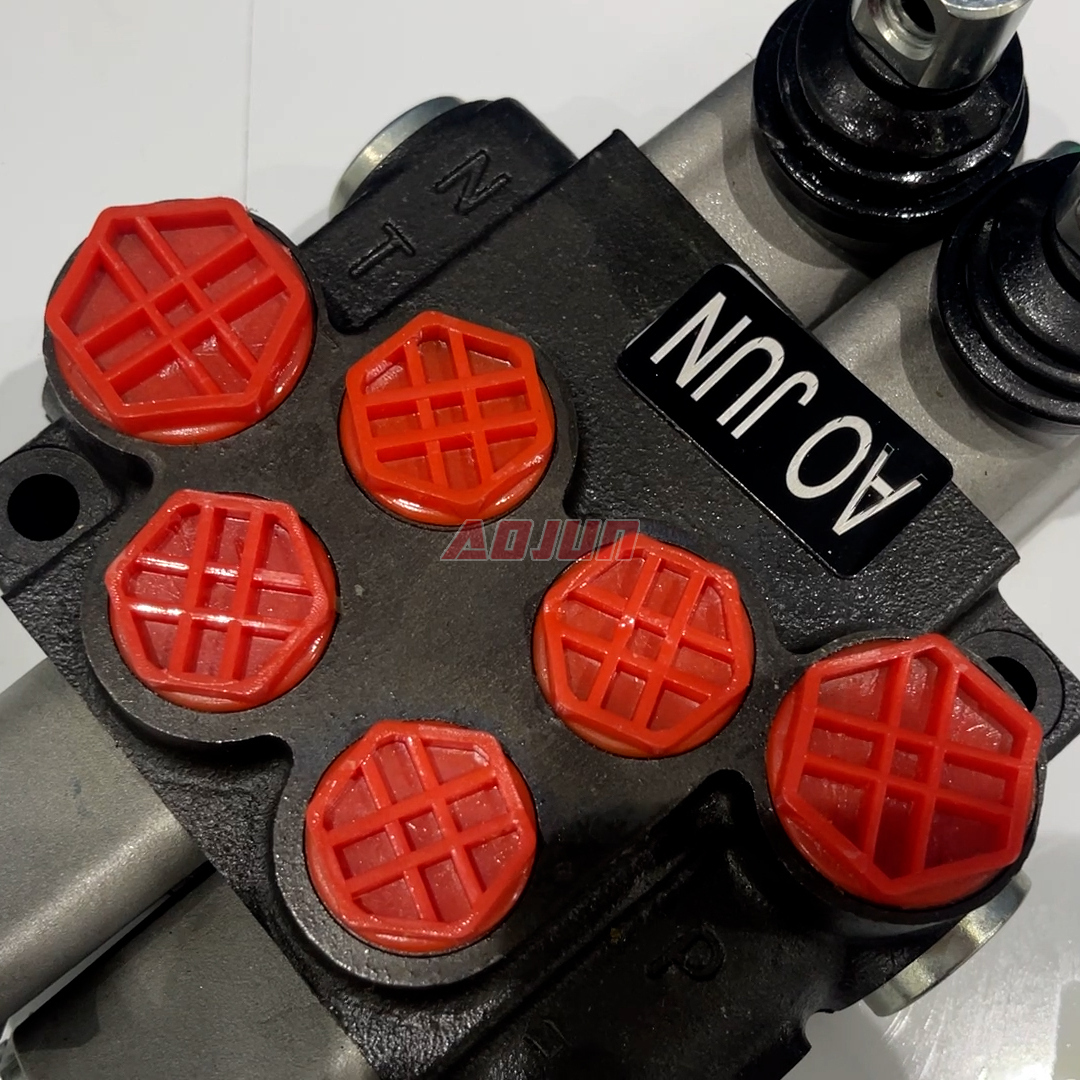

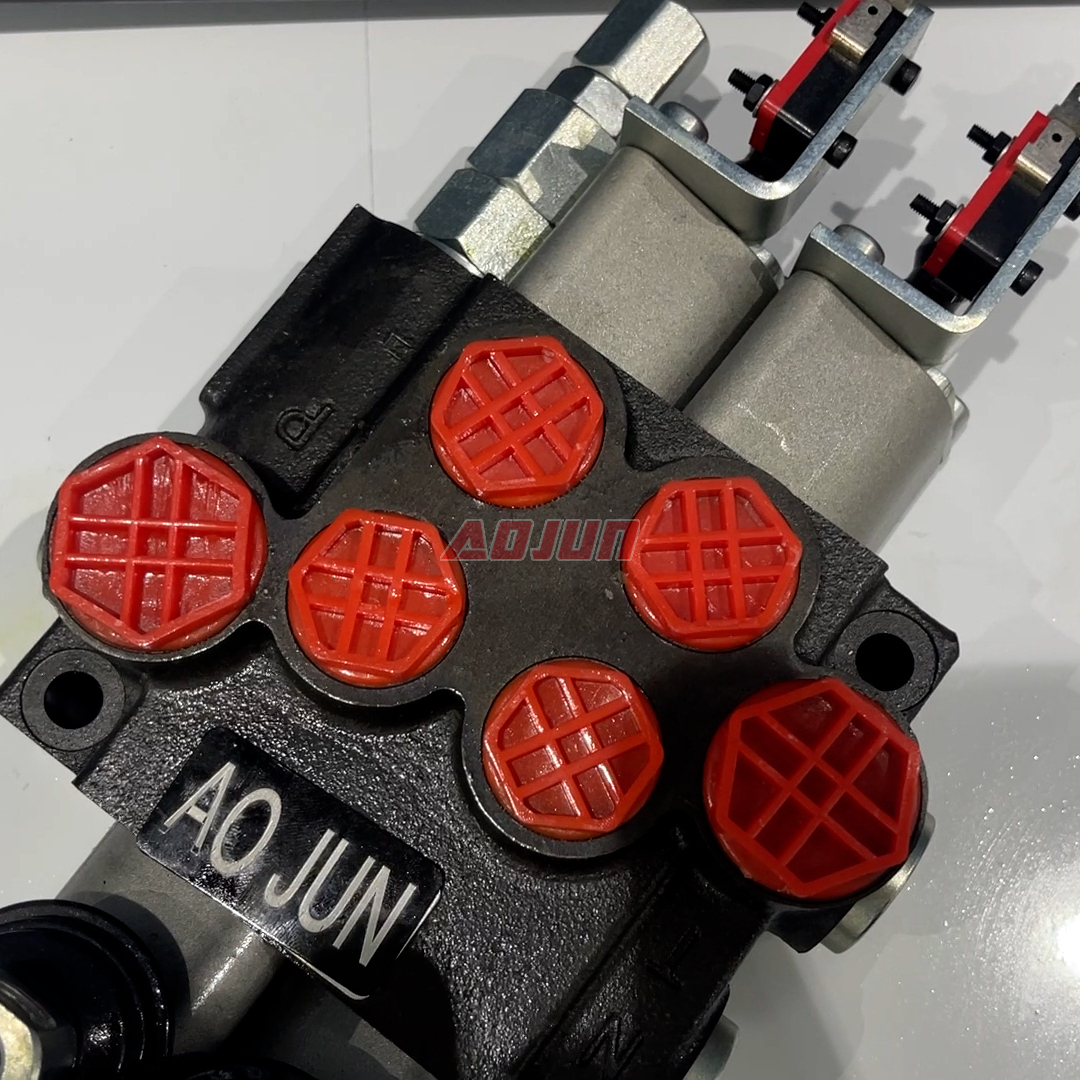

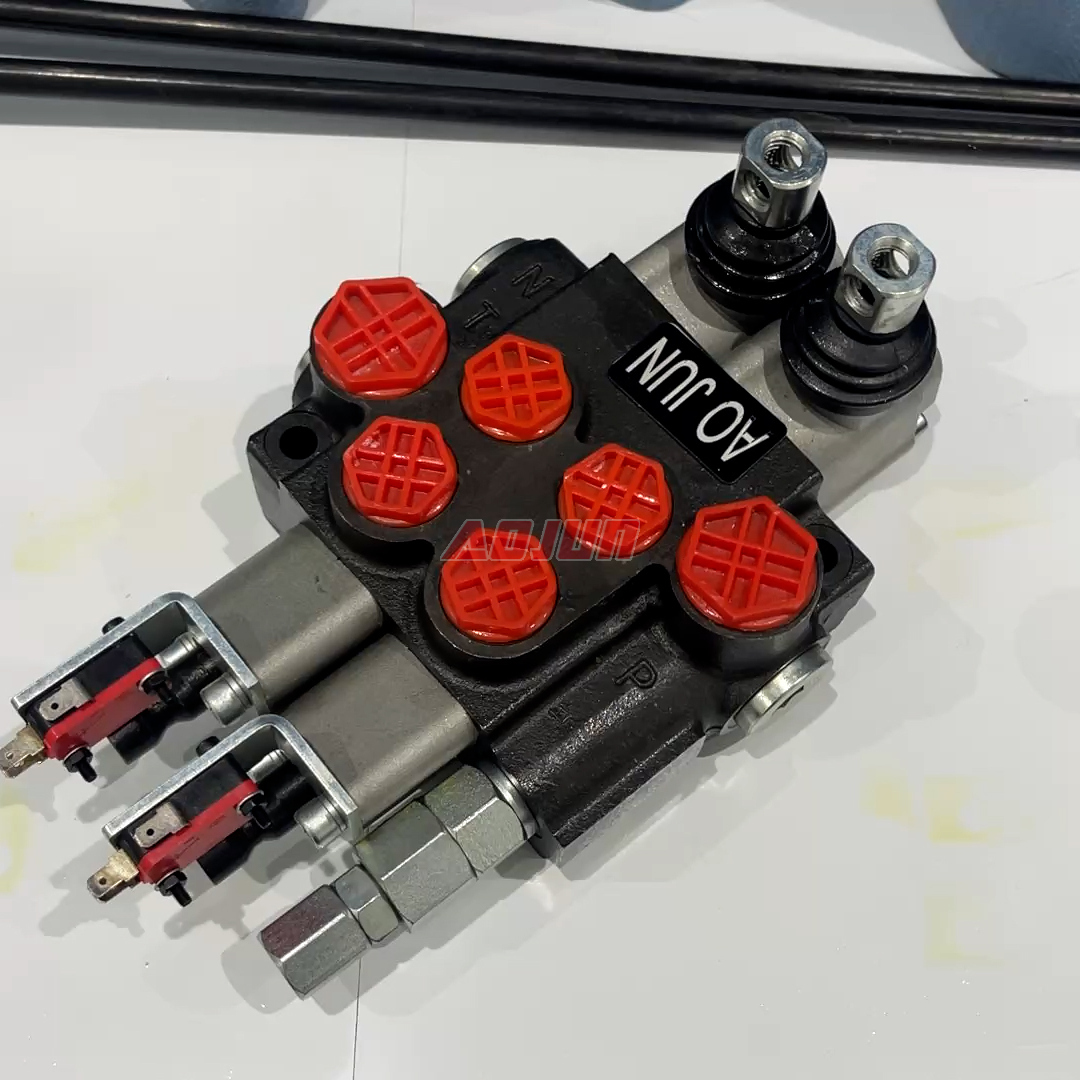

A compact 2-section manual hydraulic control valve with dual spools, 40 L/min rated flow and 250 bar max pressure, featuring micro-switch output for position/command feedback and multiple inlet/outlet port thread options for easy OEM integration.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

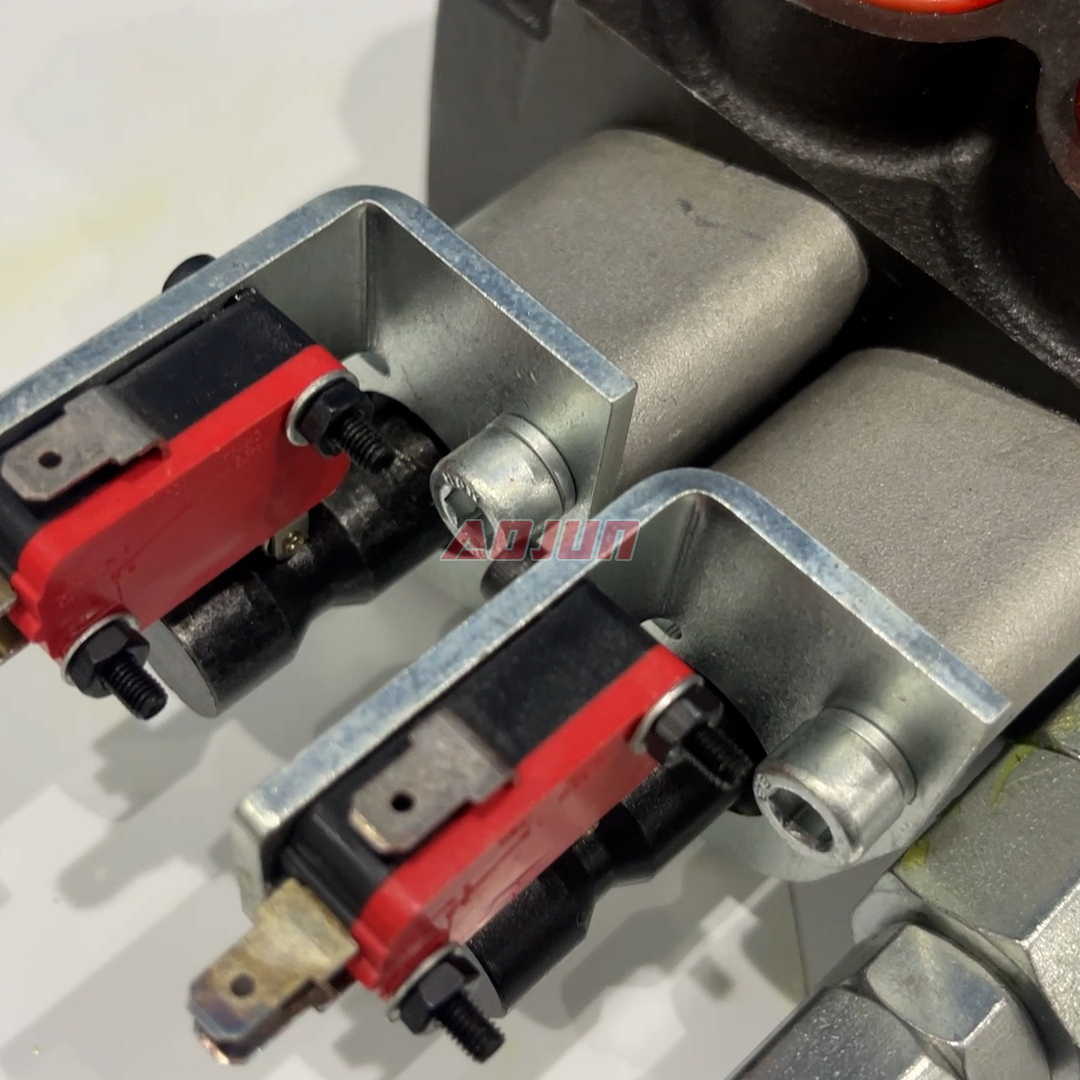

Designed for mobile hydraulics, this 2-section manual valve provides reliable directional control for two actuators (cylinders or motors) in loaders, forklifts, telehandlers, aerial platforms and other equipment. The single-piece body design helps reduce external leakage points and simplifies installation. Key performance includes 40 L/min (10.5 gpm) rated flow, up to 250 bar (3600 psi) pressure capability, viscosity range 15–75 cSt, and ambient temperature tolerance from -40°C to +80°C for harsh jobsite operation. Micro-switch functionality supports electrical signaling for interlocks, safety logic, or controller/PLC feedback. Connection flexibility is supported via multiple port standards for inlet/outlet/working ports, including NPT (3/8, 1/2), G (G3/8, G1/2), metric (M18×1.5, M22×1.5) and SAE (SAE 8, SAE 10). Suitable for OEM manufacturing, customization, private label/branding, wholesale supply, and distributor/agent sourcing worldwide.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
