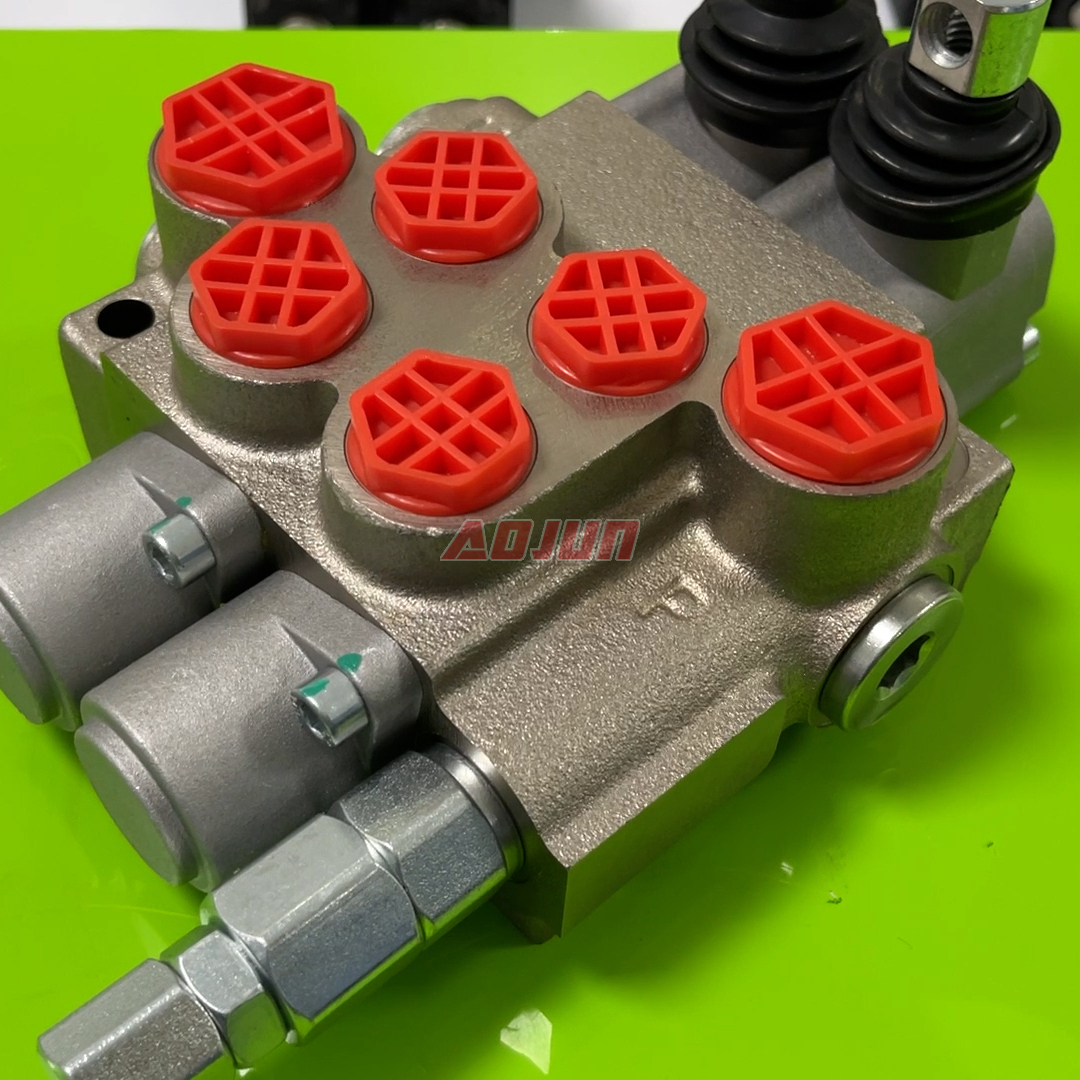

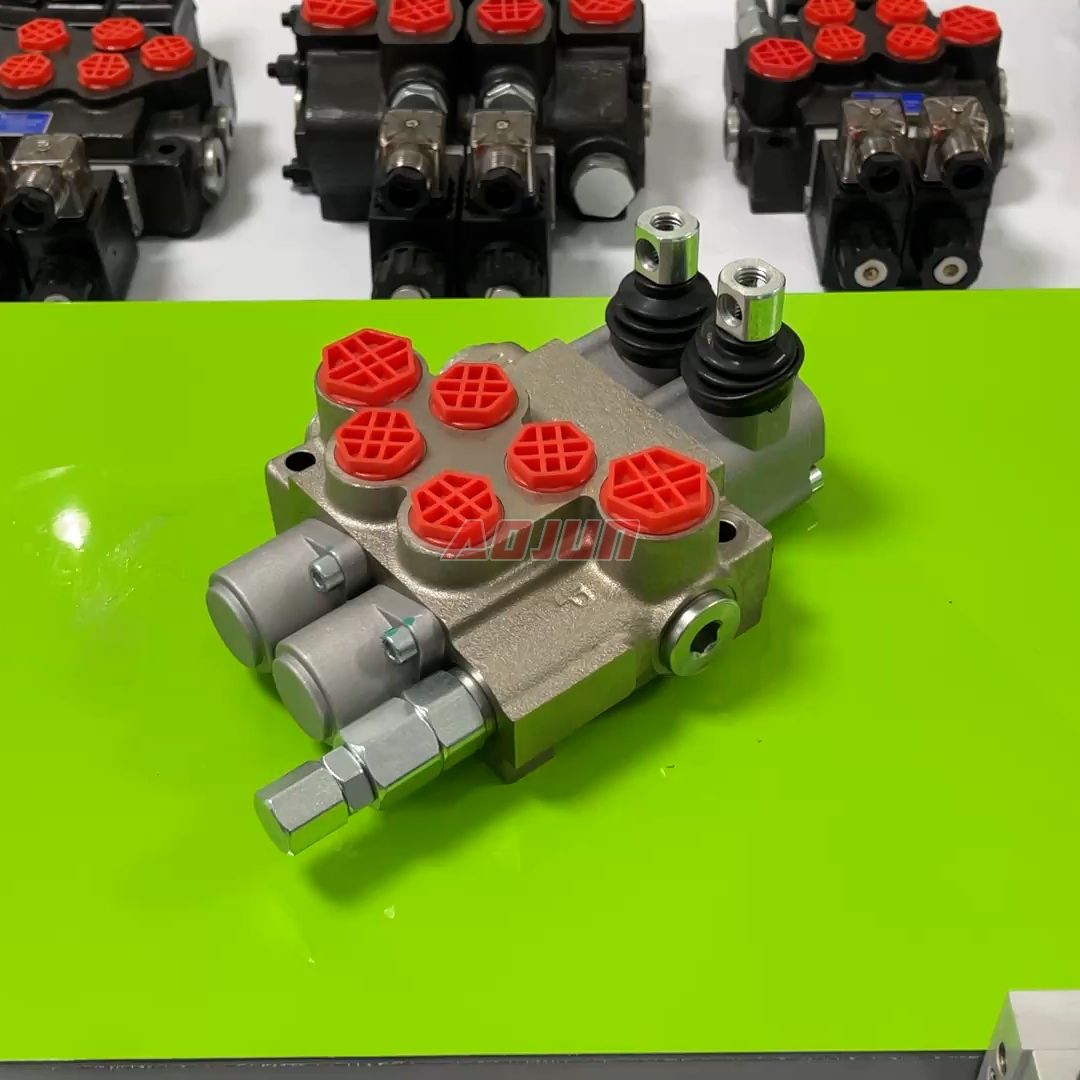

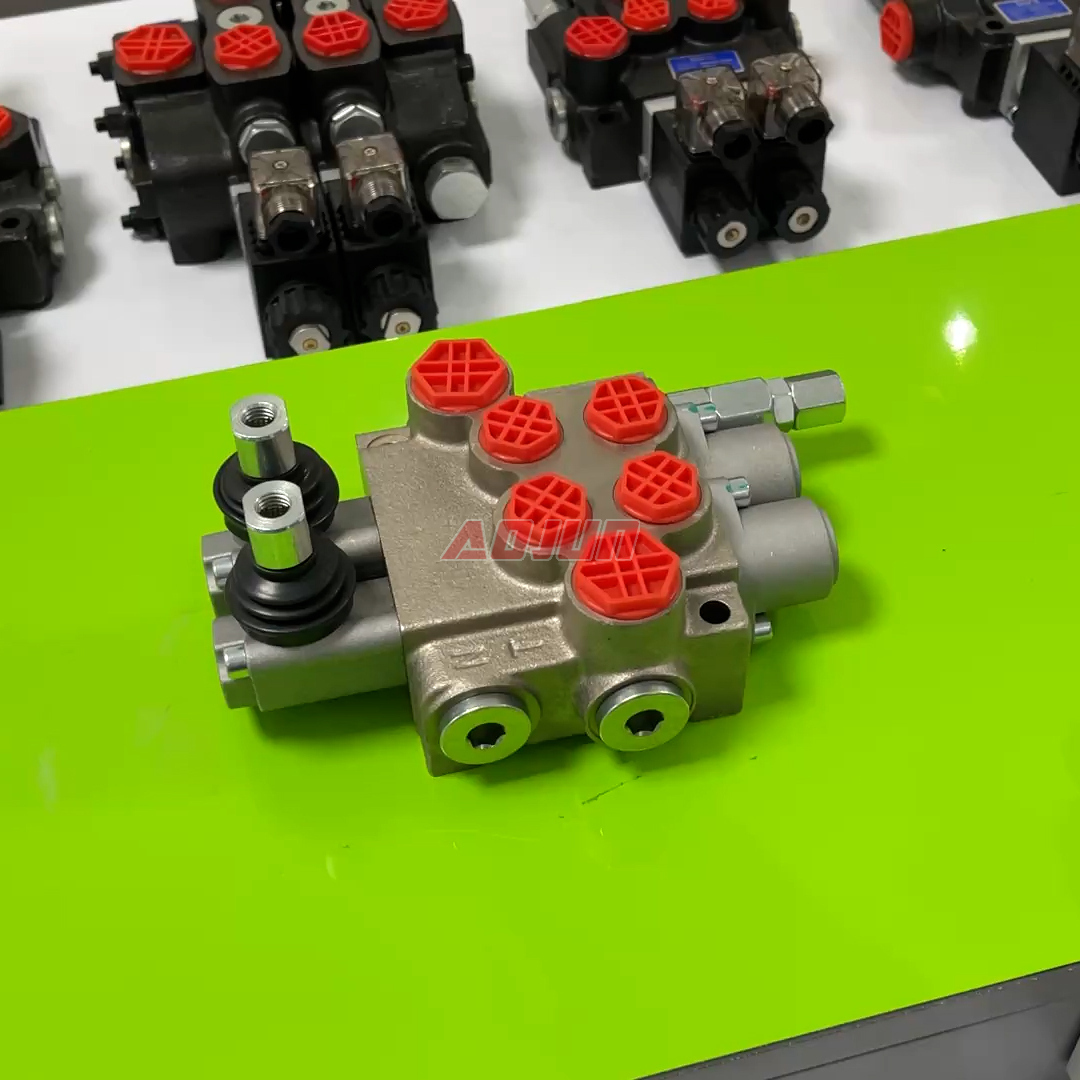

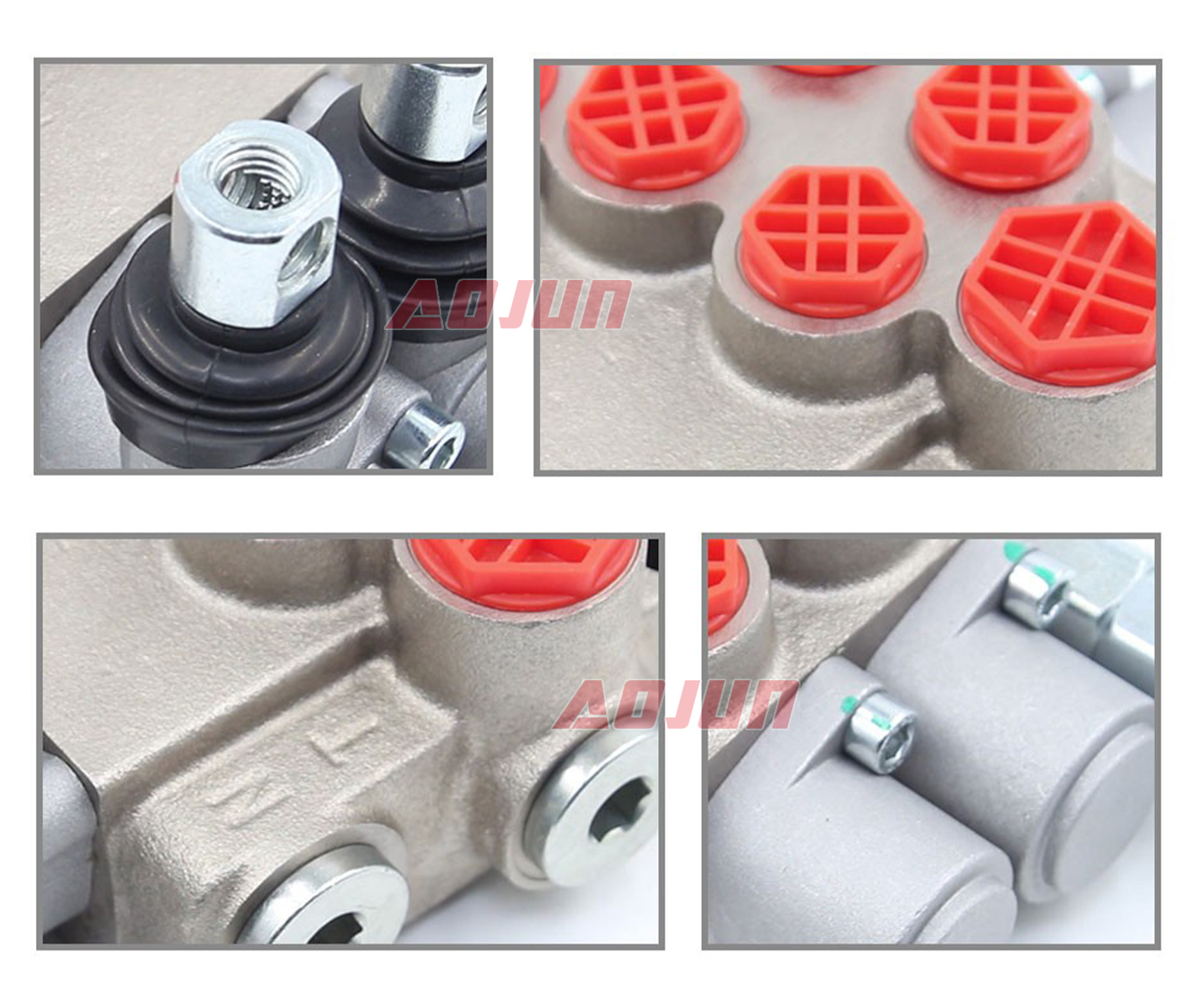

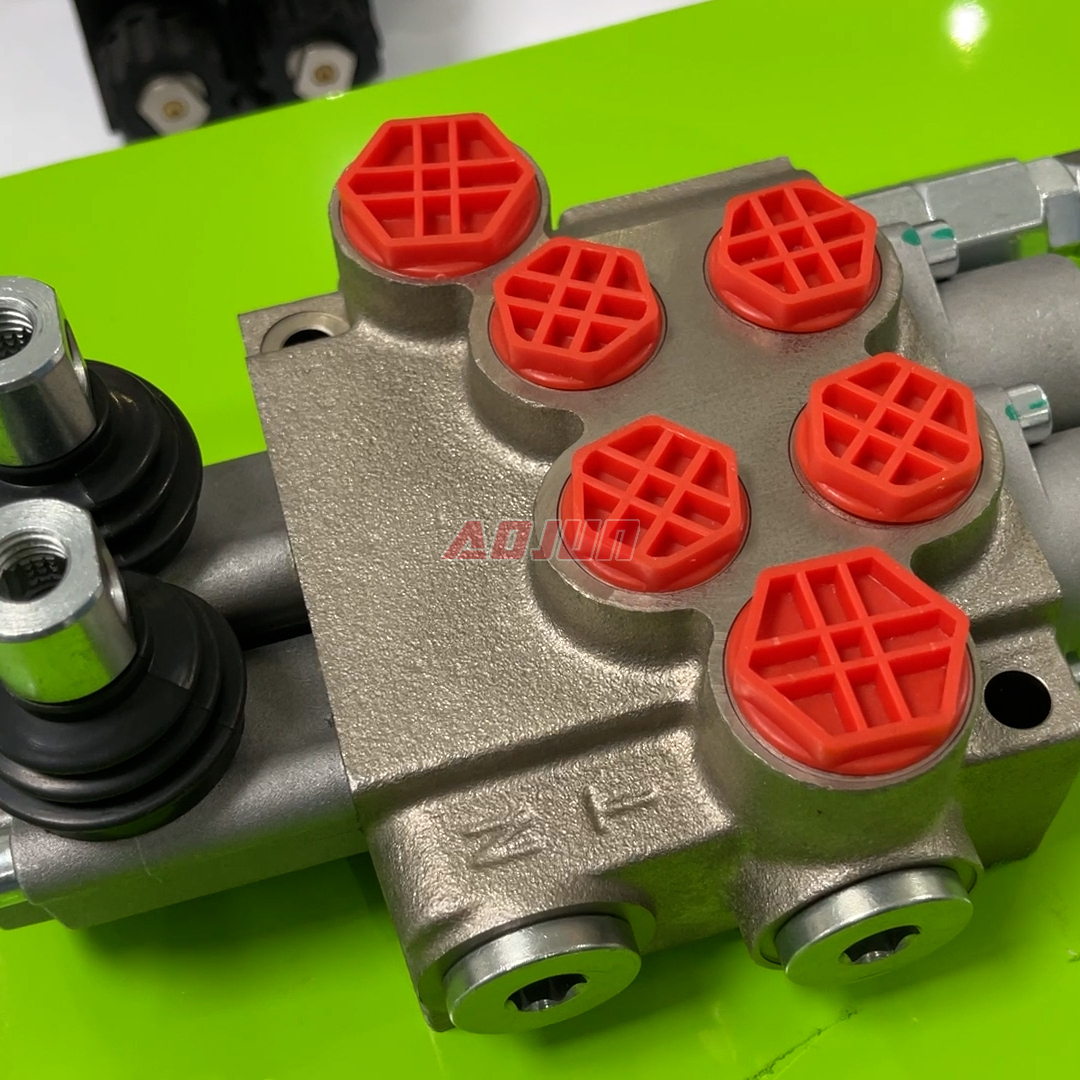

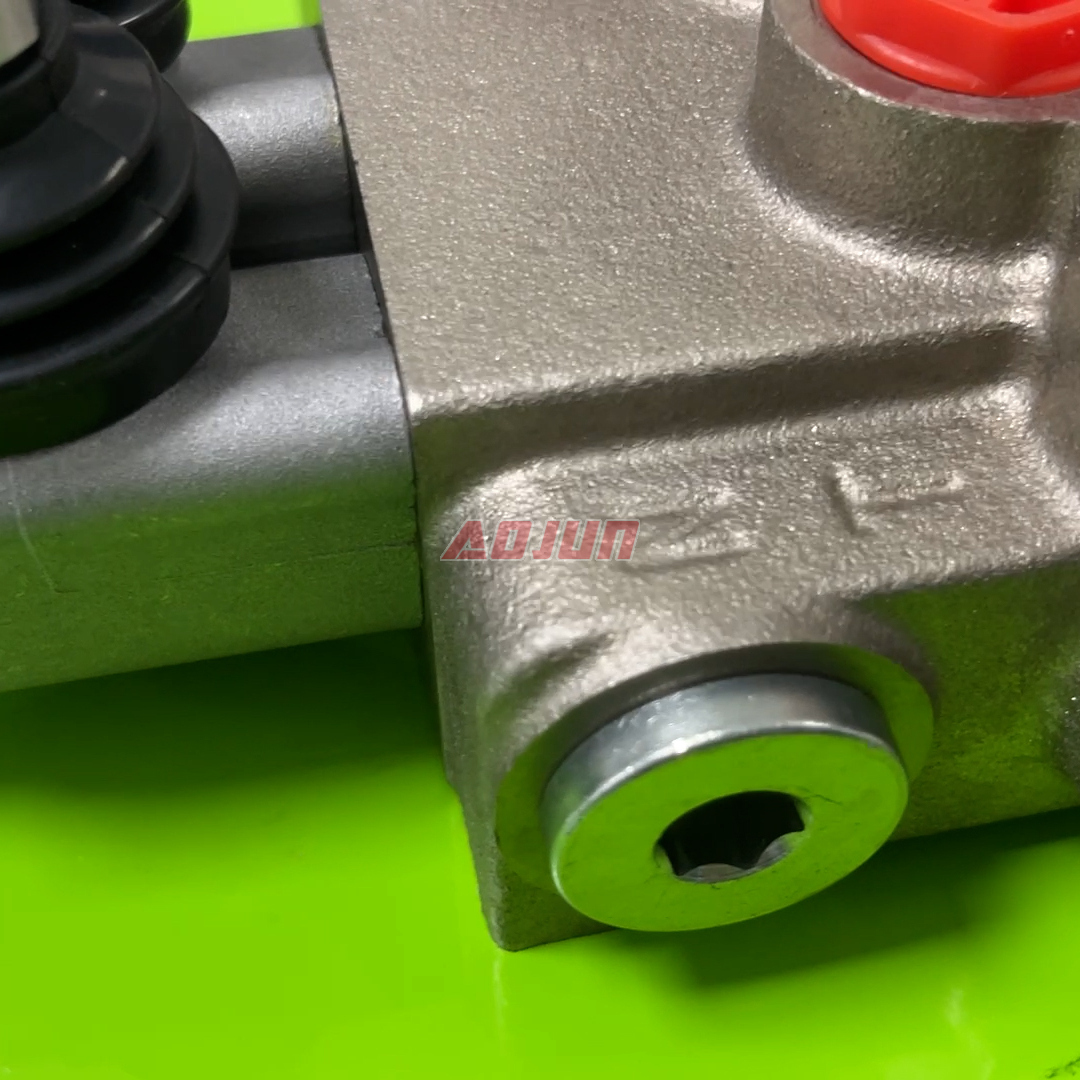

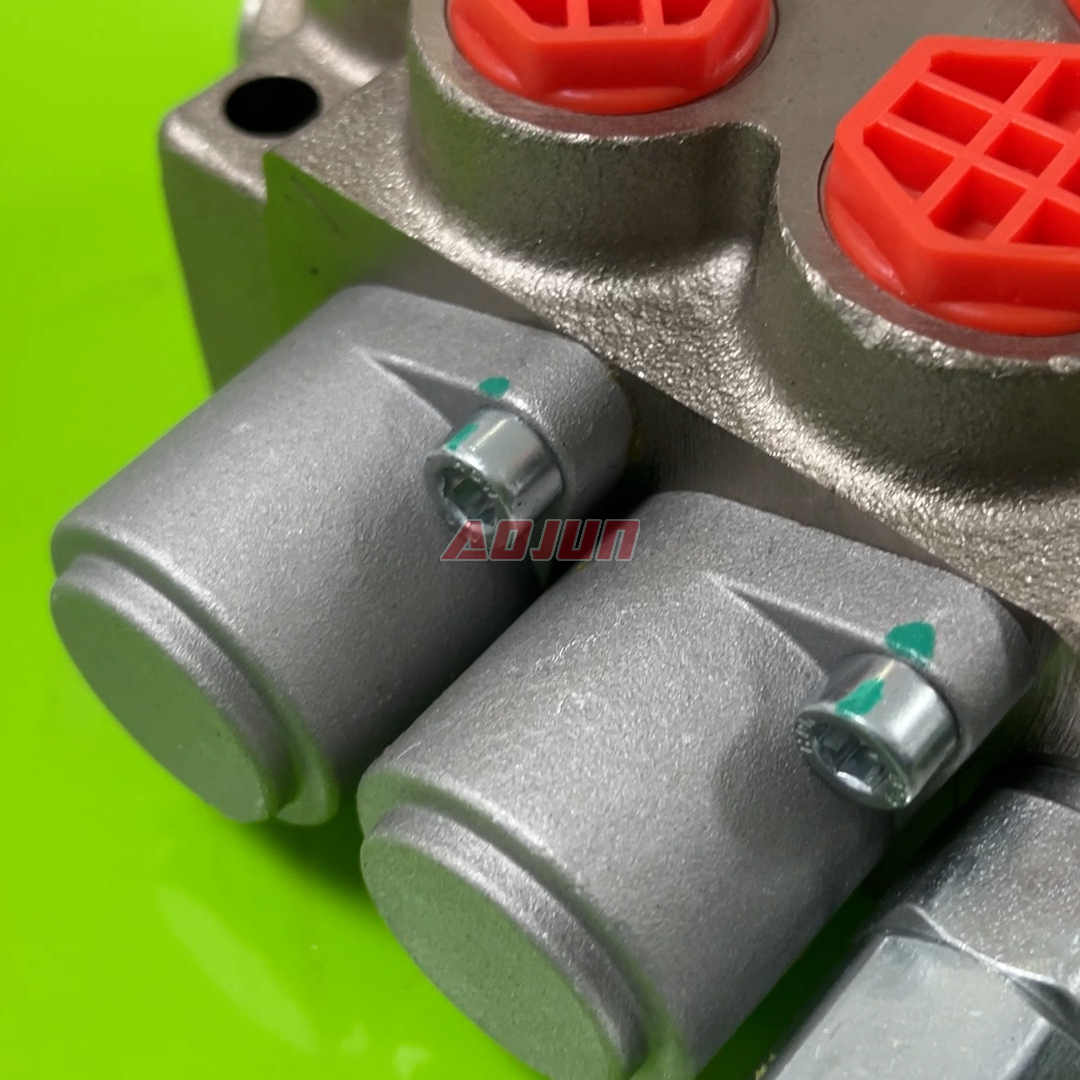

2-section manual monoblock directional control valve with 40 L/min rated flow and 250 bar max pressure, designed for reliable mobile hydraulics in material handling, construction, and agricultural machinery across wide temperature and viscosity ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: manual control; 2-section monoblock structure; rated flow 40 L/min (10.5 US gpm); max pressure 250 bar (3600 psi); operating viscosity 15–75 mm²/s; ambient temperature -40°C to +80°C; 2-spool configuration.
Features & benefits: compact monoblock body for fewer leak paths and easier installation; stable performance in cold/hot environments; suitable for medium-flow hydraulic circuits; manual operation offers simple, cost-effective control and easy service.
Typical uses: controlling two hydraulic functions on mobile equipment (e.g., lift/lower + tilt, auxiliary cylinders, small hydraulic motors) for forklifts/telehandlers, skid steer loaders, mini excavators, loaders, backhoe loaders, and tractor front-end loaders.
Supply capabilities: manufacturer direct supply for OEM/ODM, private label, customization, bulk wholesale, and distributor/agent cooperation for global markets.
| P40-XNHJ Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
