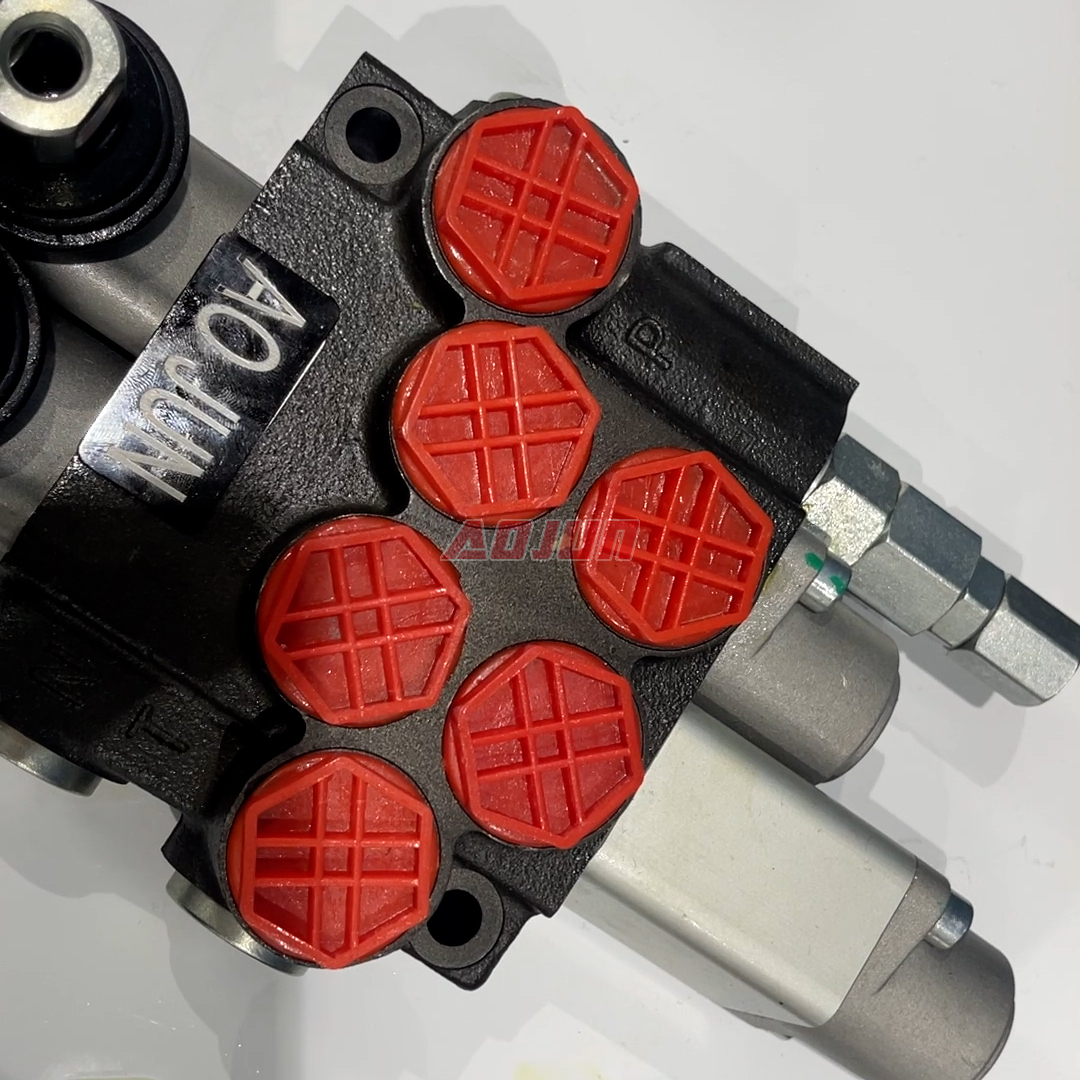

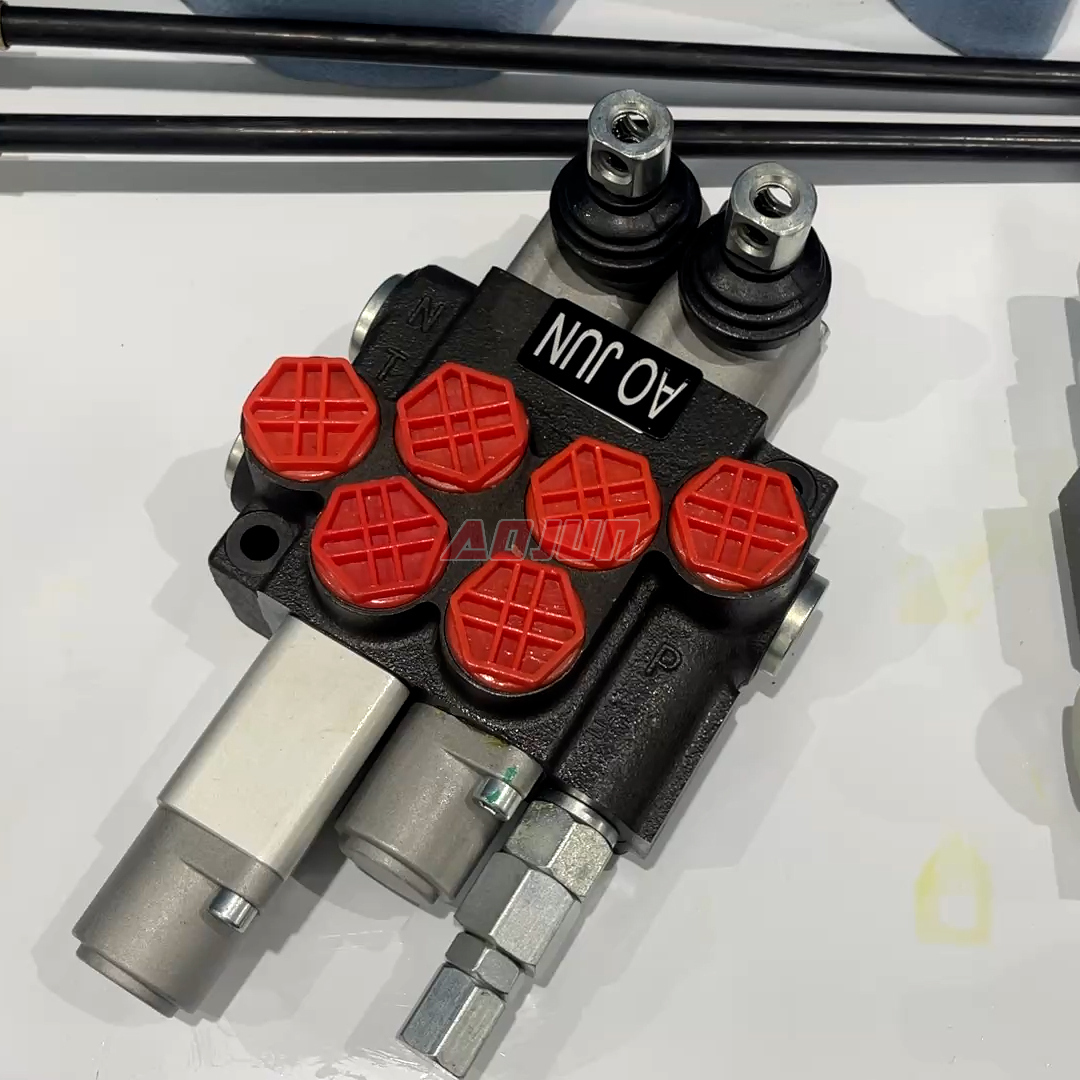

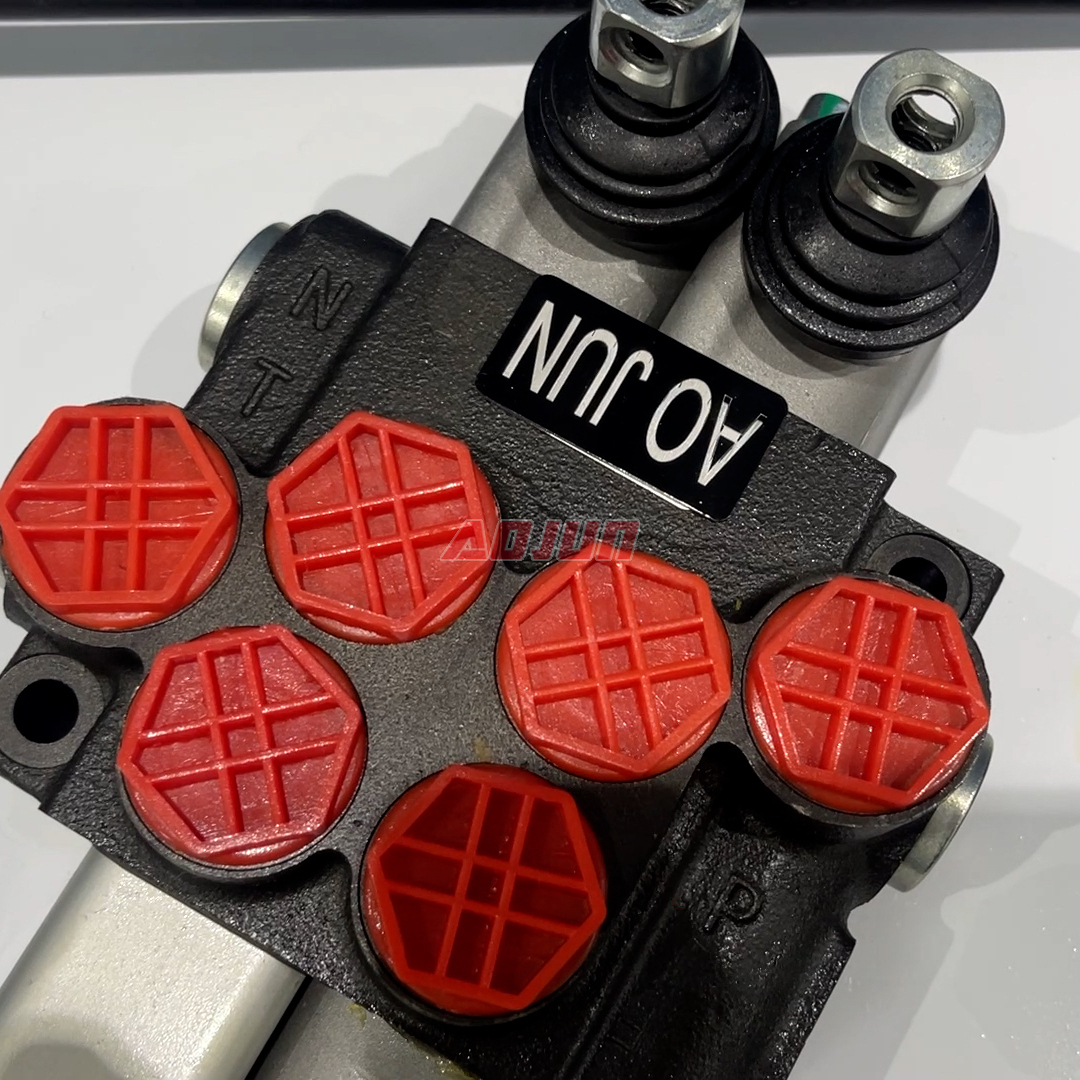

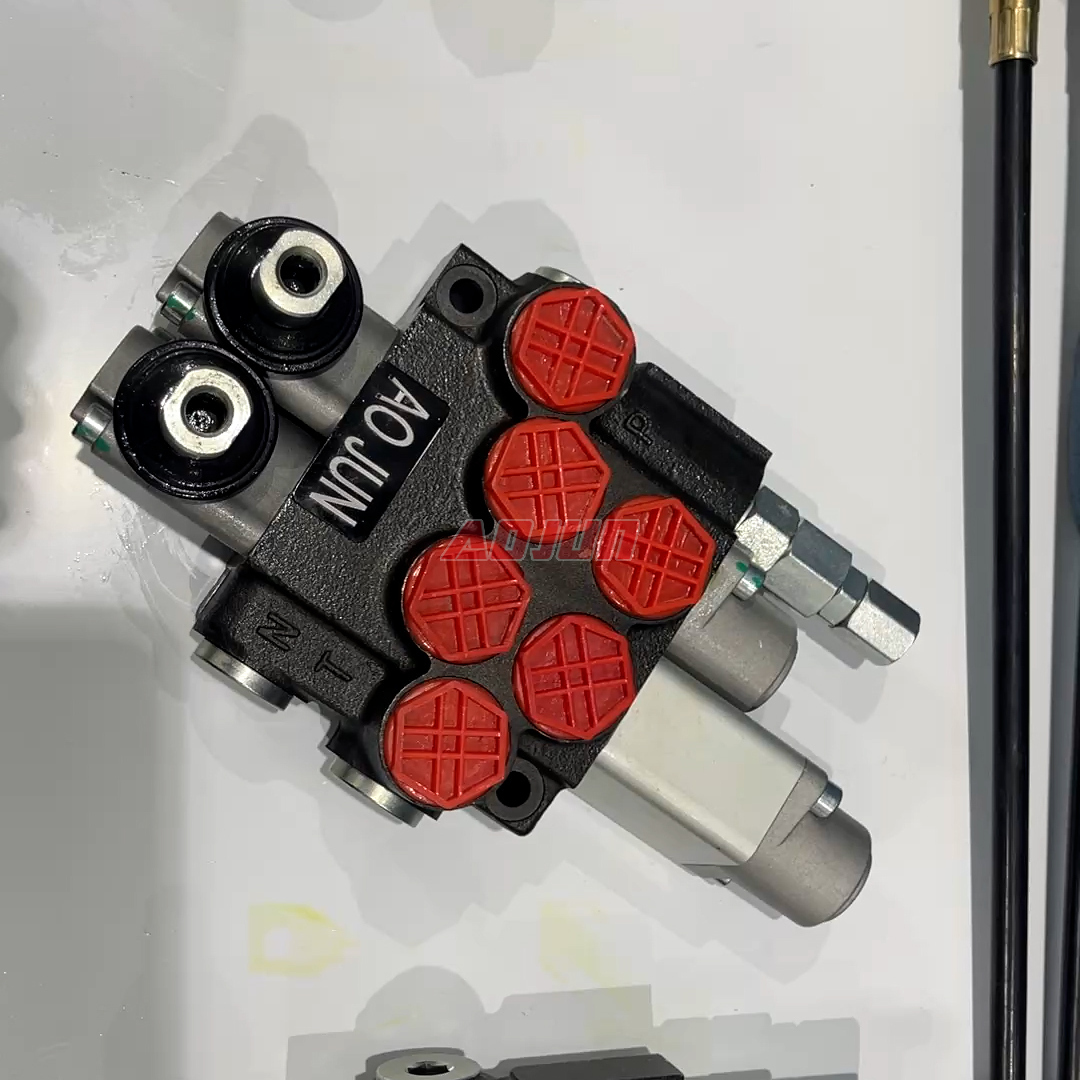

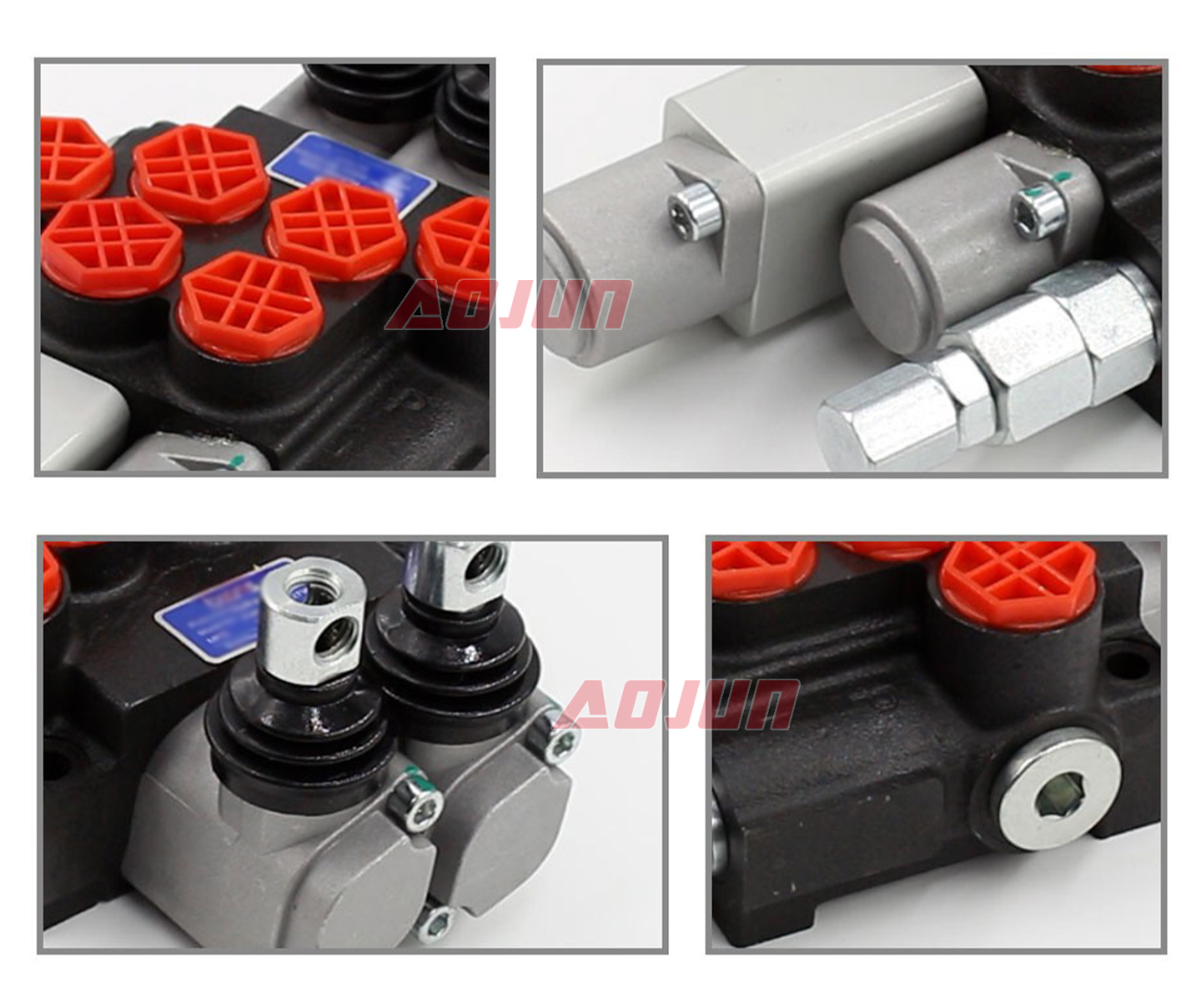

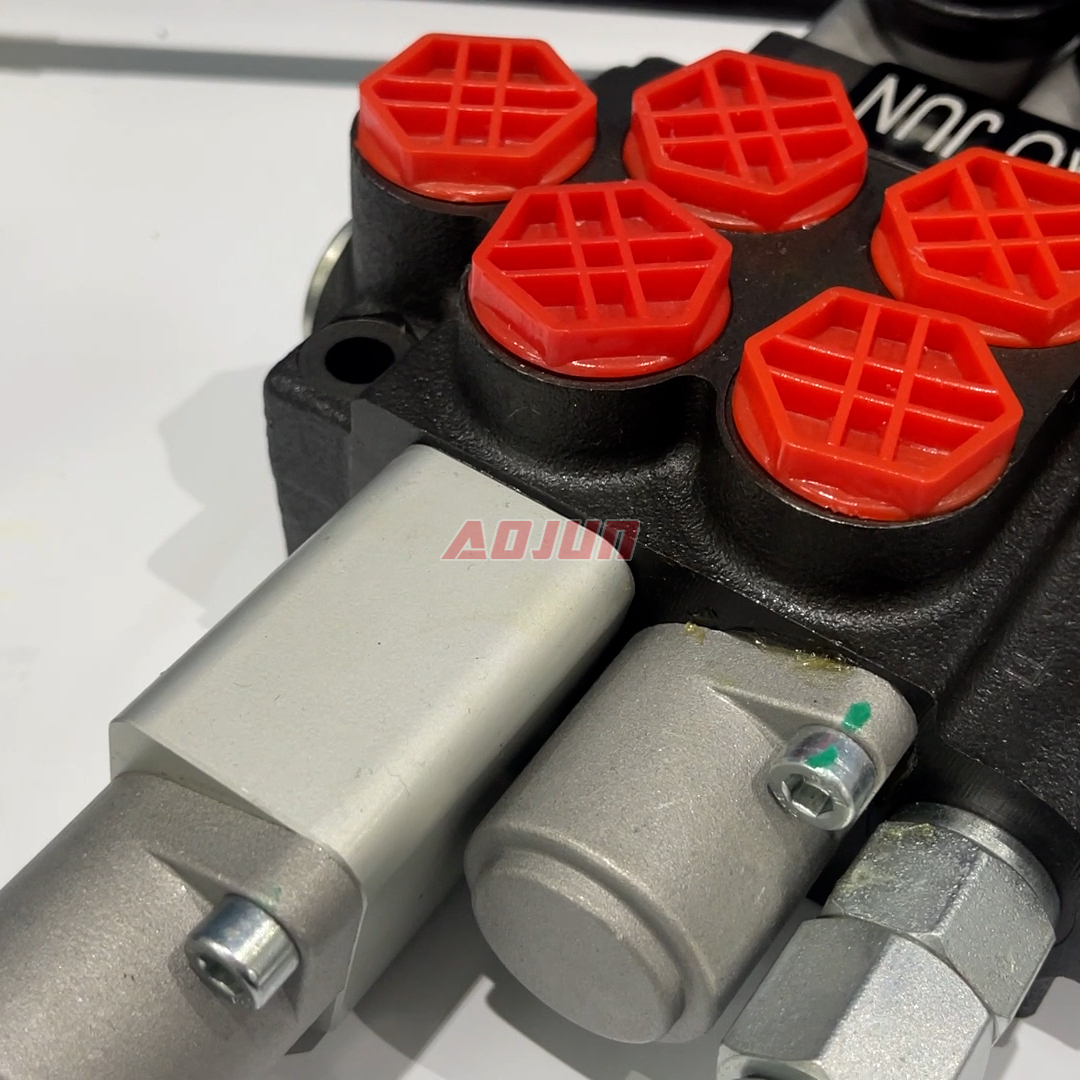

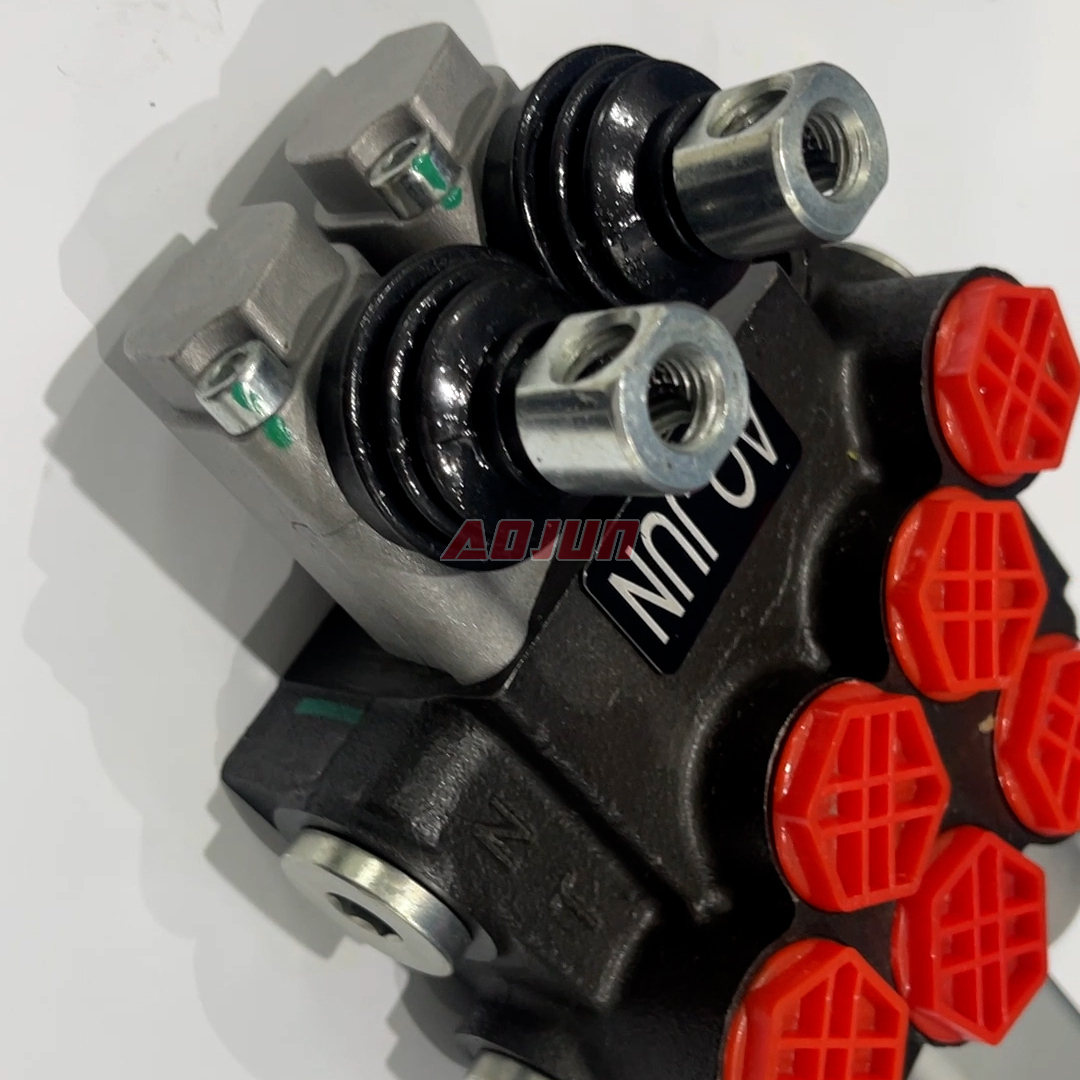

2-spool manual monoblock directional valve designed for mobile hydraulic systems, delivering 40 L/min flow and up to 250 bar working pressure. Built for reliable operation across wide oil viscosity and extreme ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 2-section manual control, monoblock body; rated flow 40 L/min (10.5 US gpm); max pressure 250 bar (3600 psi); operating viscosity 15–75 mm²/s; ambient temperature -40°C to +80°C.
Advantages: compact monoblock construction helps reduce leakage paths and simplifies installation; manual lever actuation offers straightforward, cost-effective control; suitable for cold/heat environments and typical mobile hydraulic oils.
Applications: commonly used to control cylinders or hydraulic motors on loaders, skid steers, mini excavators, backhoes, tractors/implements, telehandlers, forklifts, aerial platforms and other industrial vehicles.
Supply options: factory manufacturing for global markets with OEM/ODM, private label, customization, wholesale; seeking distributors/agents/wholesalers/traders.
| P40A Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
