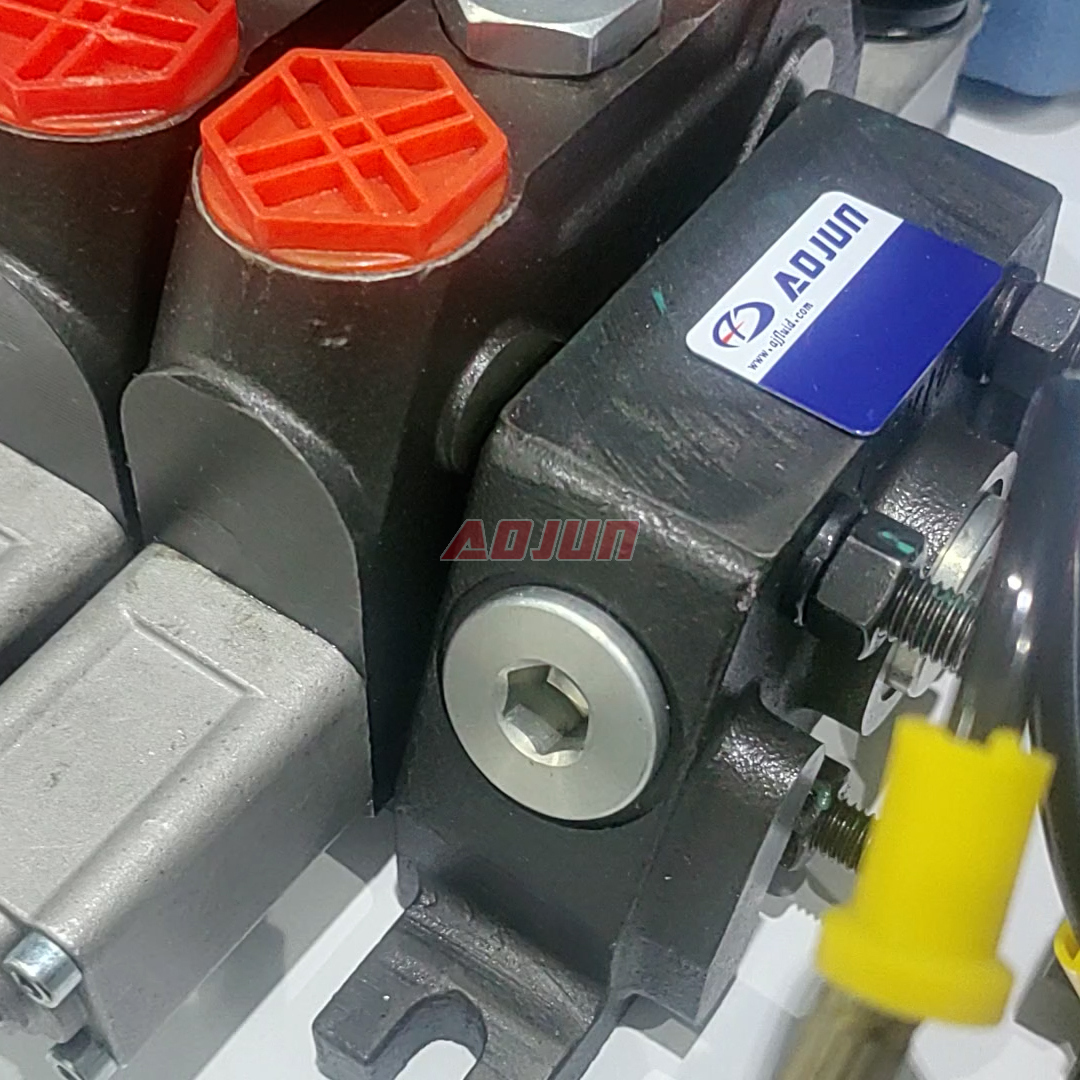

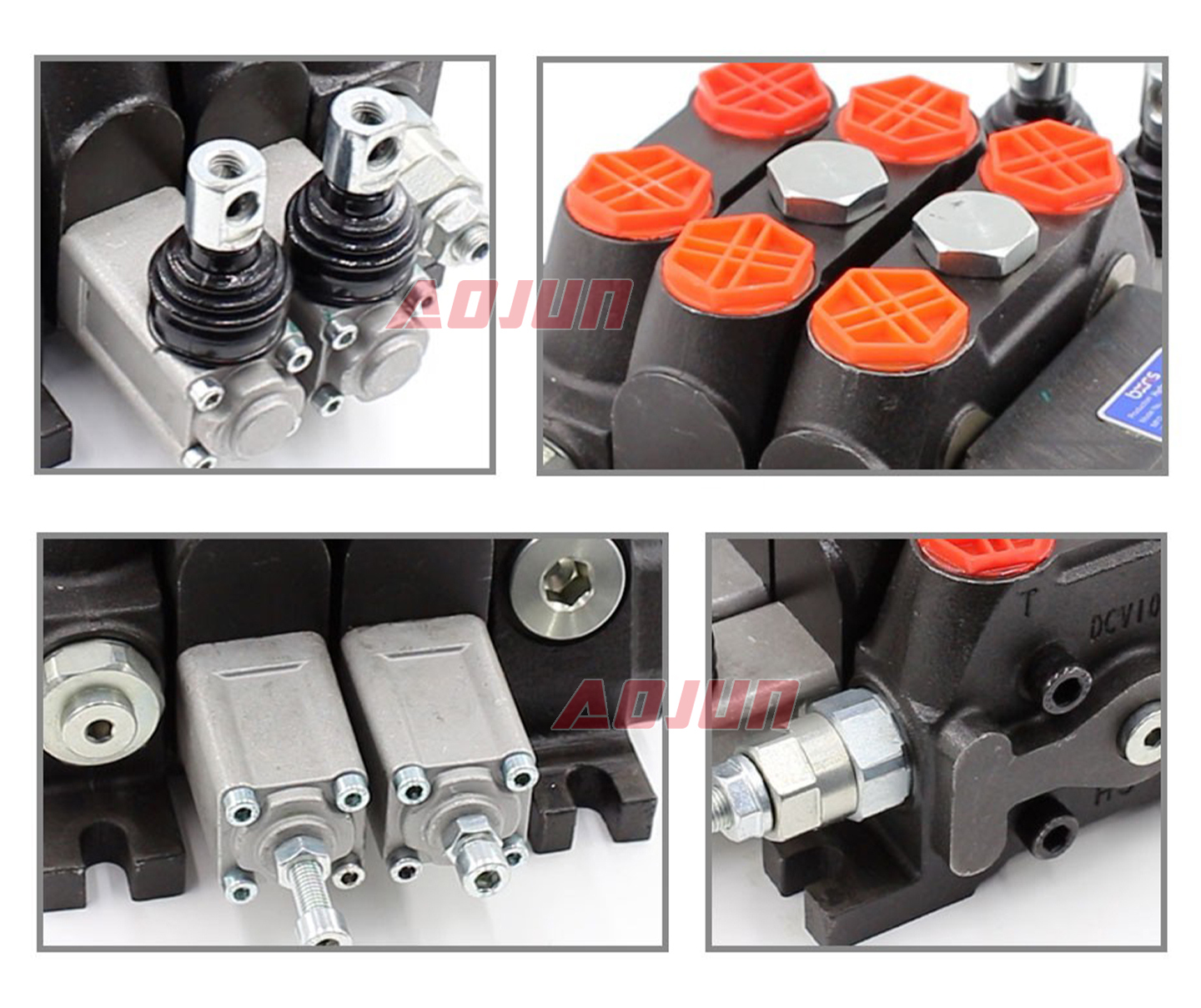

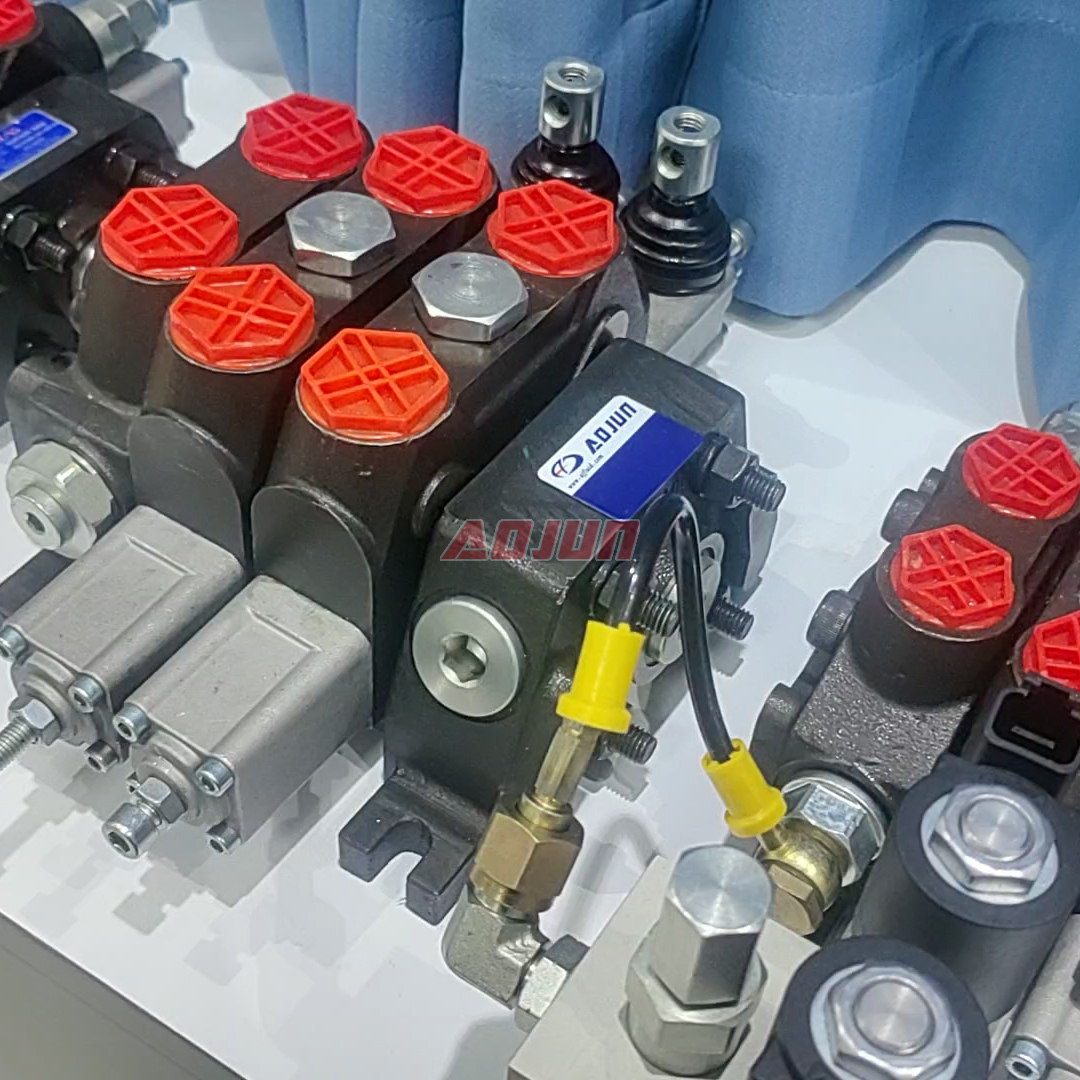

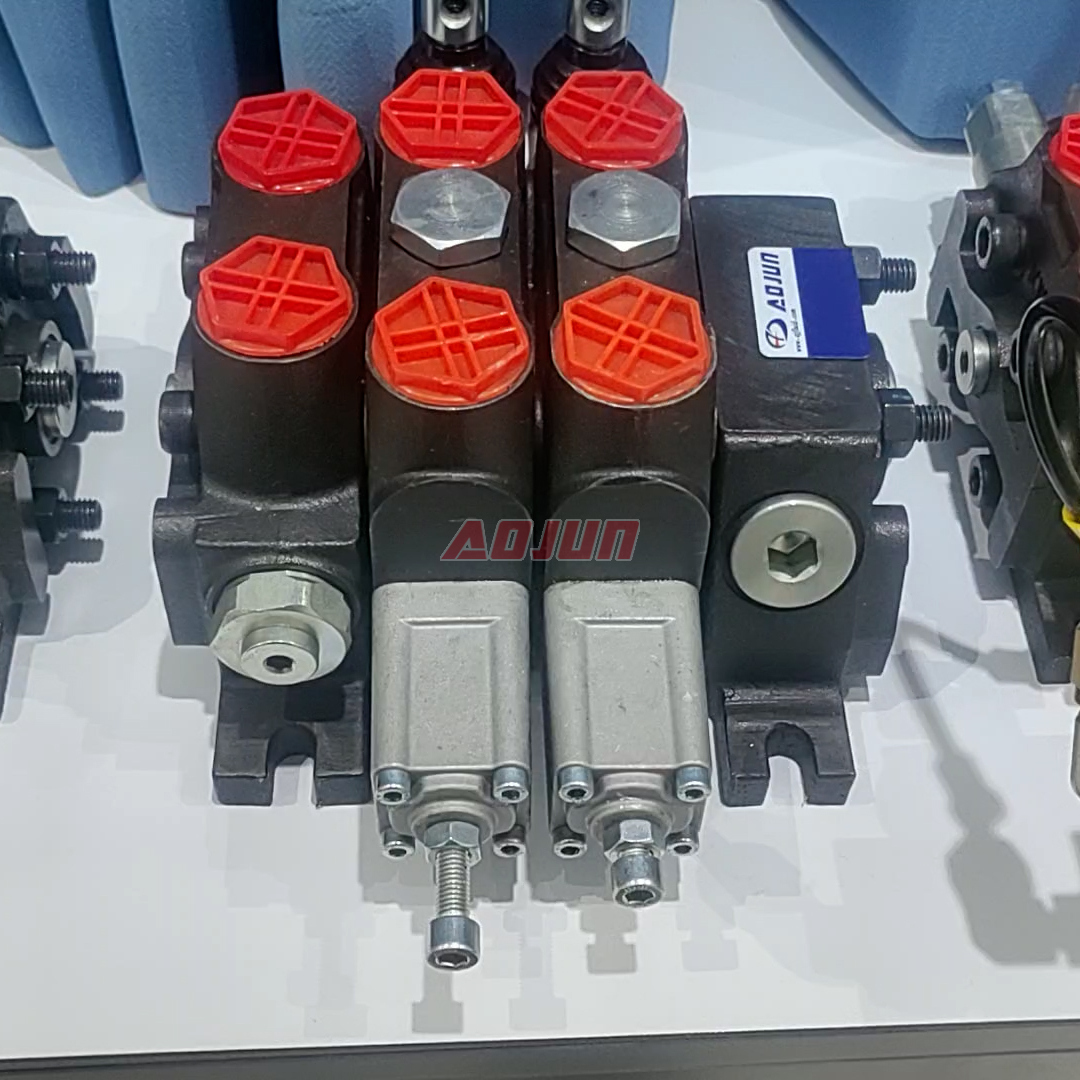

Manual 2-section sectional directional valve designed for mobile hydraulics, delivering up to 100 L/min flow and 350 bar pressure for reliable multi-actuator control in demanding equipment.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
• Configuration: 2-spool, 2-section sectional design for flexible circuit layout and service-friendly maintenance.
• Control: Manual operation for straightforward, cost-effective control of cylinders or hydraulic motors on mobile machinery.
• Performance: Rated flow 100 L/min (26.5 US gpm) and max pressure 350 bar (5100 psi) for heavy-duty applications.
• Oil compatibility: Operating viscosity 15–75 mm²/s (cSt) supports common hydraulic fluids used in mobile systems.
• Environment readiness: Ambient temperature -40°C to +60°C for cold starts and hot jobsite conditions.
• Typical uses: Implement/auxiliary functions, lifting/tilting, steering-assist circuits, attachments control on loaders, excavators, telehandlers, forklifts, and similar equipment.
• Supply capabilities: Manufacturer direct support for OEM/ODM, private label, customization, wholesale bulk orders, and distributor/agent partnerships for global markets.
| DCV100 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Hydraulic, Cable, Joystick, Manual and Joystick, Manual and Electro-hydraulic, Electric motor |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Structure Type | Sectional valve |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Outlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Size | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
