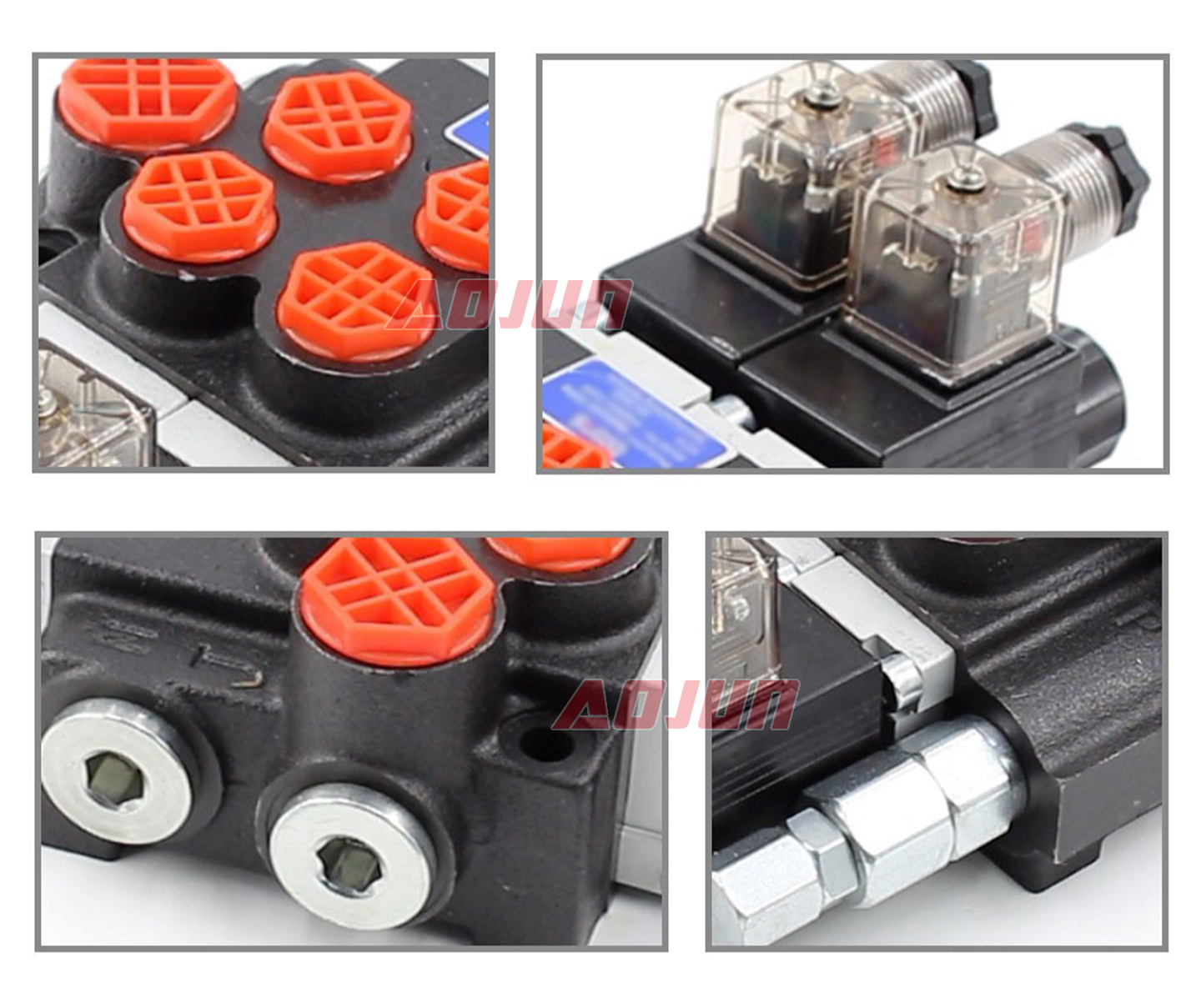

A compact 2-spool solenoid-operated monoblock directional valve designed for mobile hydraulic systems, delivering 40 L/min flow and up to 250 bar pressure with wide viscosity and temperature tolerance.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This solenoid monoblock directional valve integrates two spool functions in a single rigid body for reduced leak paths, simplified plumbing, and reliable performance on mobile machinery. Rated flow is 40 L/min (10.5 US gpm) with maximum pressure up to 250 bar (3600 psi), suitable for common actuator circuits such as cylinders and hydraulic motors. It supports operating viscosity from 15 to 75 mm²/s (cSt) for stable spool response across typical hydraulic oils, and ambient temperatures from -40°C to +80°C for cold-start and outdoor equipment. Typical applications include material handling and mobile equipment requiring remote/electric actuation: forklifts, telehandlers, aerial platforms, skid steer loaders, compact loaders, mini excavators, and tractor auxiliary circuits. As a direct manufacturer, we support OEM/ODM, private label, bulk supply, and customization options such as port/thread standards, valve functions, relief settings, and coil/connector configurations for different markets.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
