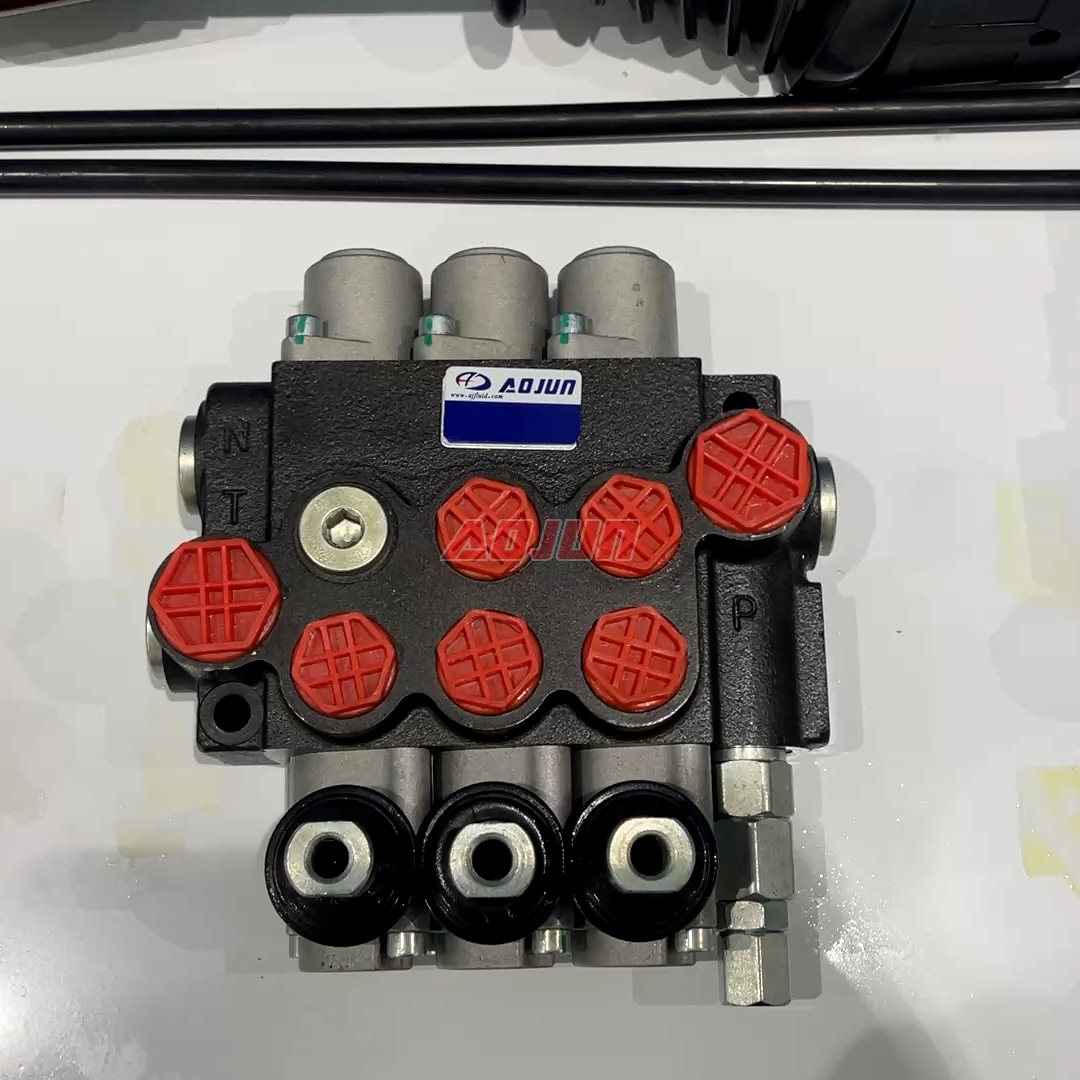

A compact 3-section manual monoblock hydraulic valve designed for mobile equipment, delivering 40 L/min flow and up to 250 bar pressure with reliable operation across wide viscosity and extreme ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key specs: 3 spool/3 section manual control, monoblock structure, rated flow 40 L/min (10.5 gpm), max pressure 250 bar (3600 psi). Fluid & environment compatibility: operating viscosity 15–75 mm²/s, ambient temperature -40°C to +80°C, suitable for both cold-start and high-heat job sites. Advantages: monoblock body helps reduce leakage points and keeps the assembly compact for tight installations; manual levers provide direct, dependable actuation for multi-function circuits (lift/tilt/aux). Typical applications: loaders, telehandlers, forklifts, aerial platforms, skid steers, mini/midi excavators, backhoe loaders, and tractor front-end loader attachments. OEM/ODM support: available for manufacturing, private label, customization, wholesale, and distributor/agent cooperation; options can include port thread adaptation, lever/handle style, and spool function configuration to match machine hydraulics.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
