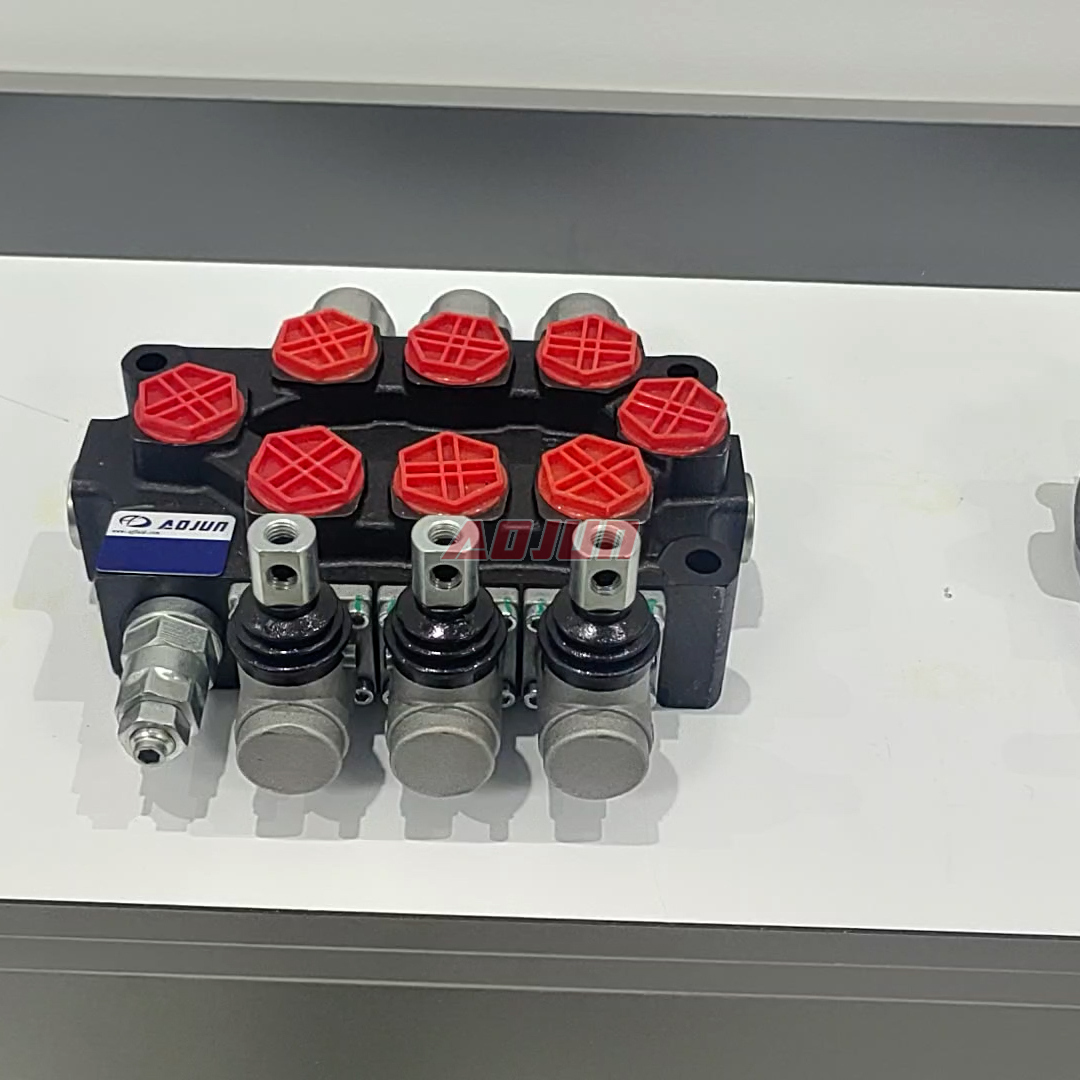

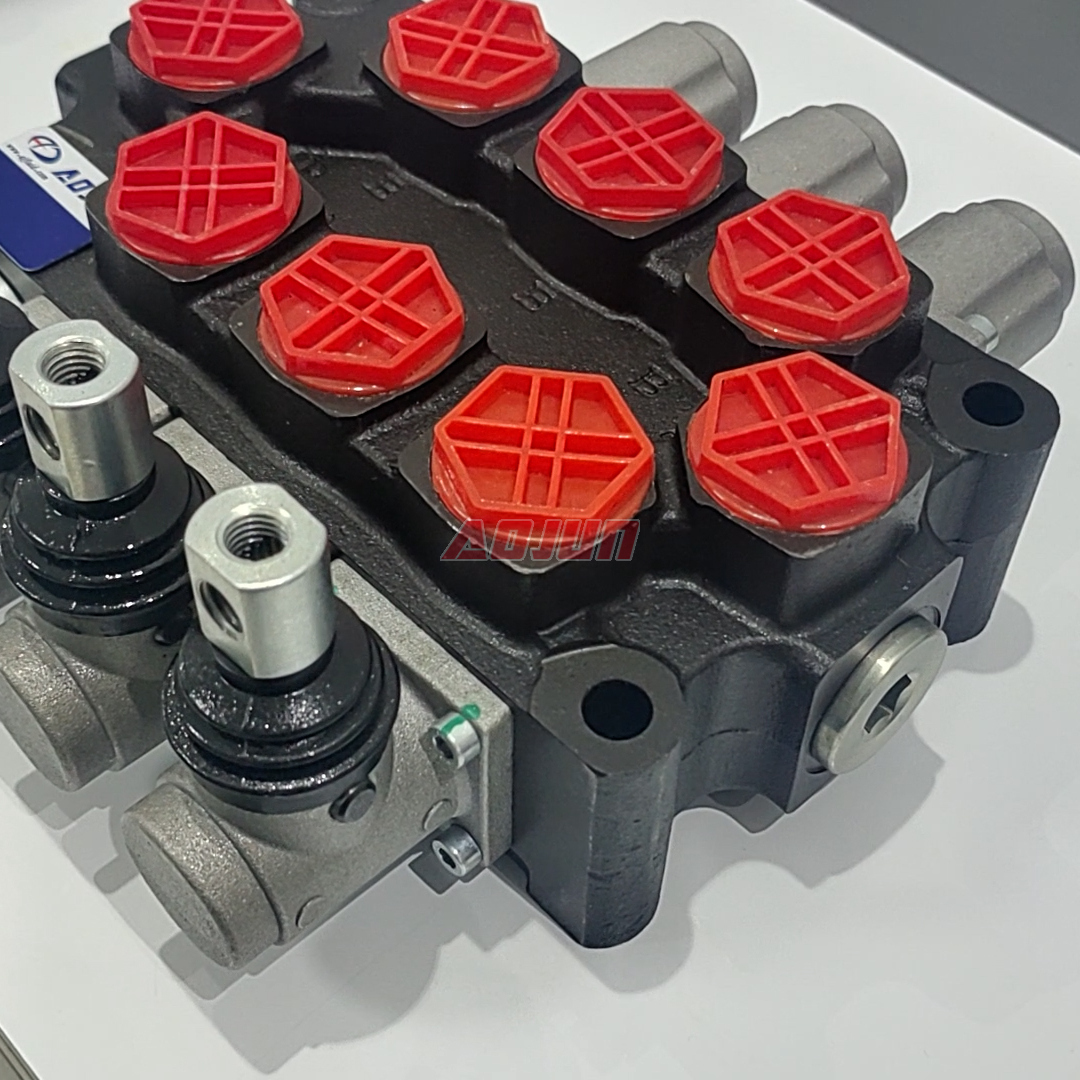

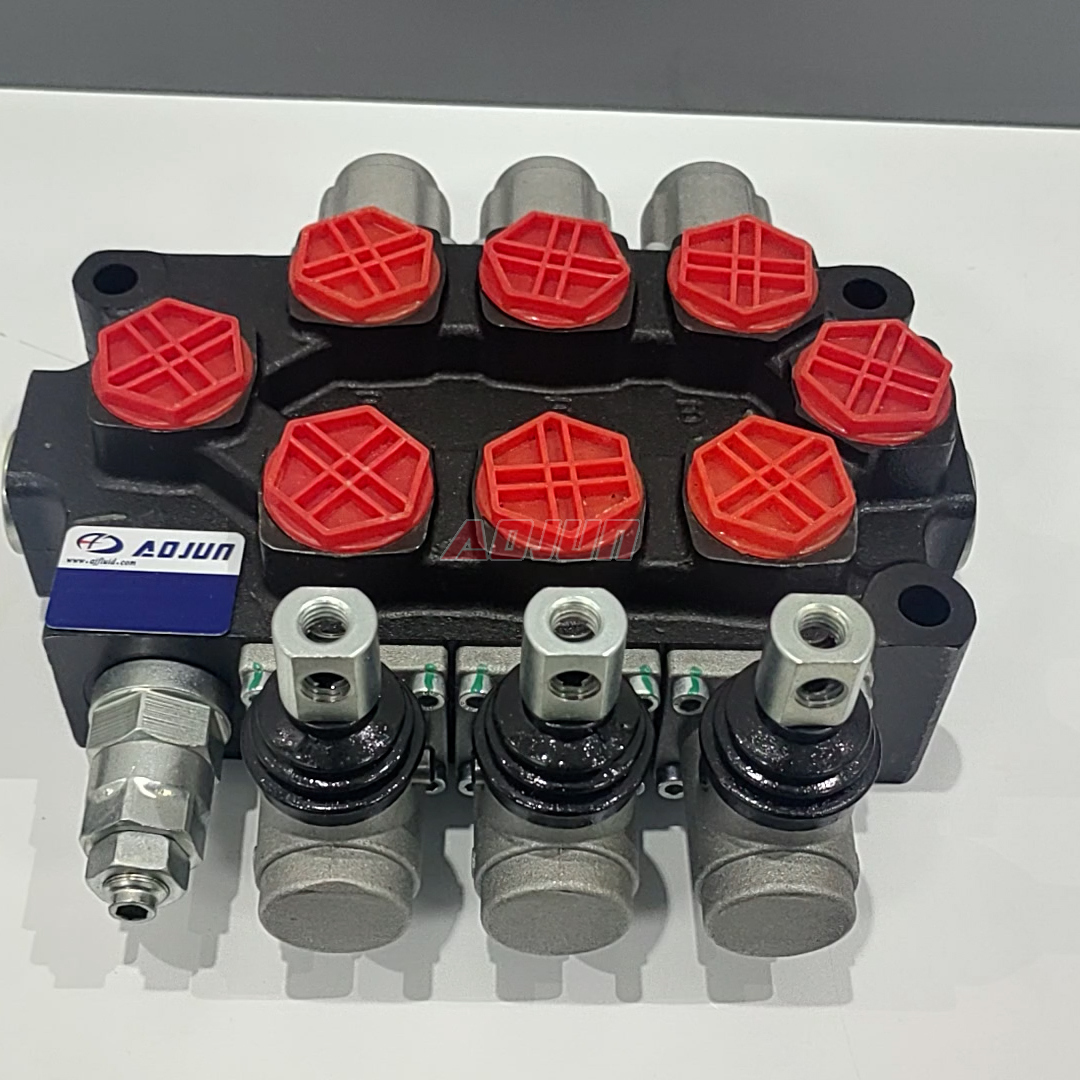

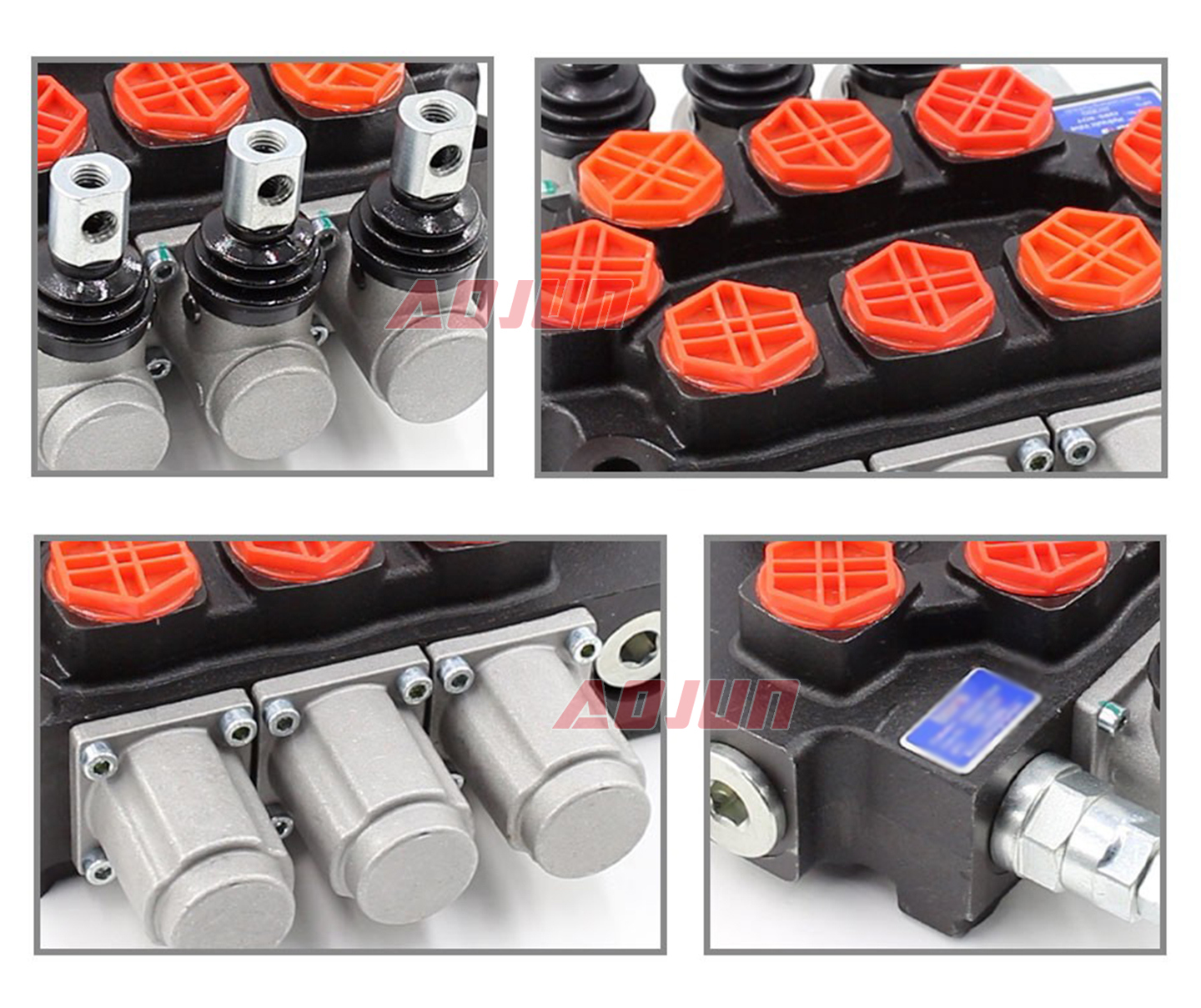

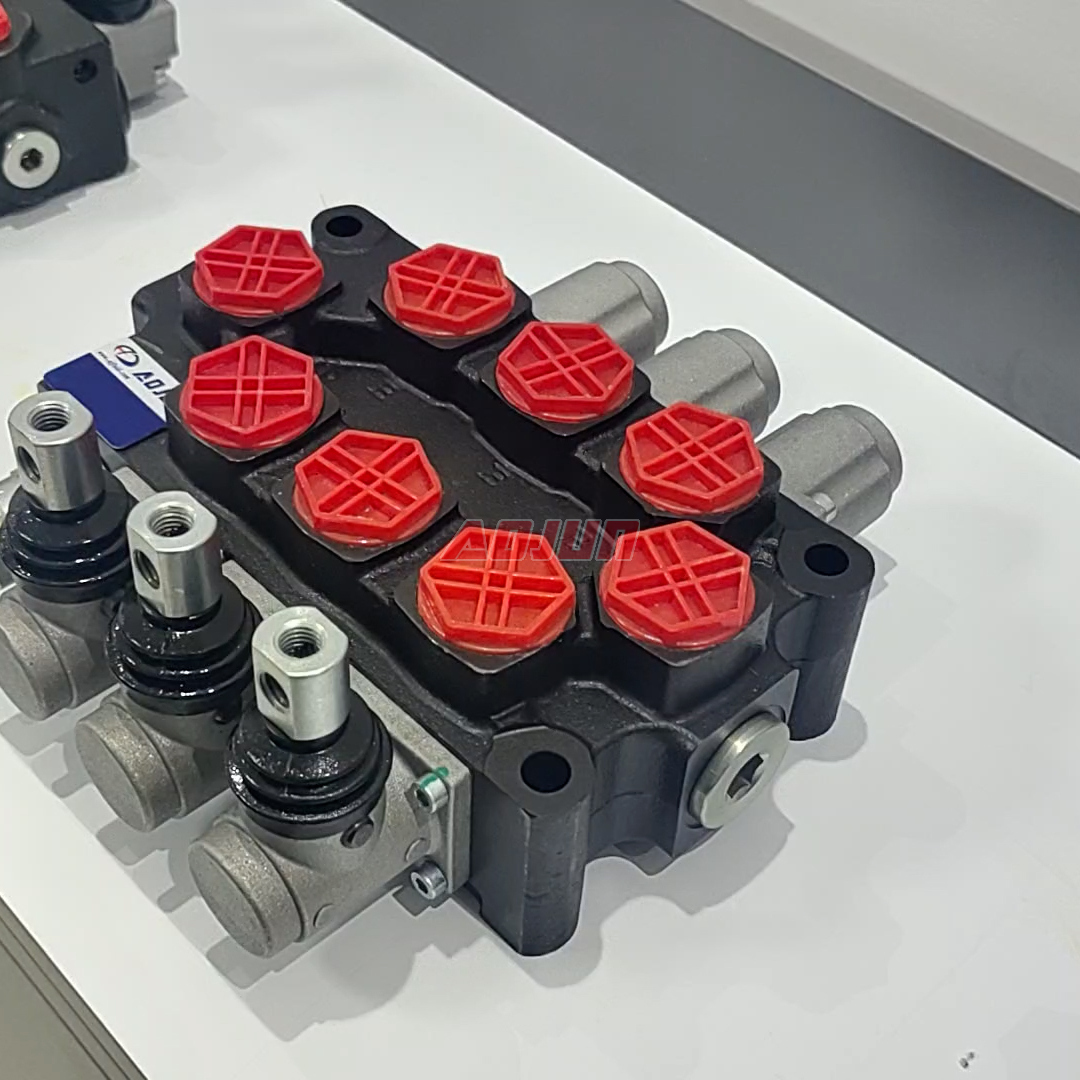

3-section manual monoblock directional valve designed for mobile hydraulic systems requiring high flow (95 L/min) and high pressure (up to 315 bar), with reliable operation across wide viscosity and temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 3-spool manual monoblock valve integrates three working sections into a compact one-piece body to reduce leak points and simplify installation. Rated flow is 95 L/min (25.1 US gpm) for fast actuator response, and maximum working pressure reaches 315 bar (4600 psi) for demanding lifting and earth-moving functions. Stable performance is maintained with hydraulic oil viscosity from 15–75 mm²/s (cSt), and it is suitable for harsh outdoor environments with ambient temperature capability from -40°C to +80°C. Typical applications include multi-function control on loaders, telehandlers, forklifts, skid steers, mini/midi excavators, tractor implements, aerial platforms, and other industrial vehicles. We support OEM manufacturing, contract production, private label, customization, bulk supply, and global distributor/agent cooperation.
| Q95 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 95 L/min (25.1 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G3/4 |
| Outlet Port | G3/4 |
| Port Size | G3/4 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
