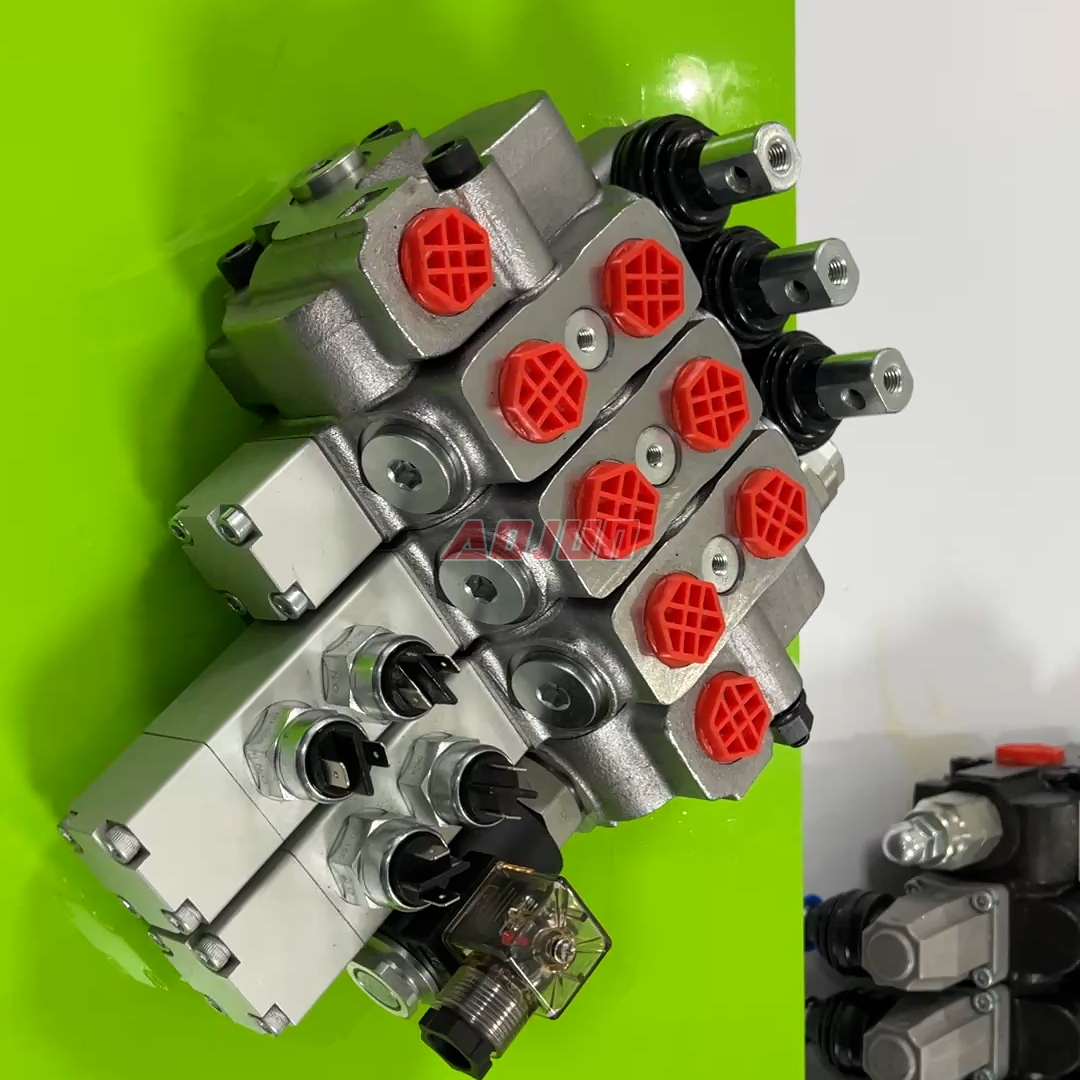

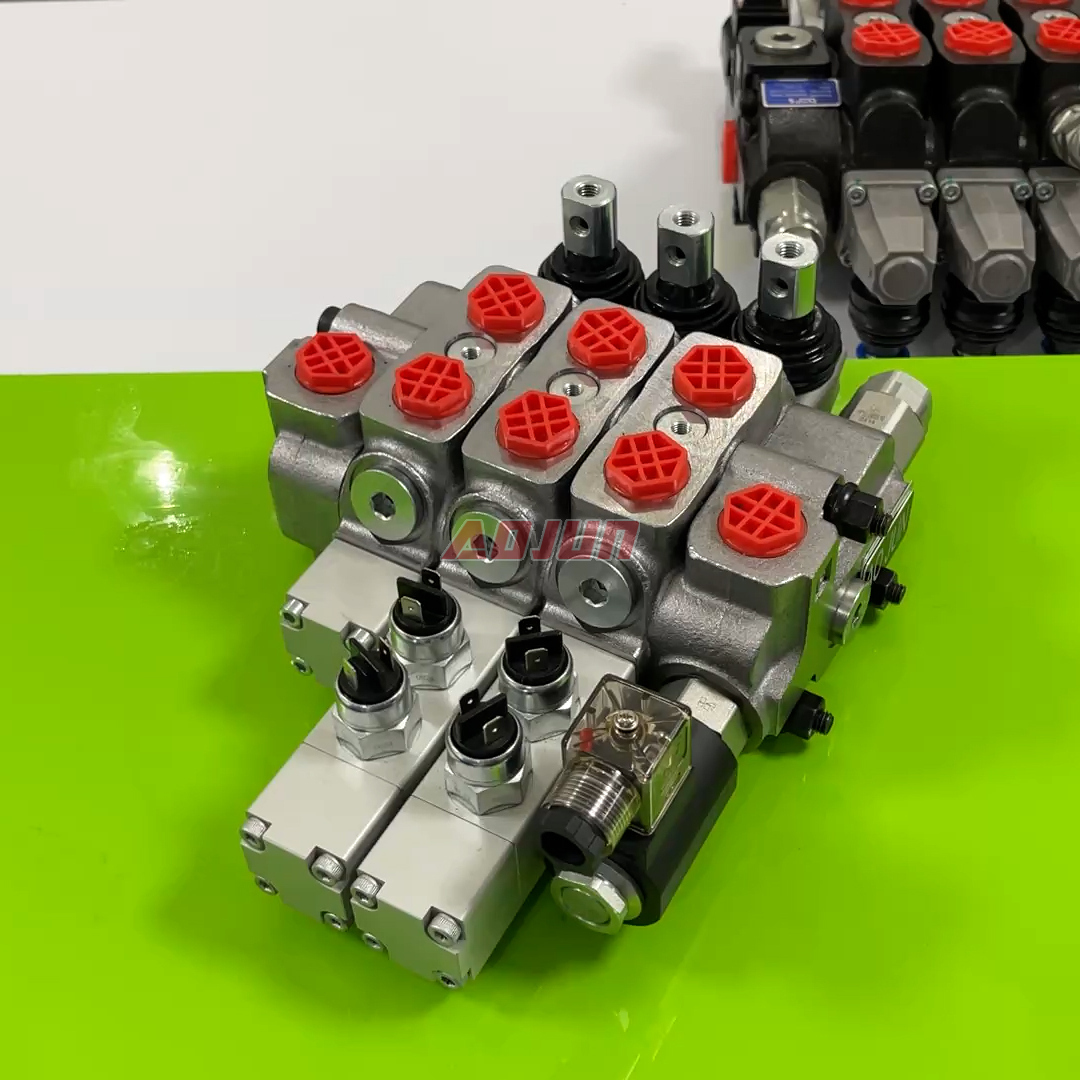

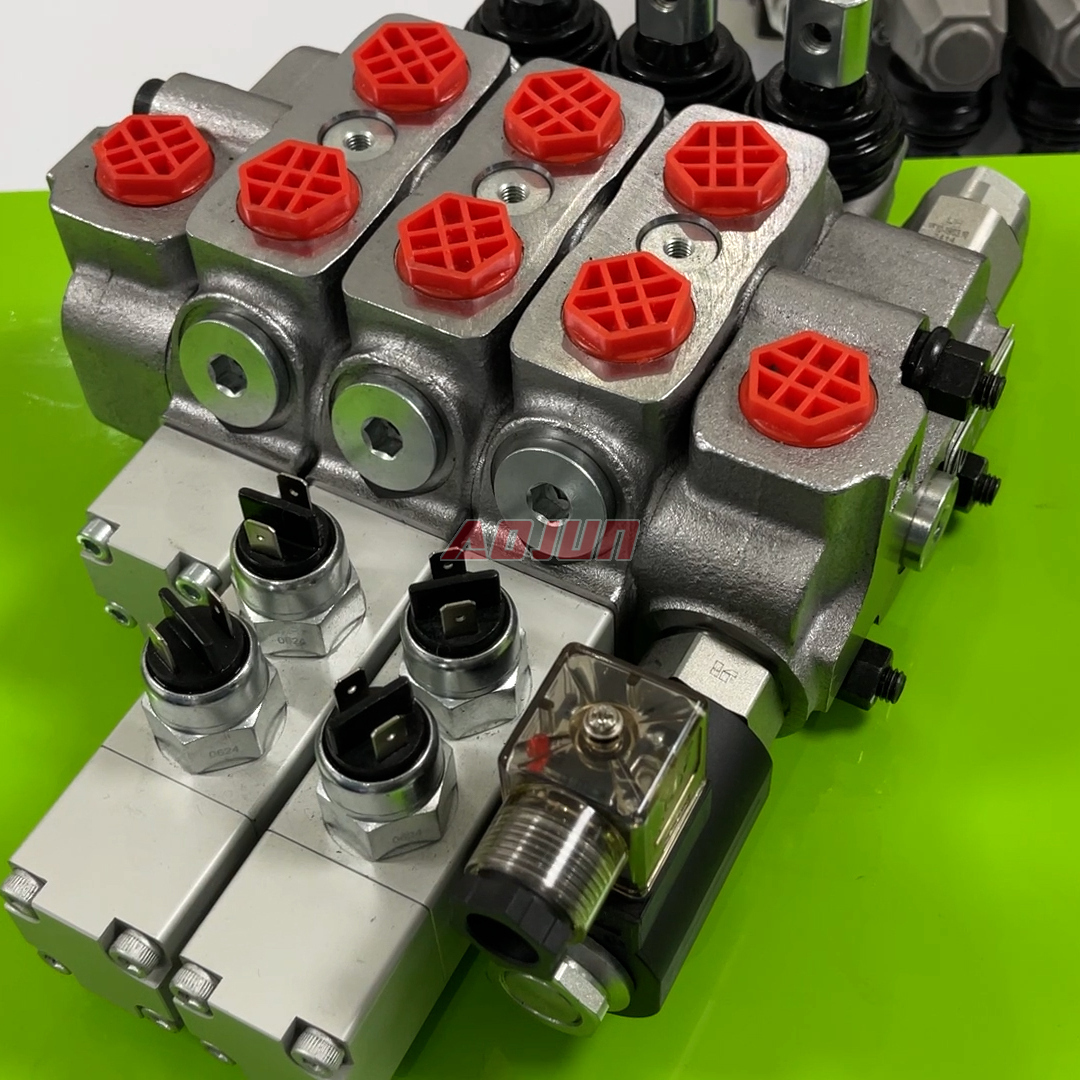

Manual 3-section sectional directional control valve with 3 spools, rated 45 L/min and up to 315 bar, designed for mobile hydraulic machinery requiring multi-function control and optional micro-switch signaling.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 3-section sectional directional valve is built for reliable multi-function hydraulic control in compact and mid-size mobile equipment. With 45 L/min rated flow and 315 bar maximum pressure capability, it supports demanding work functions such as lift, tilt, steering auxiliaries, outriggers, clamps, and attachments.
Key advantages:
- 3-spool / 3-section modular design: easy to configure for multiple functions and service individual sections.
- Manual operation: direct, simple control for cost-effective machine builds and retrofits.

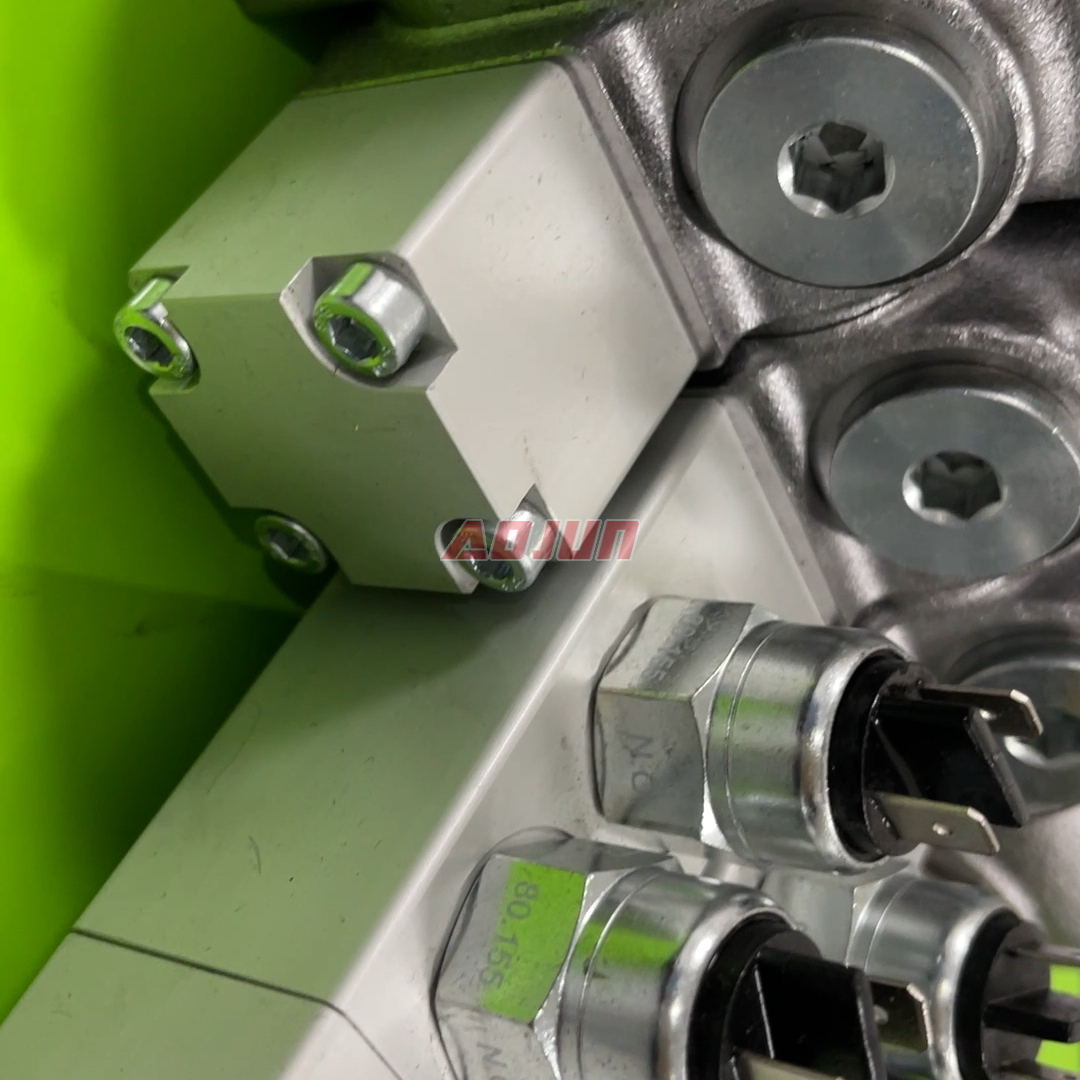

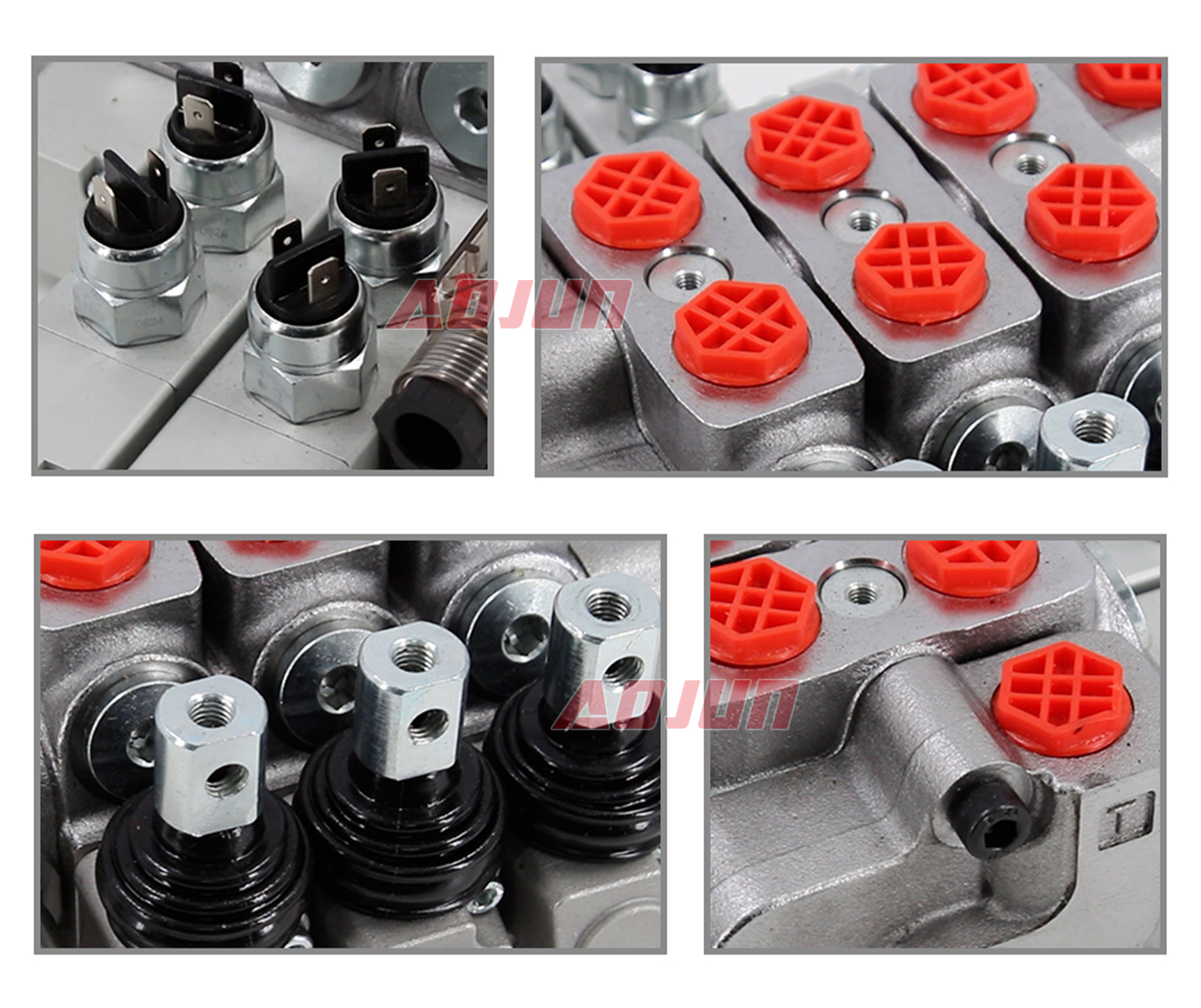

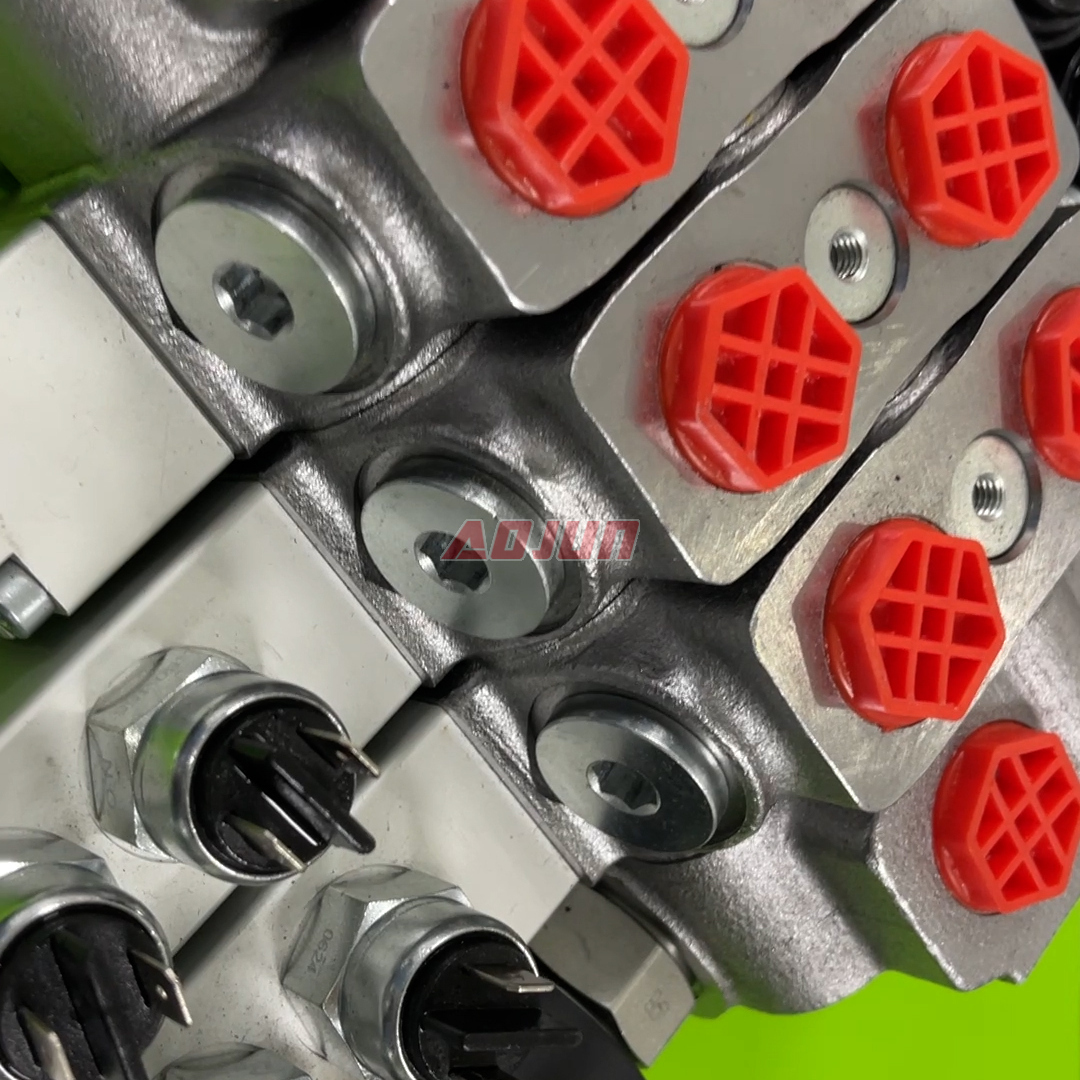

- Optional micro-switch integration: enables spool position feedback for interlocks, indicators, PTO/aux control, or safety logic (application-dependent).
- Wide operating window: 15–75 cSt viscosity range and -40°C to +60°C ambient temperature for cold-start and all-weather use.

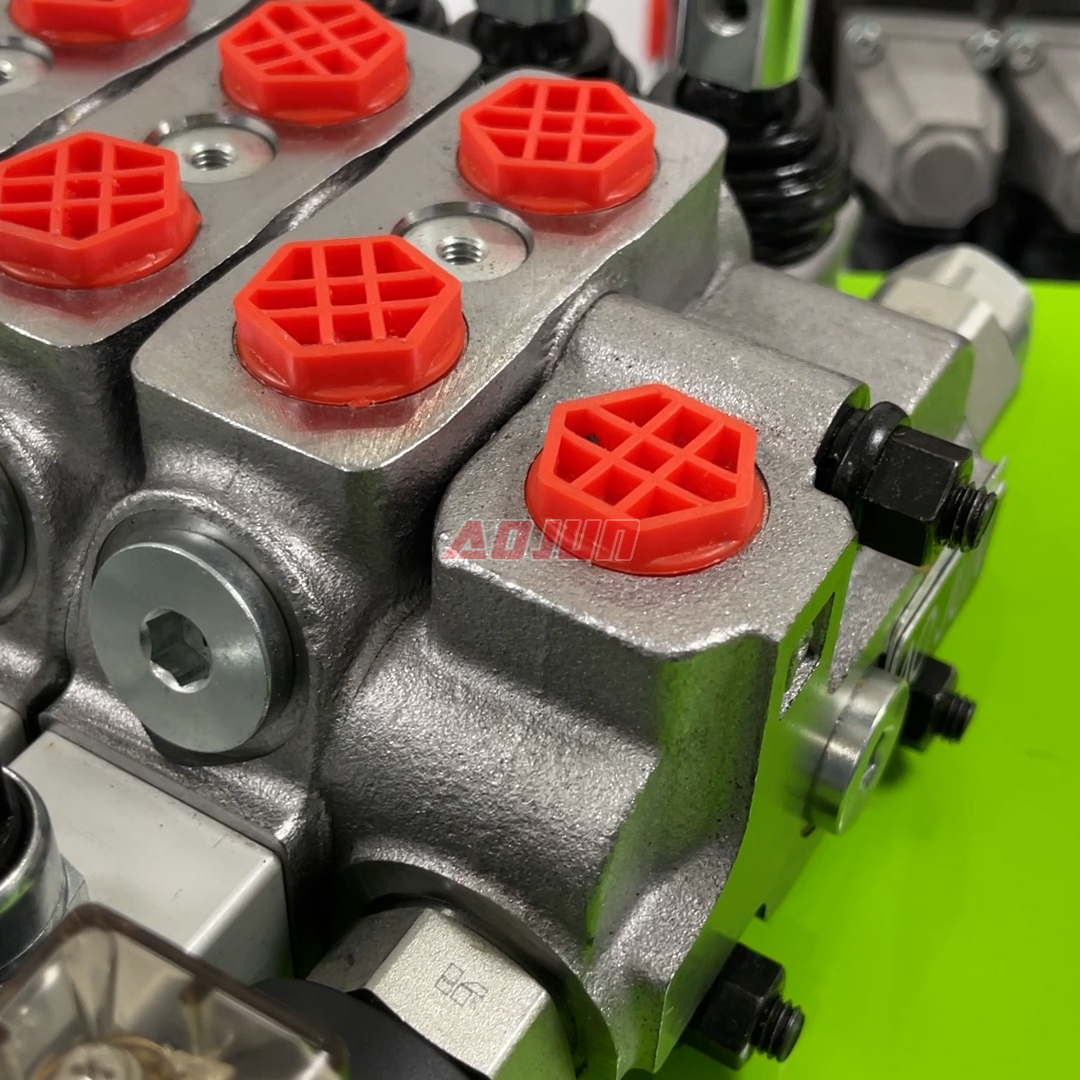

- BSP threaded ports for straightforward plumbing: inlet G3/8 or G1/2 options, outlet G1/2, work ports G3/8.
Typical applications:
Material handling (telehandlers, forklifts, stack/handling attachments), construction & earth moving (skid steers, mini/midi excavators, wheel loaders, backhoe loaders, dumpers), agriculture (tractors with front-end loaders and implements), and industrial vehicles requiring rugged manual valve banks.
Supply capability:
Available for OEM manufacturing, ODM customization, private label, and wholesale distribution; suited for dealers, distributors, agents, and trading companies serving global markets.
| SD6 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Rated Flow | 45 L/min (11.8 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G3/8, G1/2 |
| Outlet Port | G1/2 |
| Port Size | G3/8 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
