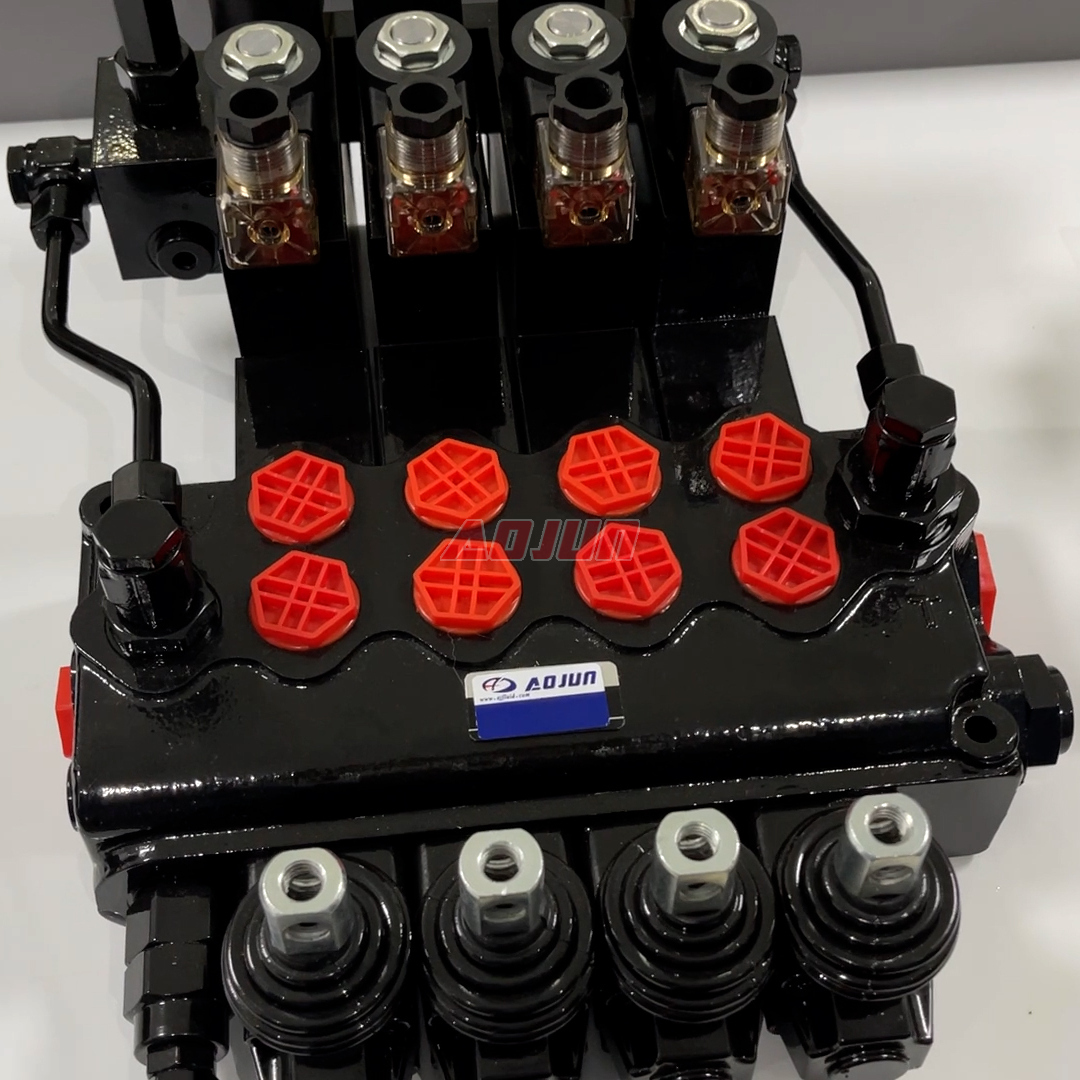

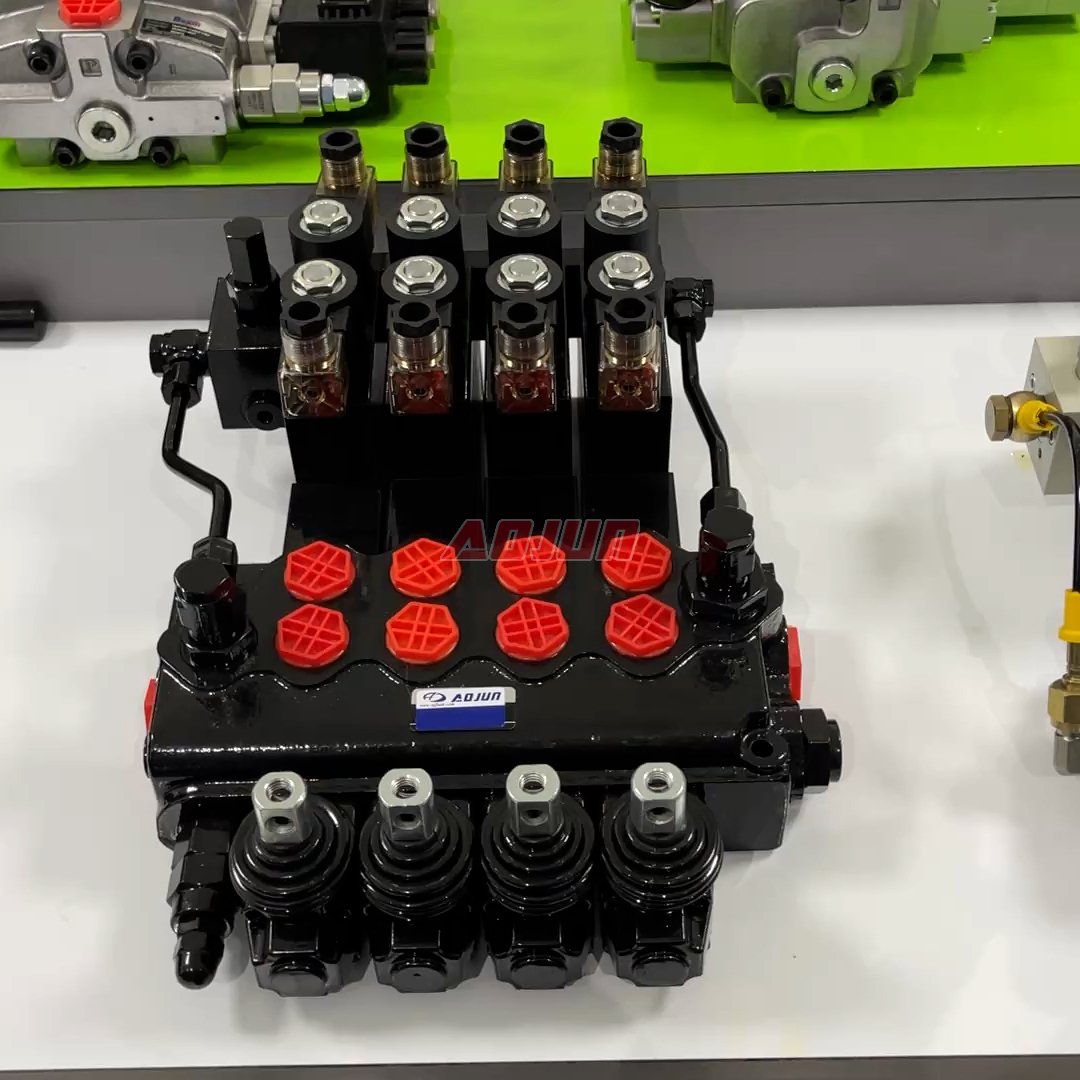

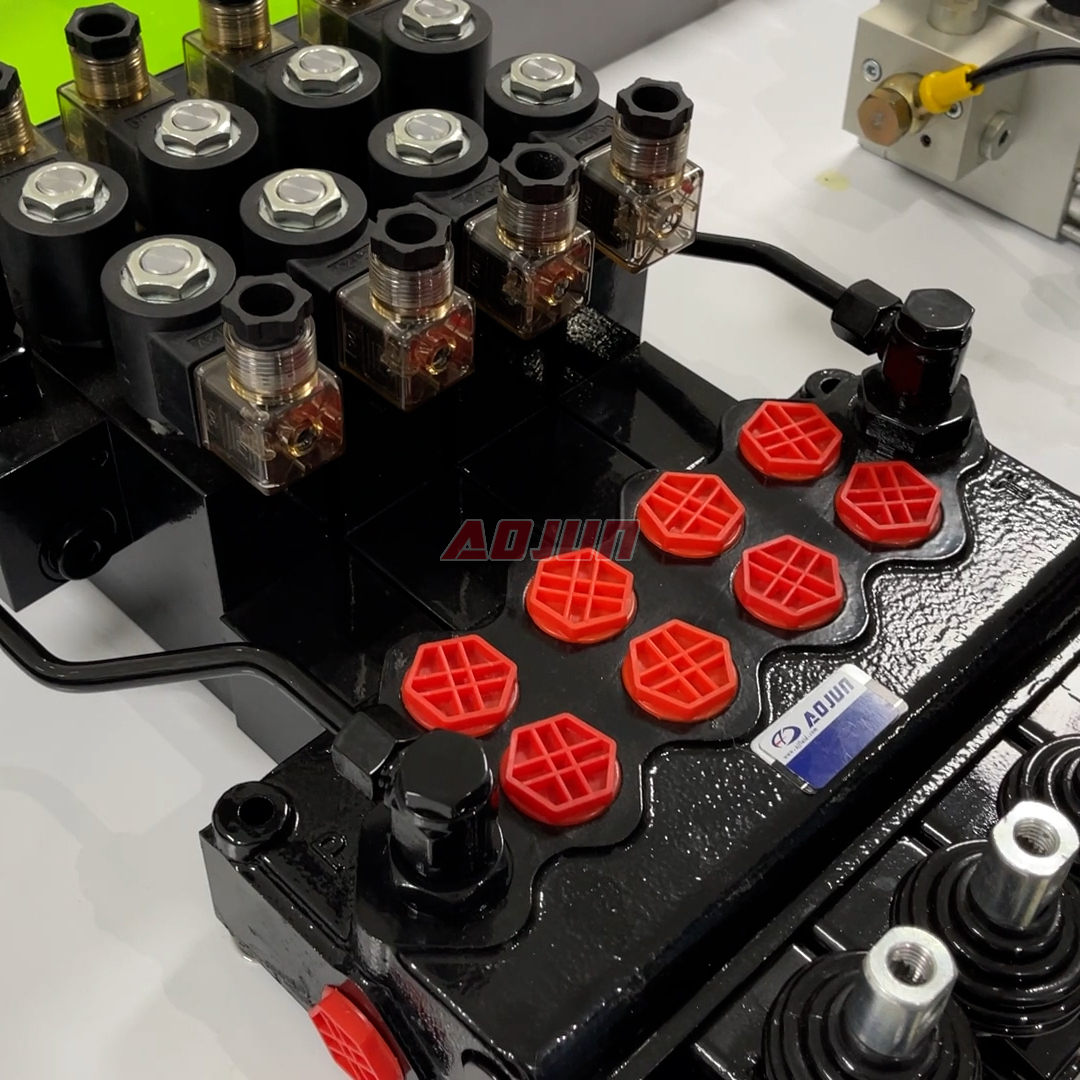

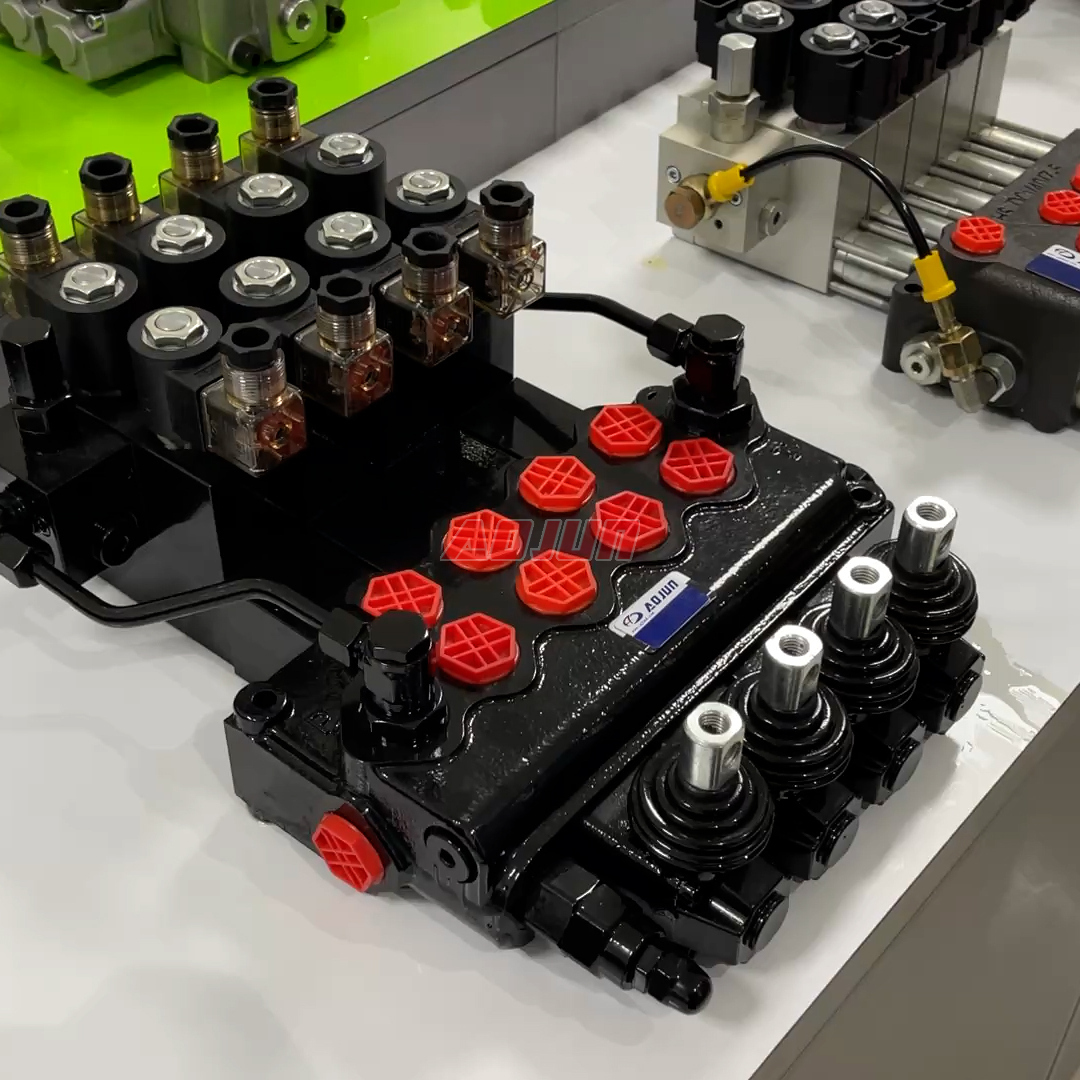

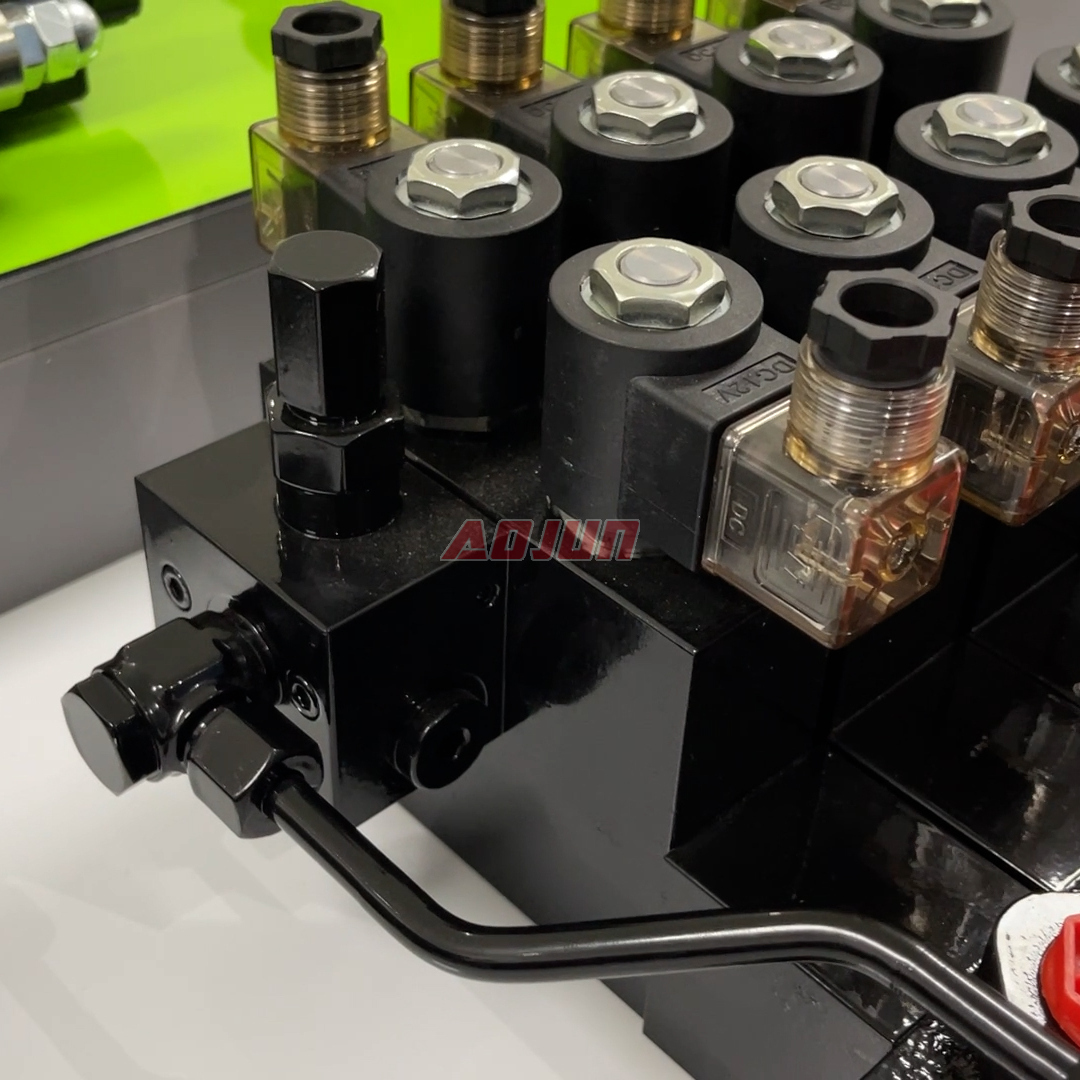

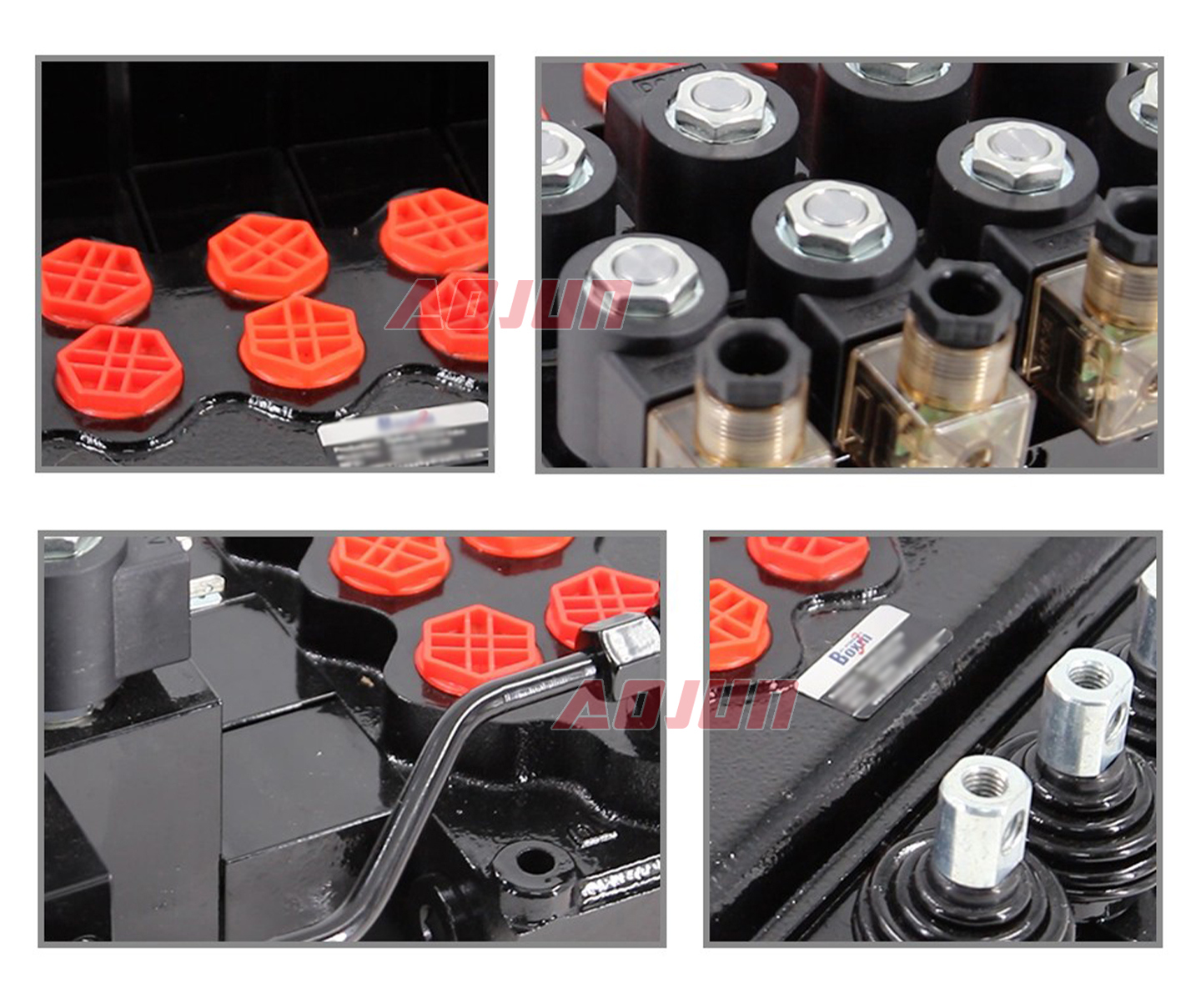

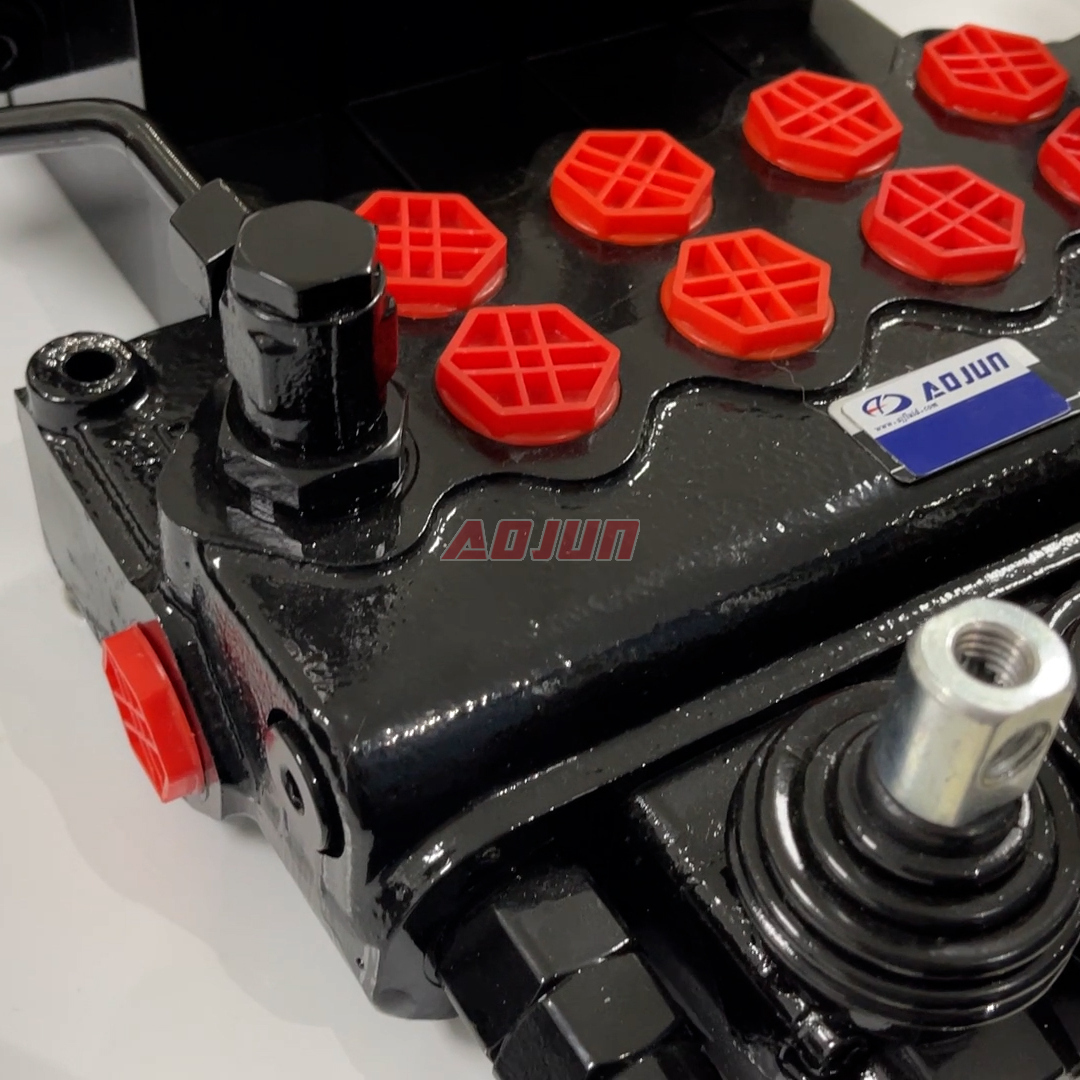

4-section electro-hydraulic monoblock directional control valve designed for mobile equipment requiring compact packaging, reliable multi-function actuation, and stable performance under high pressure. Rated 70 L/min with max pressure up to 315 bar for demanding duty cycles.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Key features: electro-hydraulic actuation for responsive remote control; monoblock construction for reduced leakage paths, improved rigidity, and simplified installation; 4-spool layout supports multi-actuator circuits (lift/tilt/aux functions). Performance: rated flow 70 L/min (18.5 gpm) and max pressure 315 bar (4600 psi) suitable for heavy-duty mobile hydraulics. Fluid & environment: operating viscosity 15–75 mm²/s supports common hydraulic oils; ambient temperature -40°C to +60°C enables cold-start and outdoor operation. Applications: ideal for telehandlers, forklifts, aerial platforms, skid steer loaders, compact excavators, loaders, and other industrial vehicles. Supply capability: available for OEM manufacturing, contract production, private label, customization, bulk purchasing, and distributor/agent partnerships for global markets.
| SD11 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Electric, Pneumatic and Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 70 L/min (18.5 US gpm) |
| Max Pressure | 305 bar (4400 psi), 315 bar (4600 psi) |
| Inlet Port | G3/4, SAE 12 |
| Outlet Port | G3/4, SAE 12 |
| Port Size | G3/4, SAE 12 |
