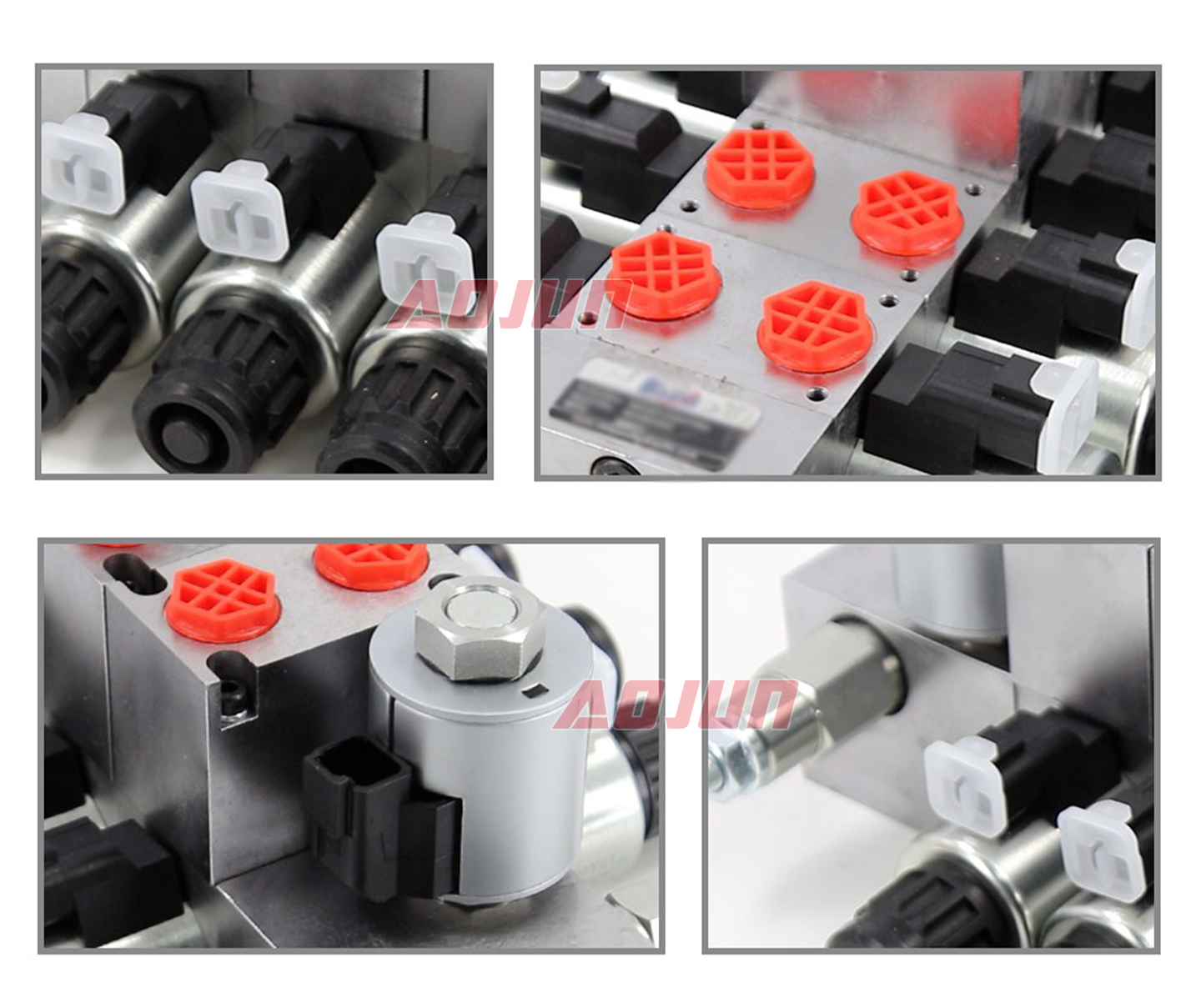

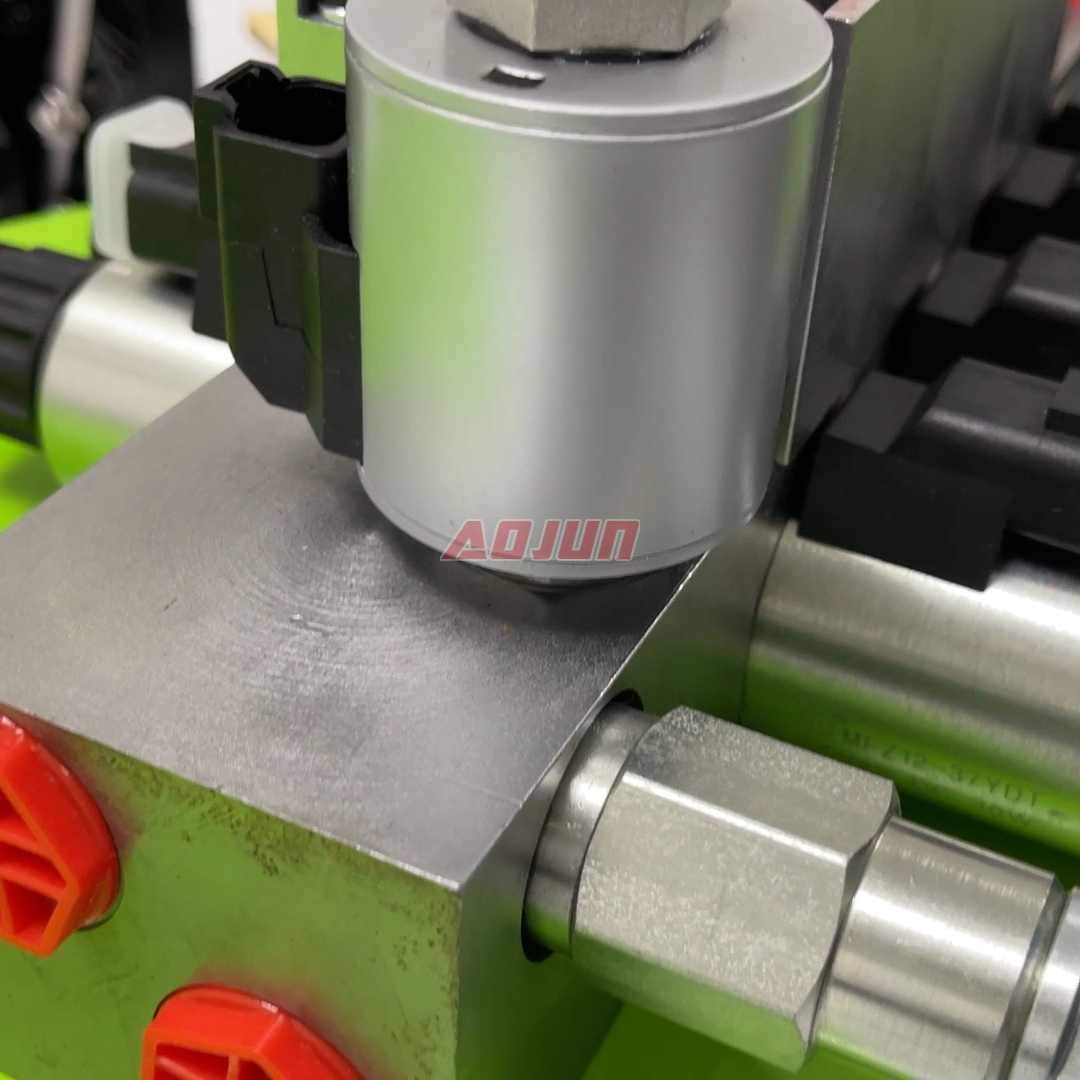

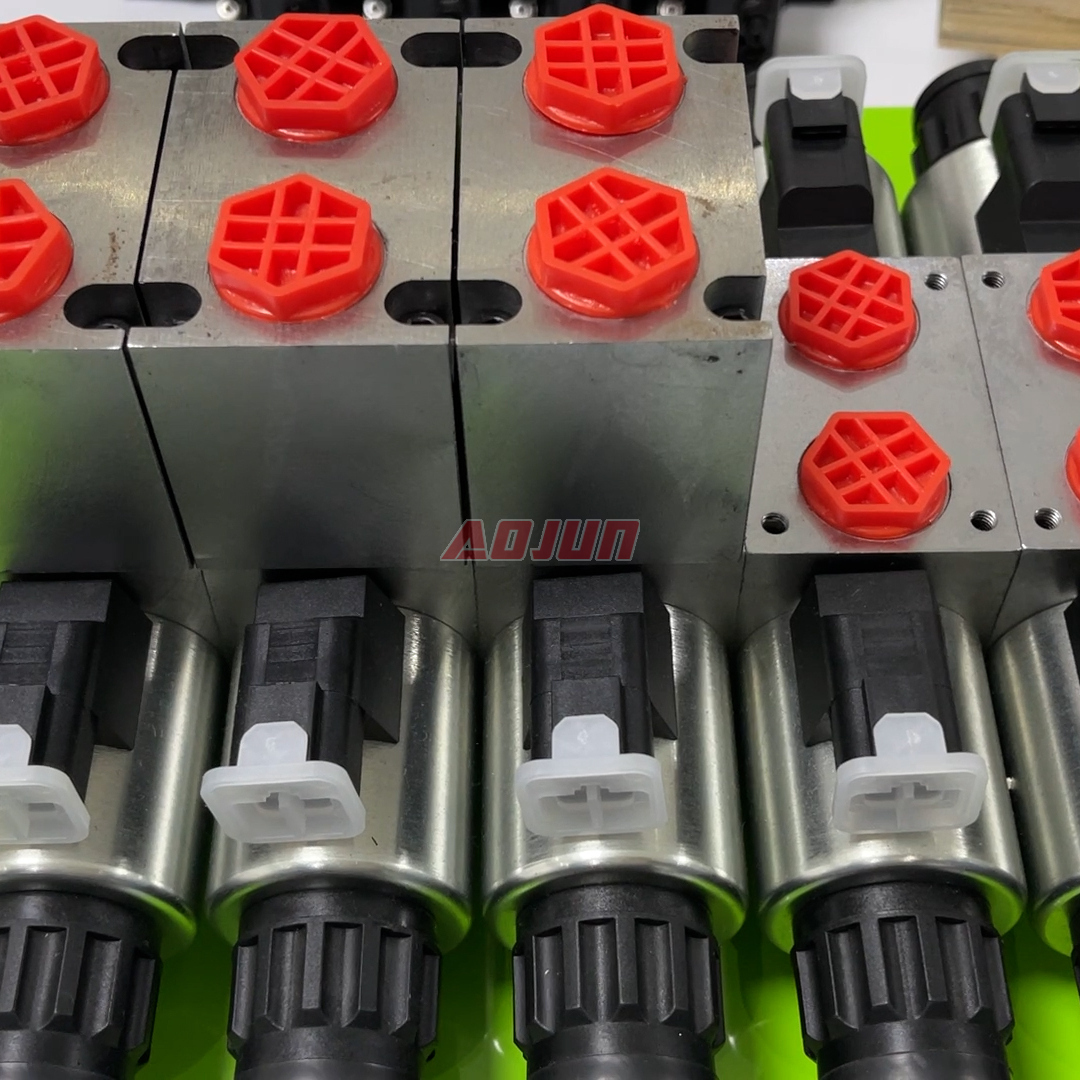

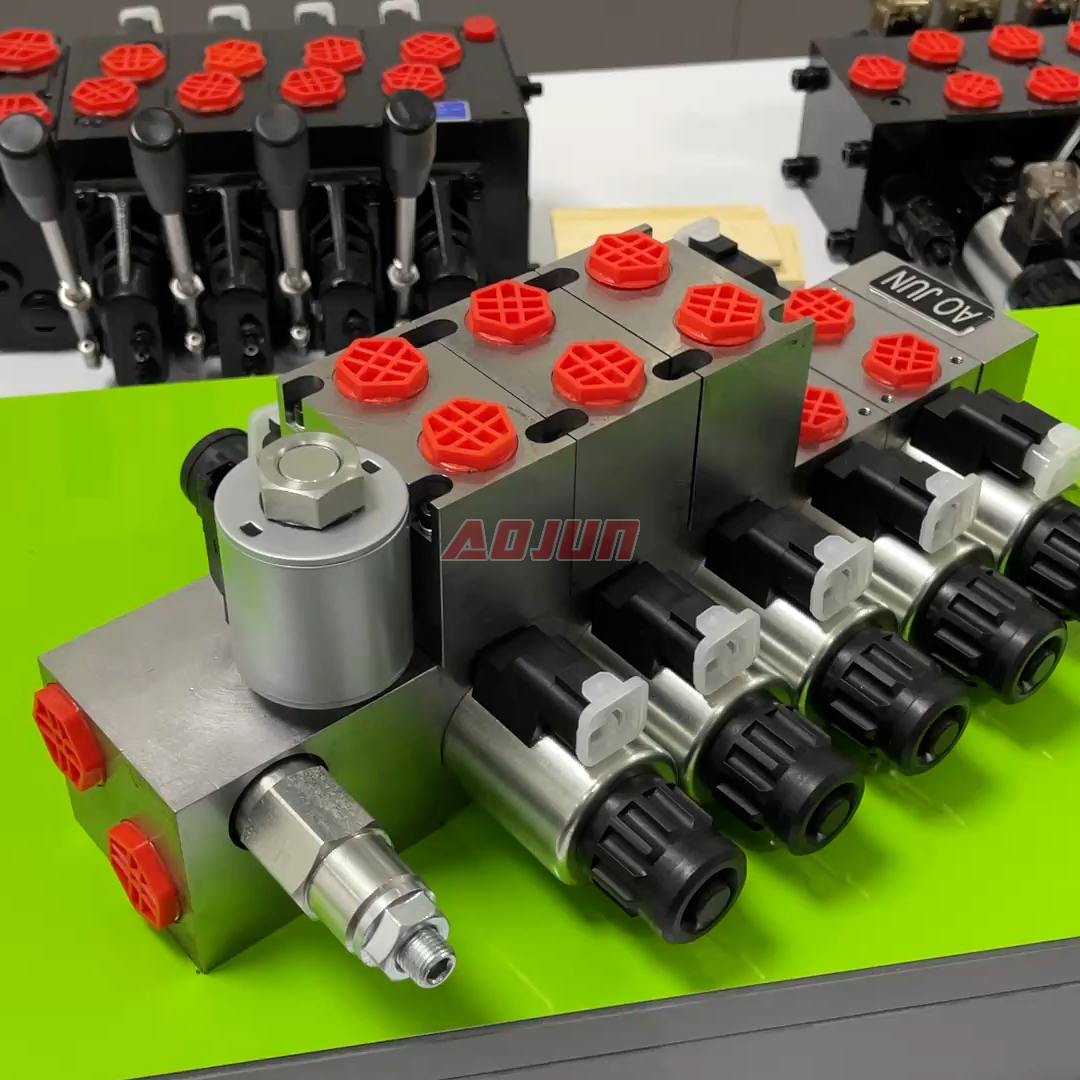

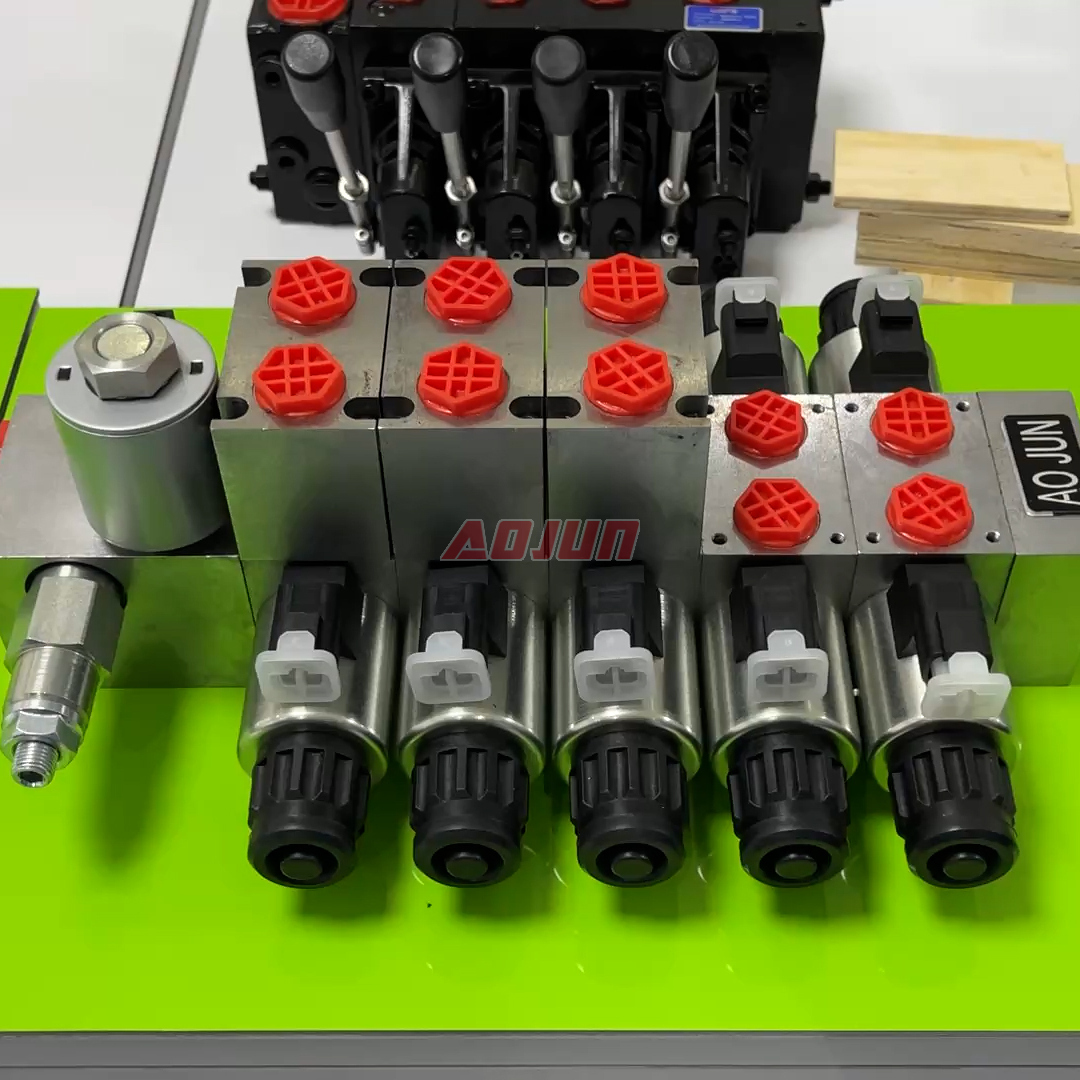

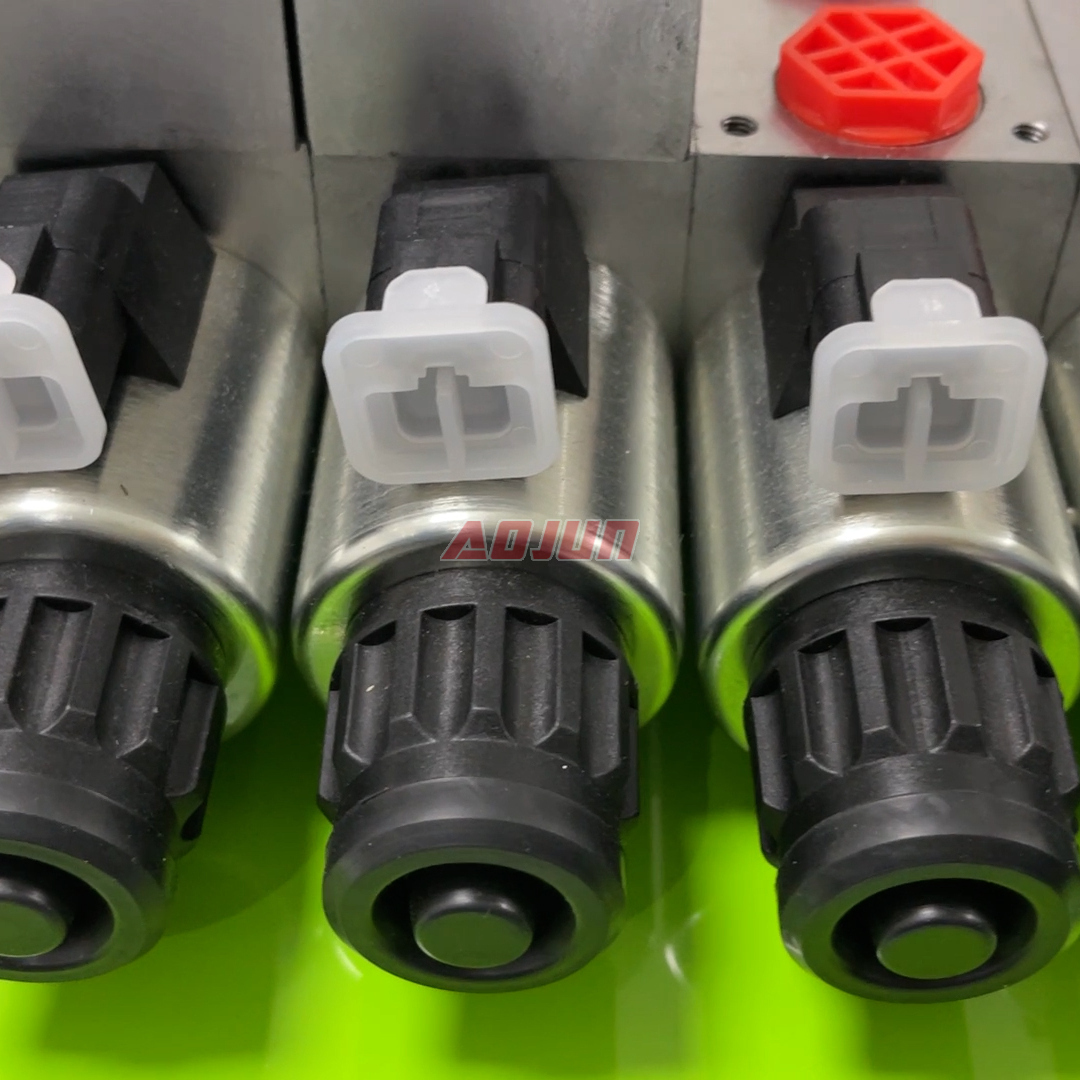

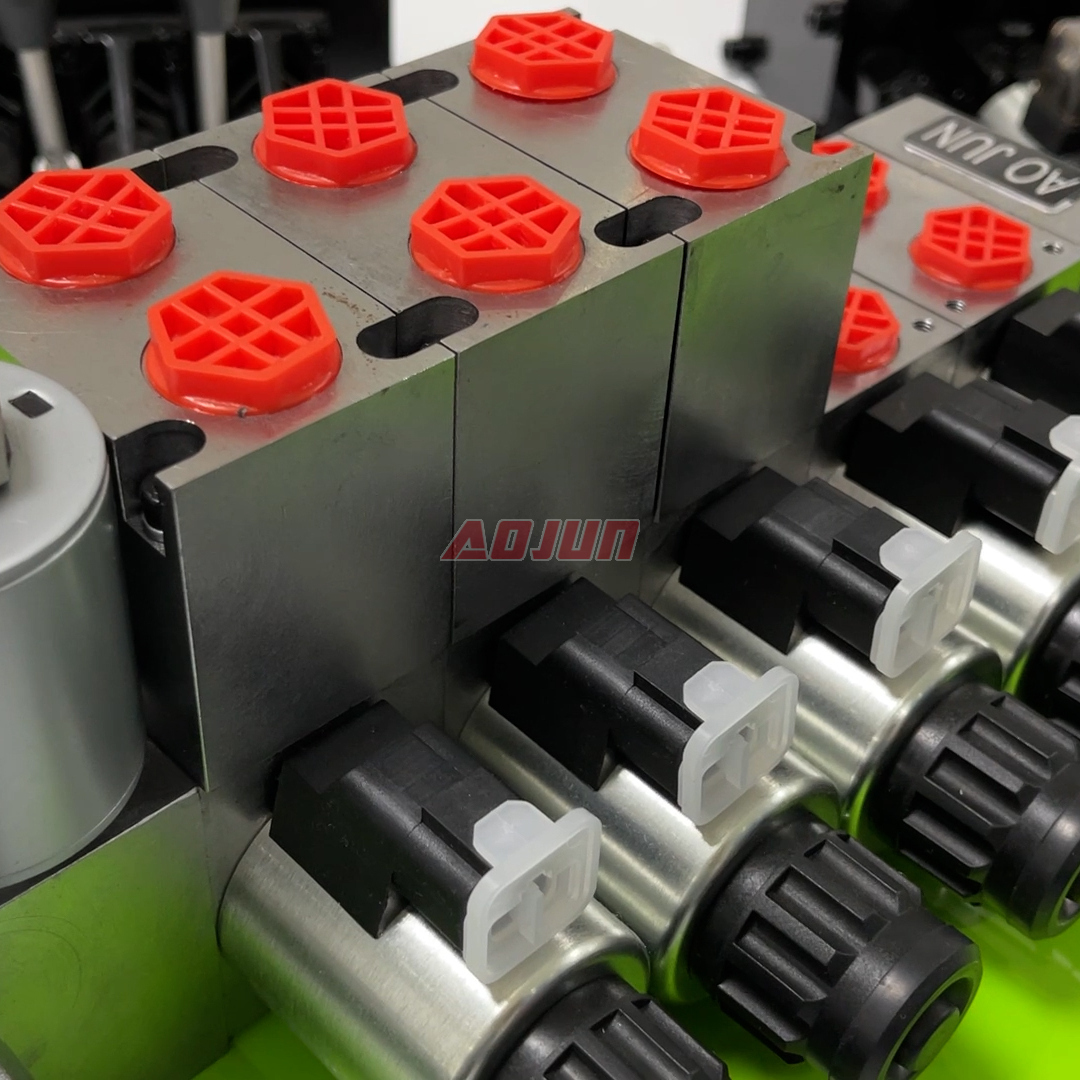

A 5-section electric proportional sectional valve bank designed for smooth, precise multi-function control in mobile and industrial hydraulic systems. Rated 40 L/min and up to 250 bar, it supports stable performance across wide viscosity and ambient temperature ranges.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
Control & performance: Electric proportional actuation provides fine metering and stable motion control for lifting, steering, boom, and auxiliary functions. Rated flow 40 L/min (10.5 gpm) and maximum pressure 250 bar (3600 psi) fit demanding mobile hydraulics.
Sectional modular design: 5-spool, 5-section configuration allows flexible function allocation and easier service—sections can be configured to match different machine circuits and OEM requirements.
Operating robustness: Works with hydraulic oils in the 15–75 mm²/s viscosity range and ambient temperatures from -40°C to +60°C, suitable for cold-start and all-season outdoor equipment.
Typical applications: Material handling and construction equipment (telehandlers, forklifts, aerial platforms, skid steers, loaders), agricultural machines (tractors with loaders), and industrial vehicles requiring proportional multi-circuit control.
Supply options: Factory-direct manufacturing for global customers, supporting OEM/ODM, private label, customization, wholesale, and distributor/agent cooperation.
| DCV56 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Hydraulic and Manual, Solenoid and Manual |
| Spool | 1 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2 |
| Outlet Port | G3/8, G1/2 |
| Port Size | G3/8, G1/2 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
