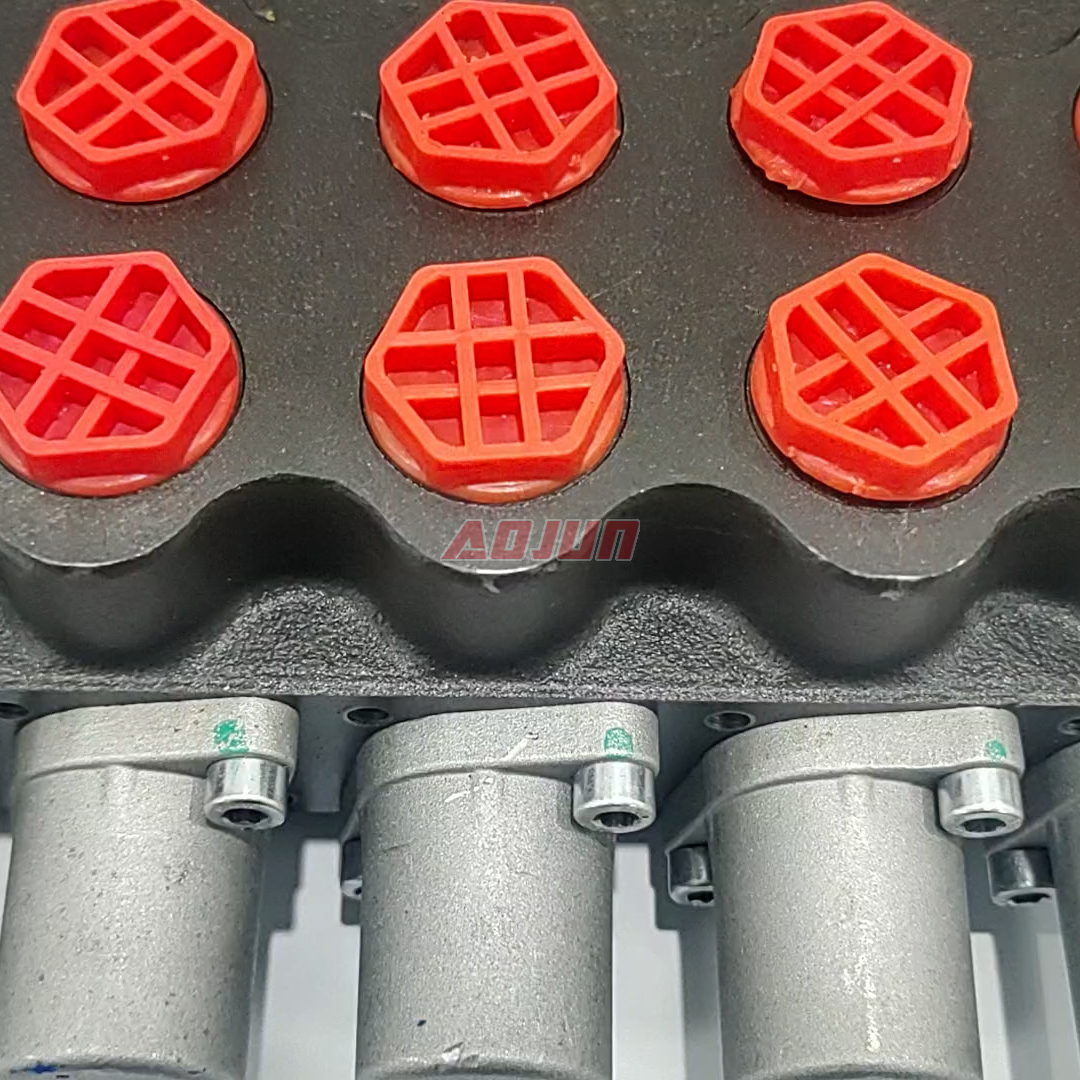

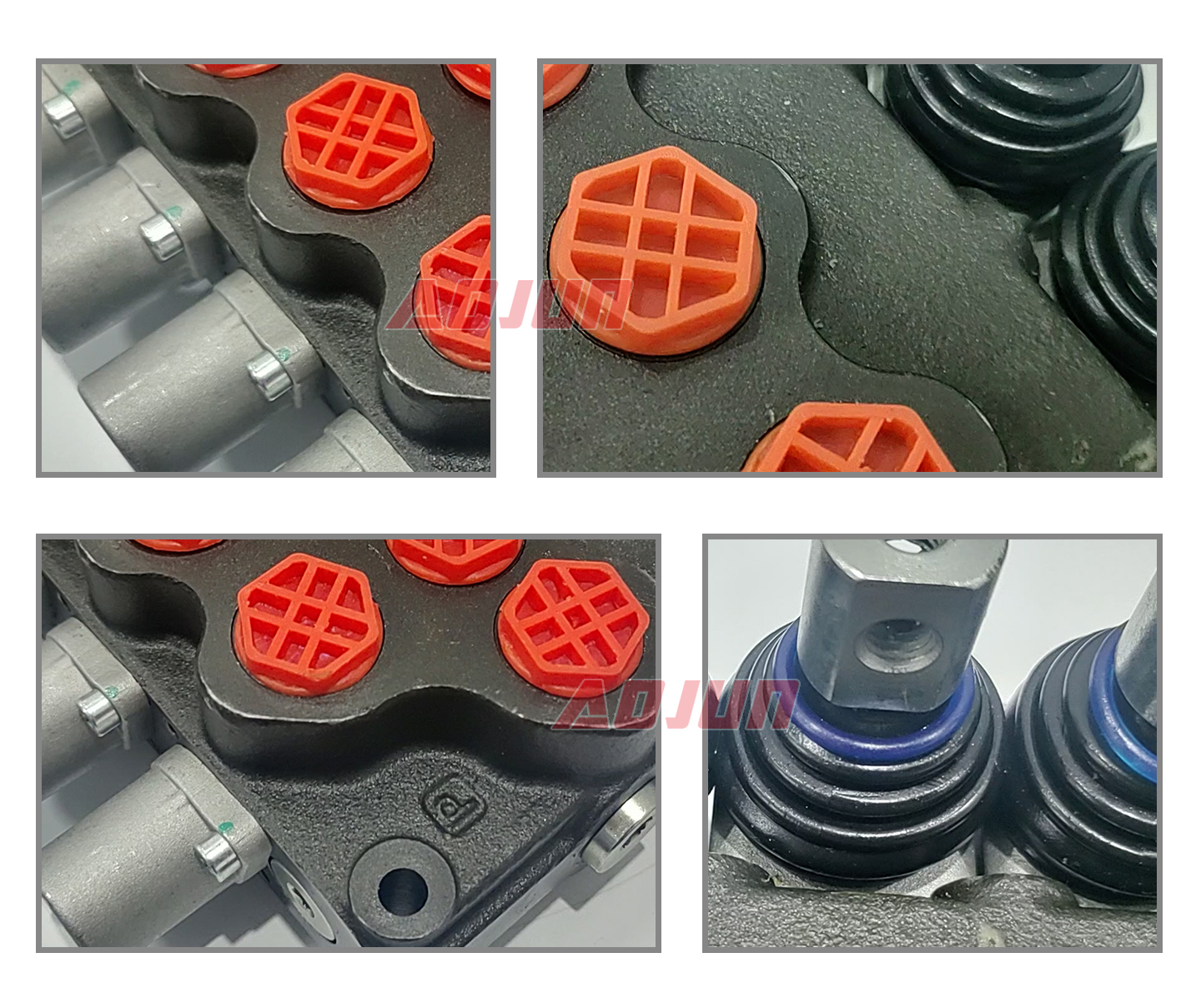

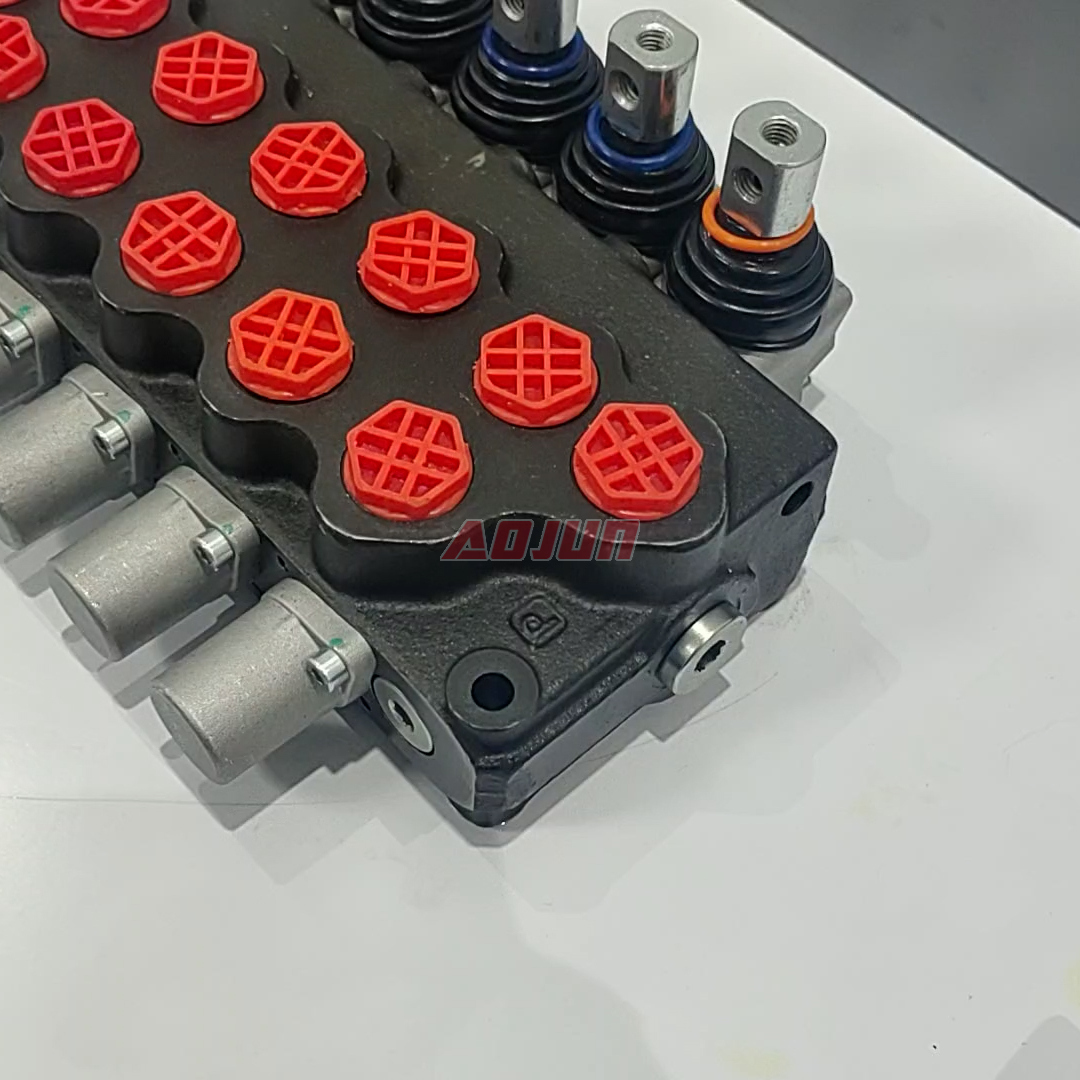

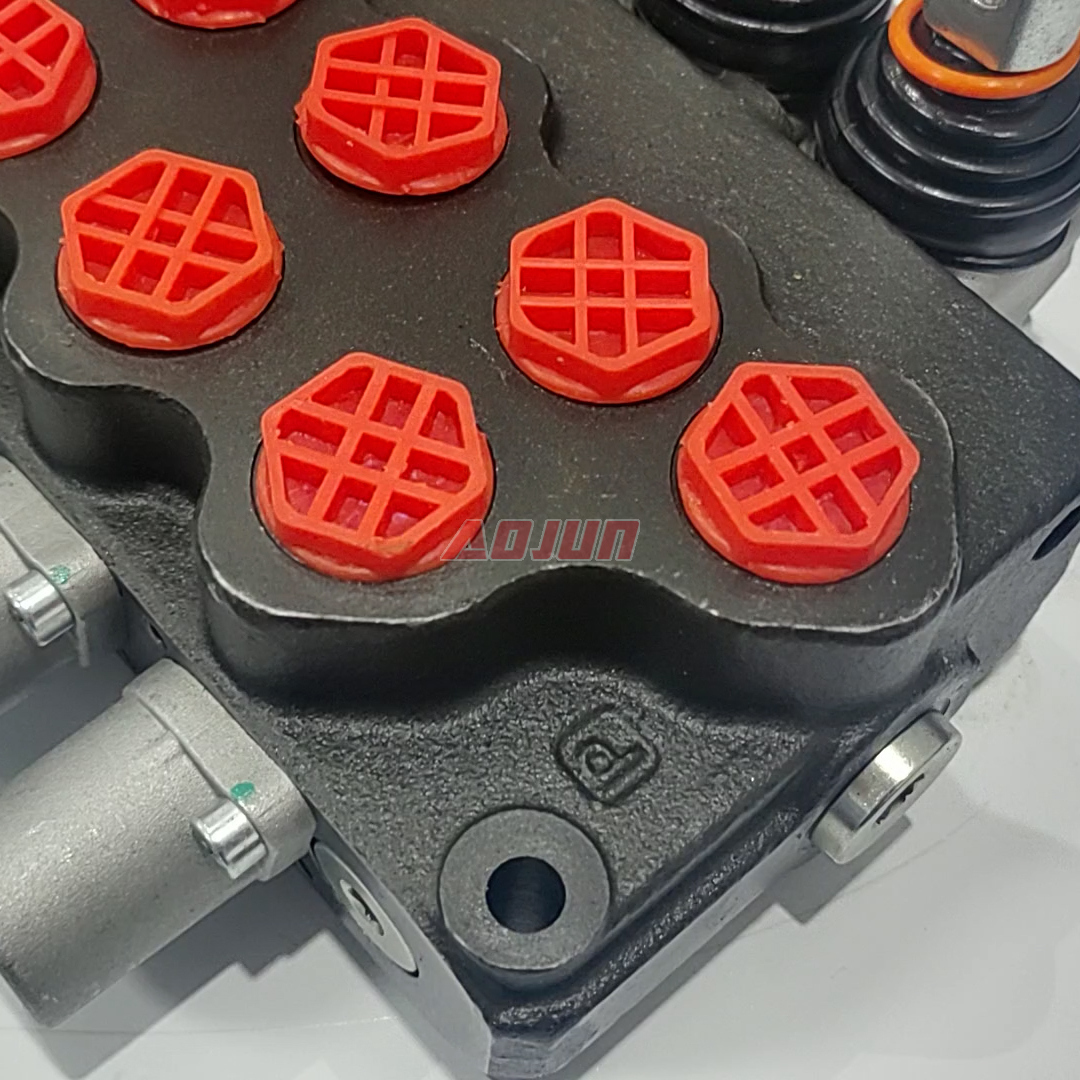

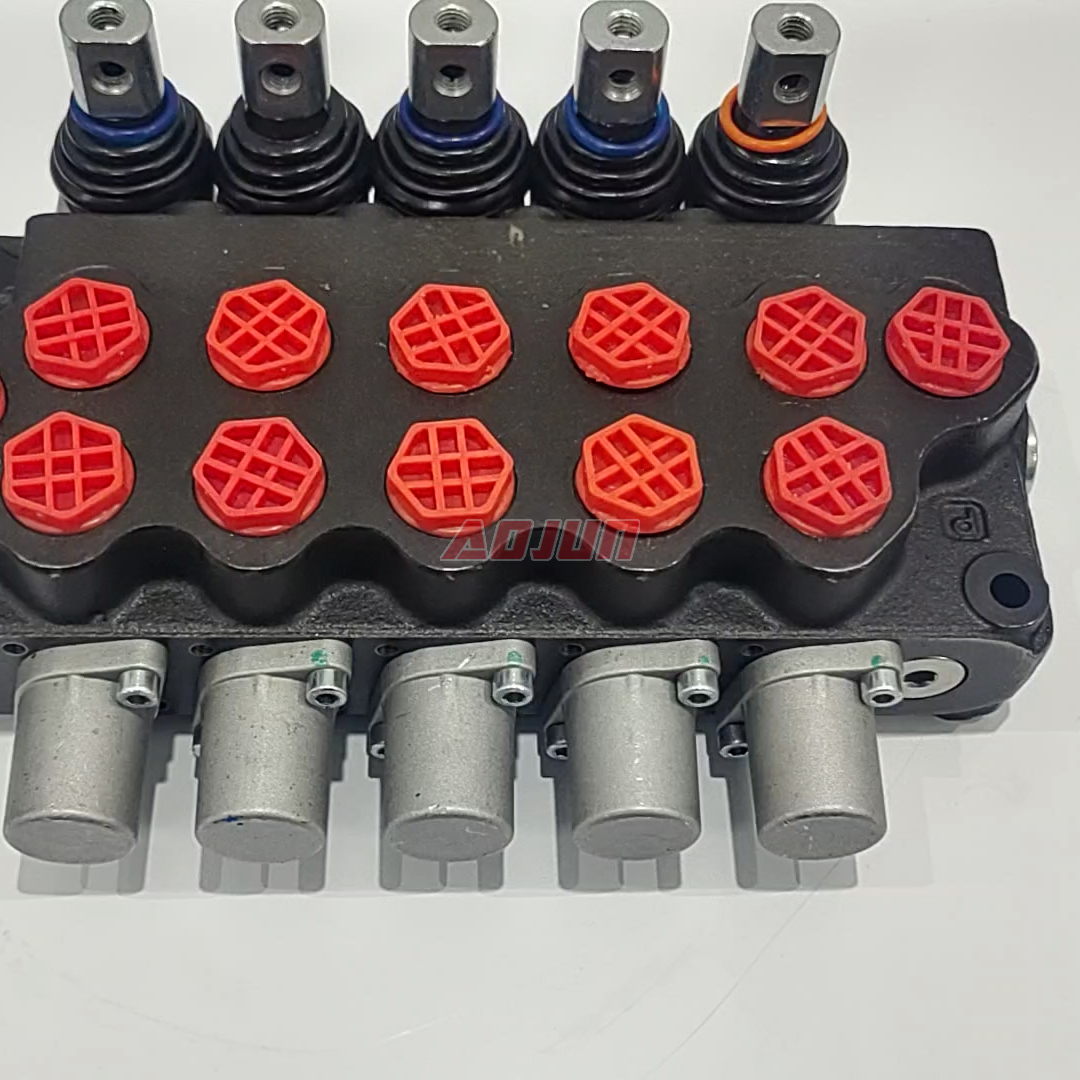

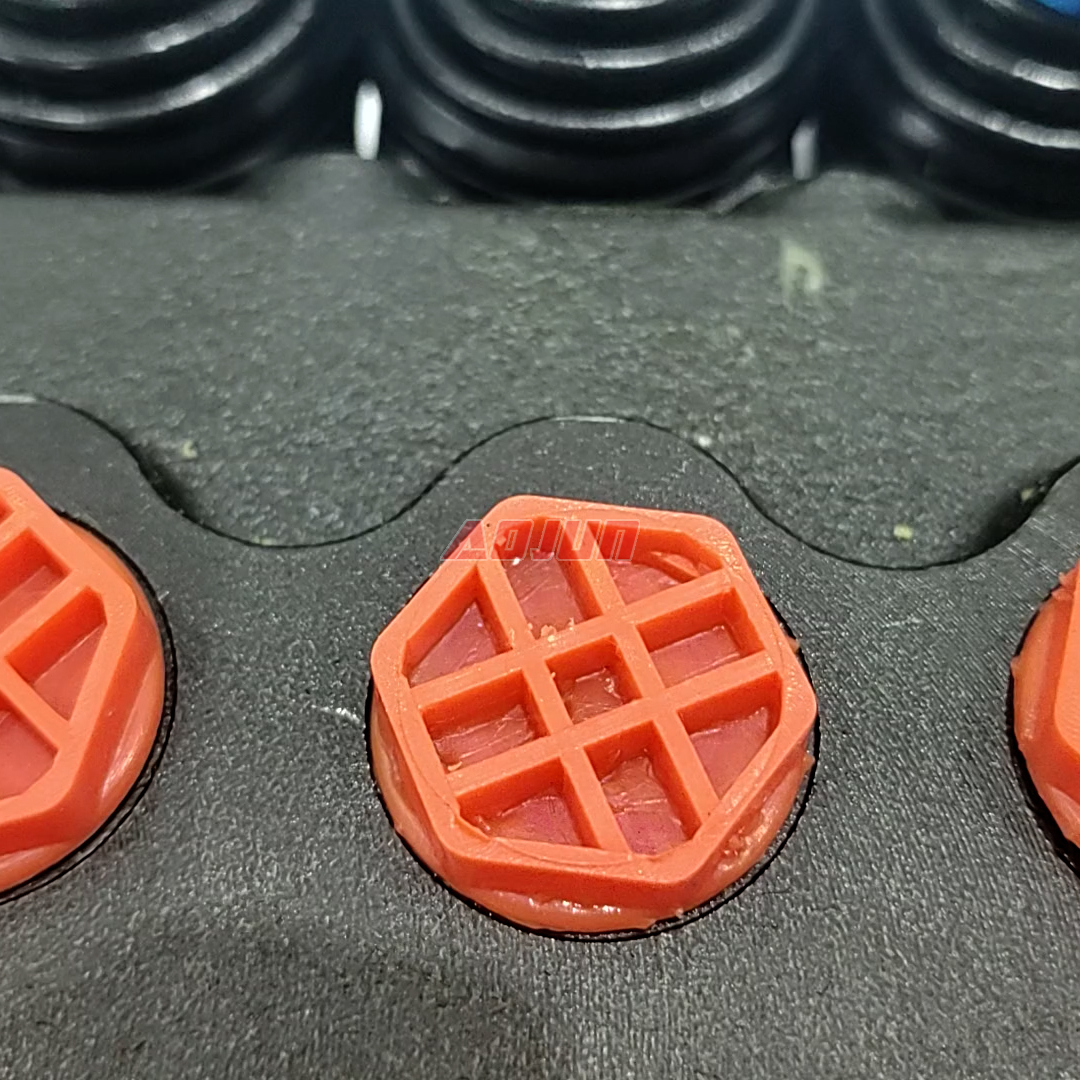

A 5-section manual hydraulic spool valve with monoblock construction, designed for reliable multi-function control on mobile equipment, offering 40 L/min rated flow, up to 305 bar pressure, and multiple port/thread options for flexible installation.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This manual multi-spool control valve is built for compact, leak-resistant monoblock durability and smooth operator control across five independent circuits. Rated flow is 40 L/min (10.5 gpm) with maximum working pressure up to 305 bar (4400 psi), suitable for demanding mobile hydraulics such as loaders, excavators, telehandlers, forklifts, aerial platforms, and agricultural implements. It supports hydraulic oil viscosity from 15–75 cSt and operates in harsh environments from -40°C to +60°C, making it a strong choice for cold-climate and outdoor machinery. To simplify global OEM integration, it offers multiple inlet/outlet and port interfaces including G threads (G1-1/2, G1/2, G3/8), SAE 6/SAE 8, and metric options (M18×1.5, M20×1.5). Available for manufacturing supply, wholesale, OEM/ODM customization, private label, and distributor/agent cooperation.
| SD5 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 305 bar (4400 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Outlet Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Port Size | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +60°C (-40°F to +140°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
