5-section manual sectional directional valve for mobile hydraulic systems, delivering up to 90 L/min flow with high-pressure capability (up to 350 bar) and reliable performance from -40°C to +80°C.
global shipping world wide
Online Service For 24 X 7
Support OEM customization

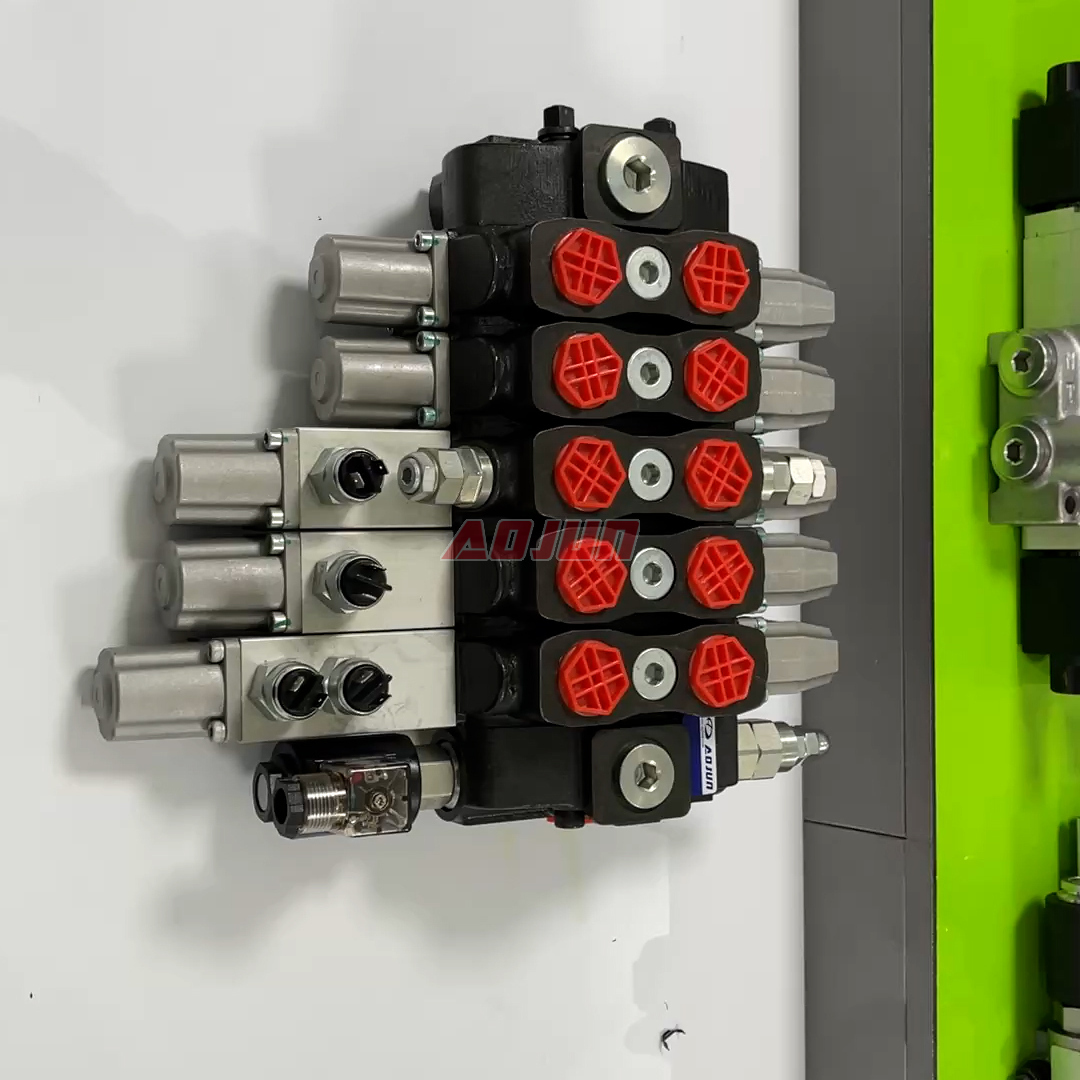

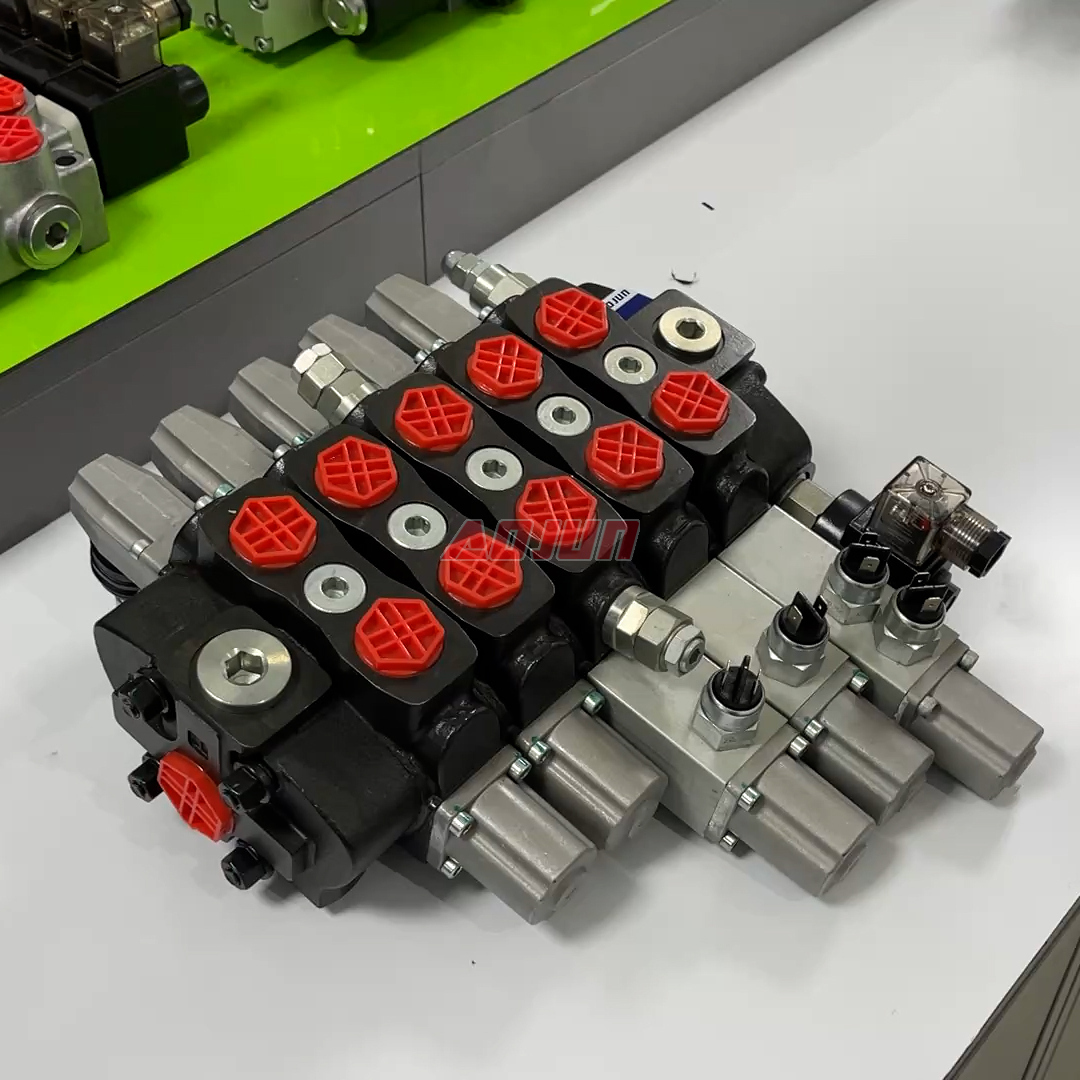

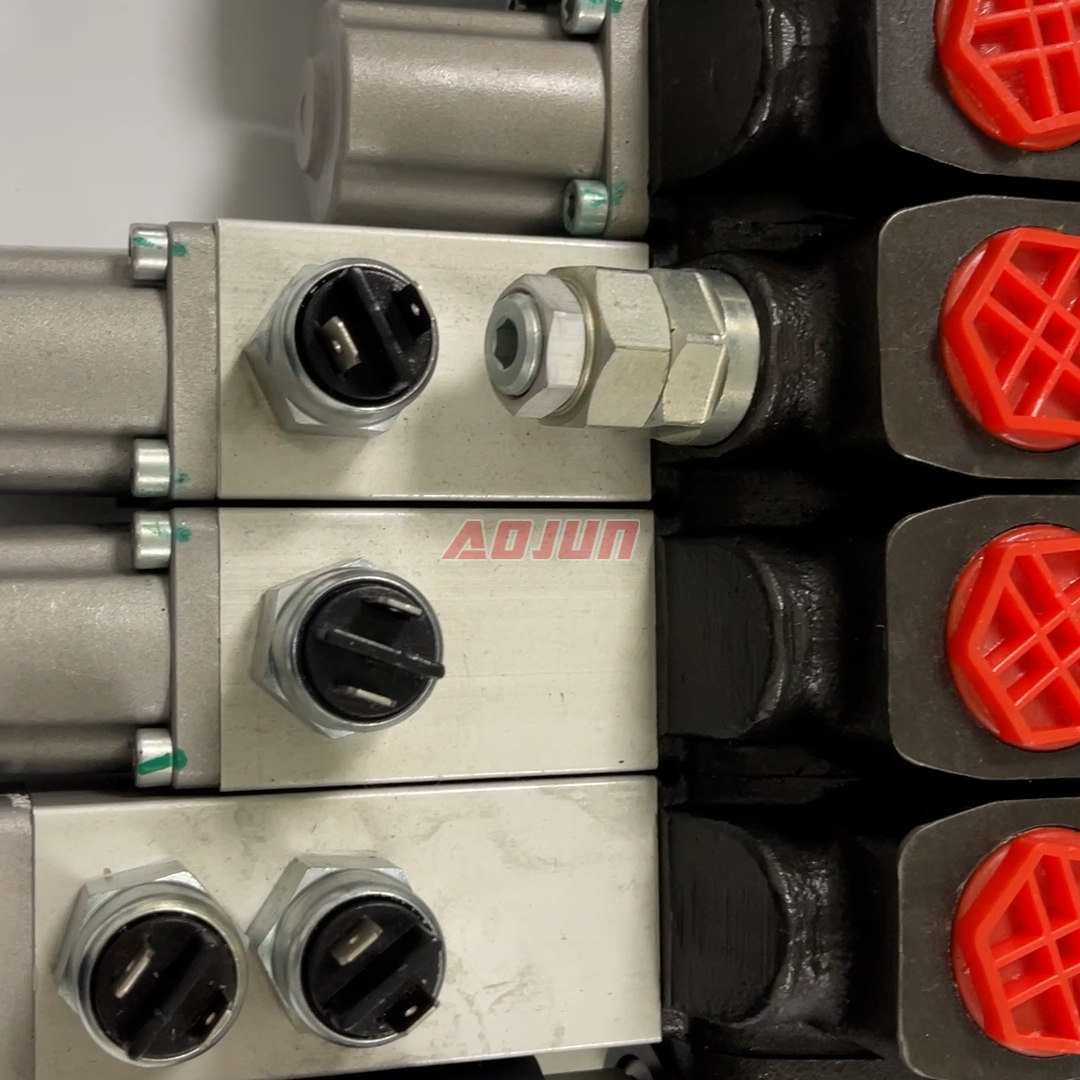

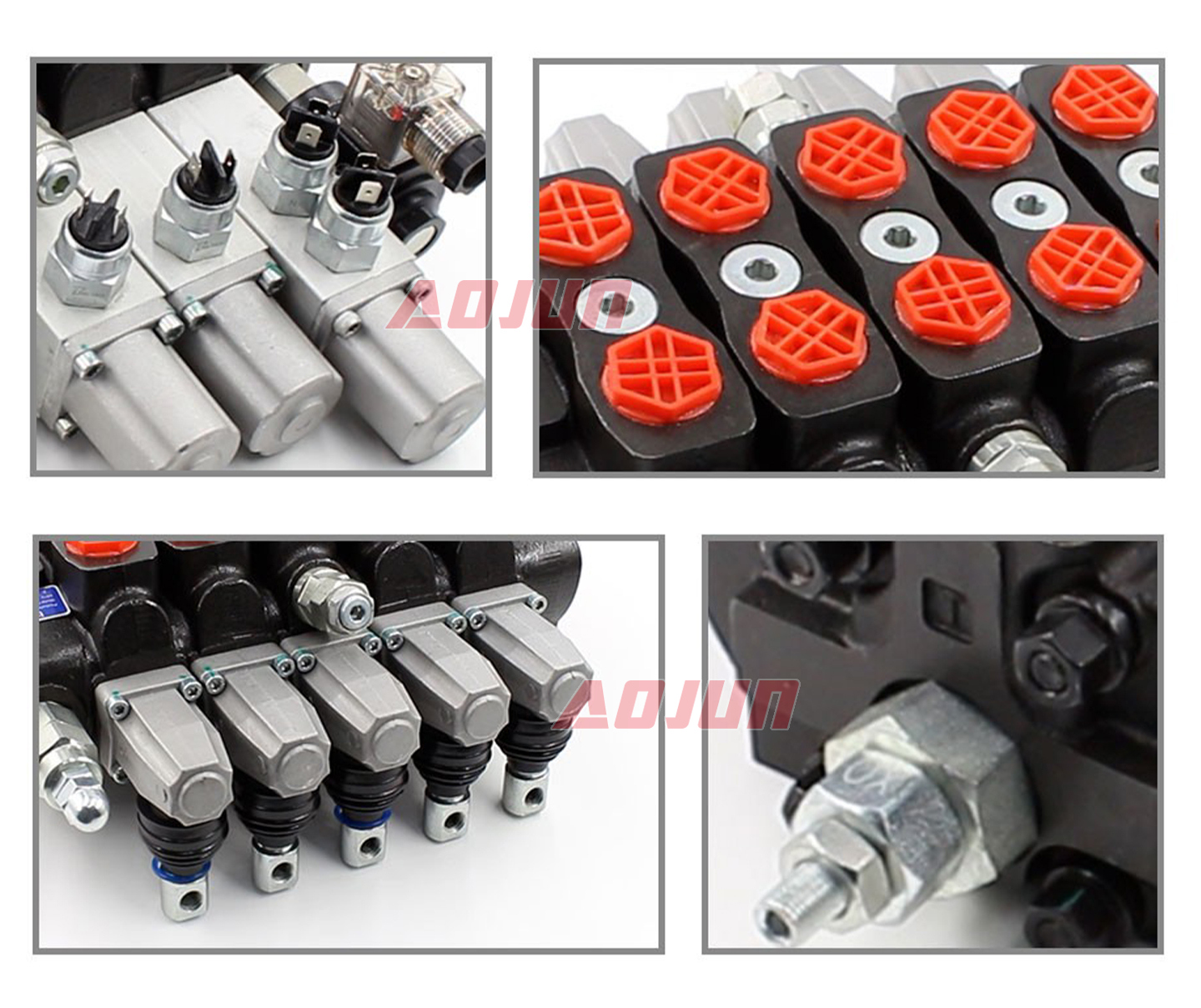

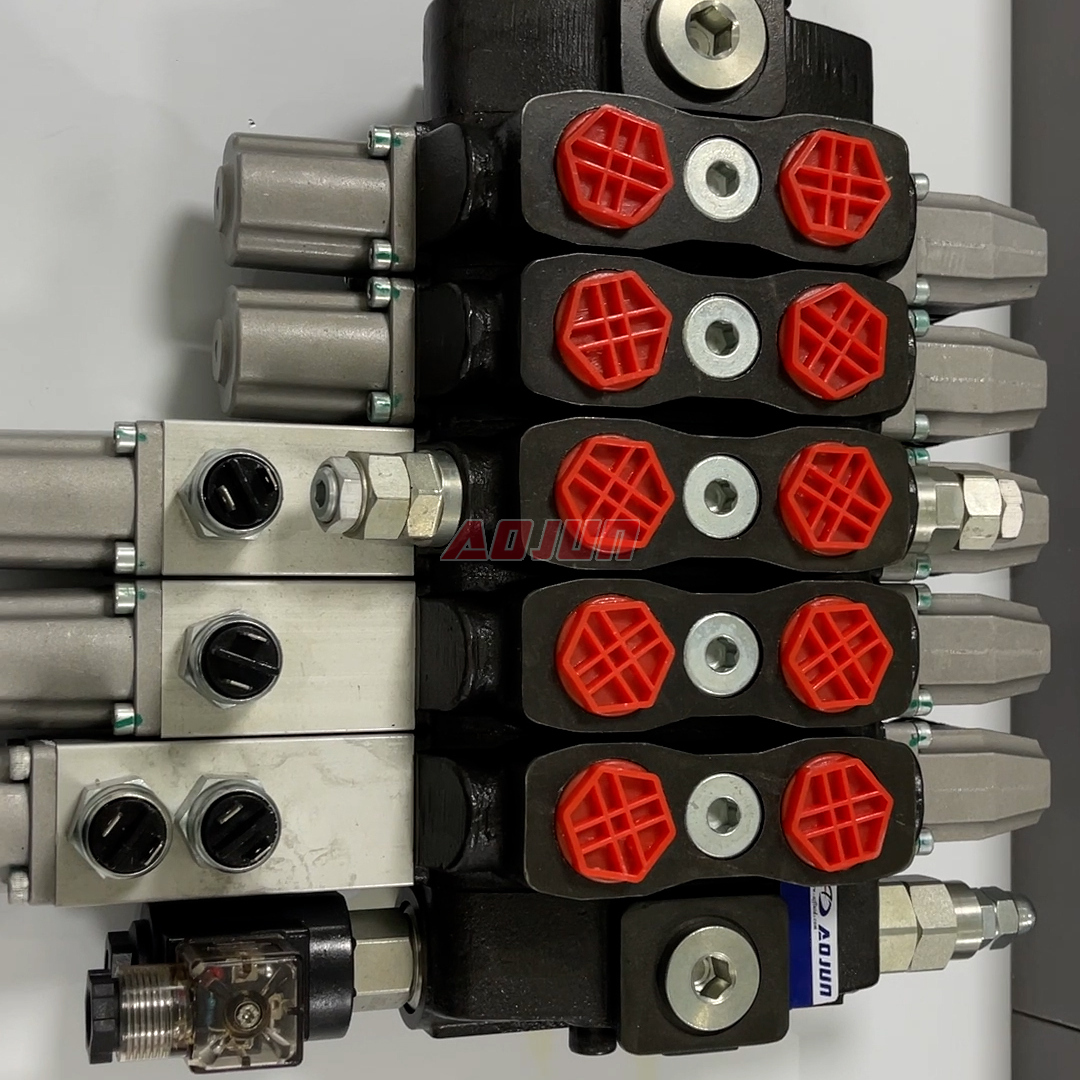

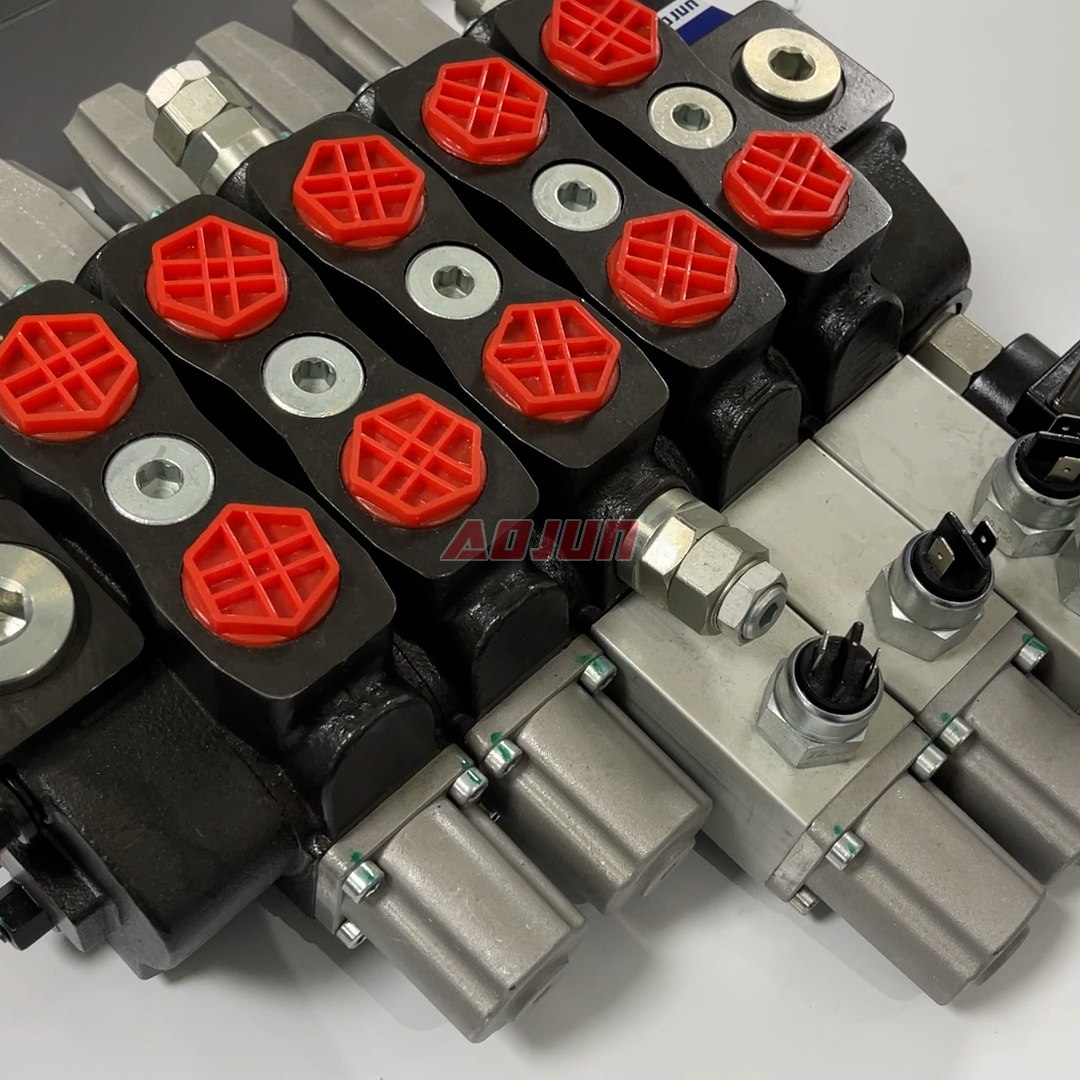

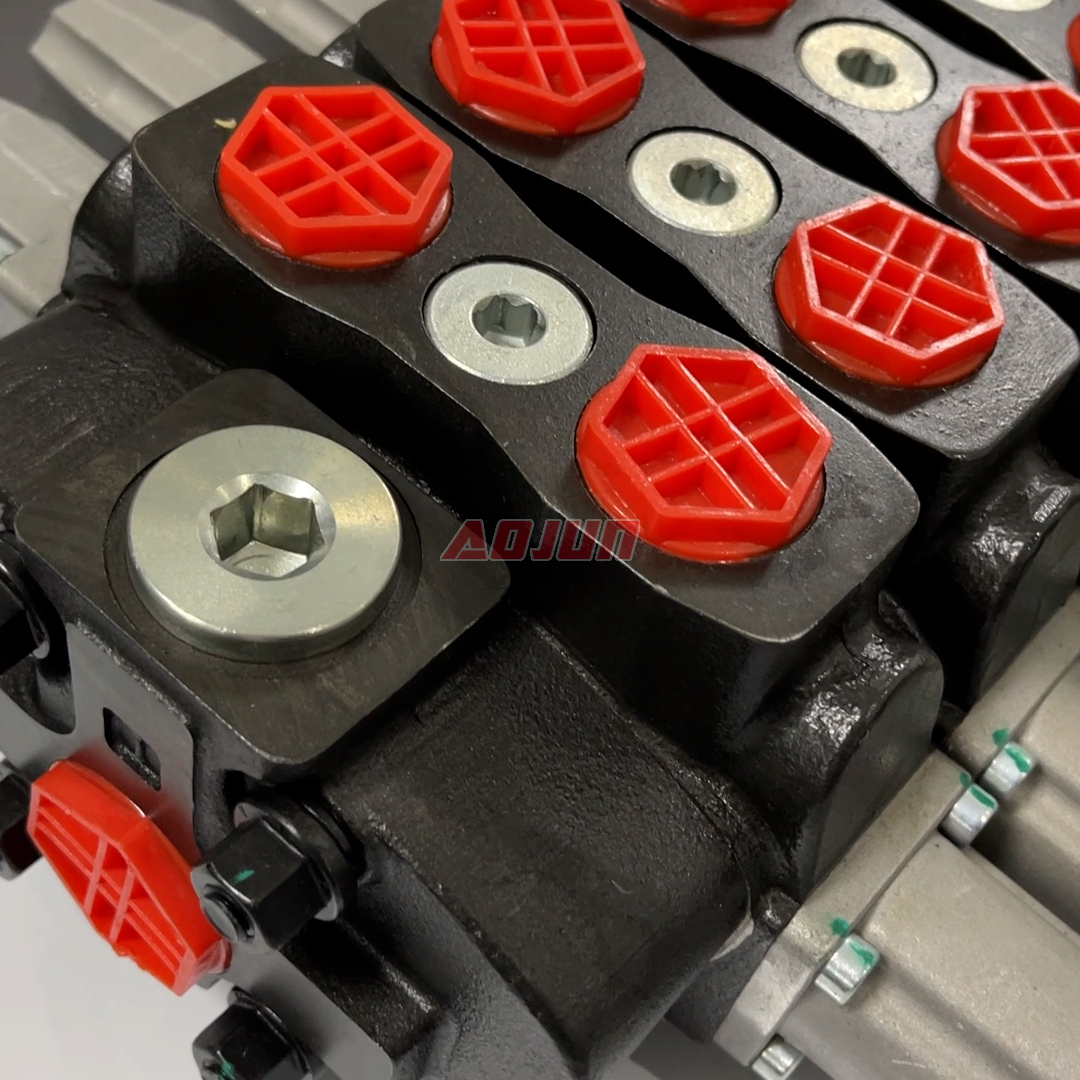

This manual, 5-spool sectional valve is designed for multi-function mobile equipment requiring stable flow control and rugged durability. Rated flow is 90 L/min (23.8 gpm) with maximum pressure up to 350 bar (and 250 bar for specified circuits), suitable for operating multiple actuators such as boom, bucket, steering, stabilizers, clamps, and auxiliary lines. The sectional (stackable) structure supports flexible configuration and easier service compared with one-piece designs. It operates across a wide hydraulic oil viscosity range (12–400 cSt) and withstands harsh ambient temperatures (-40°C to +80°C), making it suitable for outdoor and cold-climate applications. We support OEM/ODM manufacturing, private label, customization, bulk wholesale supply, and global distribution partnerships with distributors, agents, and traders.
| SD8 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1/2, G3/4, SAE 10 |
| Outlet Port | G1/2, G3/4, SAE 10, 3/4 NPT |
| Port Size | G1/2, SAE 10 |
We provide OEM/ODM services. When your product orders reach a certain value, we can offer a variety of customization services, including labels, packaging, product colors, and more.
We support multiple currencies and diverse payment methods, such as T/T, L/C, Alibaba platform, China Manufacturing Payment Platform, bank transfer, and more.
We can provide samples, and the sample costs will be refunded to you in the form of deducted payments in the later stages.
