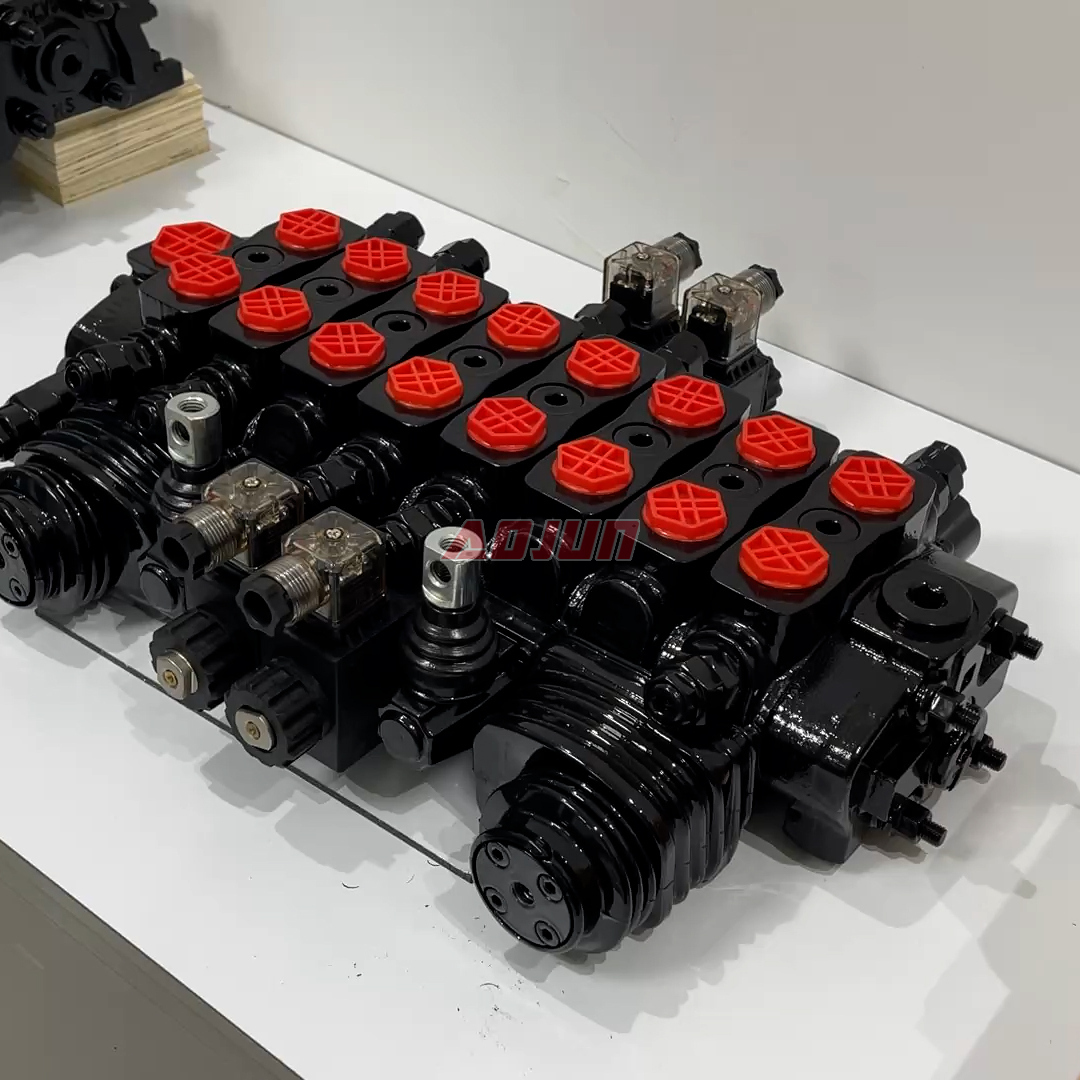

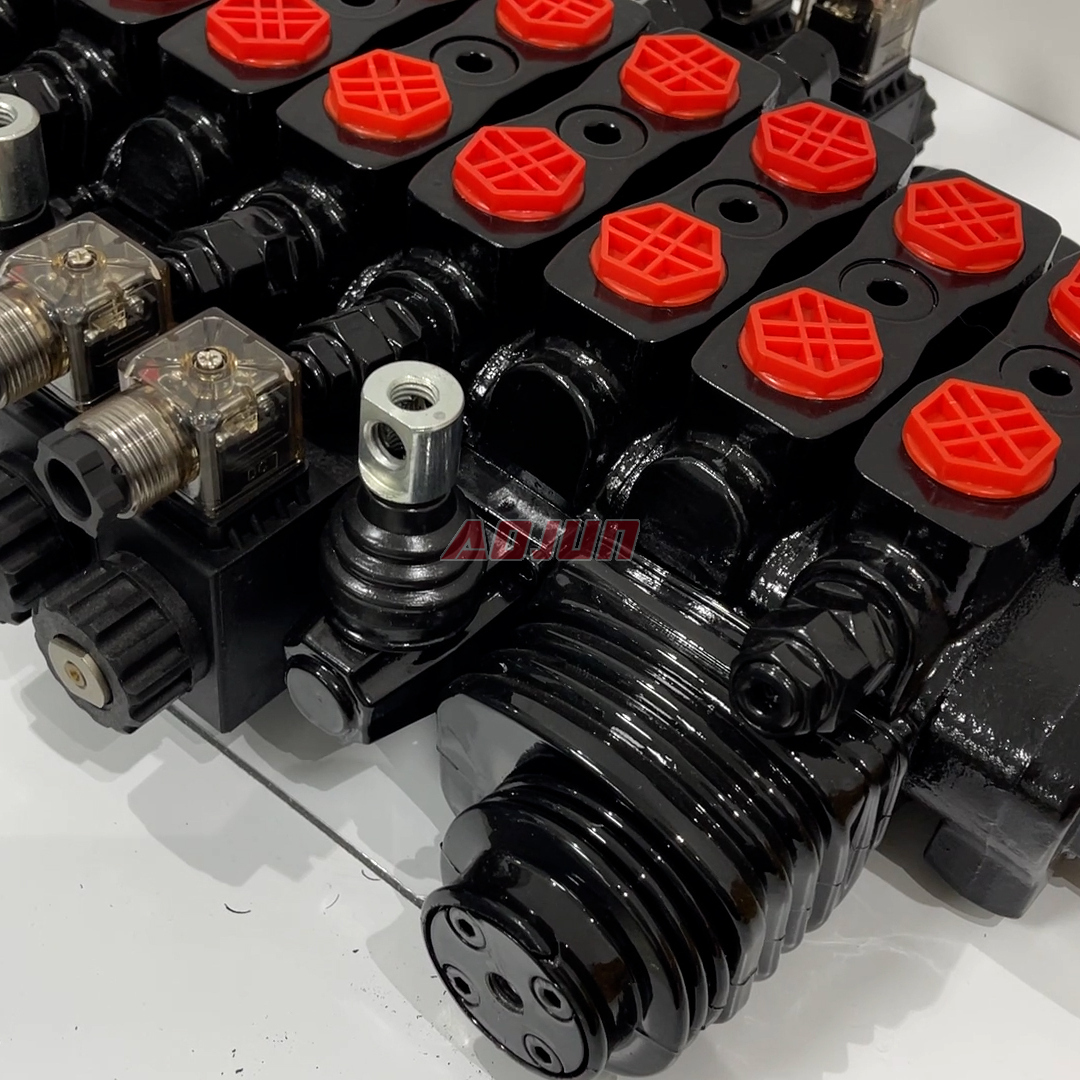

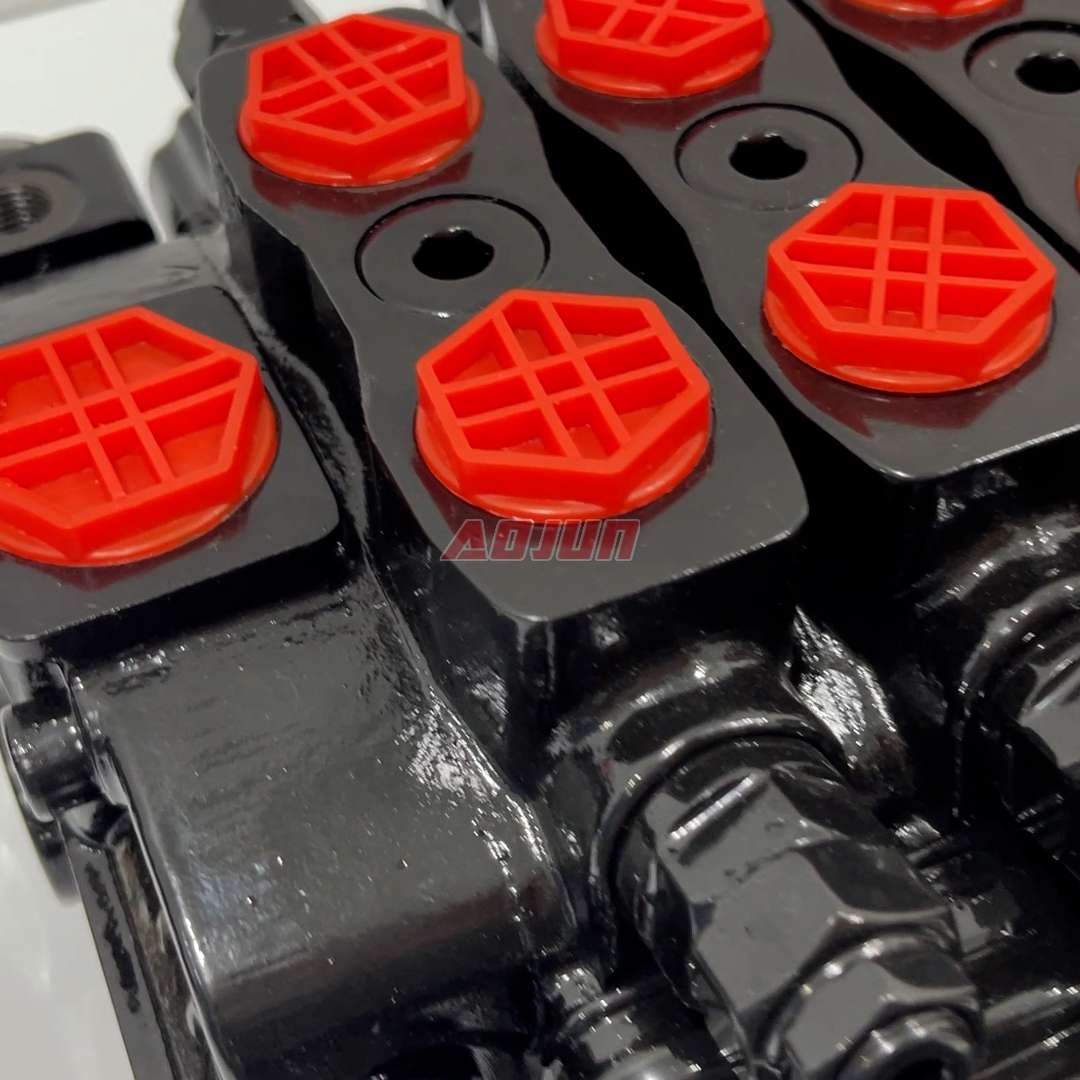

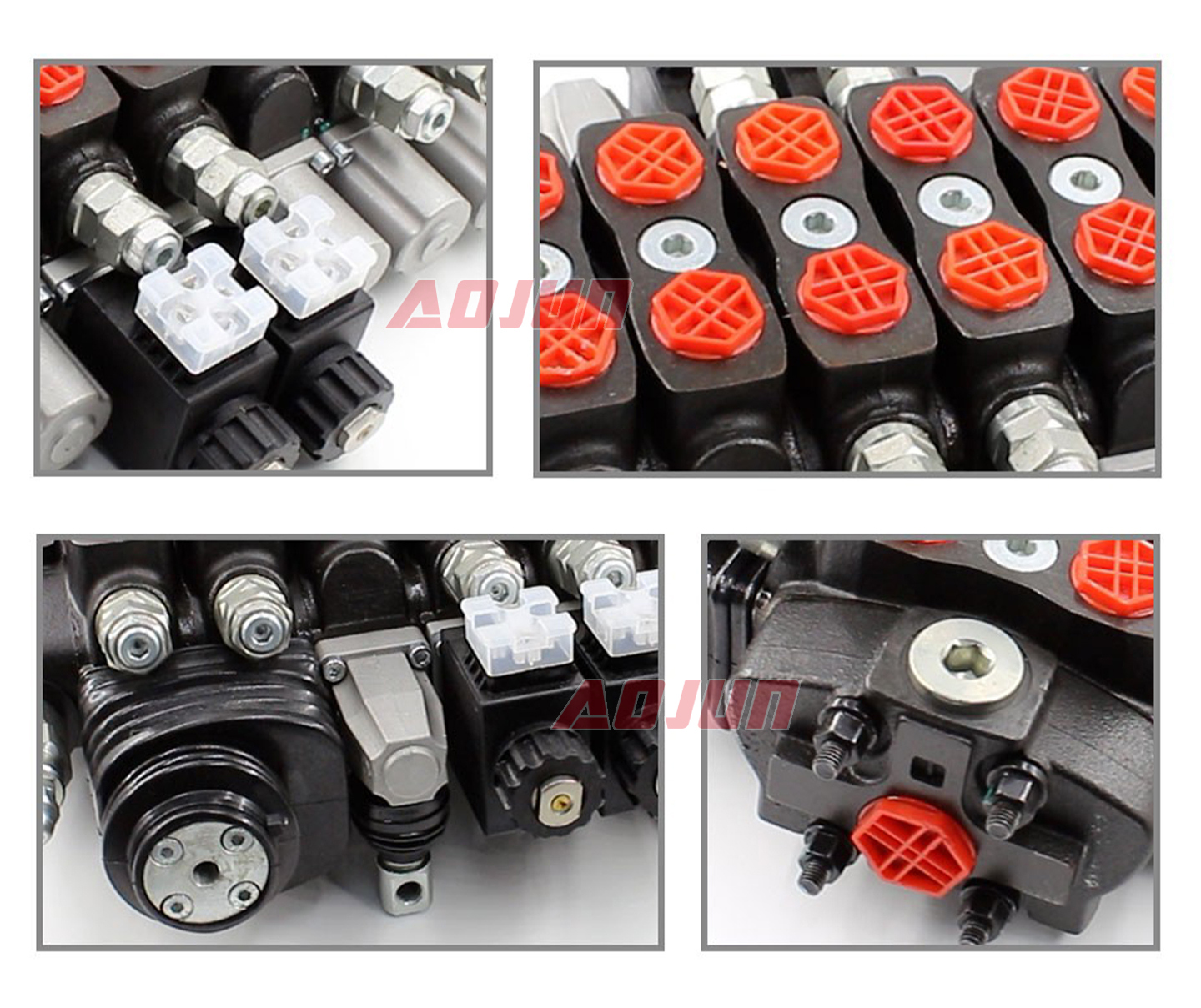

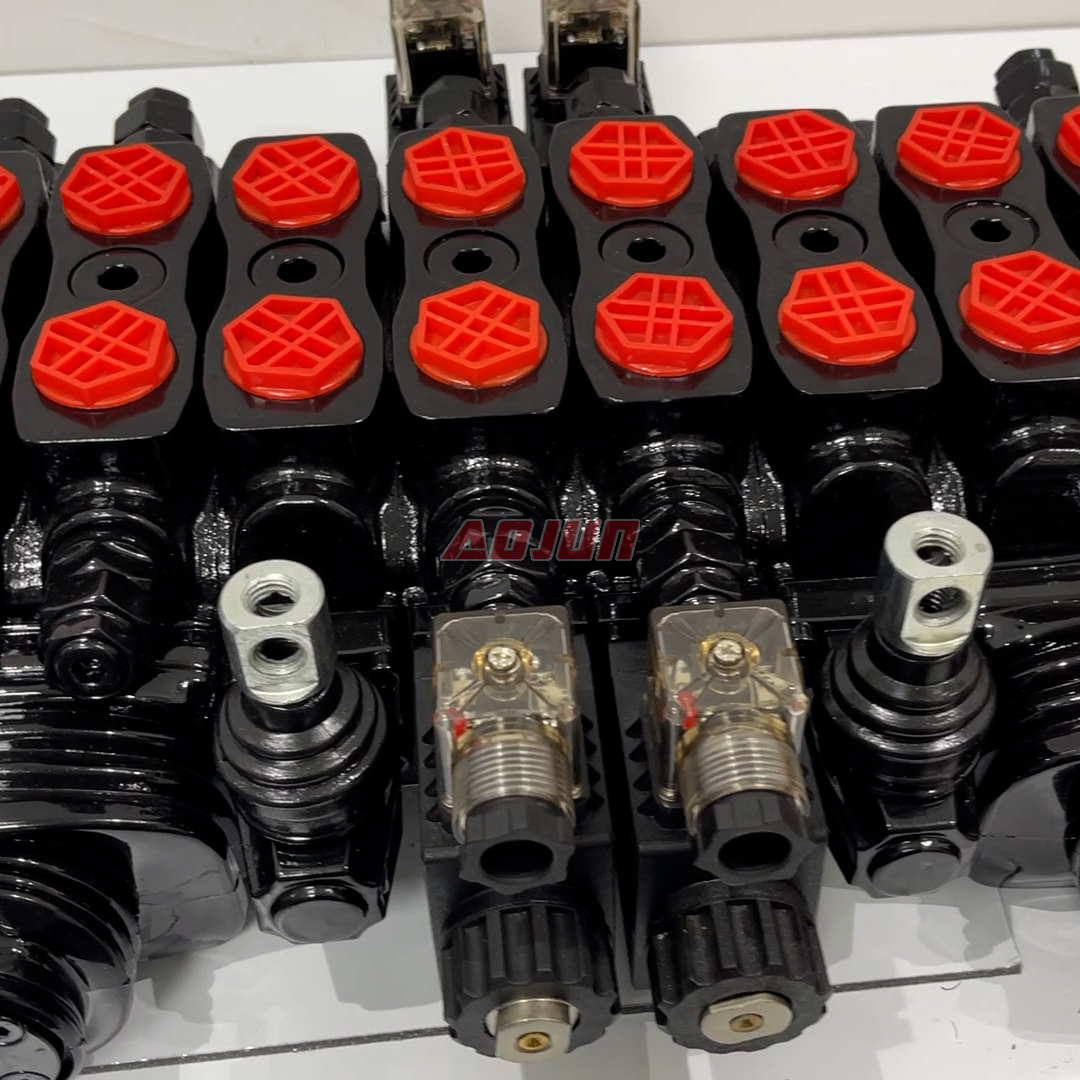

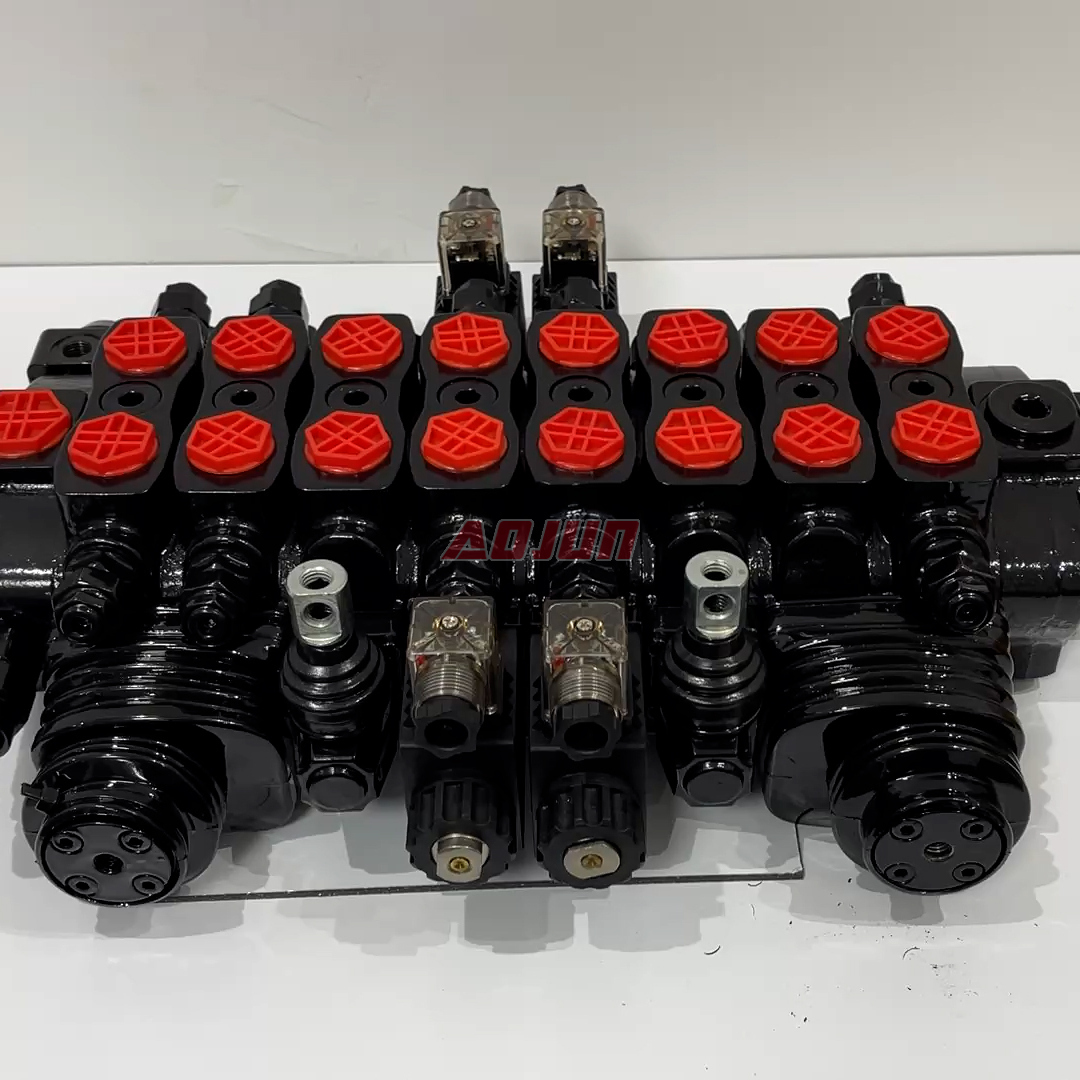

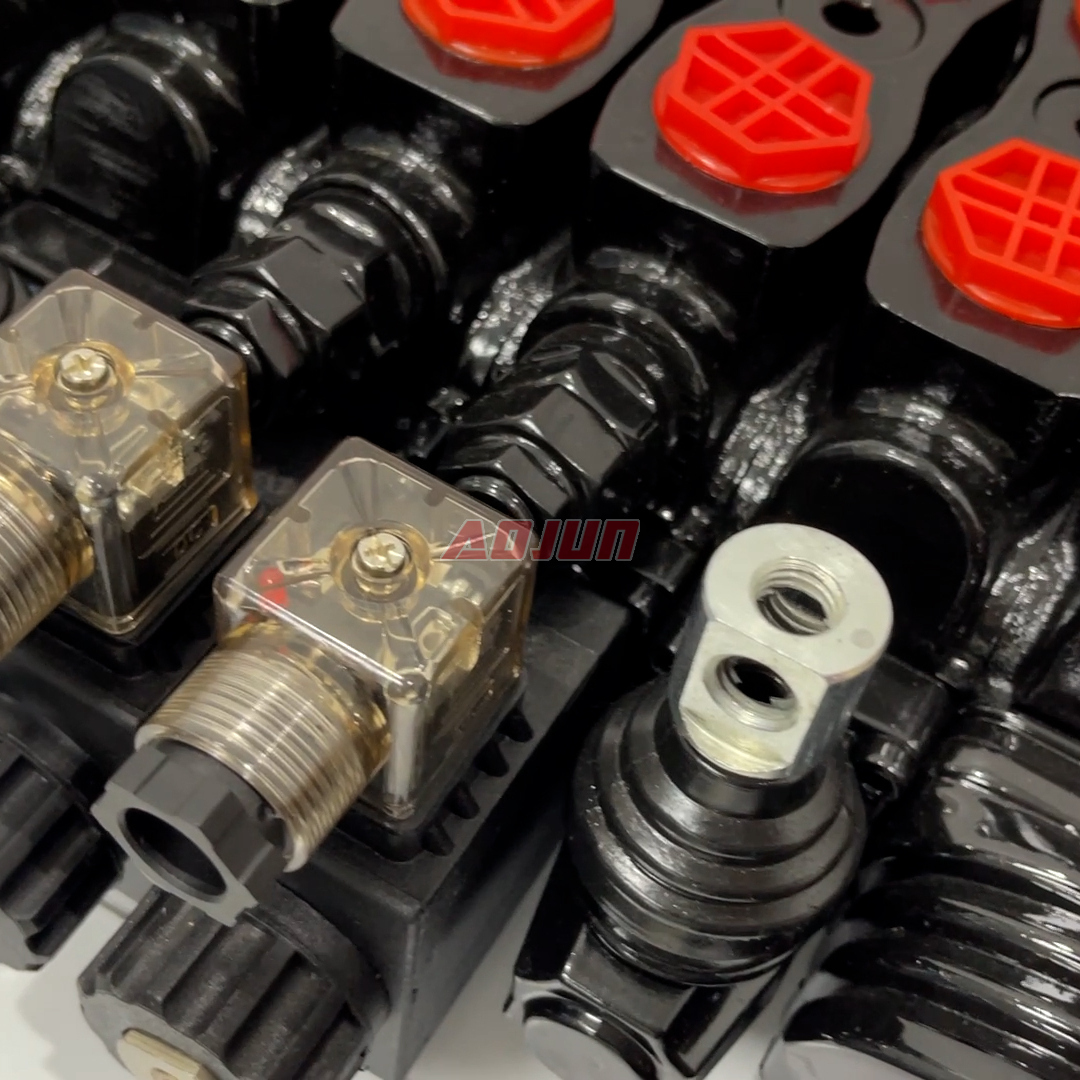

An 8-section sectional directional control valve featuring dual actuation (solenoid and joystick), delivering 90 L/min flow with up to 350 bar maximum pressure. Designed for mobile hydraulic equipment requiring multi-function control across wide viscosity and extreme ambient temperatures.
global shipping world wide
Online Service For 24 X 7
Support OEM customization
This 8-spool sectional valve combines electric solenoid actuation with joystick control to manage multiple hydraulic functions from a single valve bank. With a rated flow of 90 L/min and maximum pressure up to 350 bar (depending on configuration), it suits demanding mobile hydraulics where stable control and high pressure capability are required.
Key advantages:
- Dual control method: supports solenoid operation and joystick/manual control for flexible machine integration.
- Sectional structure: modular 8-section layout helps match multi-actuator systems (boom, bucket, auxiliary circuits, steering, attachments, etc.).
- Wide operating window: handles 12–400 mm²/s oil viscosity and -40°C to +80°C ambient temperatures for cold-start and high-heat environments.
- Typical applications: forklifts/telehandlers, skid steers, mini/midi excavators, wheel loaders, backhoe loaders, aerial platforms, graders, and tractor front-end loaders.
Supply & customization: available for manufacturing, OEM/ODM, private label, and wholesale. Valve configuration can be tailored to machine needs (e.g., spool functions and porting arrangements) for distributors, agents, and trading partners serving global markets.
| SD8 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Rated Flow | 90 L/min (23.8 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1/2, G3/4, SAE 10 |
| Outlet Port | G1/2, G3/4, SAE 10, 3/4 NPT |
| Port Size | G1/2, SAE 10 |
